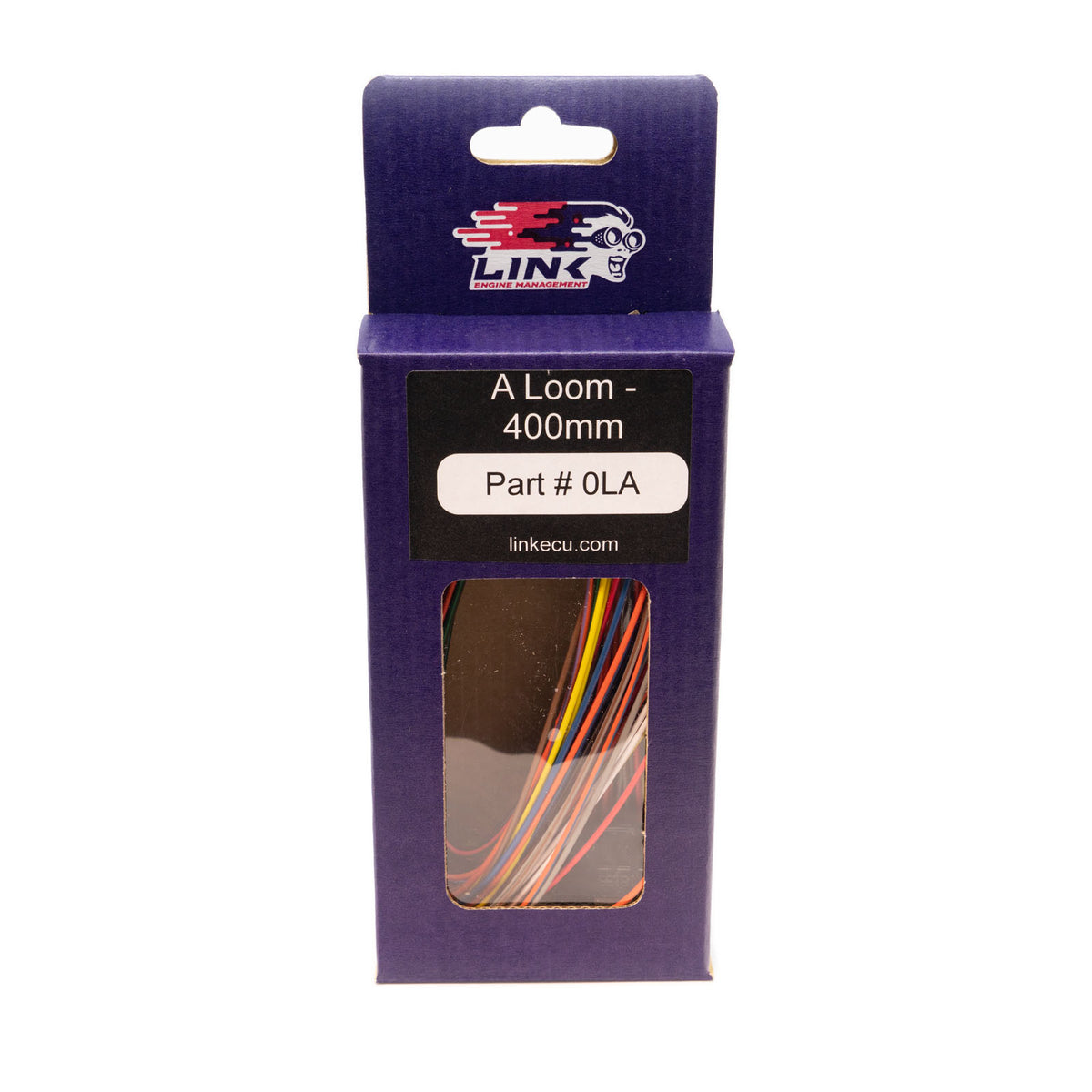

A Loom (short) - 400mm

Find a Dealer

Find an Installer

Search near you

To ensure the best possible experience with our products, we recommend you engage one of our official Dealers for installation and set-up.

Contact a Link dealer near you to find out more

You may also need
Overview

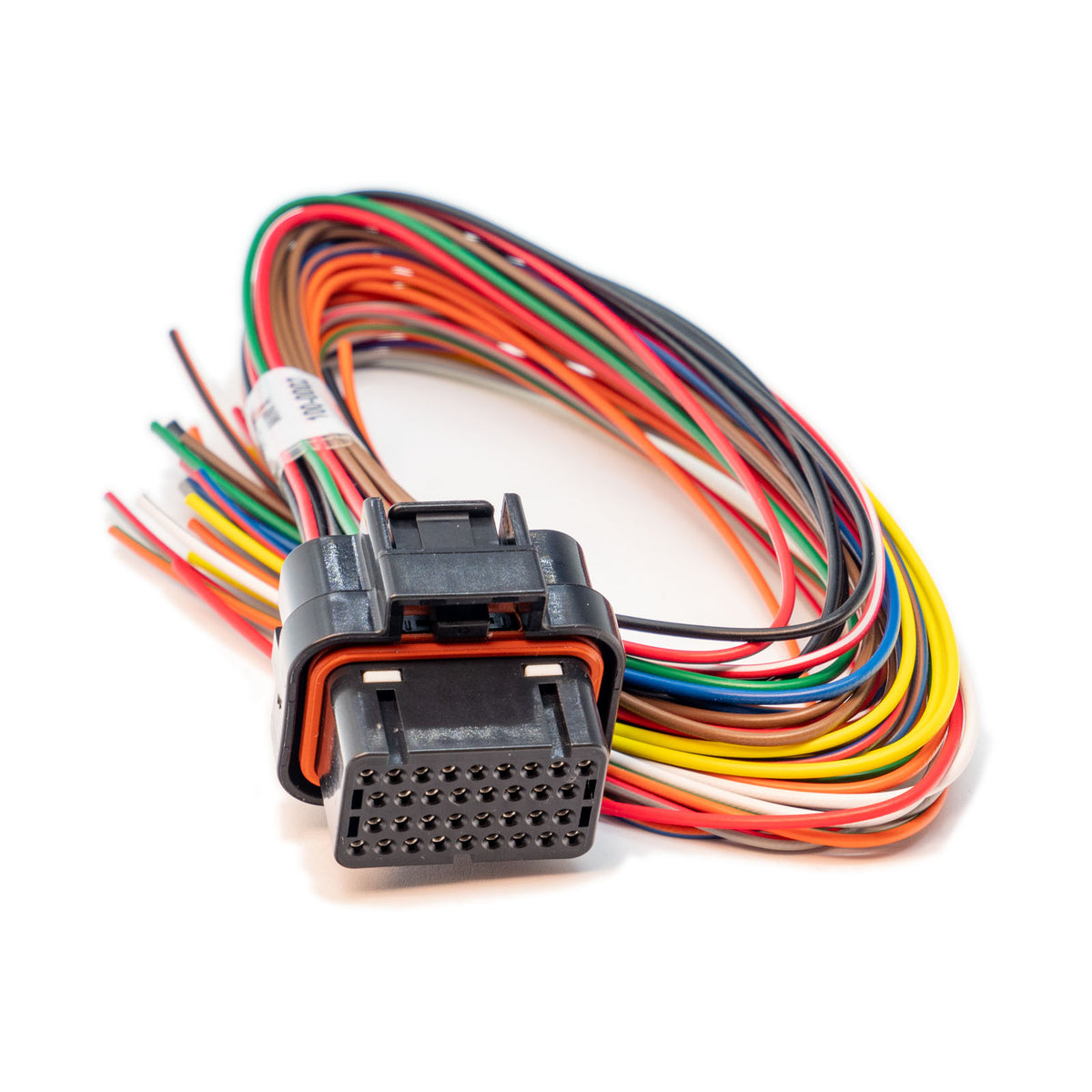

0.4m 'A' Short Loom for Link G4, G4+, G4X and G5 Wire-in ECUs

A high-quality, pre-assembled wiring loom for custom installations using compatible Link wire-in ECUs. Also commonly referred to as a wiring harness or flying lead, it is terminated with a SUPERSEAL 1.0 connector at one end, and is unterminated at the other. The 0.4m Link A Loom provides a convenient and cost-effective starting point for a professional ECU installation without the time, tooling and expense required to terminate the ECU connector yourself.

Ideal for patch harnesses and adapters. The 0.4m length makes this loom particularly well suited to patch harnesses, ECU conversions, adapters and other applications where a full-length flying lead is unnecessary.

While designed for compatible Link wire-in ECUs, this loom is not limited to Link ECU applications. It can also be used for custom wiring projects requiring the same TE Connectivity SUPERSEAL 1.0 connector and compatible pin configuration.

Please note: Link Wire-in ECUs that use two ECU connectors require both an A Loom and B Loom. The 0.4 B Loom is sold separately (PN 101-0003).

Models Supported

All Link G5 Wire-in ECUs

All Link G4X Wire-in ECUs

Link G4+ Atom and Atom II

Link G4+ Monsoon

Link G4+ Storm Blue & Storm Black

Link G4+ Fury

Link G4+ Xtreme

Link G4+ Thunder

Link G4 Storm

Link G4 RX

Link G4 Xtreme

Vipec V44

Vipec i44

Vipec V88

Vipec i88

Warnings

 Does not suit earlier G4 (Pre G4+) Atom ECUs.
Features

All wires are colour coded to match the Link Wire-in manuals.

All positions are populated.

This loom is also available in 2.5m and 5m lengths.

Specifications

Highlights

The Link looms use 0.75mm2 wire for the 2 red wires (pin A5 & B5) and the 4 black power grounds (A25,A34,B25,B34). All other wires are 0.5mm2.

Product Dimensions

400mm(L)x40mm(W)x30mm(H)

15.75in(L)x1.57in(W)x1.18in(H)

Product Weight

140 grams (4.94 ounces)

Electrical

Operating Voltage Range: 0-24V

Maximum Input Voltage: 60V

Maximum Continuous Current Draw: 5A & 14A

Gauges of wire: 20AWG/0.5mm² & 19AWG/0.75mm²

What's in the Box

Loom A 400mm Cable

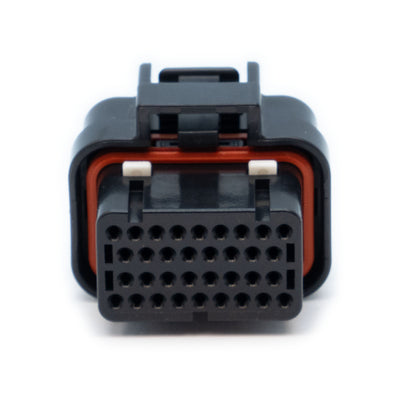

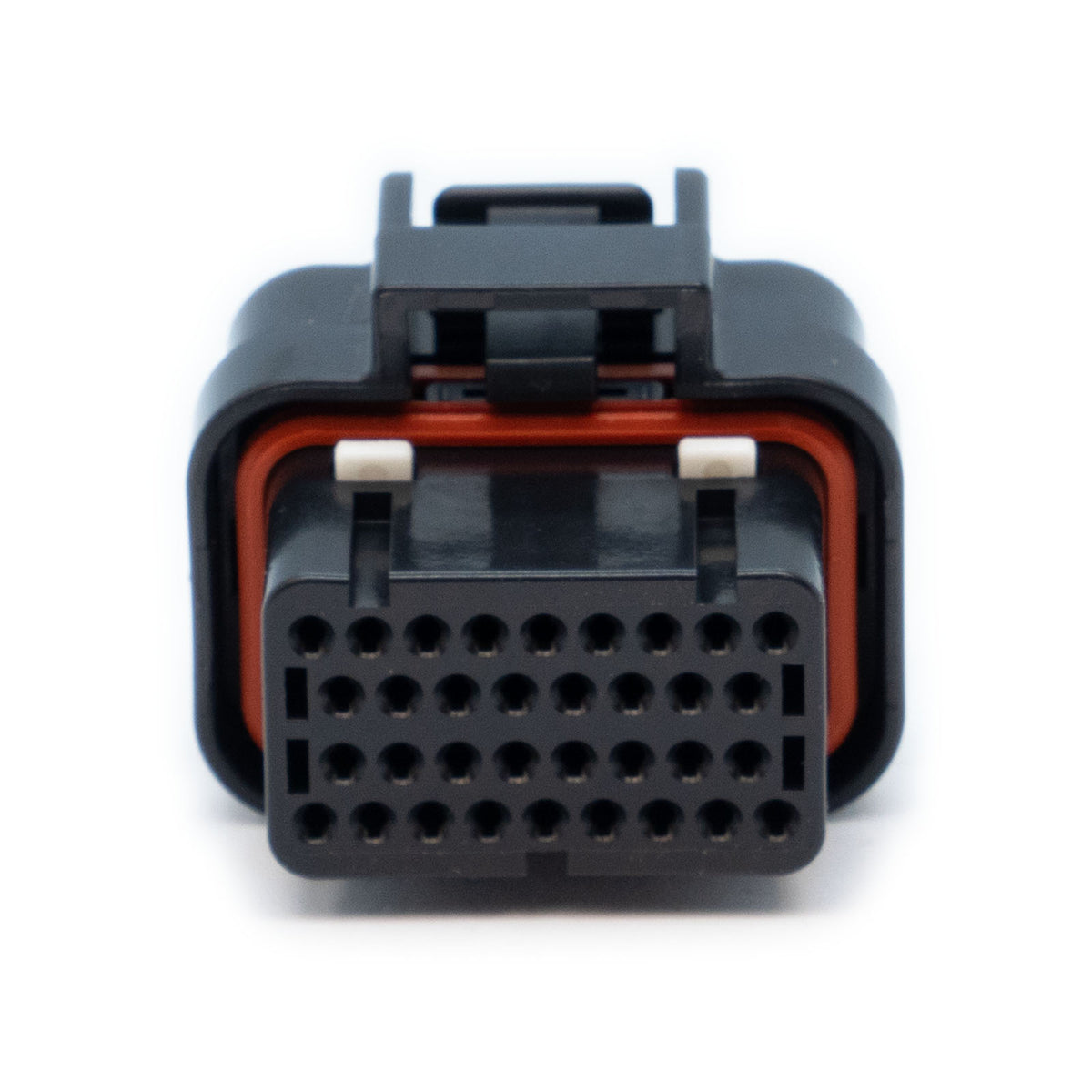

Connector

Link A SUPERSEAL 1.0
