SKU:101-0015

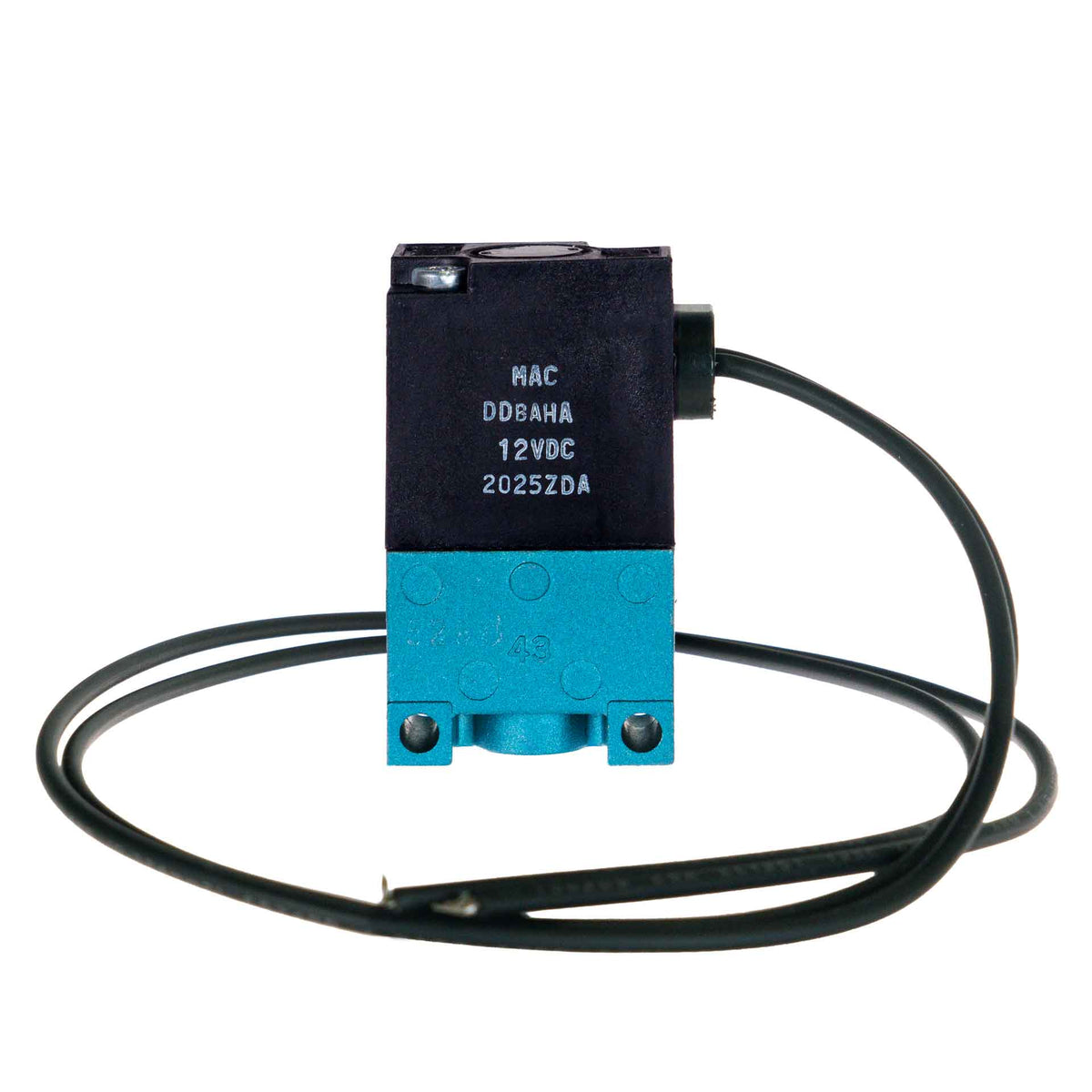

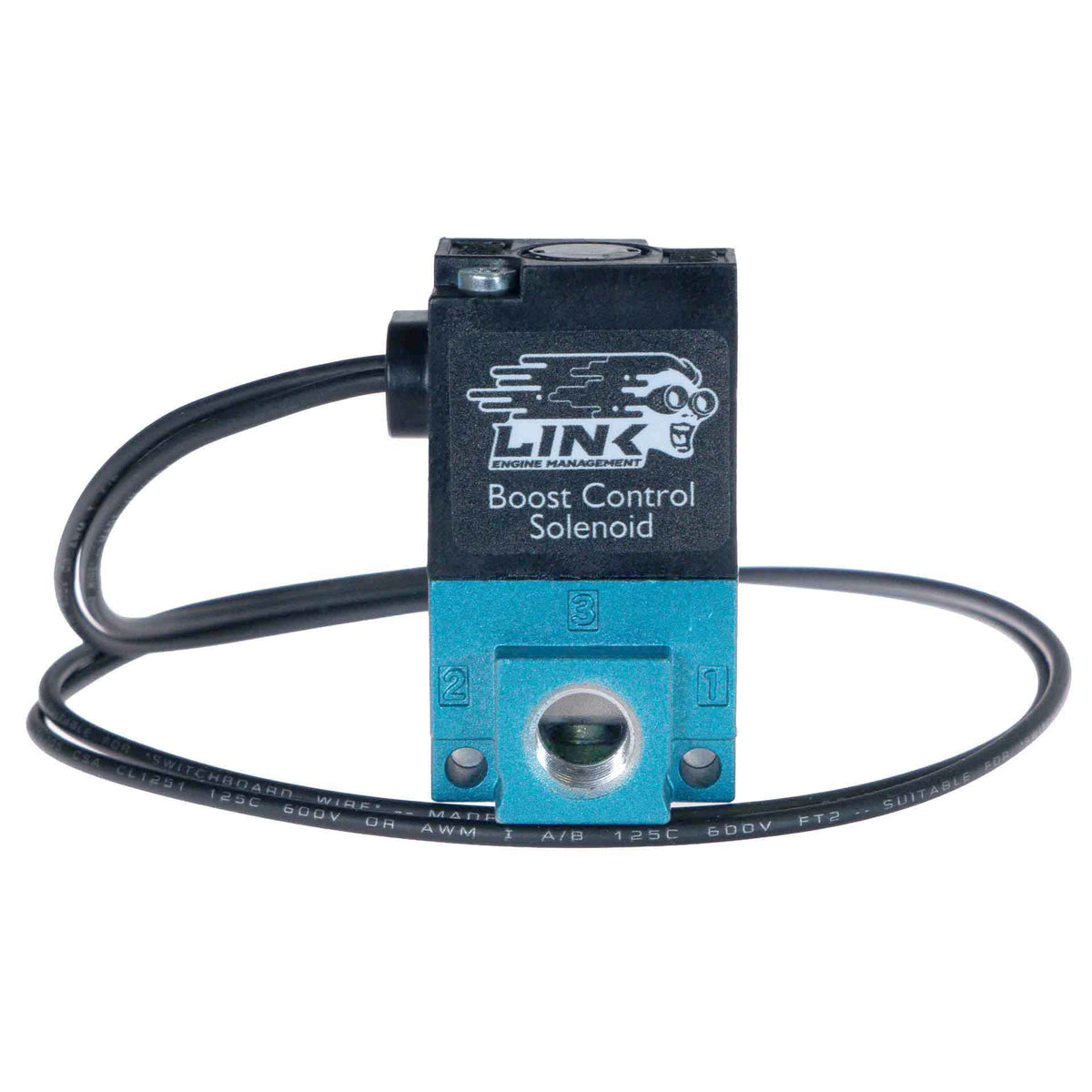

AL TEST Boost Control Solenoid - 3 Port (3BCS)
Three Port Boost Control Solenoid
Find an Installer
Search near youTo ensure the best possible experience with our products, we recommend you engage one of our official Dealers for installation and set-up.
Contact a Link dealer near you to find out more
You may also need
Overview
The Link 3-Port Boost Control Solenoid provides precise and reliable electronic boost control for a wide range of turbocharged applications. Compatible with internal and external wastegates, as well as single or multiple wastegate configurations, it allows for granular control over boost curves and enables boost levels to be increased up to 2-3 times the base wastegate spring pressure. Its fast, consistent response and proven design make it the ideal solution for the majority of electronic boost control applications.
Models Supported |
Suitable with all Link ECUs. For a wider range of boost applications from low to high or using a 2-port internal or external wastegate, consider our 4-Port boost control solenoid (PN 101-0016). |
Warnings |
Spare Auxiliary Output, switched to ground. 12V ignition-switched power supply. MAP sensor. Open or Closed Loop Boost Control configured in the ECU. No additional boost controller required. |
Features
Compatible with all Link ECU's.
Open loop boost control.
Closed loop boost control.
Can be used with single or multiple wastegates (Using T junction).
Compatible with internal or external wastegates.
Fast and consistent response times.
High shifting forces.
MAC 35 series - Rugged, reliable and long operational life.
Short stroke, high flow.
Balanced poppet, immune to variations of pressure.
Specifications
Highlights | Series: MAC 35 Max Pressure: 120 PSI Port Size: 1/8" BSPPL Voltage: 12 VDC (5.4W) Coil Leads: 18" (45cm) Included Accessories: 3 x 1/8" BSP hose tail fittings for easy connection |
Product Dimensions | 50mm(L)x20mm(W)x500mm(H) 1.97in(L)x0.79in(W)x19.69in(H) |
Product Weight | 110 grams (3.88 ounces) |
Electrical | Operating Voltage Range: 10.2-13.2V Maximum Continuous Current Draw: 495mA |
Misc. | We recommend starting with a PWM Frequency of 20Hz for this Boost control solenoid. A detailed description of setting up boost control can be found in the help file in our PCLink software which is available for free download. |

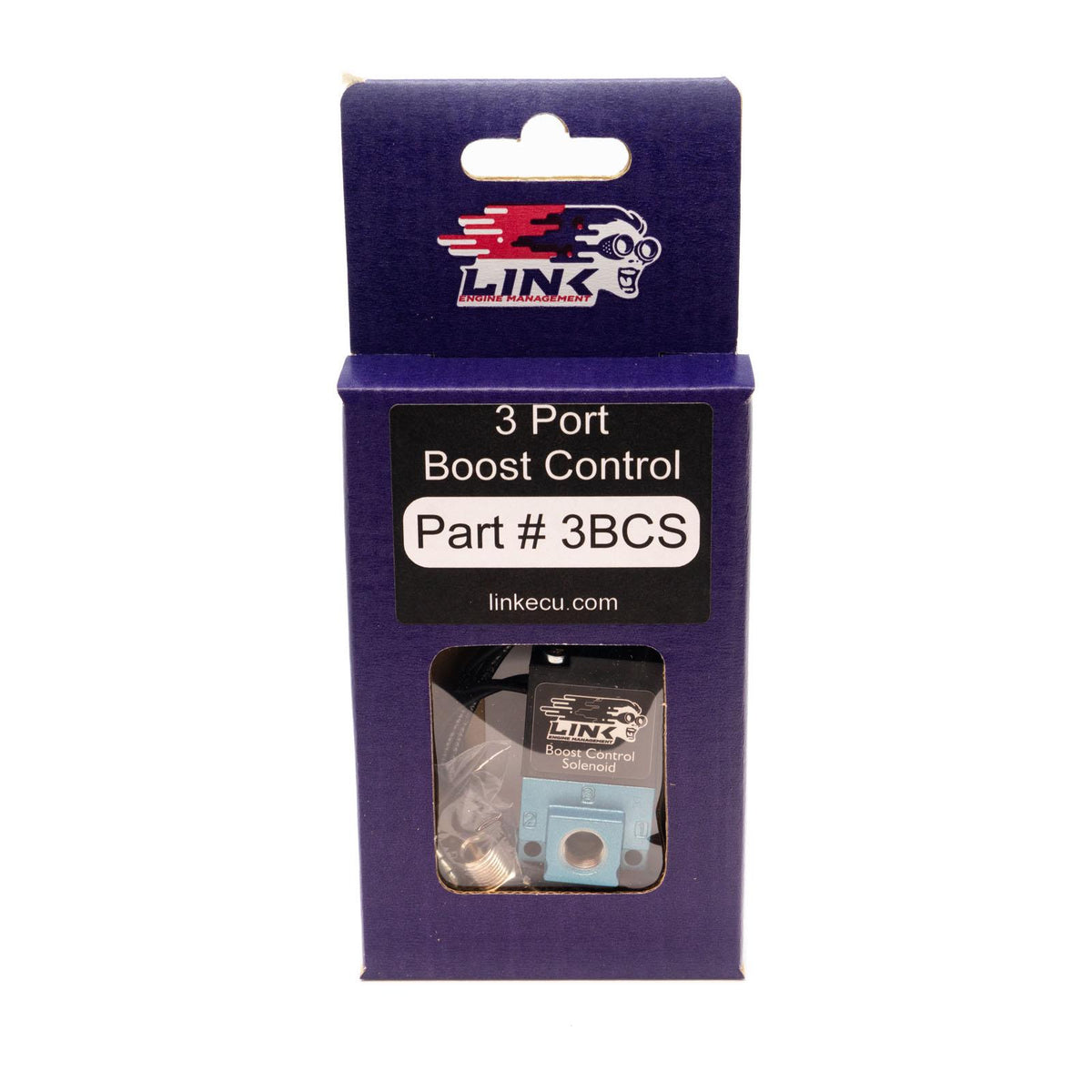

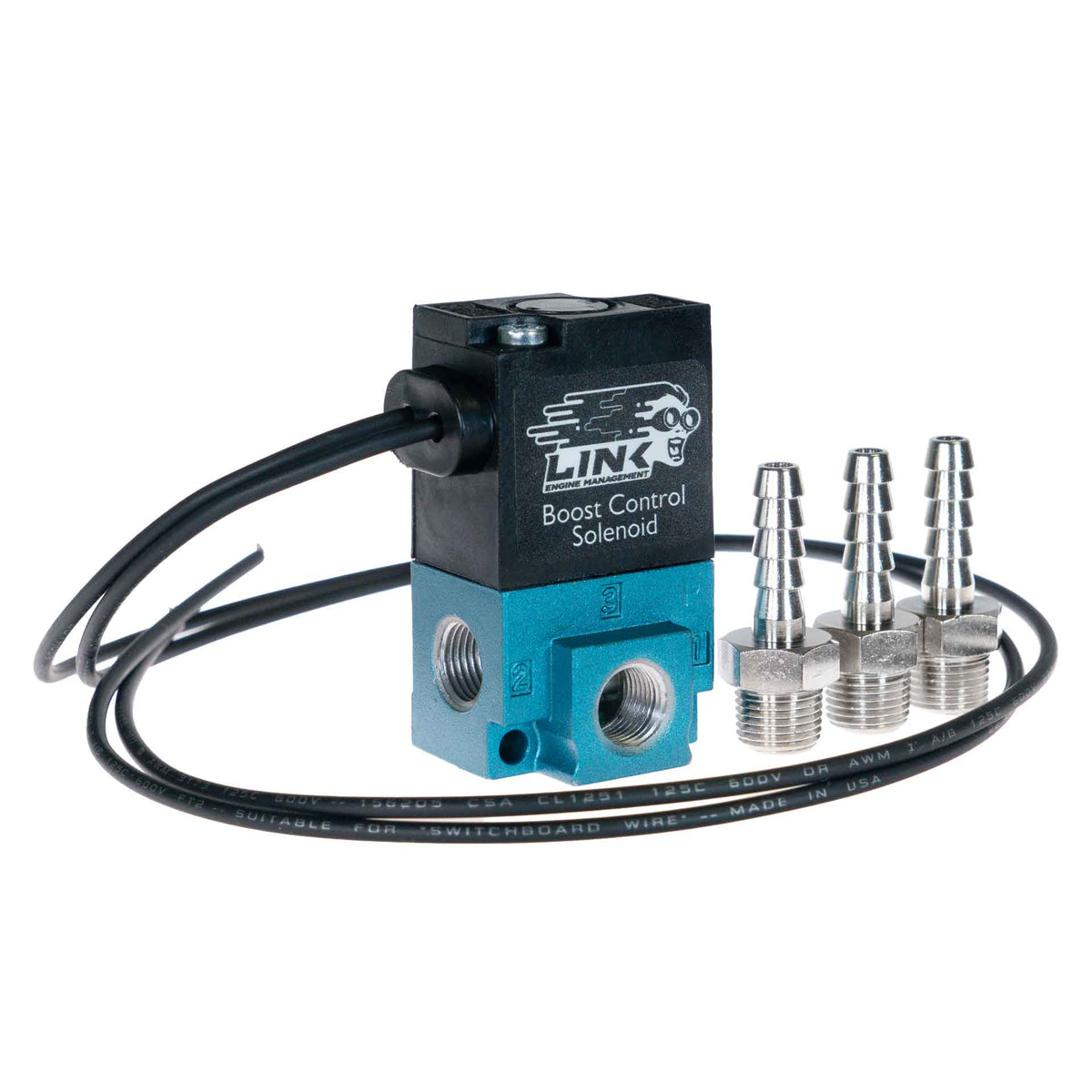

What's in the Box | Boost Control Solenoid (3 port) 3 x 1/8" BSP hose tail fittings Instructions |
