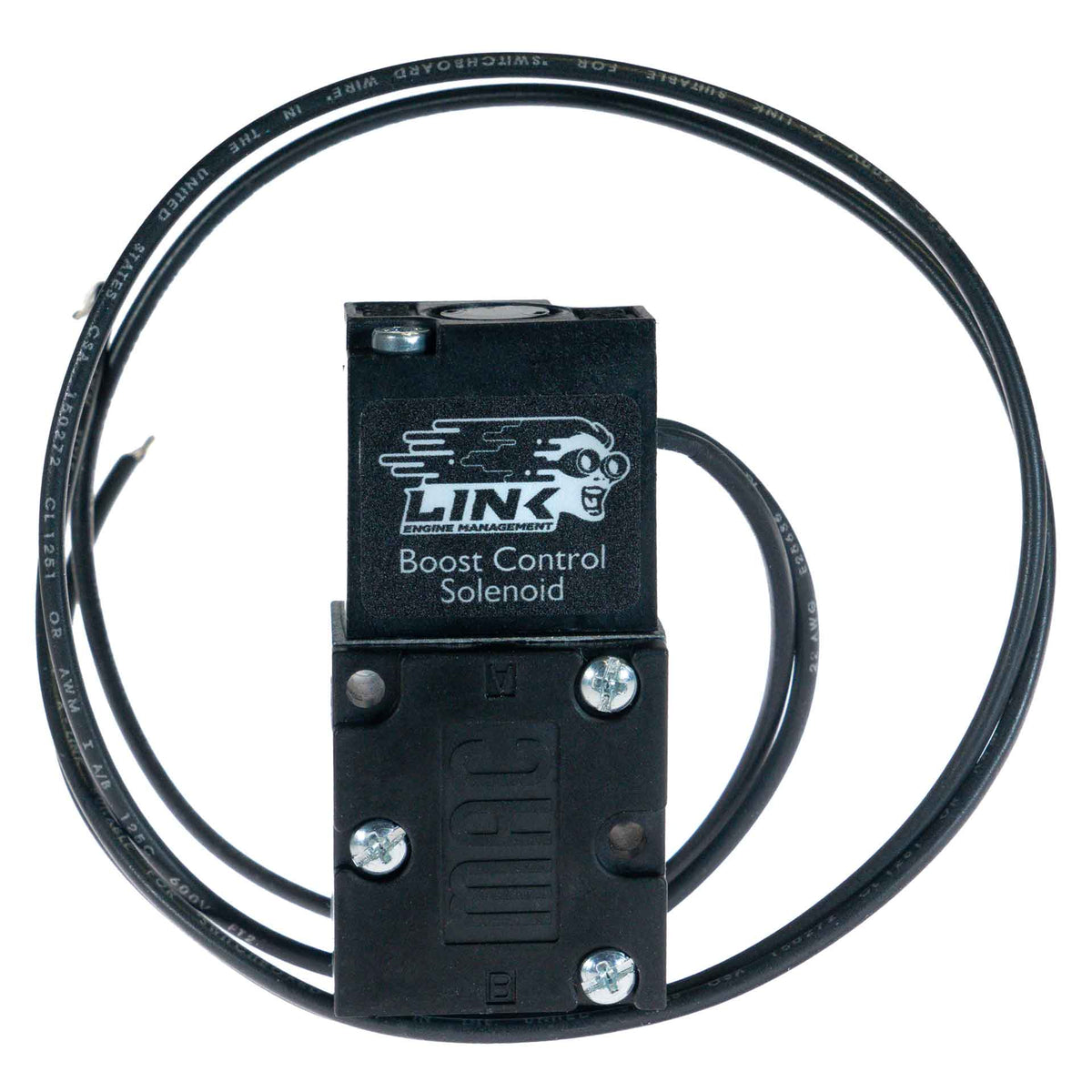

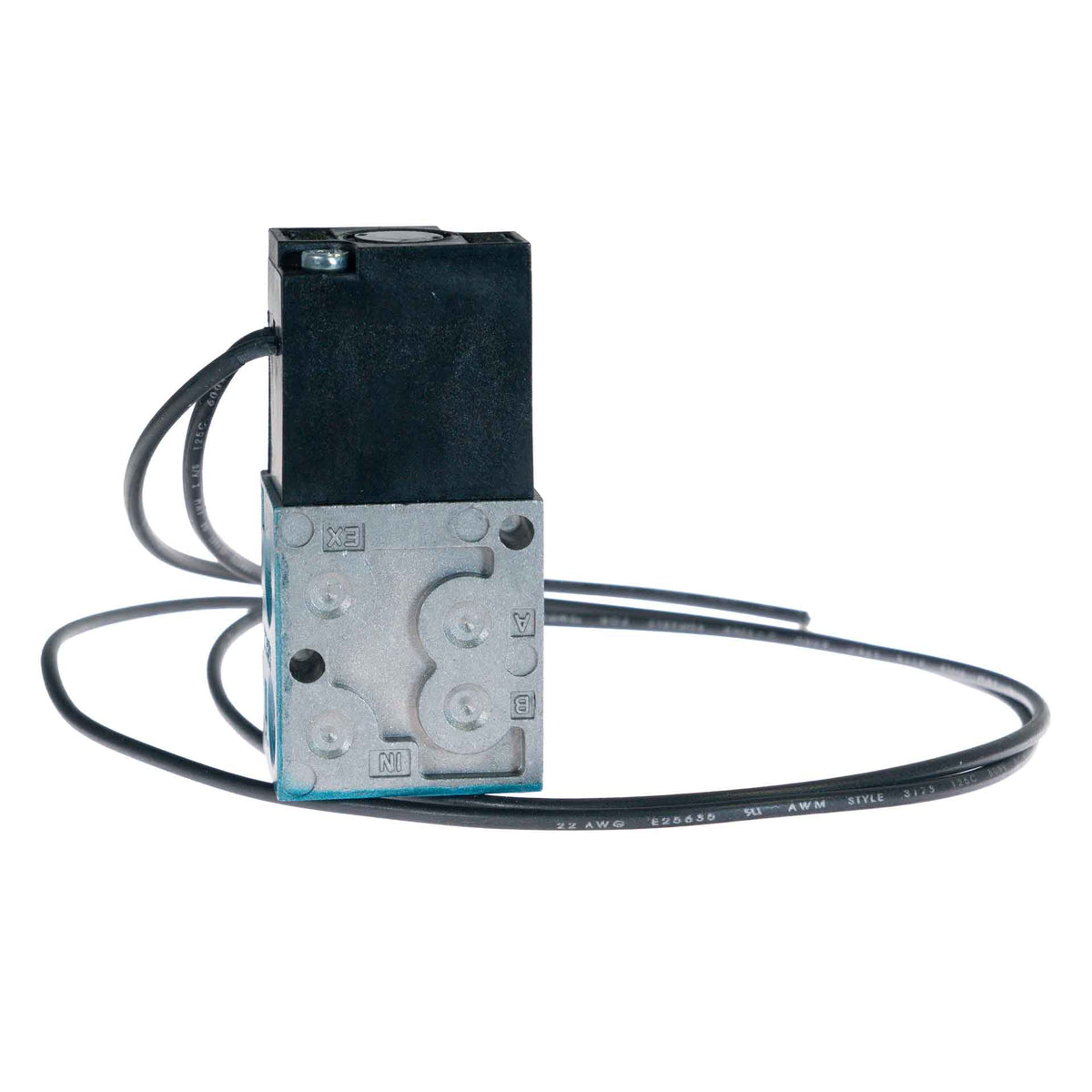

Boost Control Solenoid - 4 Port (4BCS)
Four Port Boost Control Solenoid
Find an Installer
Search near youTo ensure the best possible experience with our products, we recommend you engage one of our official Dealers for installation and set-up.
Contact a Link dealer near you to find out more
You may also need
Overview
The Link 4-Port Boost Control Solenoid provides precise and reliable electronic boost control for high-boost turbocharged applications. Compatible with internal and external wastegates, as well as single or multiple wastegate configurations, it allows significantly higher boost levels than a standard 3-port configuration, reaching approximately 6-7 times the base wastegate spring pressure. Its fast, consistent response and proven design make it the ideal solution for applications requiring higher boost levels.
Models Supported |
Suitable with all Link ECUs. For applications that do not require the wider boost range of a 4-port solenoid, consider our 3-Port Boost Control Solenoid (PN 101-0015). |
Warnings |
Spare Auxiliary Output, switched to ground. 12V ignition-switched power supply. MAP sensor. Open or Closed Loop Boost Control configured in the ECU. No additional boost controller required. |
Features
Handles up to 120PSI
Compatible with all Link ECU's
Can be used with single or multiple wastegates
Fast and consistent response times
High shifting forces
MAC 45 series - Rugged, reliable and long operational life
Short stroke, high flow
Balanced poppet, immune to variations of pressure
Specifications
Highlights | Series: MAC 45 Max Pressure: 120 PSI Port Size: 1/8" BSPPL Power Requirements: 12 VDC (5.4W) with 18" (45cm) coil leads Included Accessories: 4 x 1/8" BSP hose tail fittings for easy connection |
Product Dimensions | 30mm(L)x45mm(W)x25mm(H) 1.18in(L)x1.77in(W)x0.98in(H) |
Product Weight | 135 grams (4.76 ounces) |
Electrical | Operating Voltage Range: 10.2-13.2V Maximum Continuous Current Draw: 495mA |
Misc. | We recommend starting with a PWM Frequency of 25Hz for this Boost Control Solenoid. A detailed description of setting up boost control can be found in the help file within the PCLink software which is available for free download. |

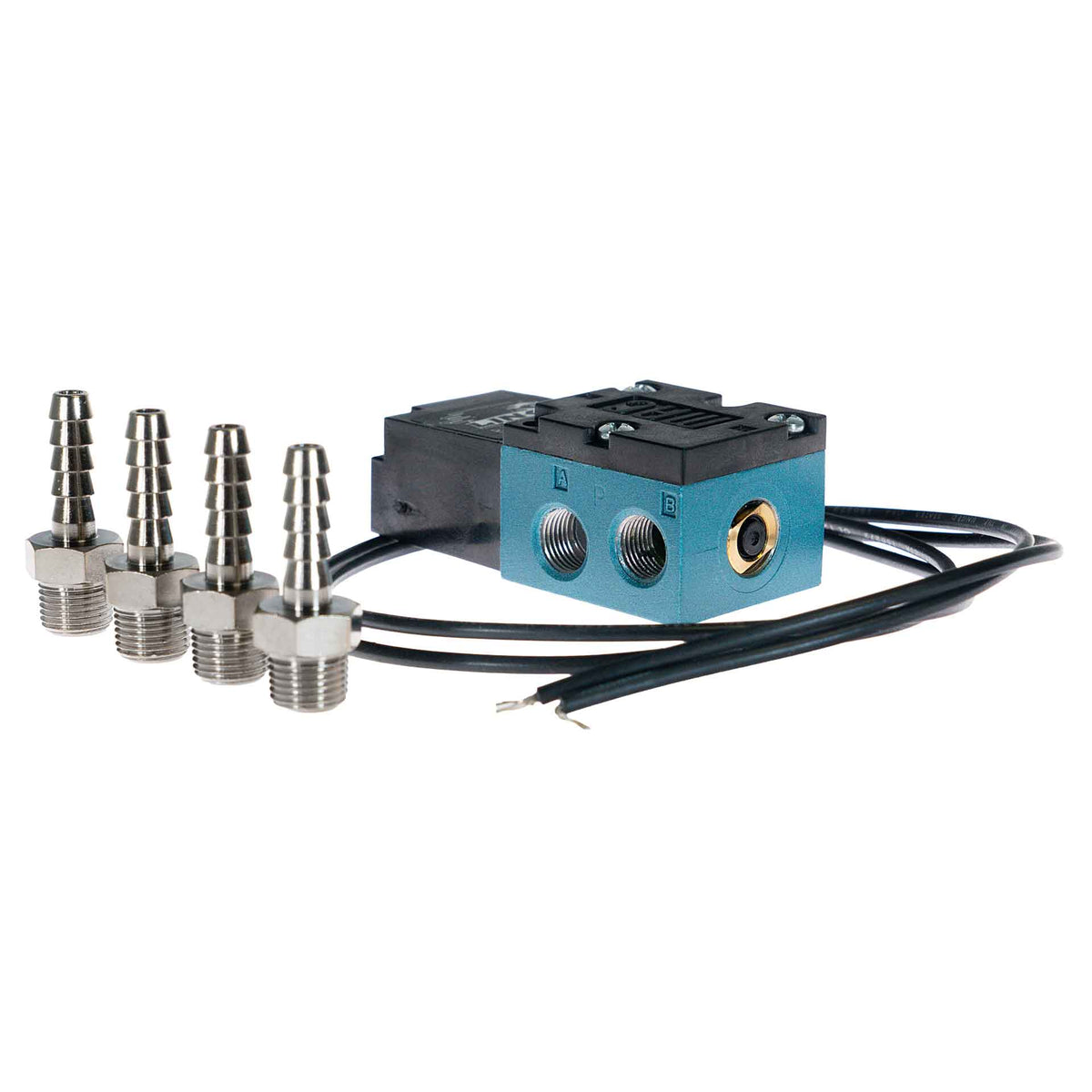

What's in the Box | Boost Control Solenoid (4 port) 4x Hose Fitting 1/8 BSPT Nickel P Accessory instructions |
