SKU:101-0211

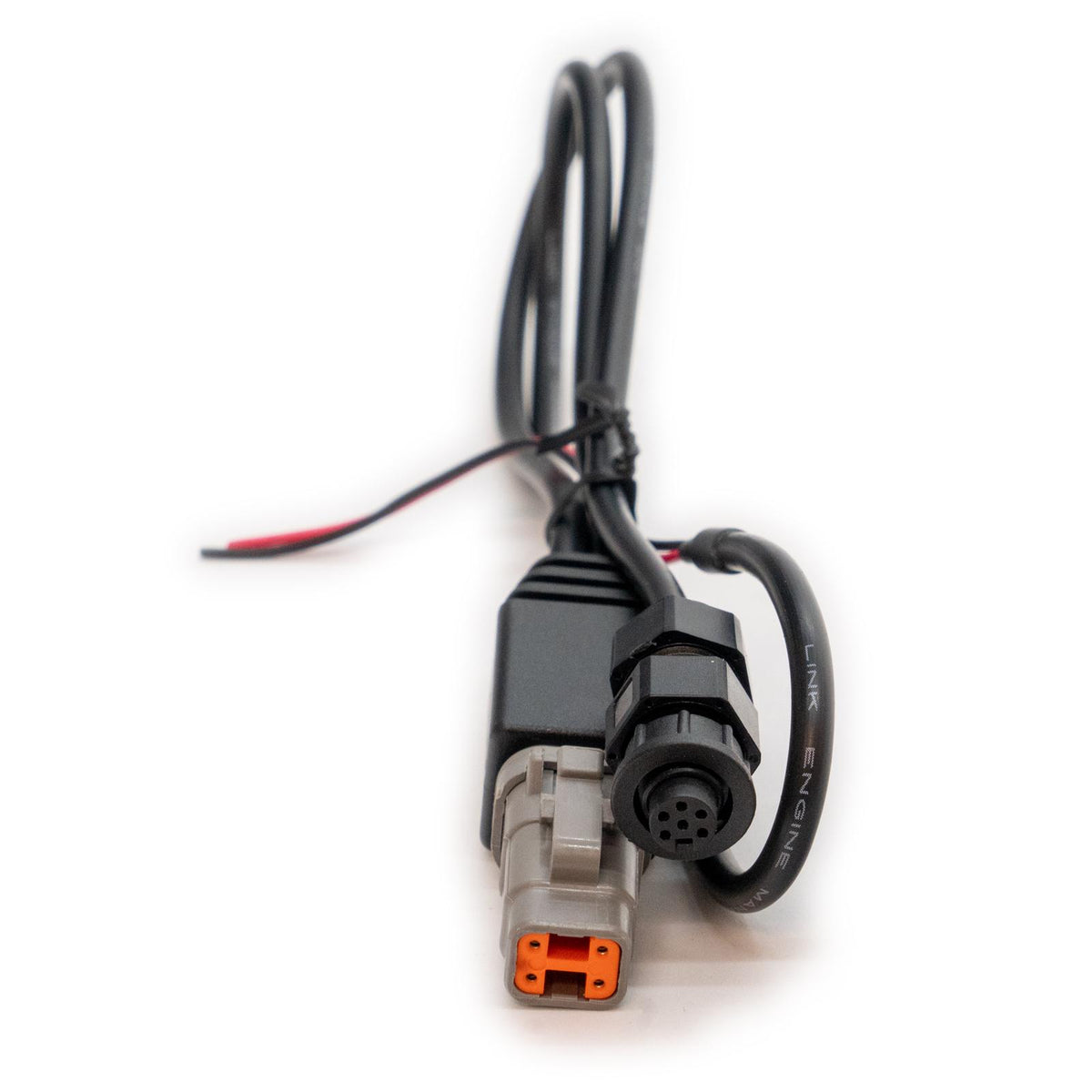

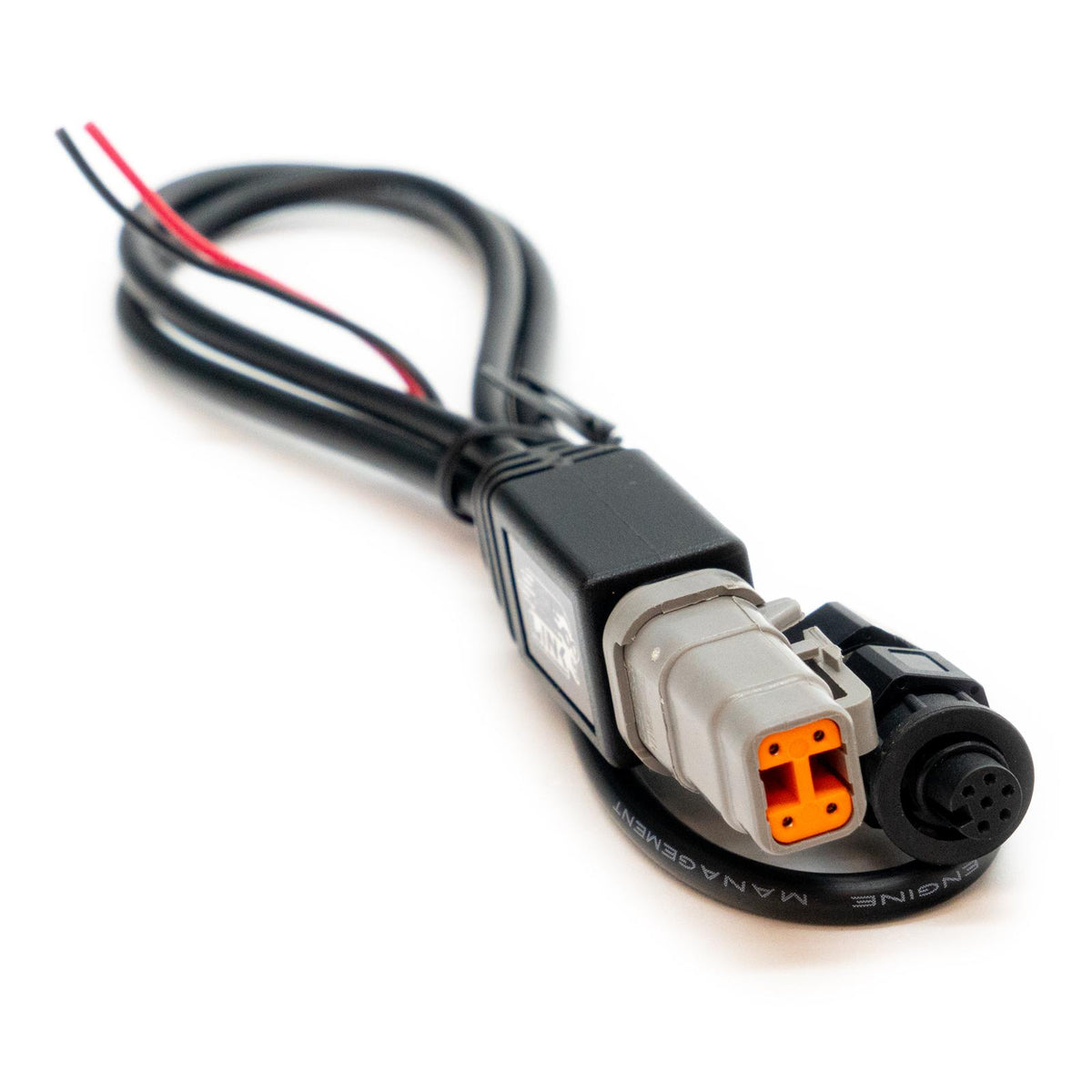

CANLTW - CAN Connection Cable for WireIn ECU's (6Pin CAN)
CANLTW - CAN Connection Cable for Wire-in ECUs (6Pin CAN)
Find an Installer
Search near youTo ensure the best possible experience with our products, we recommend you engage one of our official Dealers for installation and set-up.
Contact a Link dealer near you to find out more
You may also need
Overview
The Link CANLTW is required to add CAN communication to Wire-in ECU's which have CAN accessible via the 6-Pin round CAN connector on the front of the ECU.
Models Supported |
Compatible ECU's: G5 Voodoo Pro (CAN1) G4X/G4+ Xtreme (CAN1) G4X/G4+ Fury (CAN1) G4+ Force (CAN1) G4+ Thunder (CAN1) |
Specifications
Communications | Pin 4: CAN H Pin 3: CAN L Pin 2: Ground Pin 1: 12V |
Product Dimensions | 570mm(L)x20mm(W)x20mm(H) 22.44in(L)x0.79in(W)x0.79in(H) |
Product Weight | 50 grams (1.76 ounces) |
Electrical | Maximum Input Voltage: 300V Maximum Continuous Current Draw: 3A Gauges of wire: 20AWG/0.5mm2 |
Misc. | 300mm. Flying lead length 500mm. |
What's in the Box | CANLTW - Link CAN Connection Cable for Wire-in ECU's - Fury/Xtreme/Thunder |
Connector | DTM4 Male to LTW 6Pin. 12V & GND Flying Leads. |
