SKU:101-0210

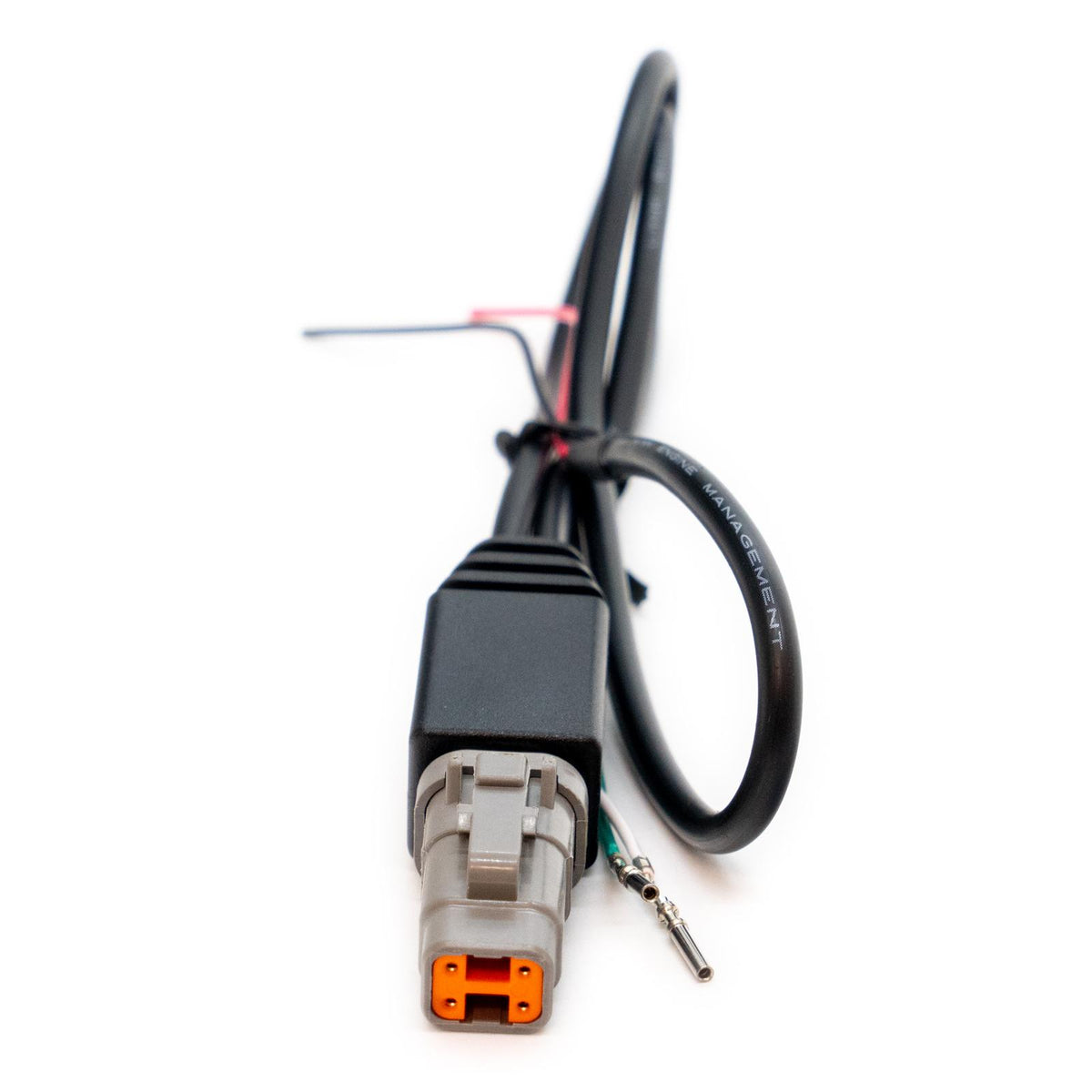

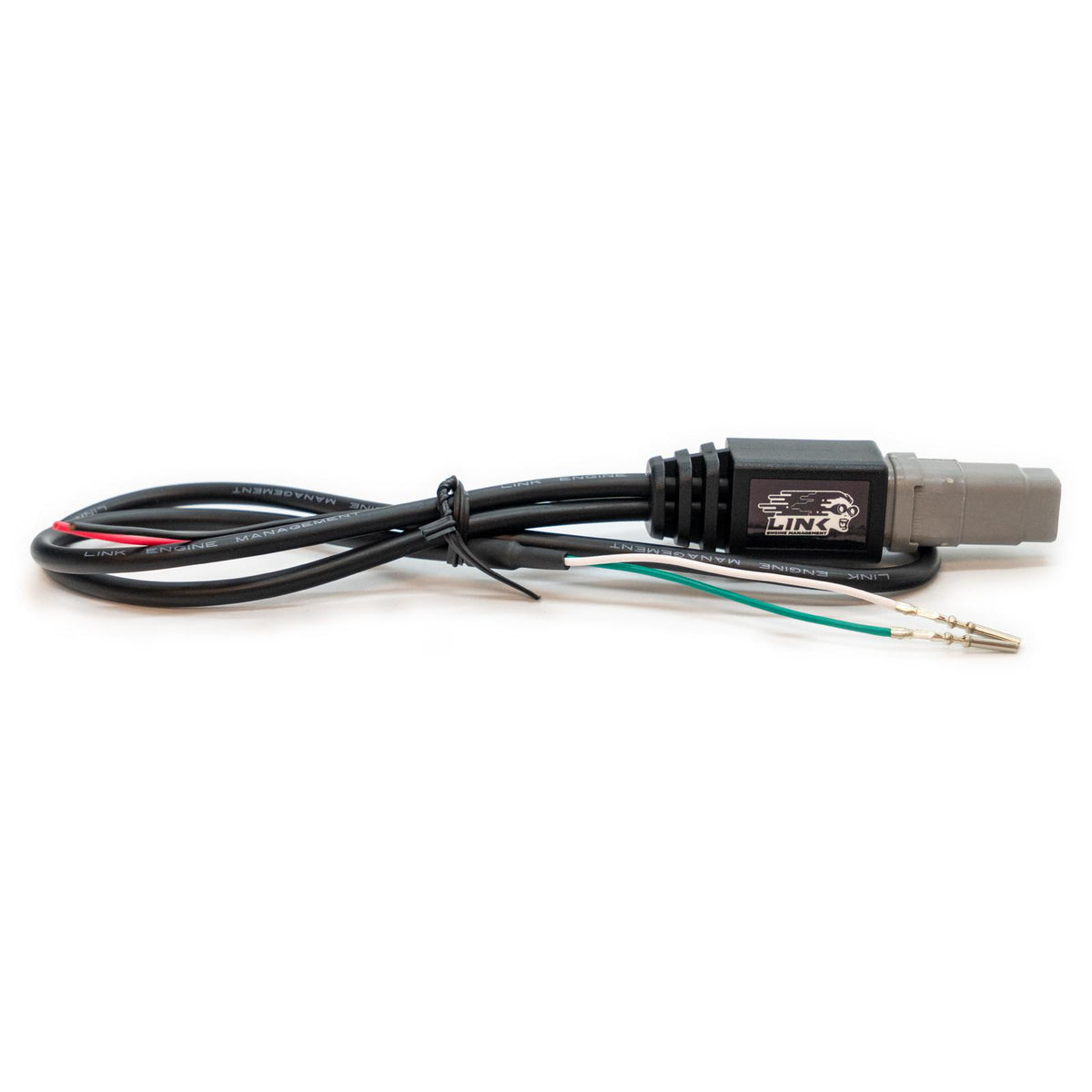

CANSS - CAN Connection Cable for WireIn ECU's (ECU Header CAN)
CANSS - CAN Connection Cable Wire-in ECUs (ECU Header CAN)
Find an Installer
Search near youTo ensure the best possible experience with our products, we recommend you engage one of our official Dealers for installation and set-up.
Contact a Link dealer near you to find out more
You may also need
Overview
The Link CANSS is required to add CAN communication to Wire-in ECUs which have CAN accessible via the header.
Models Supported |
Compatible ECUs: G4X/G4+ Atom (CAN1) G4X/G4+ Monsoon (CAN1) G4X/G4+ Storm (CAN2) G4X/G4+ Xtreme (CAN2) G4X/G4+ Fury (CAN2) G5 Voodoo Pro (CAN1) G4+ Force (CAN2) G4+ Thunder (CAN2) |
Specifications
Product Dimensions | 580mm(L)x20mm(W)x15mm(H) 22.83in(L)x0.79in(W)x0.59in(H) |
Product Weight | 45 grams (1.59 ounces) |
Material | 300mm. Flying leads 500mm long. |
Electrical | Maximum Input Voltage: 300V Maximum Continuous Current Draw: 3A Gauges of wire: 20AWG/0.5mm2 |
Misc. | Pin 4: CAN H Pin 3: CAN L Pin 2: Ground Pin 1: 12V |
What's in the Box | CANSS - Super Seal to DTM4 Cable |
Connector | DTM4 Male to Flying leads. CAN H & L crimped with Superseal terminals. 12V & GND Flying Leads. |
