SKU:101-0234
Link CAN Keypad 4 button
Link CAN Keypad 4 button (2x2)
Find an Installer
Search near youTo ensure the best possible experience with our products, we recommend you engage one of our official Dealers for installation and set-up.
Contact a Link dealer near you to find out more
You may also need
Overview

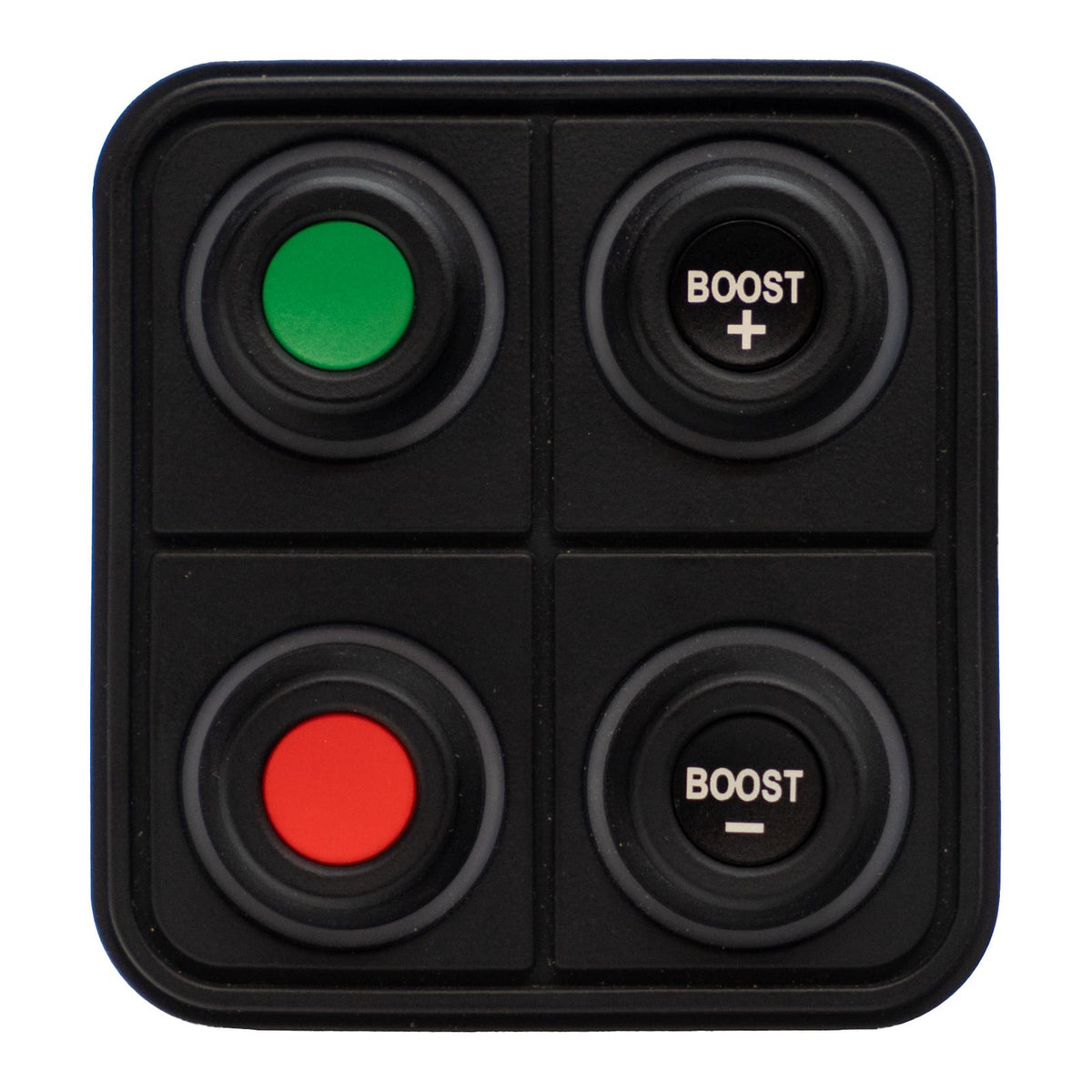

Link 4 button CAN keypad with interchangeable 15mm inserts (sold separately).

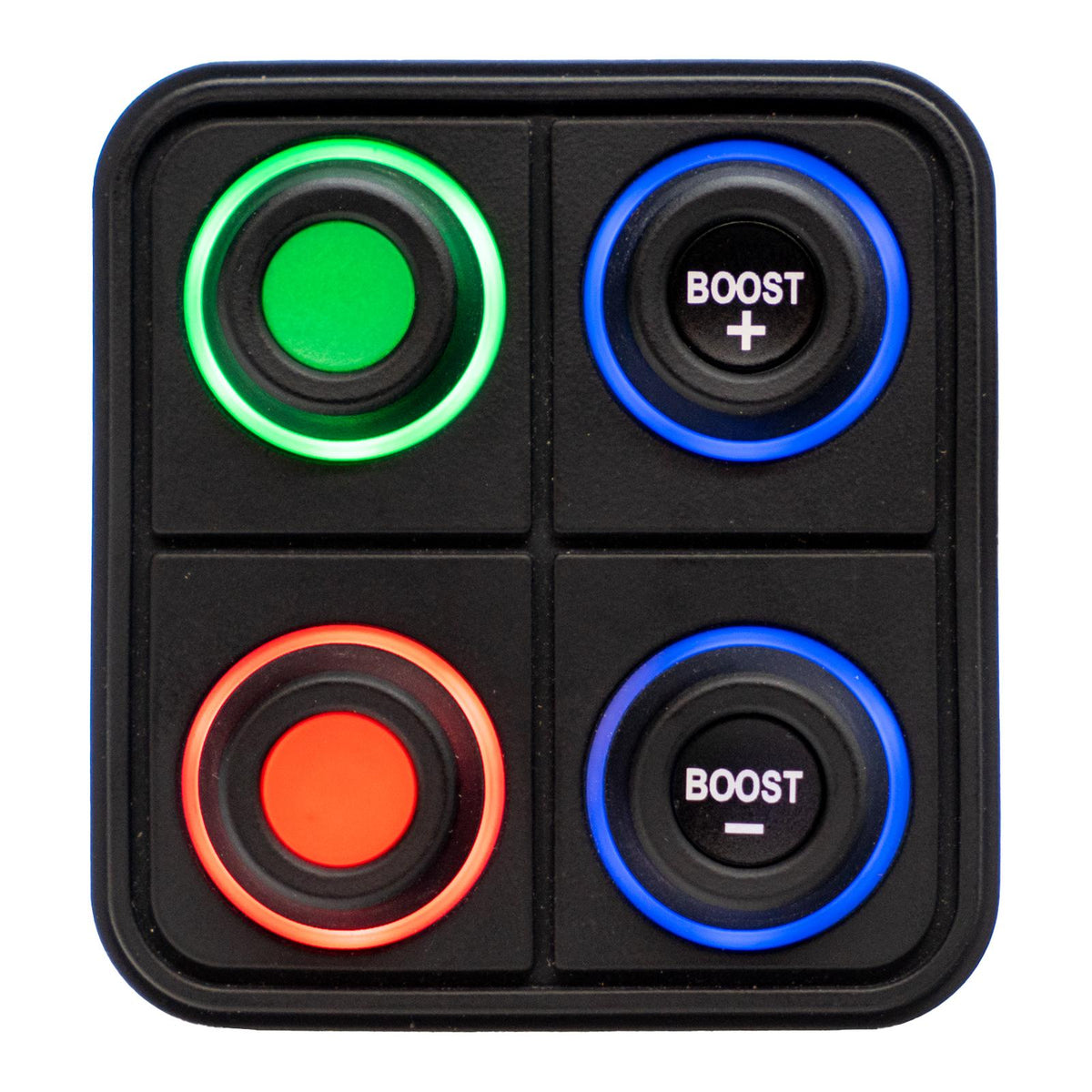

Varying button inserts and configurable RGB indicator rings per button allow for extremely flexible set-ups. The keypad is designed for ultimate reliability - IP67/IP69K water and dust resistant, -40°C to +70°C operating temperature range, UV 400hrs, salt spray resistant and switches rated to 3 million operations. Can be installed both inside and outside, perfect for street, track and off-road use.
Models Supported |
Compatible with all G4X and G5 ECUs. Built-in support from G4X PC Link vers 6.22 onwards |
Important |
Keypad ships with empty button inserts, inserts need to be selected and purchased individually. 1 x Link ECU Logo Button Insert included in box loose. |
Features
CAN Configurable with G4X / G5 PC Link | Change LED backlight, individual button indicator ring colour, programmable to show change in status, flashing option, multiple modes including momentary, latched and toggle. |
Customizable Button Inserts | The replacement system for individual inserts makes modifying the keypad layout simple and economical. |
IP67/IP69K Waterproof rating | Guaranteed to be dust tight and sealed against water immersion to a depth of 1 meter for up to 1 hour. The IP69K rating provides protection against high pressure water at high temperature spray downs. |
Specifications
Highlights | Switch Life: 3 million operations CANopen Node ID: 0x15 (21) Default Baud Rate: 1000kbit/s Ingress protection Rating: IP67/IP69K Chemical Resistance: Deet, Engine Cleaner, Isopropyl Alcohol, Suntan Lotion, Multi-Purpose Cleaner, Orange Citrus Cleaner, Muriatic Acid UV Protection: UVB 400 hours |
Product Dimensions | 6.5x7x4cm |
Product Weight | 95g |
Electrical | Operating Voltage Range: 8-32V Maximum Input Voltage: 32V Maximum Continuous Current Draw: <50mA |
Misc. | Mounting Stud Gap (Centre to Centre) 28.8mm Nuts thread: #10-32 Maximum torque: 0.8Nm |
What's in the Box | Blink CAN Keypad 4 position + DTM4 Keypad Help Manual Card CAN Keypad Insert - Link Link sticker - Right facing - Clear Gloss - Rectangle 150x72 Deutsch 4-way Connector Kit |
Connector | TE Connectivity Deutsch DTM 4-pin (101-0156) DTM4 Connector for CAN and Power: Black = Ground Red = Power White = CAN High Blue = CAN Low |
