SKU:100-0173

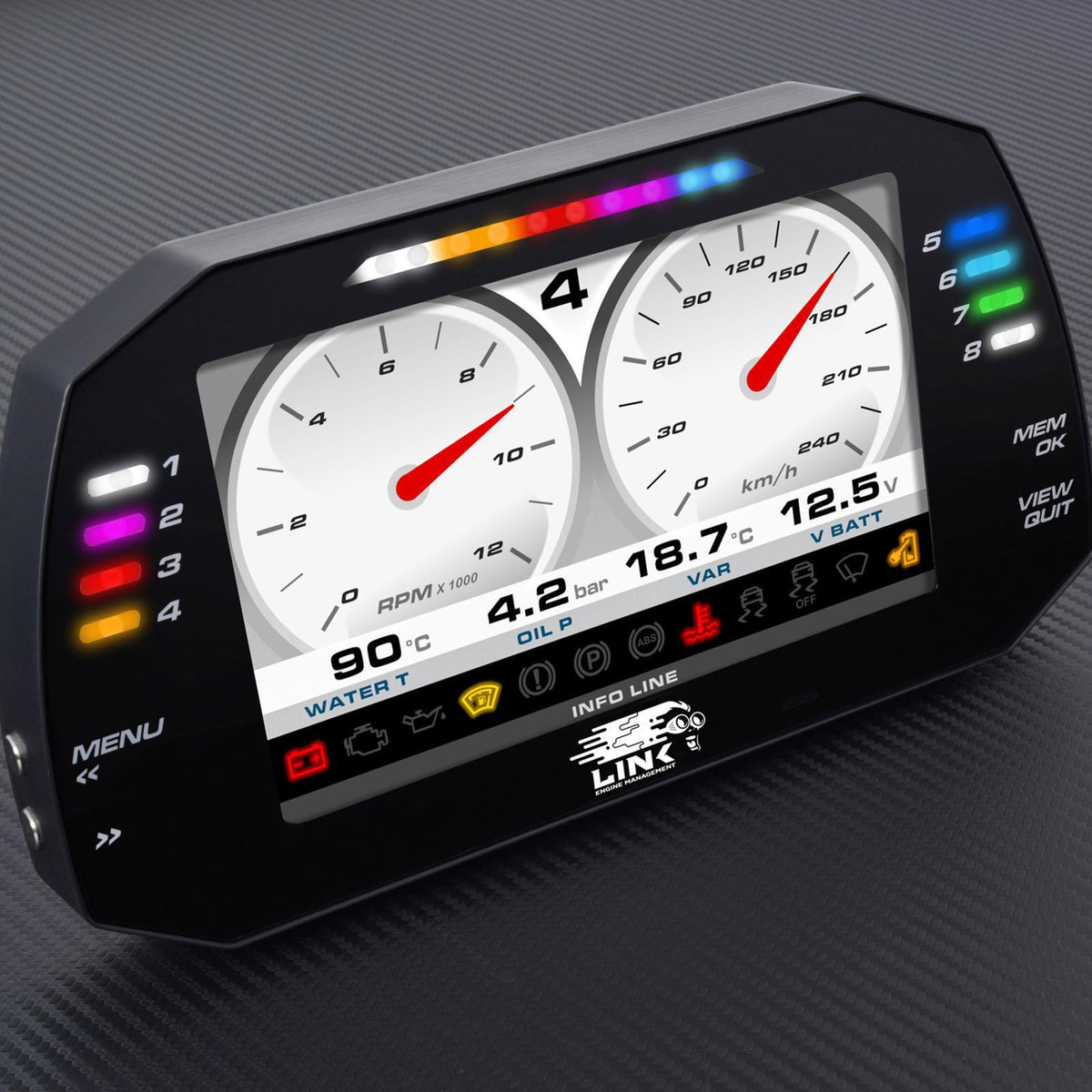

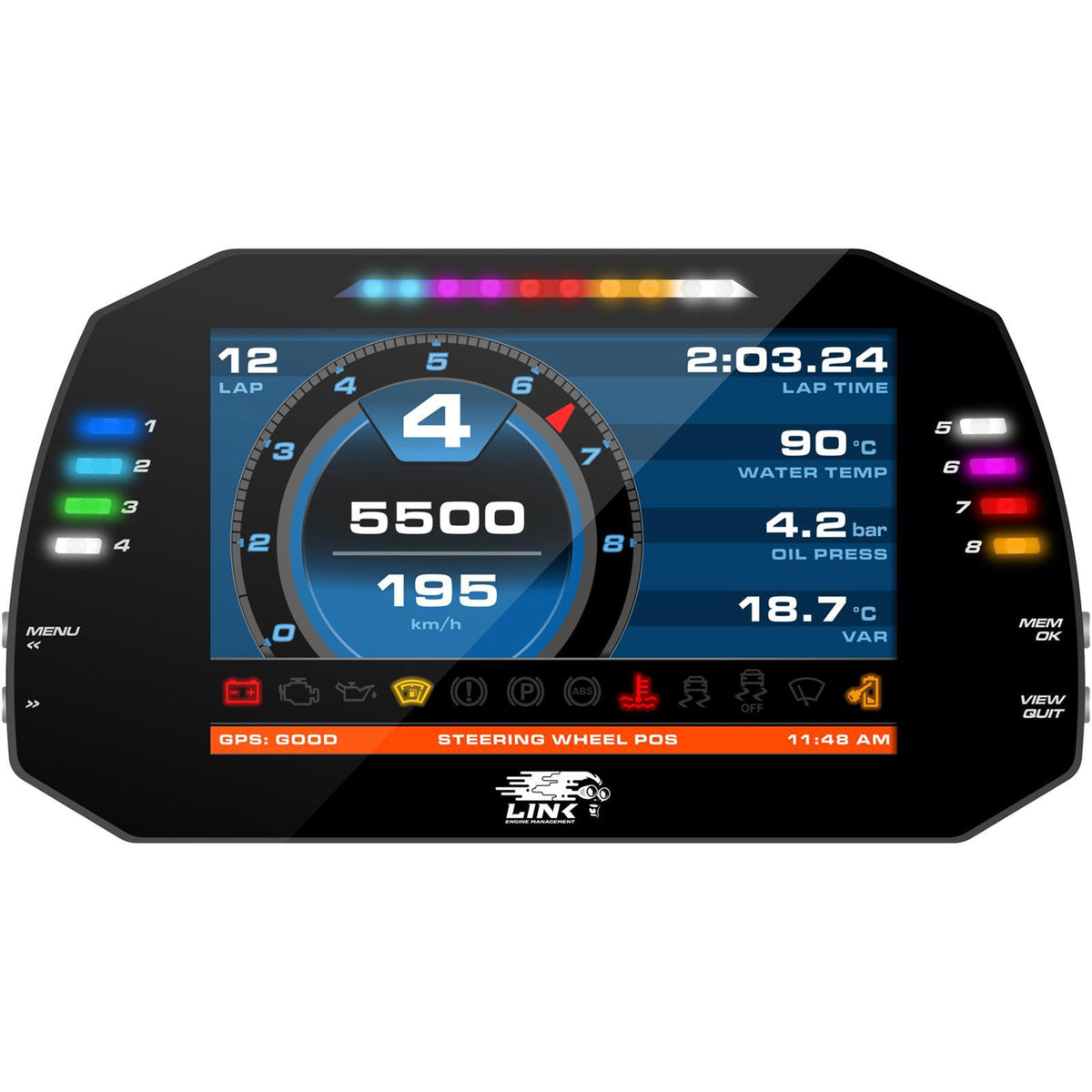

AIM MXG 7" Dash - LinkECU Strada Race Edition
The AiM MXG Strada 7" Display delivers clear data visibility, configurable layouts and seamless Link ECU integration with expanded screen real estate for greater data visibility in high-performance street and track vehicles.
Find an Installer
Search near youTo ensure the best possible experience with our products, we recommend you engage one of our official Dealers for installation and set-up.
Contact a Link dealer near you to find out more
You may also need
Overview
Link’s AiM MXG Strada 7" Display provides the data you need, when you need it, through a clear, easy-to-read display helping you stay informed and focused whether cruising on the road or pushing for lap times.
Featuring a high-contrast 7" TFT screen with automatic brightness adjustment, the MXG Strada provides excellent visibility in all lighting conditions. The larger display area allows more information to be viewed on one screen. Multiple configurable display pages allow drivers to prioritise the information most important to them, while ten configurable RGB shift lights, a custom warning screen and eight (two more than the MXS Strada) warning LEDs all work together, all work together to ensure important alerts capture your attention, allowing you to react quickly and confidently.
Each display is pre-loaded to accept the Link ECU CAN Stream, simplifying set-up. Simply enable the dash in Link’s free PC Link software and the system communicates instantly, delivering accurate real-time data.
The AiM MXG Strada 7" Display is the ideal solution for people who want real-time vehicle data, customisable warning alerts, clear shift lights, configurable layouts and seamless Link ECU integration with the benefit of a larger screen.
Models Supported |
The AiM MXG Strada 7 inch display is pre-configured to work with all Link G4+/G4X/G5 Wire-in and Plug-in ECU's. |
Important |
This listing is for the ‘Race edition’ please see the 'Street edition' if you are looking for a dash for street purposes. The Strada dash is also available in 5-inch (MXS) and 10-inch (MXT) versions. |
Features
The AiM MXG Strada is a high-contrast 7" TFT display with the following features:
Highlight Features | 7" high-contrast TFT display 800 × 480 pixel resolution Automatic brightness adjustment via ambient light sensor 10 freely configurable RGB shift lights 8 freely configurable RGB warning LEDs Multiple configurable display pages and layouts Three CAN connections Compatible with CAN, RS232 and K-Line ECU communications Compatible with a range of ECUs including Link ECUs Seamless Link ECU CAN integration Supports AiM CAN accessories including GPS, Channel Expansion, TC Hub, Lambda Controller and SmartyCam HD 8 fully configurable analogue inputs (up to 1 kHz each) Dedicated speed input and coil RPM input Configurable digital output |
Specifications
The AiM MXG Strada is a high-contrast 7" TFT display with the following specifications:
Screen Display | Display: 7" Thin-Film Transistor (TFT) Resolution: 800 × 480 pixels Contrast Ratio: 1000:1 Brightness: 700 cd/m² (1,100 Lumens) CAN Ports: 3 Analogue Inputs: 8 Digital Inputs: 1 speed input, 1 coil RPM input Digital Outputs: 1 (1A max) Connectors: 2 AMPSEAL connectors + 1 Binder connector |
Product Dimensions | 237mm(L) x 127.6mm(W) x 26mm(H) 9.33in(L) × 5.02in(W) × 1.02in(H) |
Product Weight | 950 grams (33.51 ounces) |
Material | Anodised Aluminium with Metallic Pushbuttons |
Electrical | Maximum Continuous Current Draw: 400mA |
Misc. | IP67 rated |
What's in the Box | Link MXG Strada 7" Race Edition Display USB cable 14 pin standard wiring 23 pin connector + contacts |
Connector | AMPSEAL 3 Row 23 Position, Part number 770680-1 AMPSEAL 3 Row 14 Position, Part number 776273-2 |
