SKU:101-0188

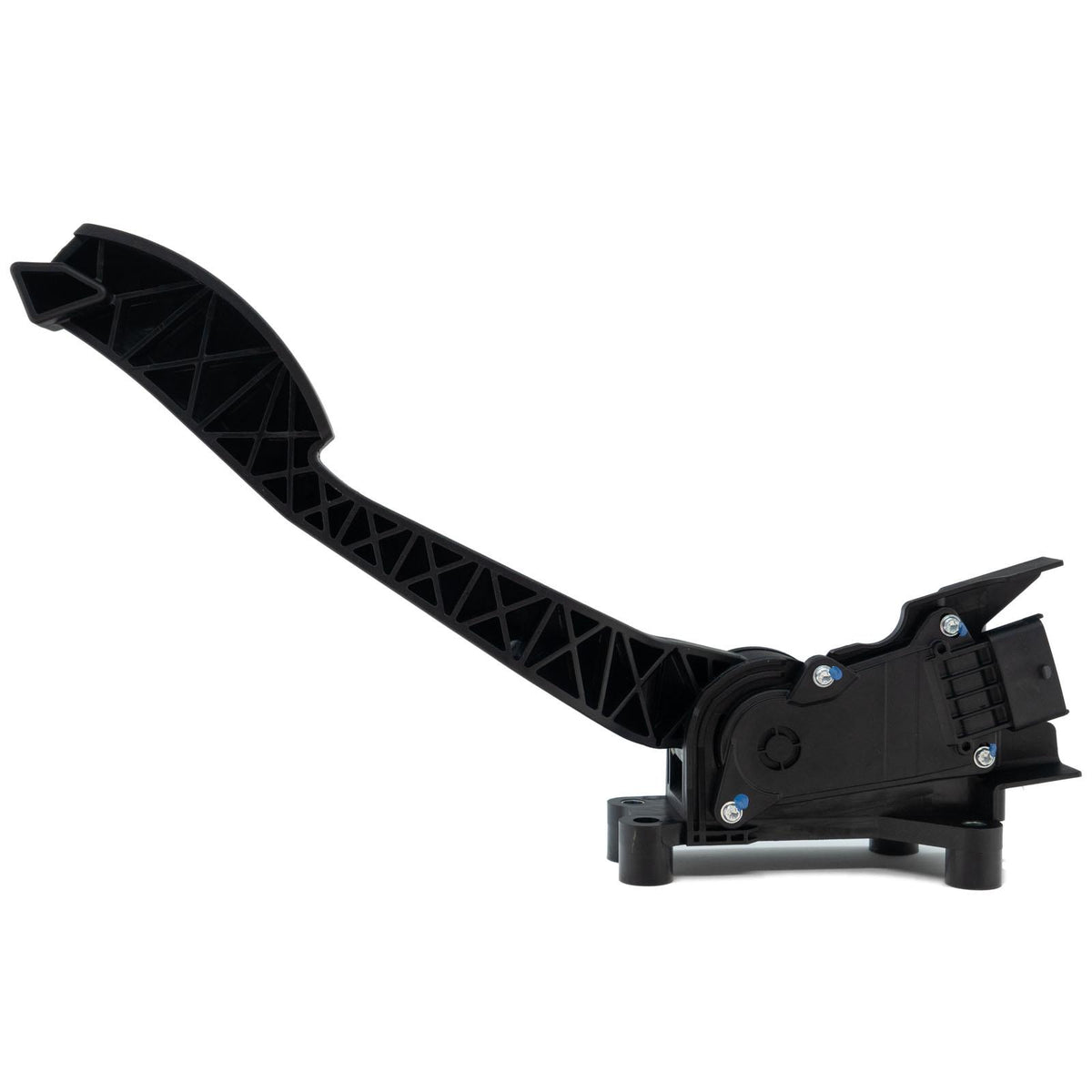

E-Throttle Accelerator Pedal Module (PED)
E-Throttle Accelerator Pedal Module
Find an Installer
Search near youTo ensure the best possible experience with our products, we recommend you engage one of our official Dealers for installation and set-up.
Contact a Link dealer near you to find out more
You may also need
Overview
The Link Accelerator Pedal Module is a universal E-Throttle (drive-by-wire) pedal designed for motorsport and performance vehicles. Featuring dual potentiometer outputs for redundant pedal position measurement and a firewall-mounted design, it delivers precise, reliable throttle input for use with compatible Link ECUs.
E-throttle is faster responding, requires less maintenance, gives you better fuel economy and lowers emissions.
Models Supported |
Requires a compatible Link ECU with built-in E-throttle or an external E-throttle Module (115-1000). For some Plug-in ECUs without built-in e-throttle there is an upgrade option available (PN 400-0100). |
Warnings |
Installation and calibration must be completed within PCLink before use. Further details on E-Throttle setup can be found in the PC Link helpfile. |
Features
The Link Accelerator Pedal Module has the following specifications:

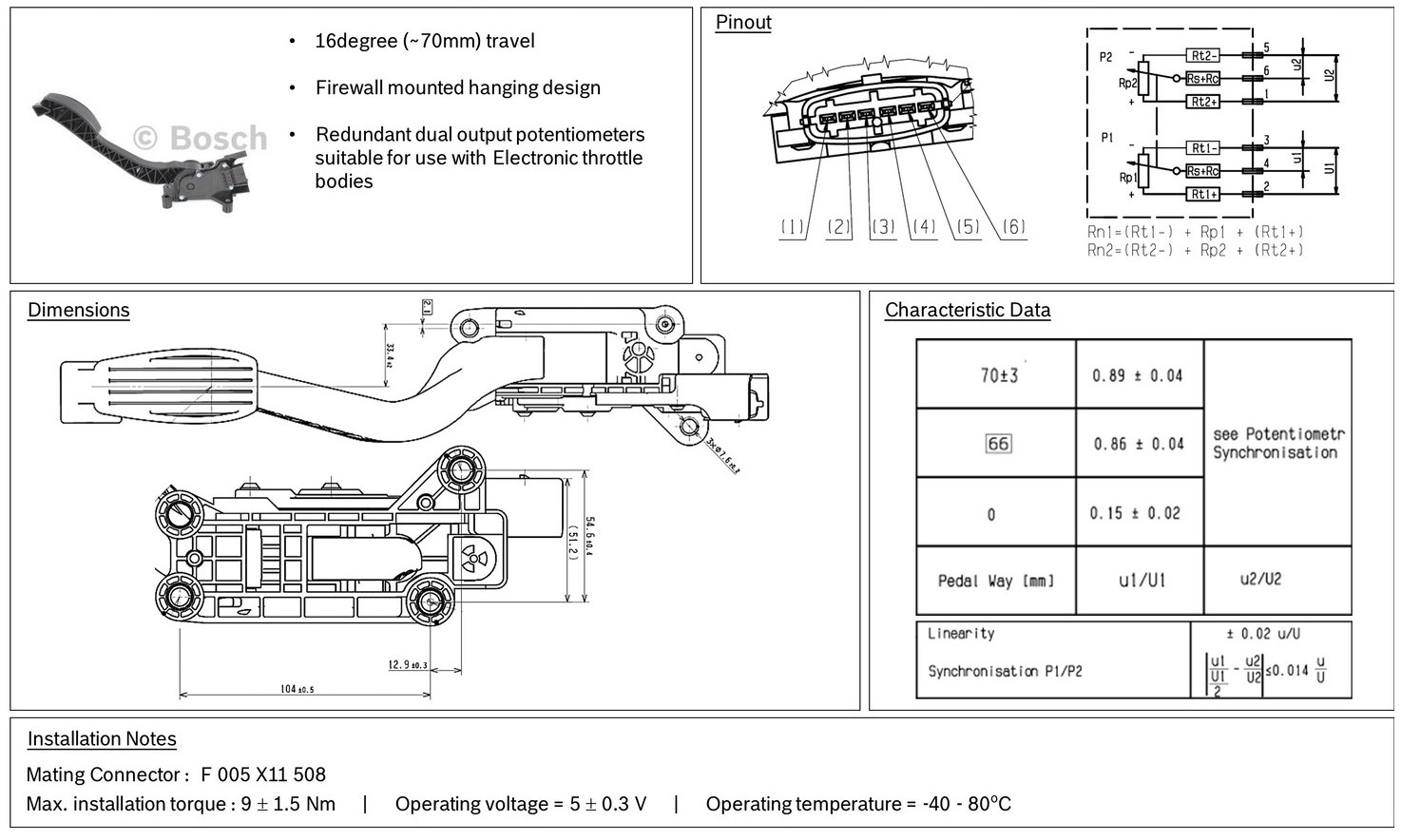

ECU Tuning Features | Universal firewall-mounted design 16degree (~70mm) travel Dual potentiometer outputs Redundant pedal position measurement Smooth, progressive pedal travel Compact and lightweight construction |
Specifications
Product Dimensions | 370mm(L)x250mm(W)x90mm(H) 14.57in(L)x9.84in(W)x3.54in(H) |
Product Weight | 400 grams (14.11 ounces) |
Electrical | Operating Voltage Range: 4.7-5.3V Maximum Input Voltage: 5.3V |

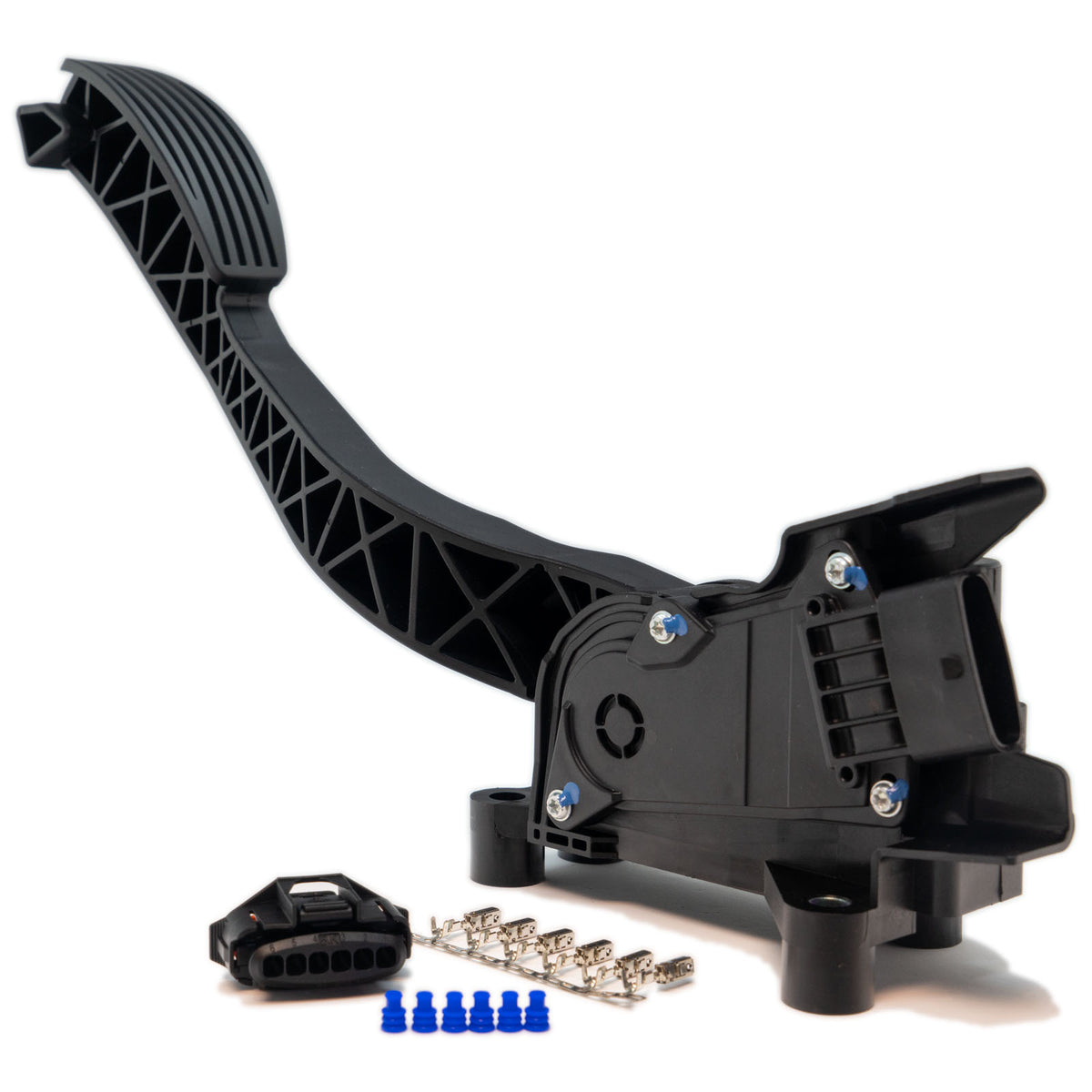

What's in the Box | Bosch Accelerator Pedal Module Bosch Accelerator Pedal Module - 6 Pin Mating Connector Printed Accessory instructions |
Connector | Bosch 6-pin |
