SKU:101-0076
Coolant Temperature Sensor (NTC1-8)
Coolant Temperature Sensor 1/8 NPT with plug and terminals
Find an Installer
Search near youTo ensure the best possible experience with our products, we recommend you engage one of our official Dealers for installation and set-up.
Contact a Link dealer near you to find out more
You may also need
Overview

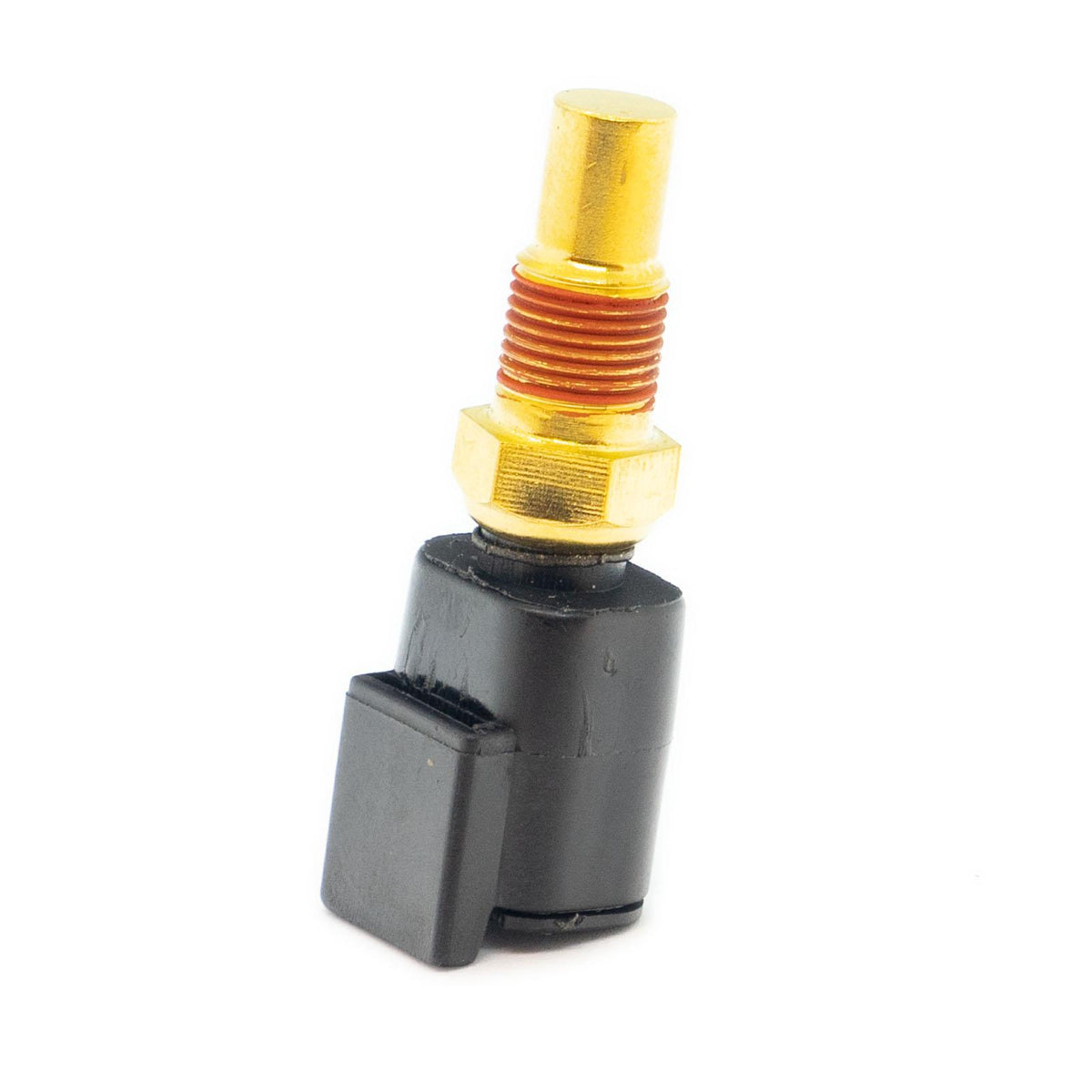

The Link Coolant Temperature Sensor (1/8" NPT) is a high-quality NTC thermistor sensor designed to provide accurate temperature measurement for a wide range of automotive fluids. Suitable for coolant, engine oil, transmission oil, fuel and other compatible liquids. With a compact threaded design and proven temperature calibration, it delivers reliable temperature data for engine management, data logging and protection strategies.
Models Supported |
All Link ECUs. Other aftermarket ECUs supporting NTC temperature sensors. |
Warnings |
Aluminum and steel weld in mounting bosses available. |
Specifications
Highlights | The Link Coolant Temperature Sensor has the following specifications: NTC thermistor temperature sensor. 1/8" NPT thread. Two-wire sensor. Compact metal body. Proven Link calibration data. Suitable for and water, oil, fuel temperature measurement. Signal and Sensor Ground connections. Comes with Deutsch 2 way Connector Kit. |
Product Dimensions | 55mm(L)x15mm(W)x20mm(H) 2.17in(L)x0.59in(W)x0.79in(H) |
Product Weight | 5 grams (0.18 ounces) |
Electrical | Operating Voltage Range: 5V |

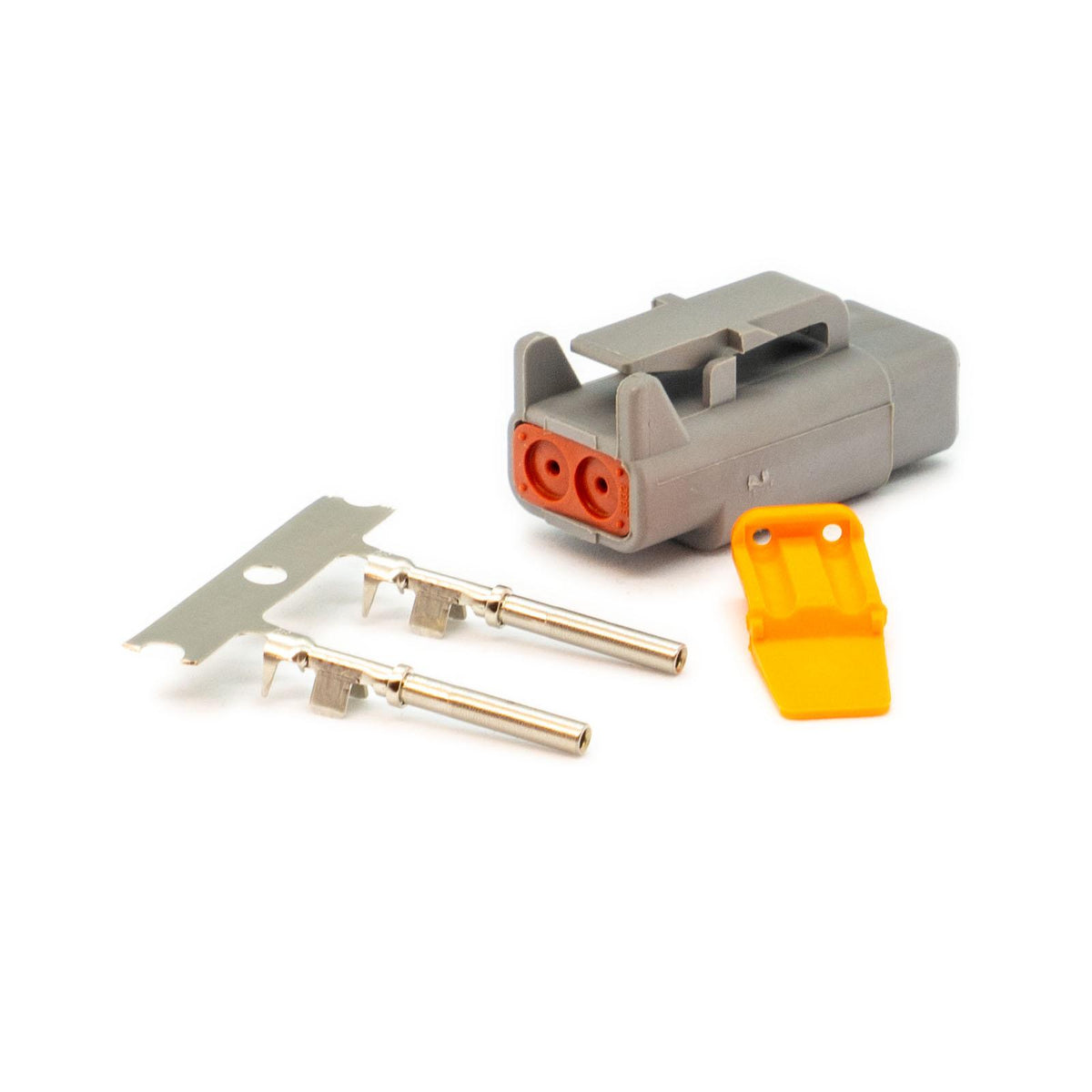

What's in the Box | Water Temp Sensor 1/8 NPT Deutsch 2 way Connector Kit |
PCLink Calibration Name | "Link NTC1-8 & IAT1-8" OR "Delphi AC IAT" |
Raw Calibration Specs | -40degC: 65,500 ohm -30degC: 51,791 ohm -20degC: 28,146 ohm -10degC: 15,873 ohm 0degC: 9,256 ohm 10degC: 5,572 ohm 20degC: 3,457 ohm 30degC: 2,205 ohm 40degC: 1,443 ohm 50degC: 965 ohm 60degC: 660 ohm 70degC: 462 ohm 80degC: 329 ohm 90degC: 238 ohm 100degC: 175 ohm 110degC: 131 ohm 120degC: 99 ohm 130degC: 76 ohm 140degC: 59 ohm 150degC: 47 ohm |
Connector | PKD2F 101-0131 |
