SKU:101-0077
Coolant Temperature Sensor (NTC12)

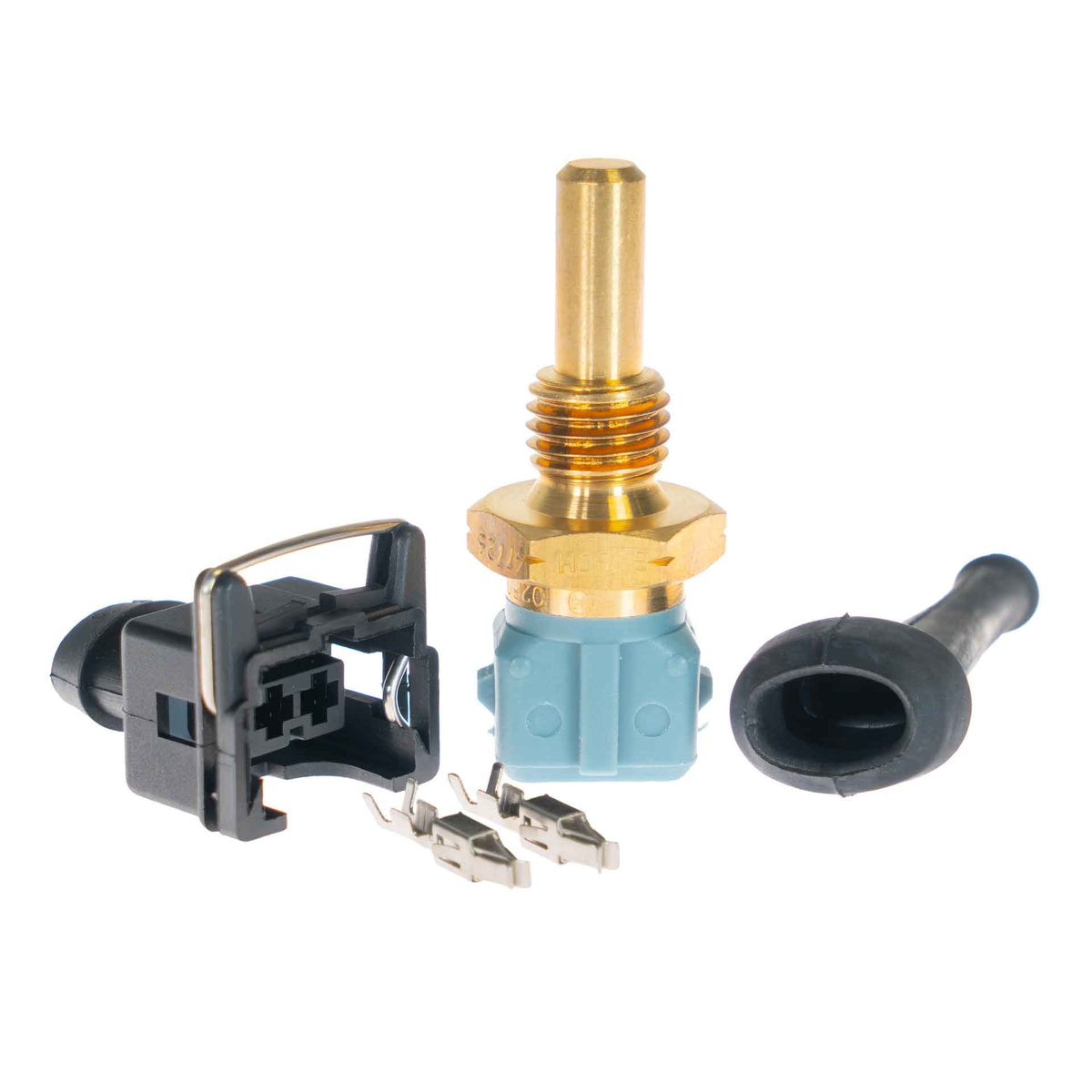

Coolant Temperature Sensor M12 with plug and terminals
Find an Installer
Search near youTo ensure the best possible experience with our products, we recommend you engage one of our official Dealers for installation and set-up.
Contact a Link dealer near you to find out more
You may also need
Overview

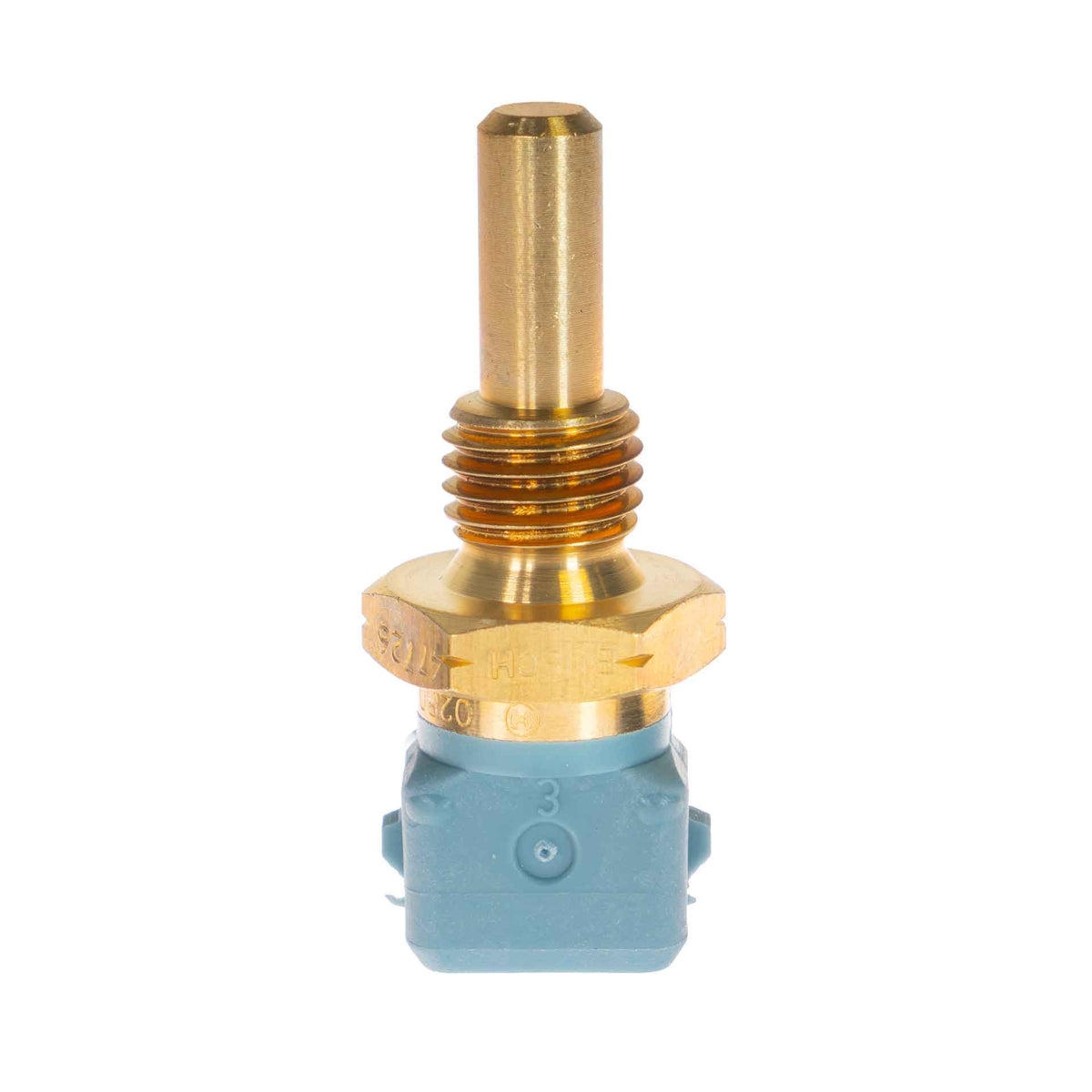

The Link NTC12 Temperature Sensor is a high-quality NTC thermistor designed to measure fluid temperatures including coolant, oil and fuel. Featuring an M12 x 1.5 thread, operating range from -40degC to 130degC and a compact, robust design, it delivers accurate temperature measurement for a wide range of motorsport and performance applications.
Warnings |
Sealing washer not included. Can be connected to most ECUs directly to a Temp Input or to an Analog Input using an external pull-up resistor to 5V. Any mounting orientation is suitable. |
Specifications

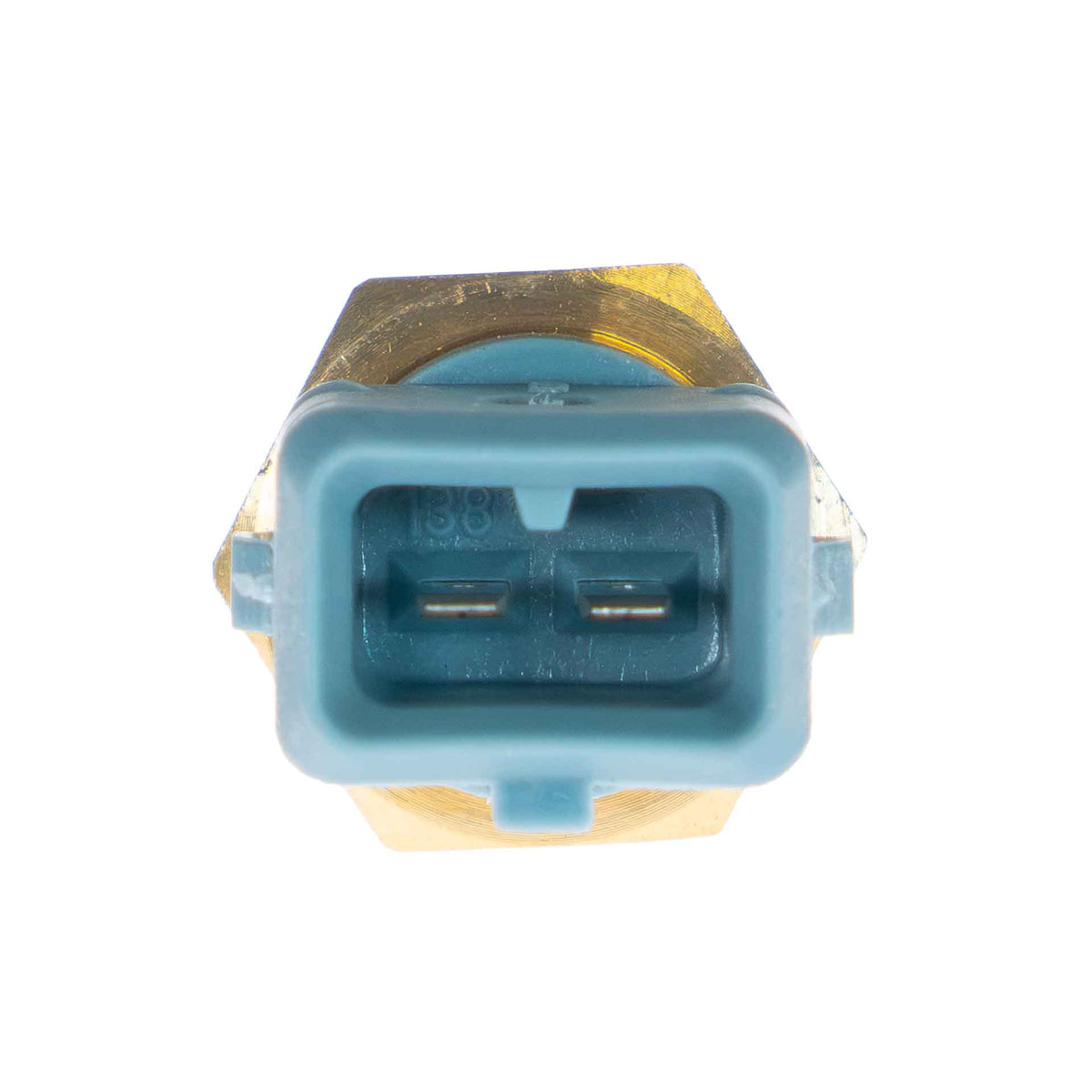

Highlights | The Link NTC12 Temperature Sensor has the following specifications: One pin for signal, one for sensor ground, polarity does not matter NTC thermistor. M12 x 1.5 male thread. Temperature Range: -40degC to 130degC. Nominal Resistance: 2.5k ohm +/-5% @ 20degC. Accuracy @ 25degC: +/-1.4degC. Accuracy @ 100degC: +/-3.4degC. Response Time (tau63): <15s (still water). Bosch Jetronic connector. E85 compatible. Comes with Bosch Style 2 way Plug, Pin and Boot. |
Product Dimensions | 50.5mm(L)x25mm(W)x20mm(H) 1.97in(L)x0.98in(W)x0.79in(H) |
Product Weight | 29 grams (1.02 ounces) |
Electrical | Operating Voltage Range: 5V |

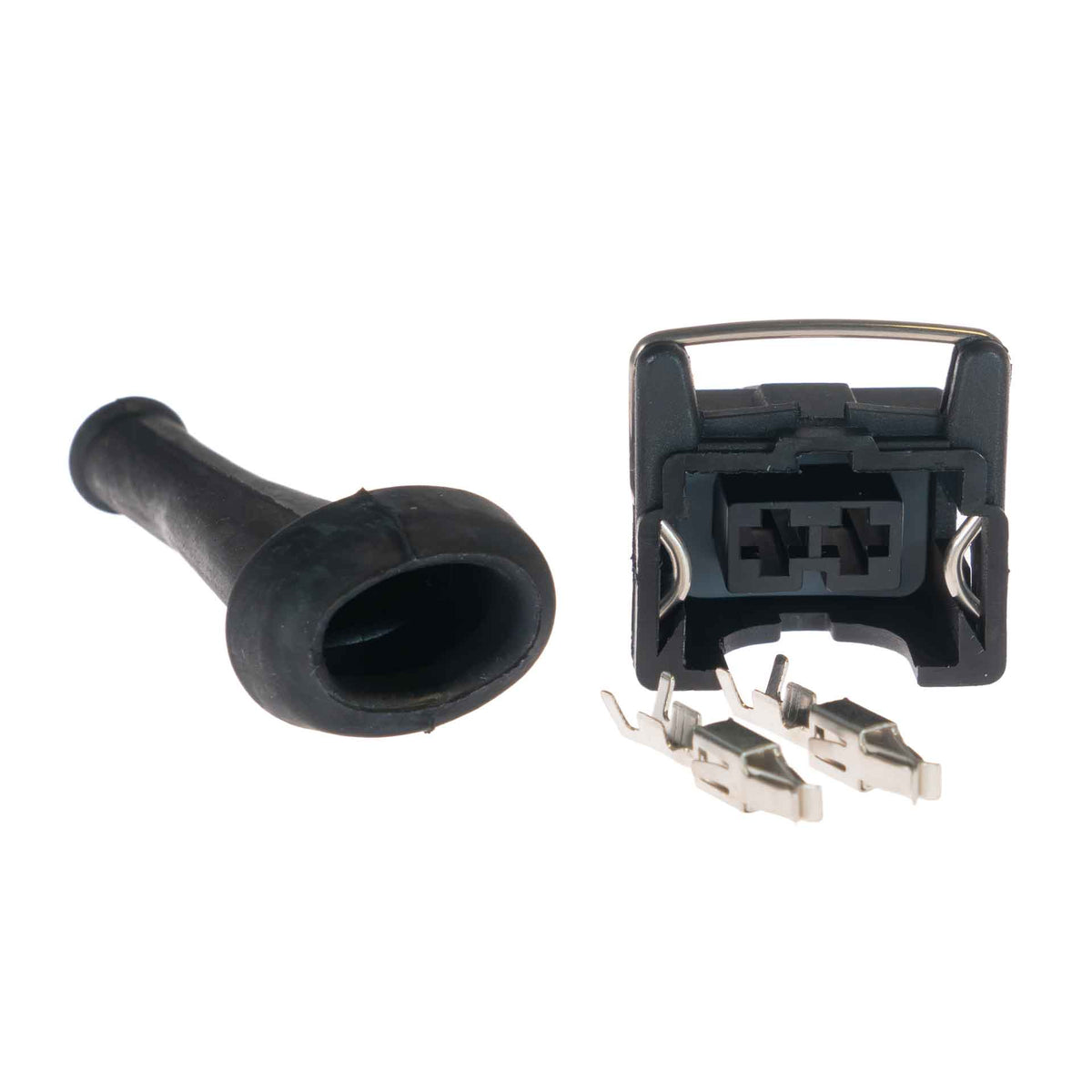

What's in the Box | Fluid Temp Sensor M12 Bosch Style 2 way Plug, Pin and Boot |
PCLink Calibration Name | "Link NTC12 & IATB" OR "Std Bosch NTC" |
Raw Calibration Specs | -40degC: 45,313 ohm -30degC: 26,114 ohm -20degC: 15,462 ohm -10degC: 9,397 ohm 0degC: 5,896 ohm 10degC: 3,792 ohm 20degC: 2,500 ohm 30degC: 1,707 ohm 40degC: 1,175 ohm 50degC: 834 ohm 60degC: 596 ohm 70degC: 436 ohm 80degC: 323 ohm 90degC: 243 ohm 100degC: 187 ohm 110degC: 144 ohm 120degC: 113 ohm 130degC: 89 ohm 140degC: 72 ohm 150degC: 55 ohm |
Connector | Bosch 2 Way Plug Kit (PKB2), 101-0051. |
