SKU:101-0044

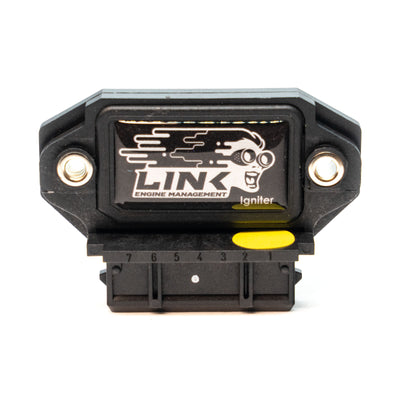

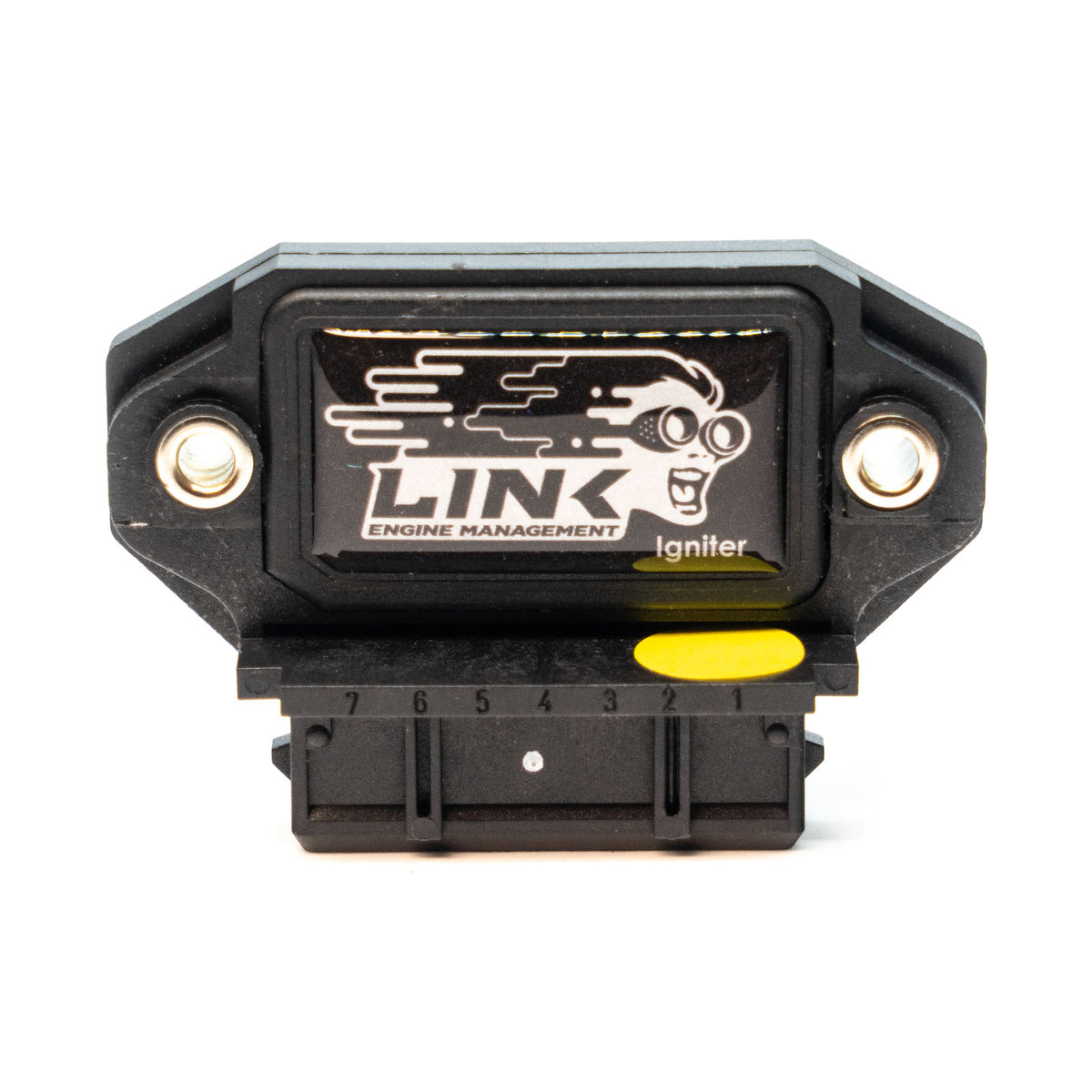

Three Channel Inductive Igniter (I3)
Three Channel Inductive Igniter with plug and terminals
Find an Installer
Search near youTo ensure the best possible experience with our products, we recommend you engage one of our official Dealers for installation and set-up.
Contact a Link dealer near you to find out more
You may also need
Overview
The Link 3 Channel Ignitor is designed for applications using ignition coils without built-in igniters. Capable of driving up to three non-transistorised ignition coils, it provides a reliable ignition driver solution for a wide range of motorsport and performance applications, including wasted spark on 6 cylinder engines, coil-per-plug setups on 3 cylinder engines or using multiple igniters for 6 and 8 cylinder set-ups.
Models Supported |
Suitable when using ignition coils without built-in igniters. |
Warnings |
Mount to a suitable heatsink or metal surface using heat transfer compound. Protect the connector from water and moisture. Do not parallel multiple ignition outputs onto a single channel. |
Features
The Link 3 Channel Ignitor has the following specifications:
ECU Tuning Features | Drives up to 3 ignition coils Suitable for non-transistorised ("dumb") ignition coils Triple Darlington transistor design Bosch 7-pin Jetronic connector |
Specifications
Product Dimensions | 71mm(L) x 48mm(W) x 21mm(H) 2.80in(L) x 1.89in(W) x 0.83in(H) |
Product Weight | 45 grams (1.59 ounces) |
Electrical | Operating Voltage Range: 6-18V Maximum Input Voltage: 400V Primary current up to 8.5A per channel |
Misc. | Operating Temperature -40degC to +110degC |

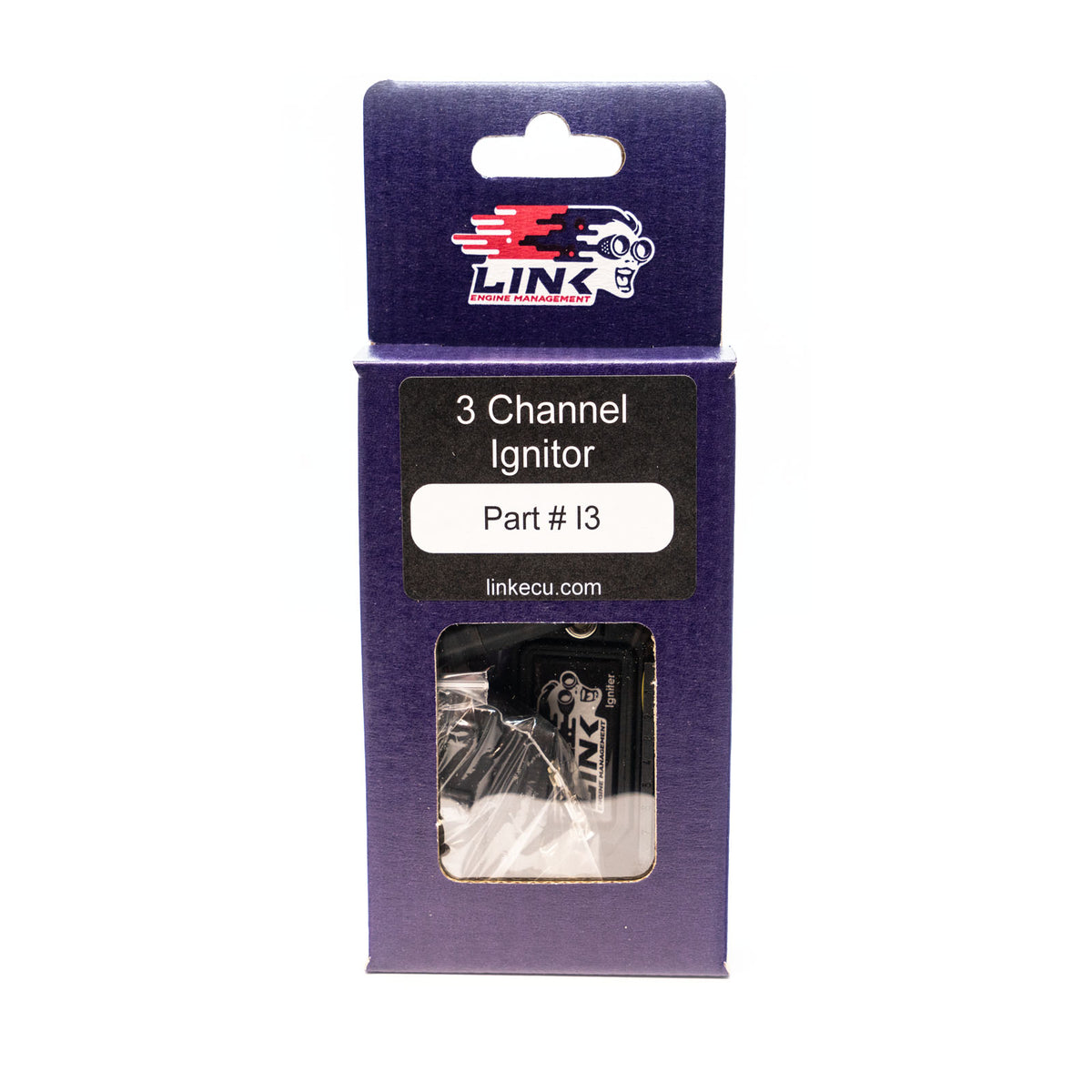

What's in the Box | Three Channel Igniter Wire side Ignitor/Map Rubber boot 7 way Bosch Printed Accessory instructions |
Connector | Bosch 7-pin Jetronic |
