SKU:246-5000

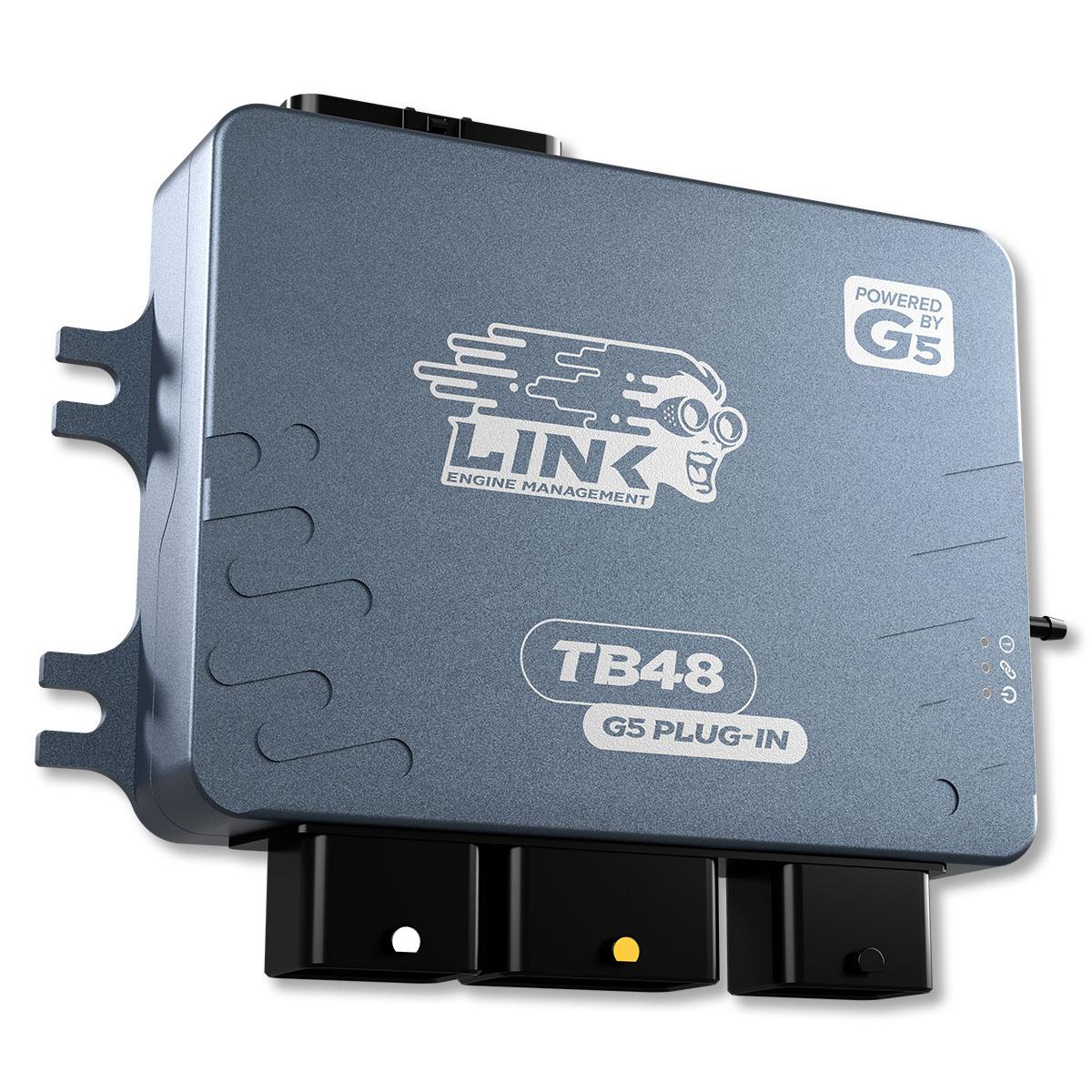

TB48Link - G5 TB48
The TB48 G5 Plug-in ECU is purpose built for the Y61 Patrol, combining genuine plug and play convenience through direct factory fitment, OEM compatibility with Link’s championship winning G4X architecture, advanced tuning and motorsport features. No wiring, no adapters, no compromises.
Find an Installer
Search near youTo ensure the best possible experience with our products, we recommend you engage one of our official Dealers for installation and set-up.
Contact a Link dealer near you to find out more
You may also need
Overview
Genuine plug and play convenience with next gen G5 architecture, advanced tuning and motorsport features.
Purpose-built for the post-2016 Nissan Patrol Y61, the TB48 G5 is designed to fit directly into the factory ECU location using the factory mounts, original wiring loom and connectors. No rewiring, no adapter looms, no compromises. It retains all factory functionality, delivers seamless OEM integration and includes a startup map to get your vehicle running quickly. The result is a clean, simple, reliable installation that maintains a stock appearance.
The TB48 G5 is built on Link’s most advanced, most powerful and most flexible ECU platform ever. Sharing the same G5 Voodoo processor, firmware, software and feature set found throughout the G5 range, the TB48 G5 delivers next generation engine management. Features include full control over all Y61 factory functions, including E-throttle, VIAS Control, Cruise Control and Air conditioning, plus, Onboard Digital Wideband Lambda Control, Flex Fuel, Flexible Engine Protection Limiters, CAN Keypad Control, Open and Closed Loop Boost Control, Dual Closed Loop Lambda and compatibility with aftermarket displays. It also features a built-in MAP sensor.
Advanced communications include GPS, Wi-Fi, Ethernet, dual CAN bus and USB-C tuning, alongside 1GB of internal data logging for high-speed data capture and analysis.
Drawing from Link’s championship-winning pedigree, the TB48 G5 has advanced tuning and motorsport features including Nitrous Control, Launch Control, Anti-lag, Cruise Control, Traction Control, Race Timer and Power Management, Gear Shift Control and Paddle Shift Control.
A G5 Plug-in ECU is the ideal solution when available for your vehicle and the wiring remains in good condition, providing modern engine management without the complexity of a wire-in installation.
Models Supported |
The TB48 G5 is designed to suit the following application with a 3-plug header, primarily supplied to the Middle East: Nissan Patrol Y1 with TB48 engine from post 2016. |
Important |
Please check your connector matches the header in the listed photo before purchasing. Designed for manual and automatic transmission vehicles. Includes an onboard MAP sensor. Most factory features are supported. This ECU has built-in E-Throttle (Drive-by-Wire). |
Features
The TB48 G5’s multi-board architecture delivers next generation features including:
ECU Features | Global Positioning System (GPS) 8 Custom Math Blocks with 30 characters Full OEM CAN Bus integration Full VIAS control E-throttle Control Onboard Digital Wideband Lambda Control Flex Fuel Trigger Oscilloscope 3 Axis Accelerometer 1k or 10k Ω Selectable Temp Input Pullups Flexible engine protection limiters CAN Keypad Control Open Loop Boost Control Closed Loop Boost Control Dual Closed Loop Lambda Direct Automatic Transmission Control Compatible with all leading after-market dashes via CAN or serial stream 1 Gigabyte of Internal Data Logging |
Motorsport Features | Nitrous Control Launch Control Anti-lag Cruise Control Traction Control Race Timer and Power Management Gear Shift Control Paddle Shift Control |
Specifications
The TB48 G5 uses Link’s most advanced, most powerful and most flexible ECU platform, delivering advanced communication and specs including:
Inputs and Outputs | For the full list of Inputs and Outputs, please see the TB48 G5 Installation Manual |
Communications | 2 CAN Bus Channels 1 Wi-Fi USB-C Tuning Connection 1 Ethernet 1 Power Over USB |
Product Dimensions | 128mm(L) x 169mm(W) x 37.2mm(H) 5.04in(L) x 6.65in(W) x 1.46in(H) |
Product Weight | |
Electrical | Operating Voltage Range: 6-30V Maximum Input Voltage: 30V Maximum Continuous Current Draw: 12A |
| Expansion Plug | Superseal 2 Row 26 Position Part number 1473712-1 |
What's in the Box | Nissan TB48 G5 Plug-in ECU USB-C Connection Cable Wi-Fi Antenna 4m GPS Antenna (Magnetic or Adhesive Mount) USB-C and SMA Dust Covers Link stickers Plugin Manual Card Product Registration Card |
