SKU:101-0186
140 Bar Pressure Sensor (HPS)
Liquid Pressure Sensor, 140 Bar/2030PSI, M10x1
Find an Installer
Search near youTo ensure the best possible experience with our products, we recommend you engage one of our official Dealers for installation and set-up.
Contact a Link dealer near you to find out more
You may also need
Overview
The Link 140 Bar Pressure Sensor is a compact, high-accuracy pressure sensor designed for measuring liquid pressure up to 140 Bar (2030psi). Featuring an M10 x 1 threaded fitting with a 45deg cone seat and a compact 3-pin connector, it delivers reliable pressure measurement for fuel, oil and hydraulic applications.
Warnings |
Suitable for liquid pressure measurement only. Up to 2030 PSI above atmospheric pressure, cannot be used to read vacuum. Install with the pressure tube pointing downwards (0deg to +/-90deg from vertical). |
Features
The Link 140 Bar Pressure Sensor has the following highlight features:
Highights | Pressure range: 0-140 Bar (2030psi) M10 x 1 threaded fitting 45deg cone seat |
Specifications
Product Dimensions | 50mm(L)x30mm(W)x30mm(H) 1.97in(L)x1.18in(W)x1.18in(H) |
Product Weight | 40 grams (1.41 ounces) |
Electrical | Operating Voltage Range: 4.75-5.25V Maximum Input Voltage: 5.25V |

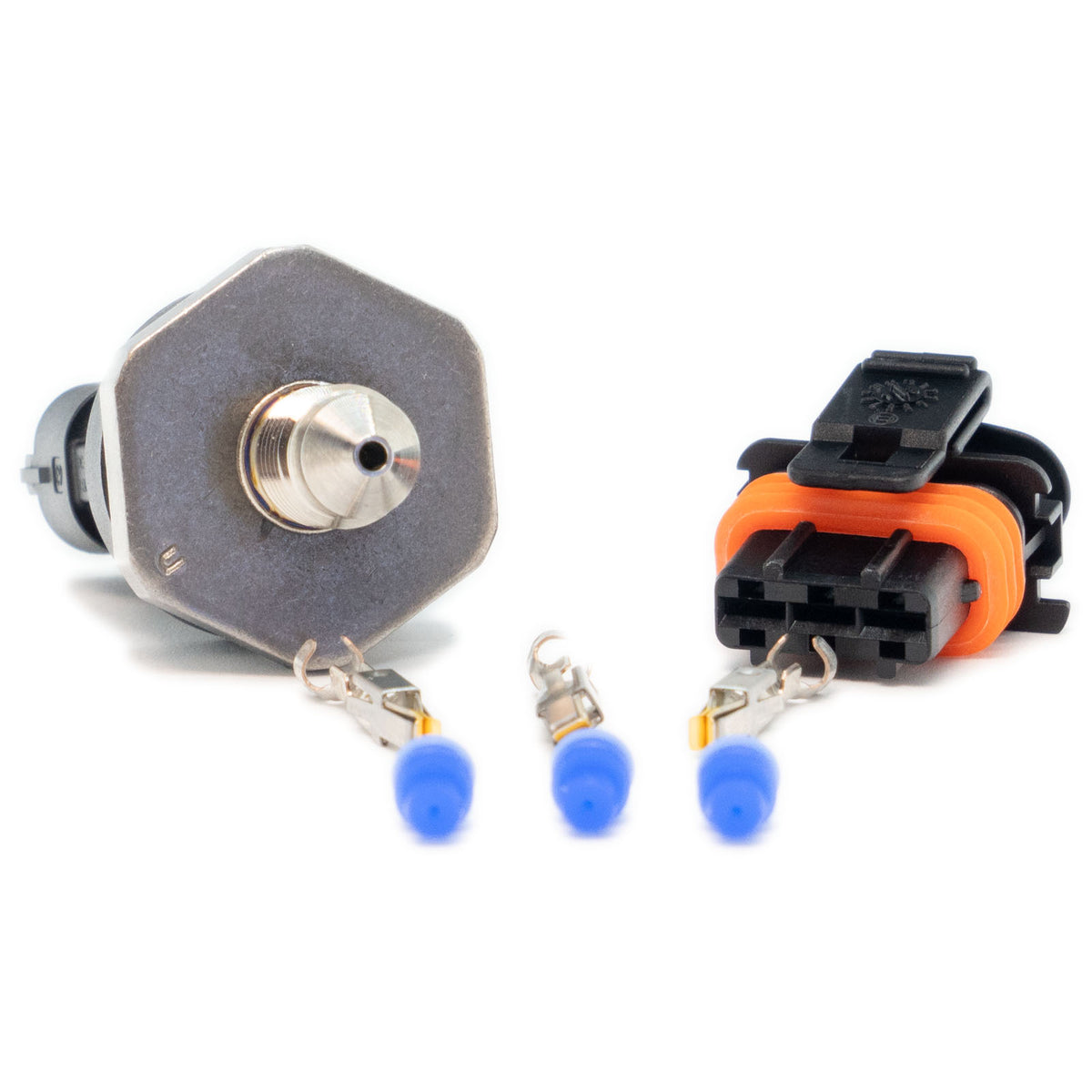

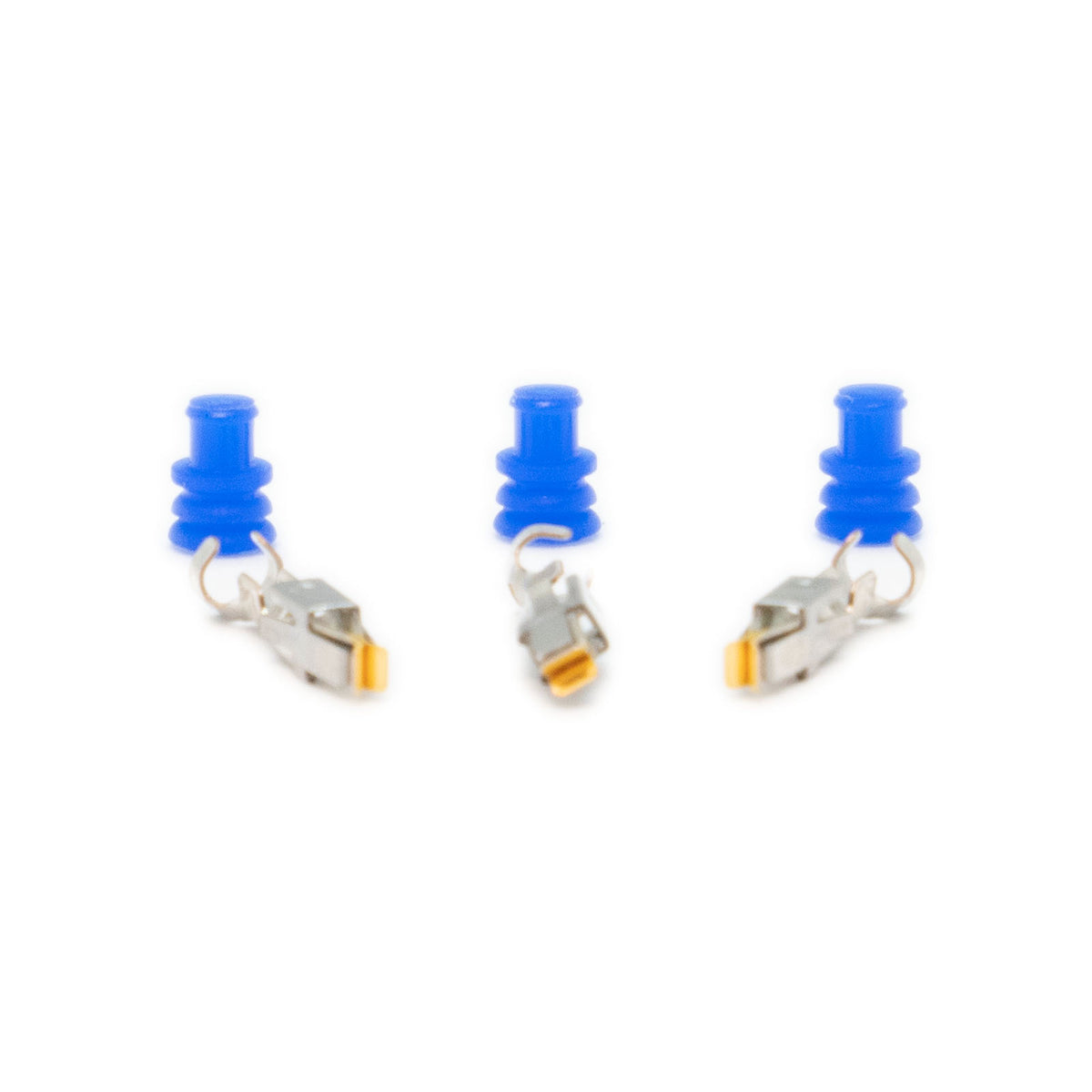

What's in the Box | Bosch Pressure Sensor for Liquid 140 bar Bosch Mating Connector 3-pin Compact for Pressure Sensor Printed Accessory instructions |
PCLink Calibration Name | "Bosch 140Bar 0 261 545 053" |
Raw Calibration Specs | 0.5V = 0kPa, 4.5V = 14000kPa |

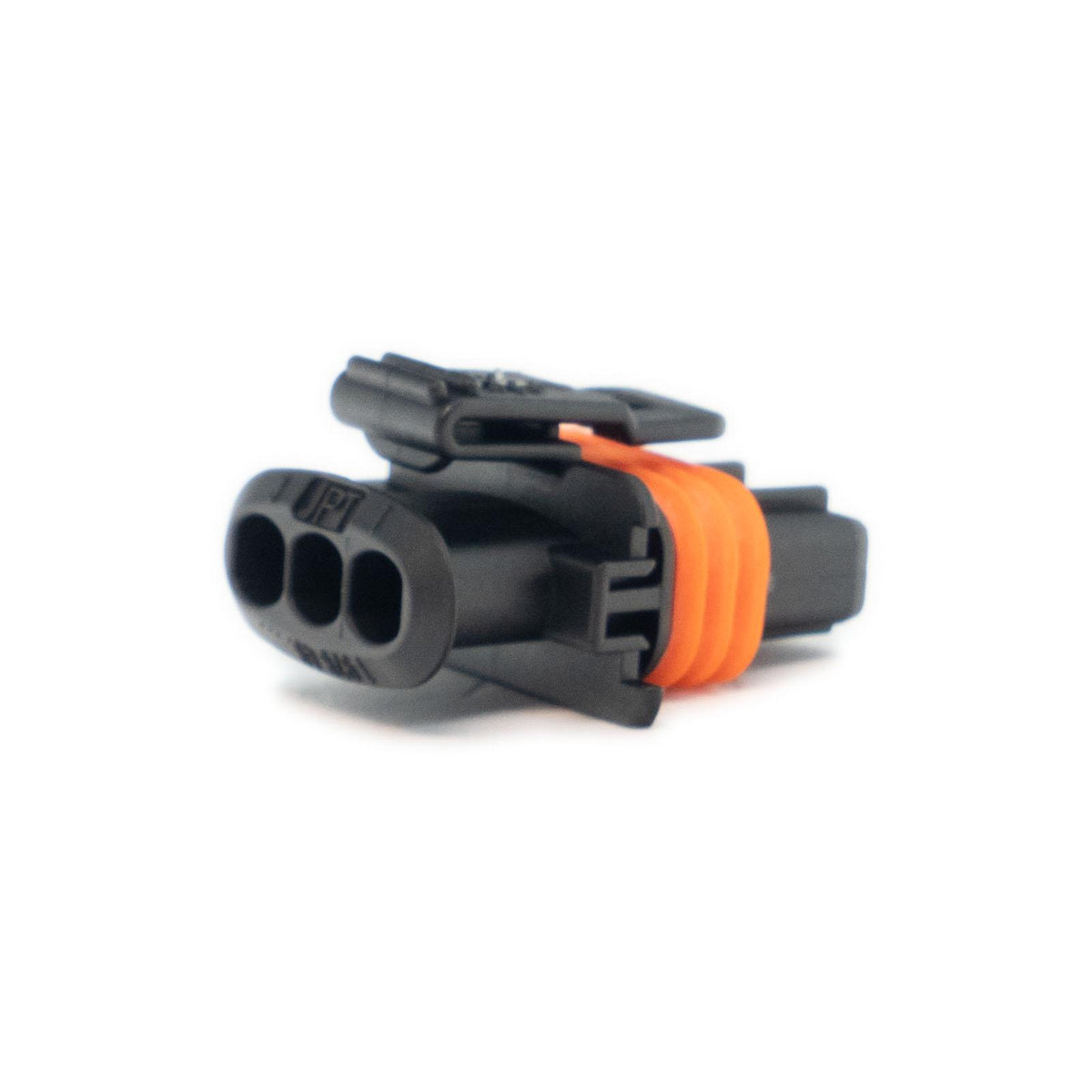

Connector | Compact 3-pin |
