Hall Effect Sensor Kit
Hall Effect Sensor Kit
Find an Installer
Search near youTo ensure the best possible experience with our products, we recommend you engage one of our official Dealers for installation and set-up.
Contact a Link dealer near you to find out more
You may also need
Overview

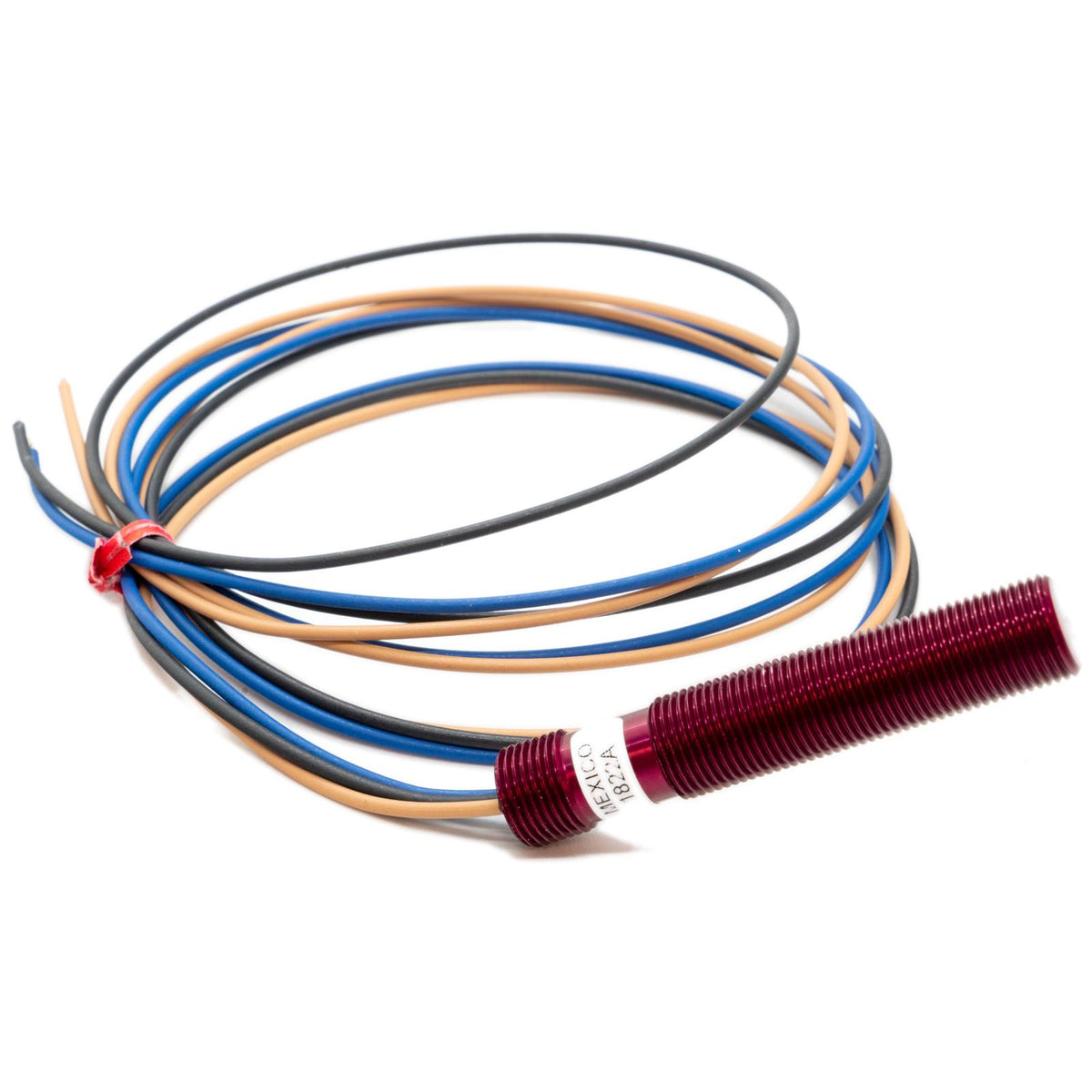

The Link Hall Effect Sensor is a non-contact Hall effect gear tooth sensor designed for crankshaft, camshaft and wheel speed sensing. It features adaptive dynamic threshold technology that automatically compensates for changes in target geometry and air gap, providing reliable position and speed detection from near zero speed up to 15 kHz.
Models Supported |
All Link ECUs Other aftermarket ECUs |
Important |
Designed for sensing ferrous trigger wheels and gear teeth. An external pull-up resistor is required unless the ECU provides an internal pull-up. Observe the recommended target dimensions and air gap for reliable operation. |
Specifications
The Link Hall Effect Sensor has the following specifications:
Highlights | Non-contact Hall effect gear tooth sensor. Adaptive dynamic threshold technology. Open collector (sinking current) output. Near-zero speed sensing. Maximum tooth frequency: 15 kHz. Typical air gap: 1.5 mm. Operating temperature: -40degC to +125degC. IP67 rated. Anodised aluminium housing. 1 m flying lead. Includes DTM3 connector kit |
Product Dimensions | 120mm(L)x15mm(W)x15mm(H) 4.72in(L)x0.59in(W)x0.59in(H) |
Product Weight | 50 grams (1.76 ounces) |
Electrical | Operating Voltage Range: 5-24V Maximum Input Voltage: 30V Maximum Continuous Current Draw: 6mA Gauges of wire: 20AWG/0.5mm2 |
Misc. | Brown: Supply Voltage Blue: Sensor Ground Black: Output to ECU A shielded cable should be used to avoid interferences. |

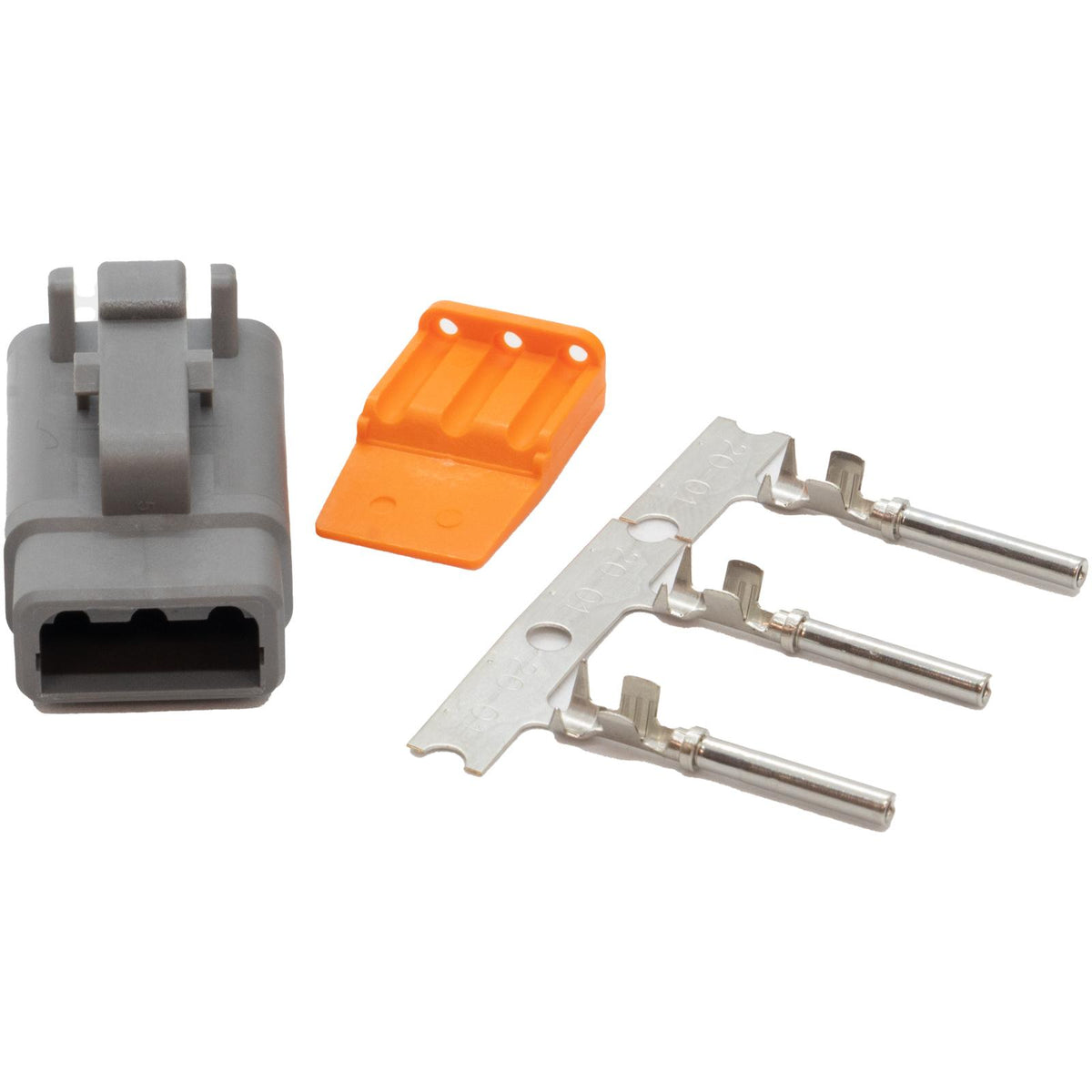

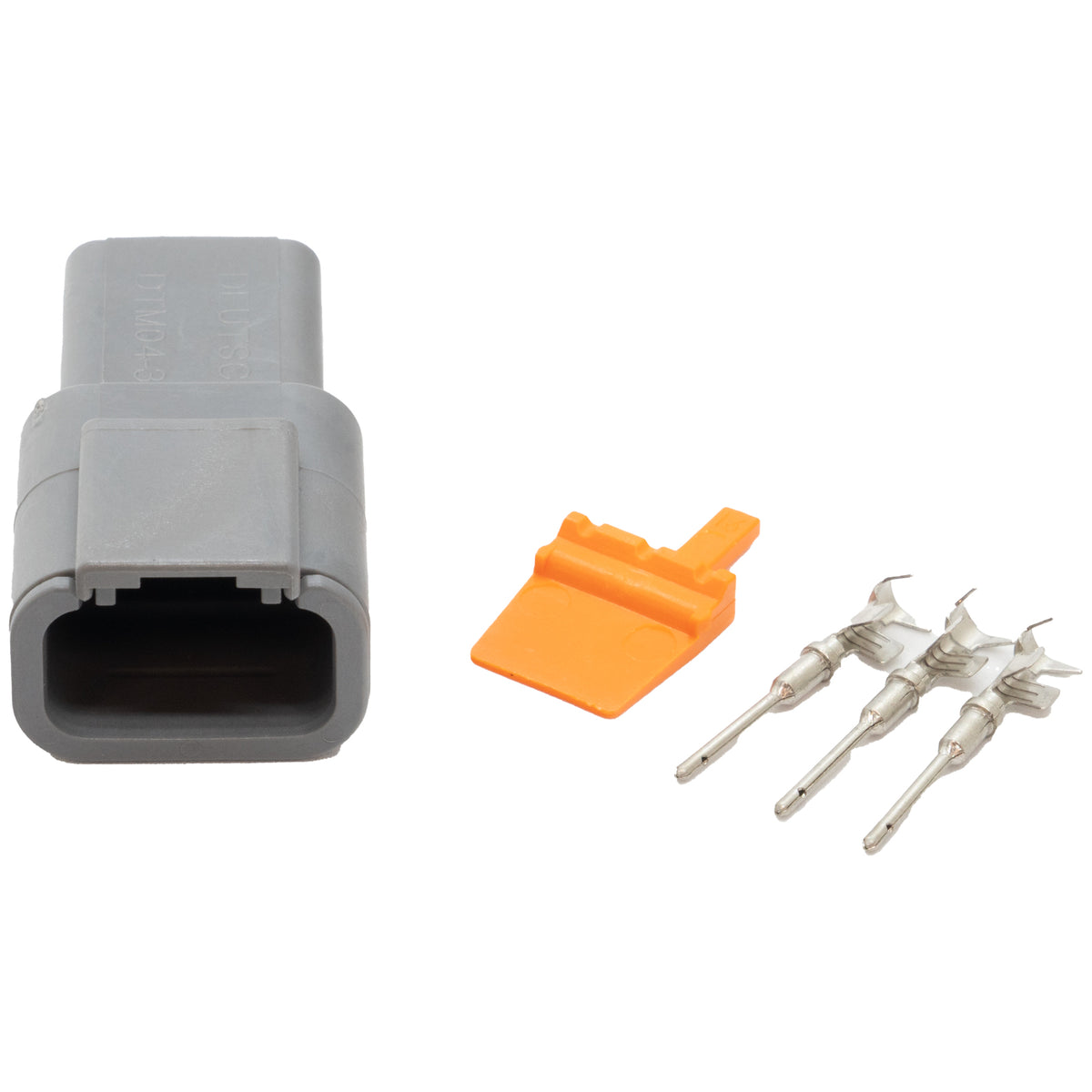

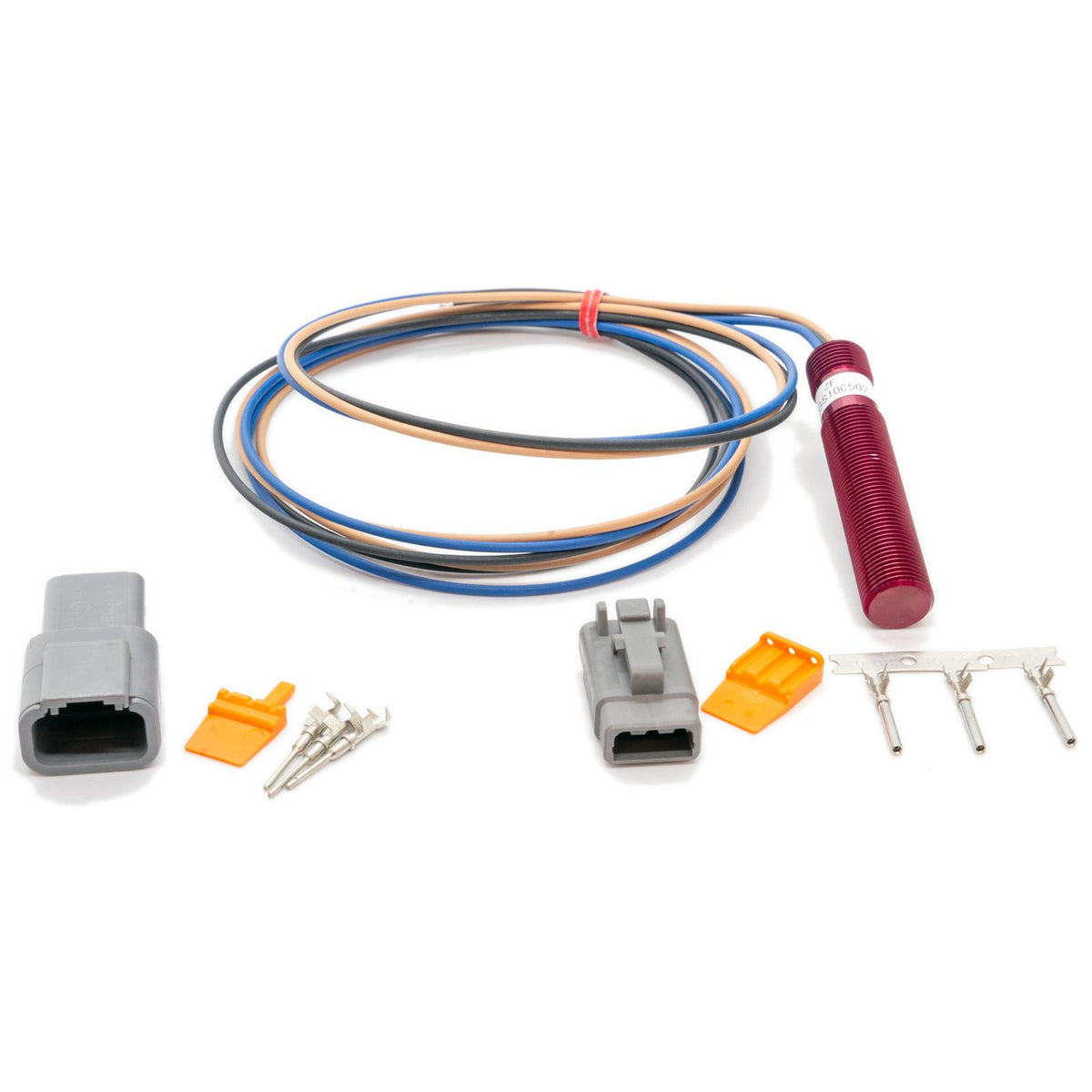

What's in the Box | Hall Effect Sensor DTM3 connector kit (MF & F) Printed Accessory instructions |
