SKU:101-0298

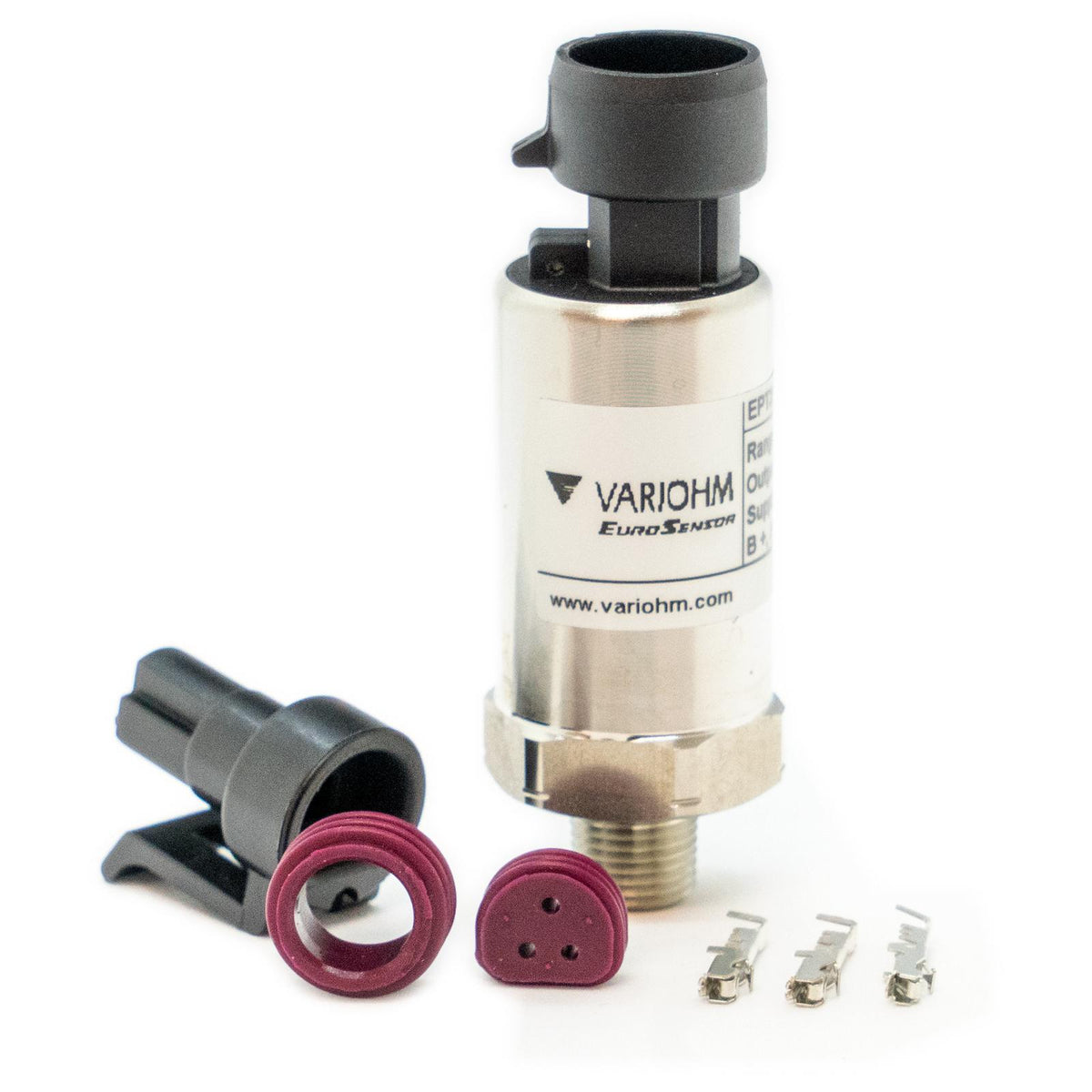

8 Bar MAP Sensor EU (MAP8EU)
MAP Sensor 8 Bar EU SS -1 / +7 Bar Pressure
Find an Installer
Search near youTo ensure the best possible experience with our products, we recommend you engage one of our official Dealers for installation and set-up.
Contact a Link dealer near you to find out more
You may also need
Overview
The Link 8 Bar MAP Sensor is a high-accuracy manifold absolute pressure (MAP) sensor designed for turbocharged and supercharged engines operating at up to 101 psi (7 bar) of boost. Featuring a rugged stainless steel construction and fast response time, it delivers stable and accurate pressure measurement for reliable engine tuning in demanding motorsport and high-performance applications.
Models Supported |
All Link ECUs. Other aftermarket ECUs with a 5V ratiometric analogue input. Up to 101 psi (7 bar) boost pressure. |
Warnings |
Designed for use with a regulated 5V sensor supply. Using Link G4/G4+/G4X/G5 ECU's select the MAP sensor type in PC Link as 'Variohm 8 Bar'. Not recommended for naturally aspired engines or boost levels exceeding 7 BAR / 101 psi. |
Specifications
Highlights | The Link 8 Bar MAP Sensor has the following specifications: Pressure range: -1 to +7 bar (-14.5 to +101 psi). 0.5-4.5V ratiometric output. 5V supply voltage. High-accuracy piezoresistive sensing element. Stainless steel housing. Fast response time (<1ms). Excellent vibration and shock resistance. Operating temperature: -40degC to +125degC. IP66 rated. Packard Metri-Pack connector. 1/8" NPT Male pressure port. Comes with TI Sensor Connector Kit. |
Product Dimensions | 70mm(L)x25mm(W)x25mm(H) 2.76in(L)x0.98in(W)x0.98in(H) |
Product Weight | 65 grams (2.29 ounces) |
Electrical | Operating Voltage Range: 5V Maximum Input Voltage: 5V |

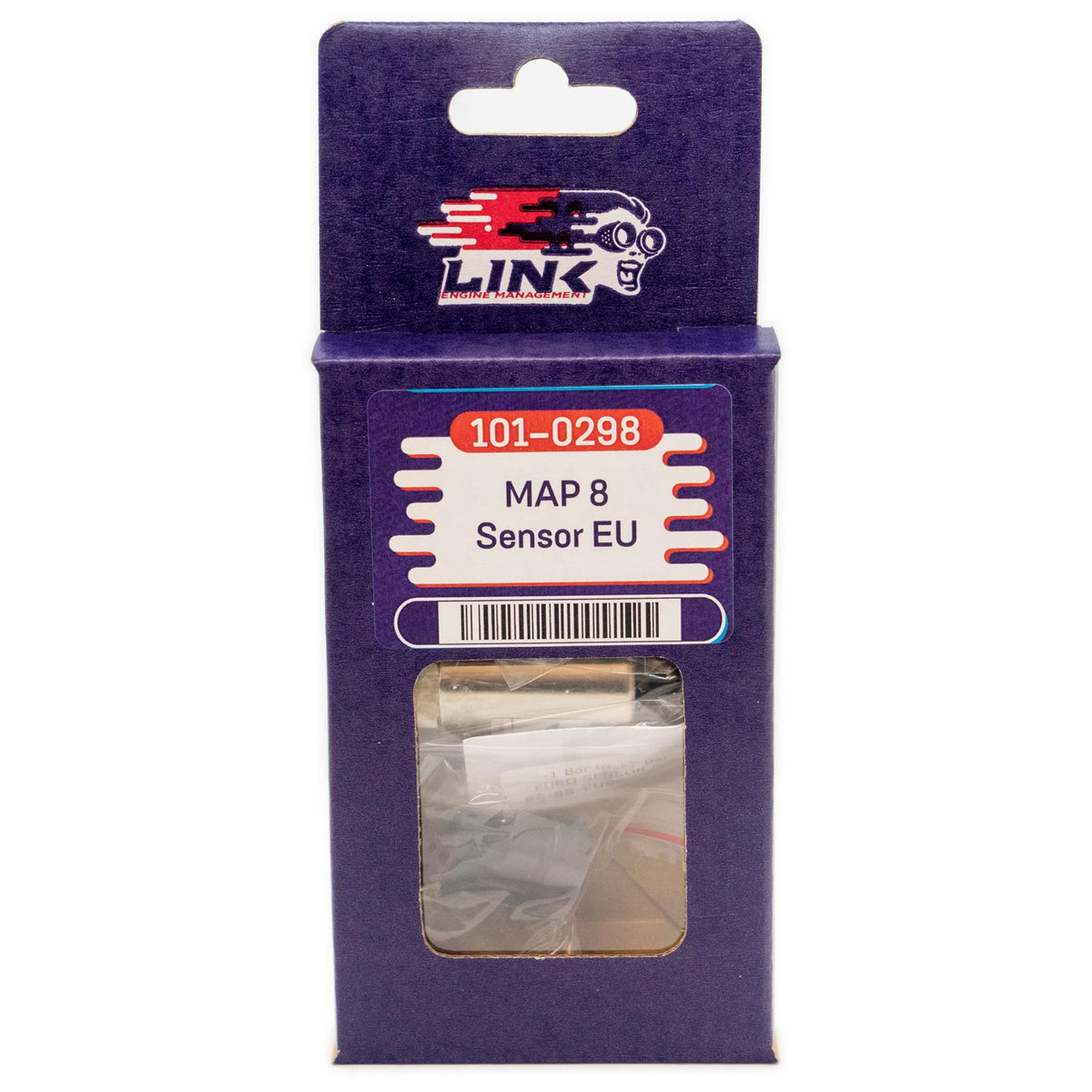

What's in the Box | MAP Sensor 8 Bar EU TI Sensor Connector Kit Printed Accessory instructions |
PCLink Calibration Name | "8 Bar Variohm" |
Raw Calibration Specs | 0.5V = 0kPa, 4.5V = 800kPa |
Connector | TI Sensor Connector Kit 101-0130 |
