SKU:101-0045

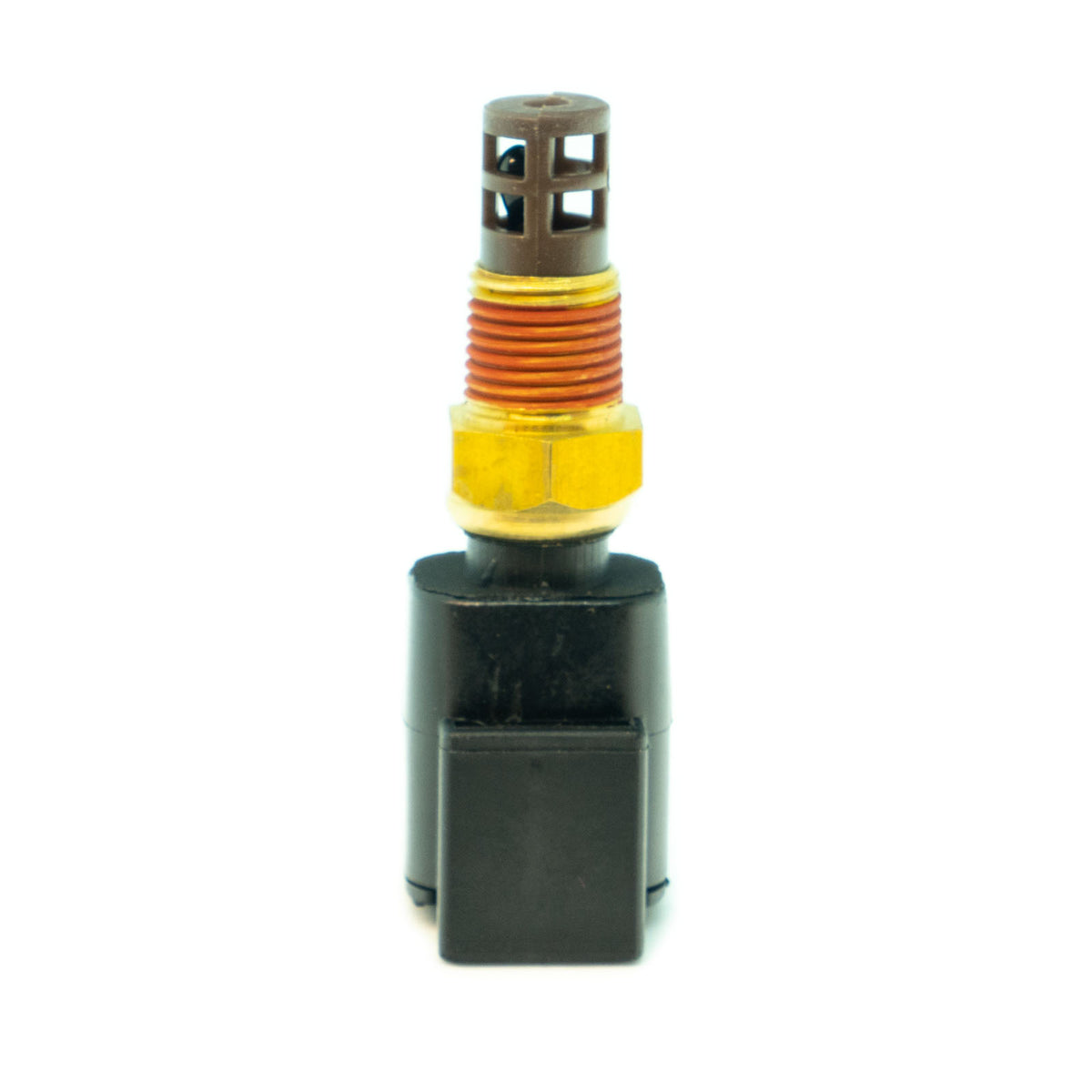

Air Temp Sensor (IAT1-8)
Air Temp Sensor 1/8 NPT with plug and terminals
Find an Installer
Search near youTo ensure the best possible experience with our products, we recommend you engage one of our official Dealers for installation and set-up.
Contact a Link dealer near you to find out more
You may also need
Overview
The Link Air Temperature Sensor (IAT1-8) is a high-quality NTC thermistor sensor designed to provide accurate intake air temperature measurement for Link ECUs. With a compact threaded design and proven temperature calibration, it delivers reliable air temperature data for fuel, ignition and engine protection strategies.
Models Supported |
All Link ECUs. Other aftermarket ECUs supporting NTC temperature sensors. |
Specifications
Highlights | The Link Air Temperature Sensor has the following specifications: NTC thermistor temperature sensor. 1/8" NPT thread. Two-wire sensor. Compact metal body. Designed for intake air temperature measurement. Signal and Sensor Ground connections. Comes with Deutsch 2 way Connector Kit. |
Product Dimensions | 30mm(L)x55mm(W)x30mm(H) 1.18in(L)x2.17in(W)x1.18in(H) |
Product Weight | 5 grams (0.18 ounces) |
Electrical | Operating Voltage Range: 5V |
What's in the Box | Air Temp Sensor 1/8 NPT Deutsch 2 way Connector Kit |
PCLink Calibration Name | "Link NTC1-8 & IAT1-8" OR "Delphi AC IAT" |
Raw Calibration Specs | -40degC: 65,500 ohm -30degC: 51,791 ohm -20degC: 28,146 ohm -10degC: 15,873 ohm 0degC: 9,256 ohm 10degC: 5,572 ohm 20degC: 3,457 ohm 30degC: 2,205 ohm 40degC: 1,443 ohm 50degC: 965 ohm 60degC: 660 ohm 70degC: 462 ohm 80degC: 329 ohm 90degC: 238 ohm 100degC: 175 ohm 110degC: 131 ohm 120degC: 99 ohm 130degC: 76 ohm 140degC: 59 ohm 150degC: 47 ohm |

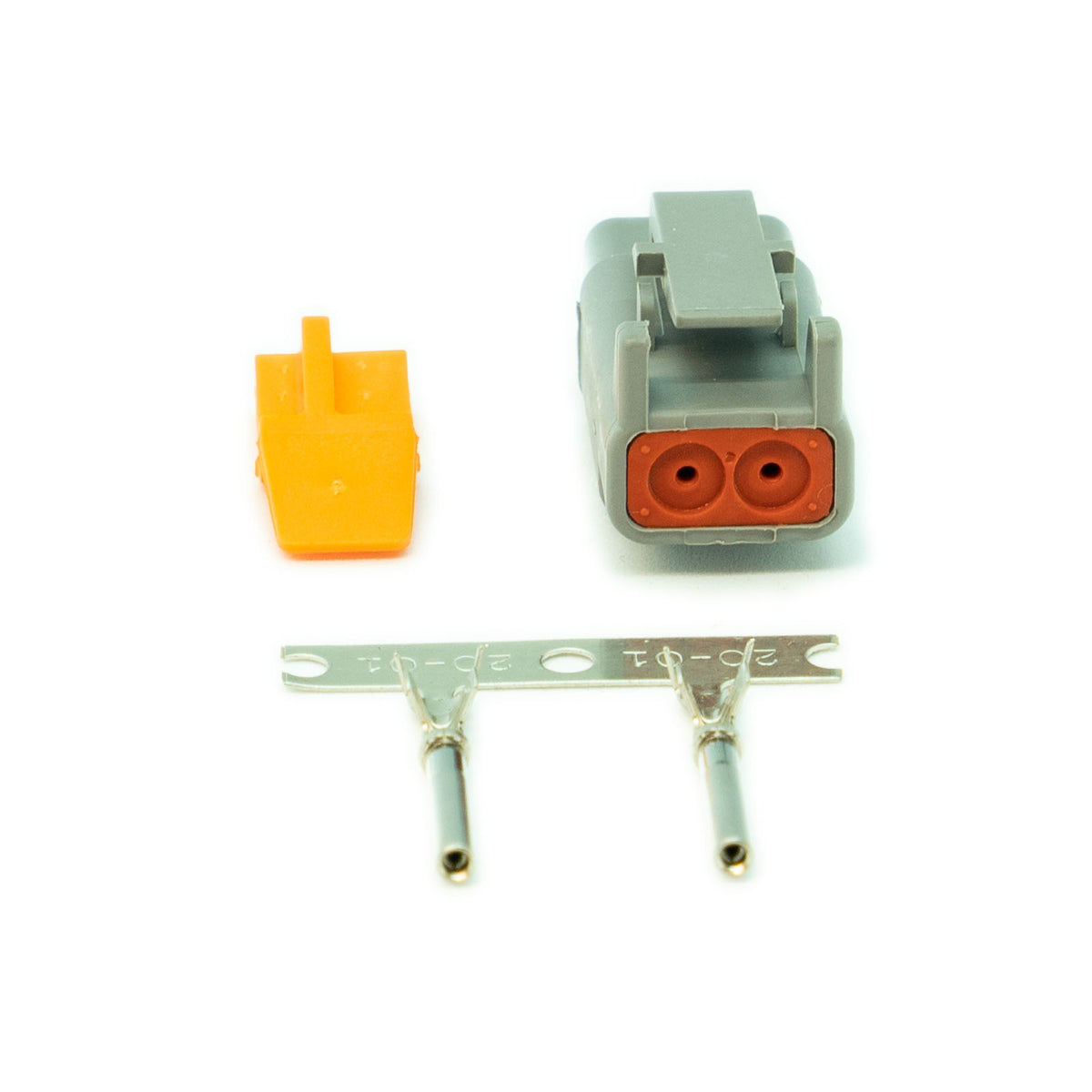

Connector | TE Connectivity Deutsch DTM 2-pin Deutsch 2 way Connector Kit 101-0131 |
