SKU:101-0003

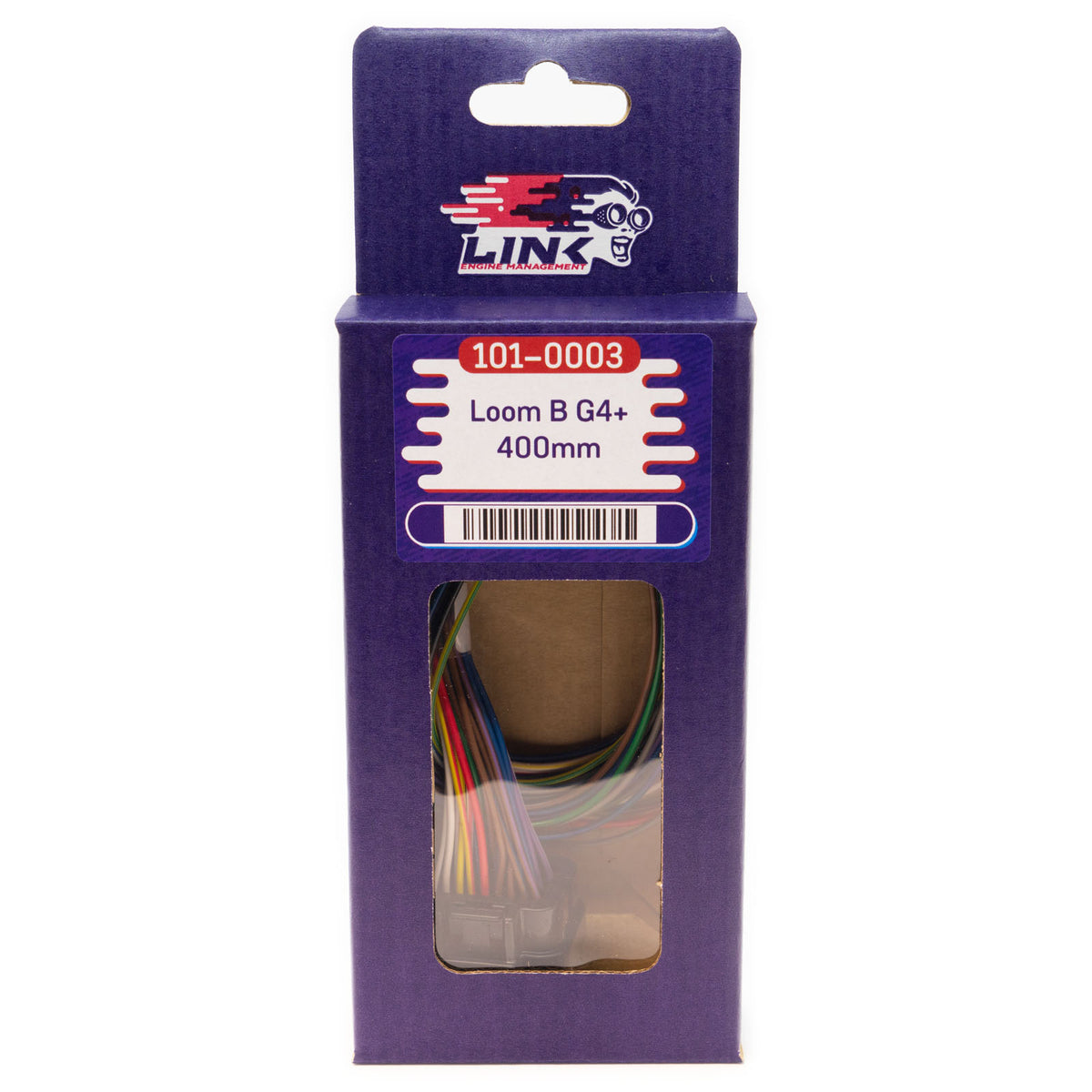

B Loom Short - 400mm (0LB)
B Loom short - 400mm
Find an Installer
Search near youTo ensure the best possible experience with our products, we recommend you engage one of our official Dealers for installation and set-up.
Contact a Link dealer near you to find out more
You may also need
Overview
0.4m 'B' Short Loom for Link G4, G4+, G4X and G5 Wire-in ECUs

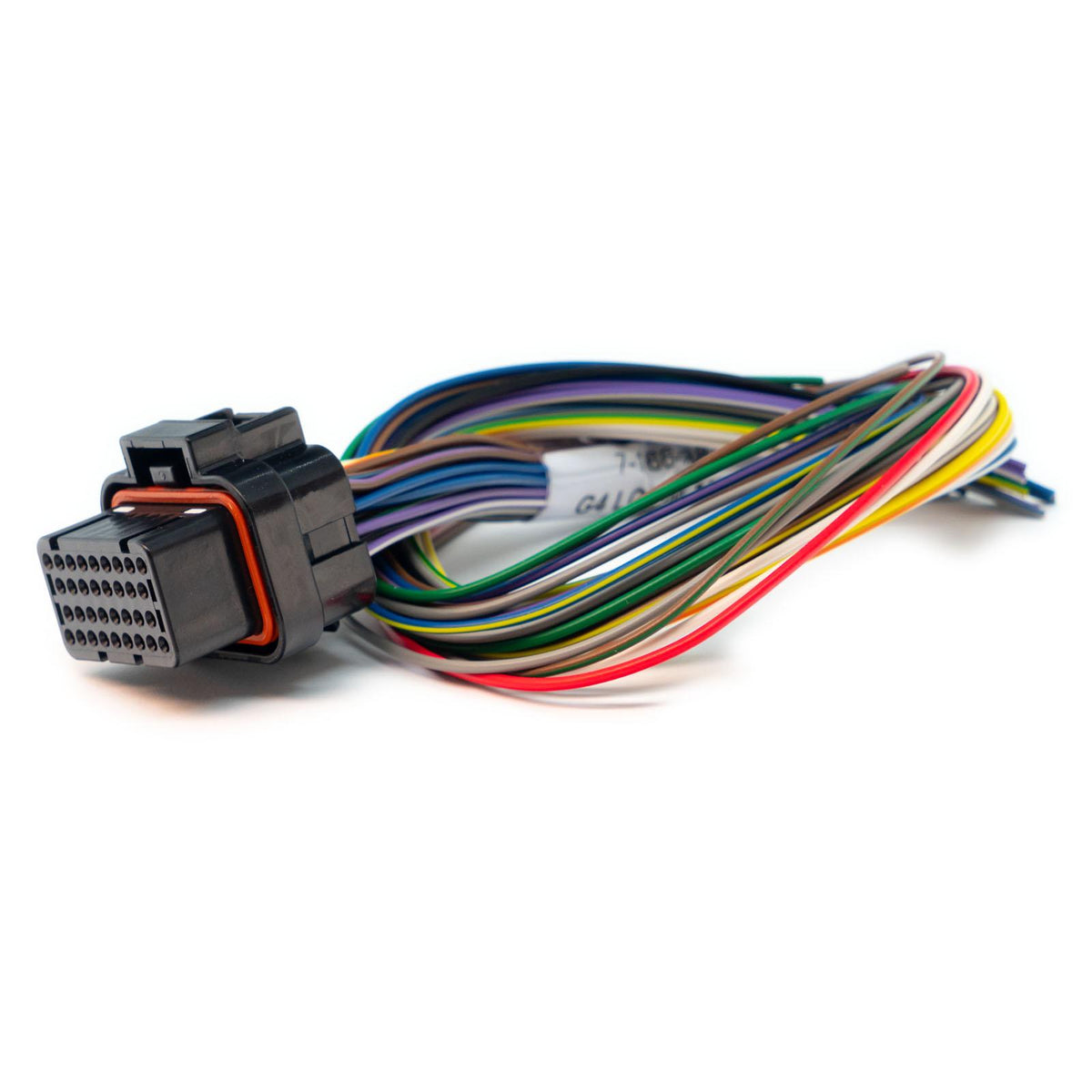

A high-quality, pre-assembled wiring loom for custom installations using compatible Link wire-in ECUs. Also commonly referred to as a wiring harness or flying lead, it is terminated with a SUPERSEAL 1.0 connector at one end, and is unterminated at the other. The 0.4m Link B Loom provides a convenient and cost-effective starting point for a professional ECU installation without the time, tooling and expense required to terminate the ECU connector yourself.
Ideal for patch harnesses and adapters. The 0.4m length makes this loom particularly well suited to patch harnesses, ECU conversions, adapters and other applications where a full-length flying lead is unnecessary.
While designed for compatible Link wire-in ECUs, this loom is not limited to Link ECU applications. It can also be used for custom wiring projects requiring the same TE Connectivity SUPERSEAL 1.0 connector and compatible pin configuration.
Please note: Link Wire-in ECUs that use two ECU connectors require both an A Loom and B Loom. The 0.4 A Loom is sold separately (PN 101-0002).
Models Supported |
Link G4X Storm (Loom A also required) Link G4X and G4+ Fury (Loom A also required) Link G4X, G4+ and G4 Xtreme (Loom A also required) Link G4+ Thunder (Note: Loom A and connector kits C and D may also be required) Link G4+ Storm Black (Loom A also required) - Note: Loom B is not required for the older Silver or Blue G4 or G4+ Storm models Vipec V88 (Loom A also required) Vipec i88 (Loom A also required) |
Warnings |
Does not suit earlier G4 (Pre G4+) Atoms. This loom is also available in 2.5m and 5m lengths. |
Features
All wires are colour coded to match the Link Wire-In manuals. All positions populated.
Specifications
Link looms use 0.75mm2 wire for the 2 red wires (pin A5 & B5) and the 4 black power grounds (A25,A34,B25,B34). All other wires are 0.5mm2.
Product Dimensions | 400mm(L)x40mm(W)x30mm(H) 15.75in(L)x1.57in(W)x1.18in(H) |
Product Weight | 140 grams (4.94 ounces) |
Electrical | Operating Voltage Range: 0-24V Maximum Input Voltage: 60V Maximum Continuous Current Draw: 5A & 14A Gauges of wire: 20AWG/0.5mm2 & 19AWG/0.75mm2 |
What's in the Box | Loom B 400mm Cable |

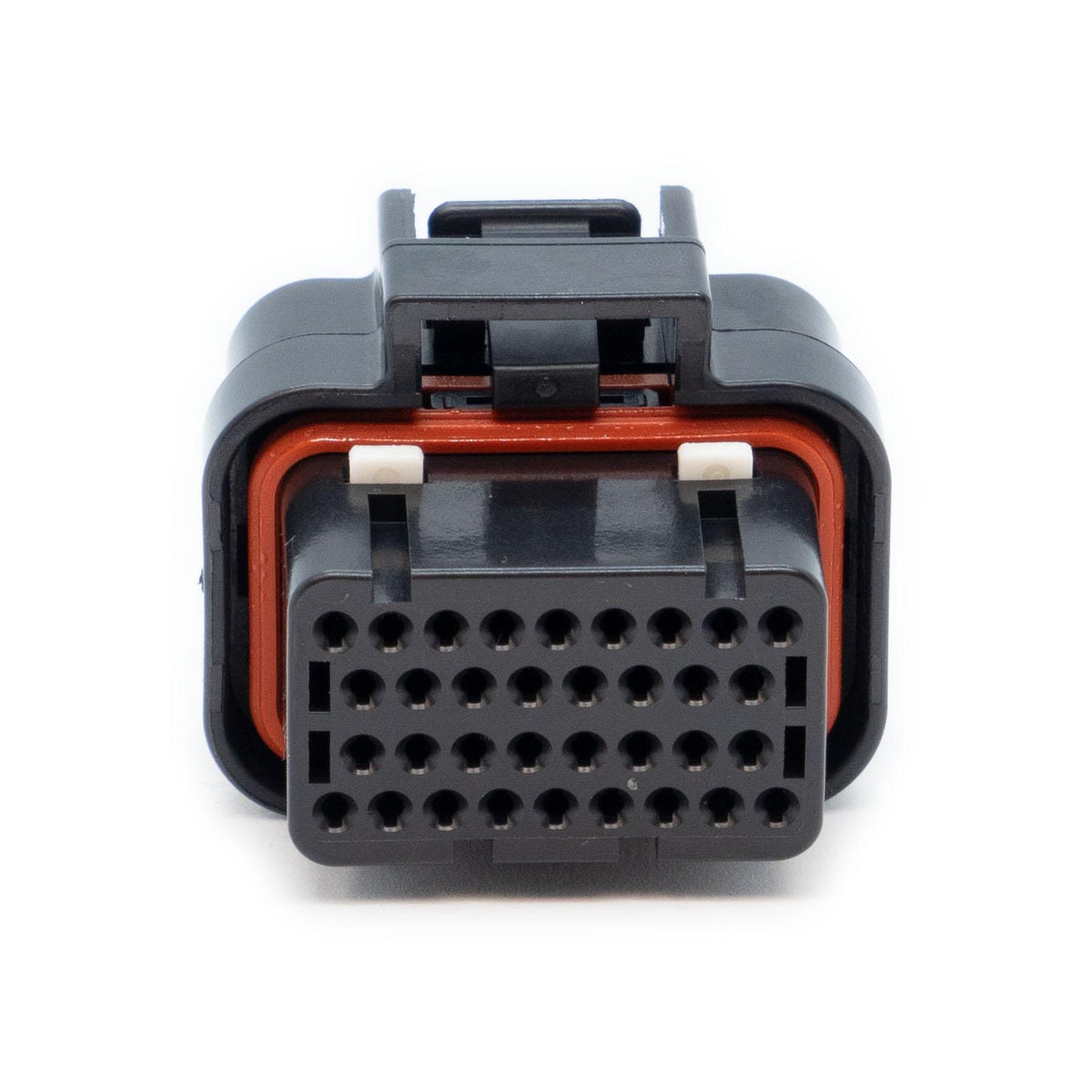

Connector | Link A SUPERSEAL 1.0 |
