SKU:101-0025

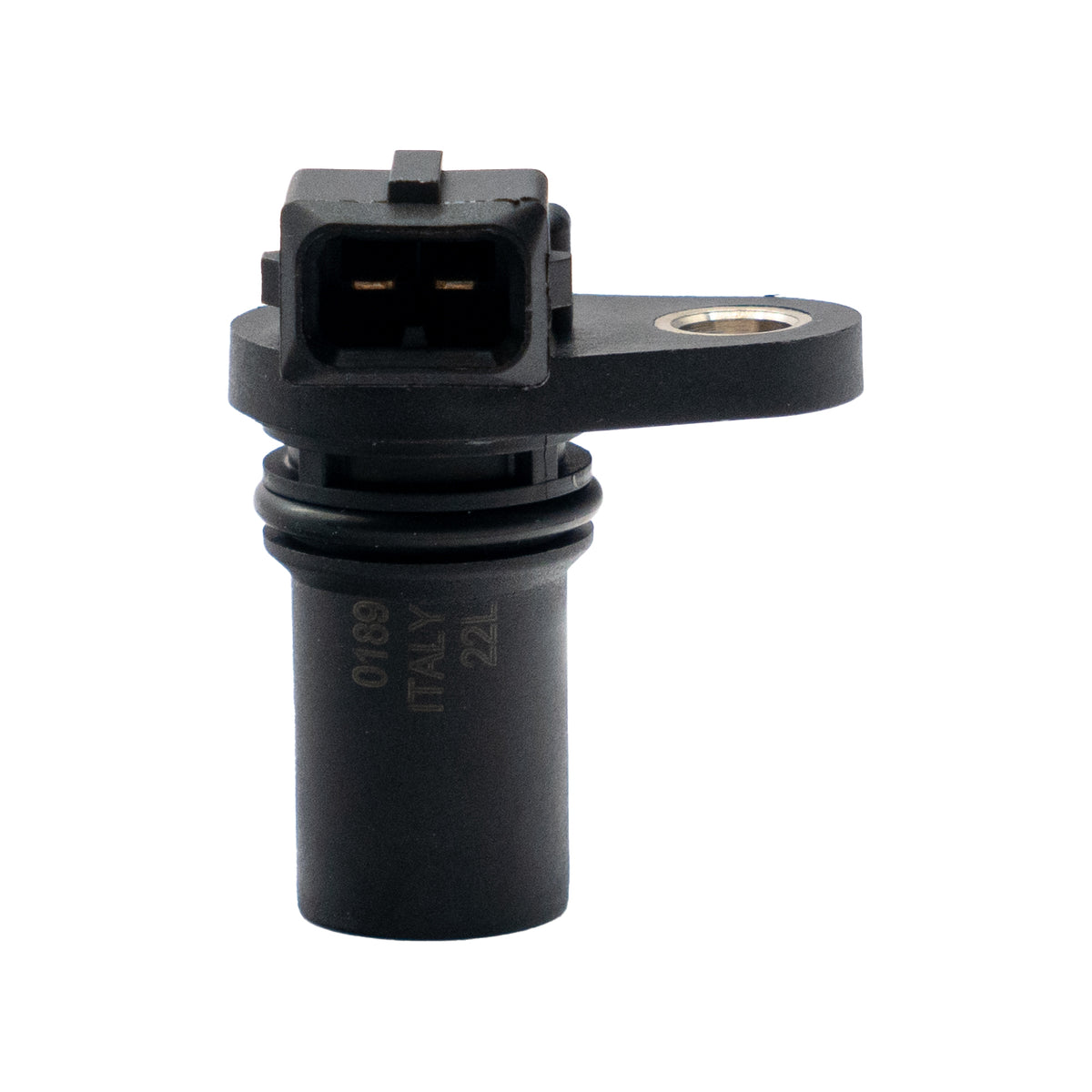

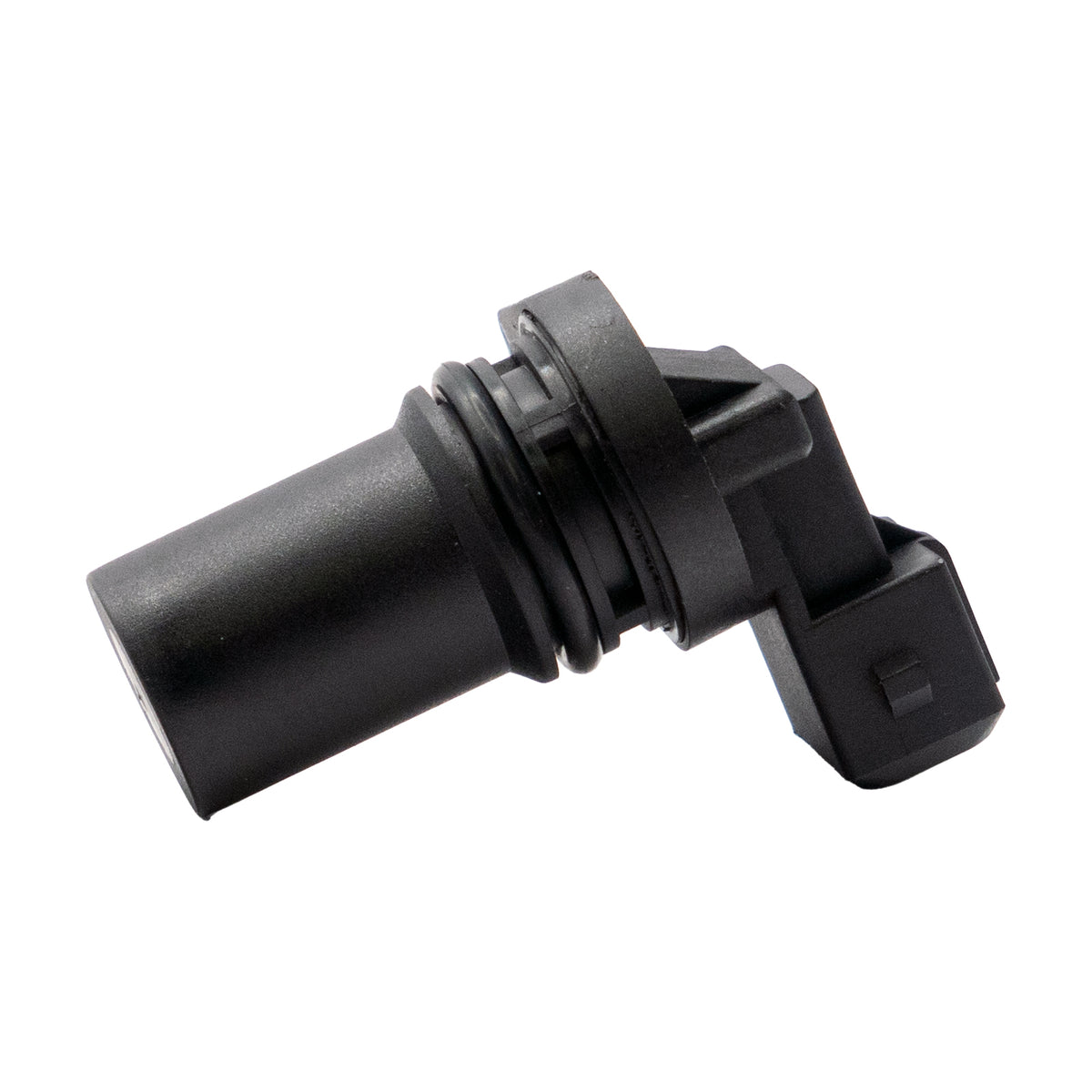

Crank Angle Sensor (CAS)
Crank Angle Sensor with plug and pins
Find an Installer
Search near youTo ensure the best possible experience with our products, we recommend you engage one of our official Dealers for installation and set-up.
Contact a Link dealer near you to find out more
You may also need
Overview
Used to measure crank angle (in conjunction with a trigger wheel), this VR sensor is a vital measurement for engine operation.
Models Supported |
It can be used with almost any steel trigger wheel attached to the crank shaft, see related products for our trigger wheel options. |
Warnings |
Not recommended for CAM signal. Signal wires should be shielded. Sensor gap around 0.5mm. Depending on the desired ignition strategy, you may need an additional CAM/Trigger 2 sensor PN 101-0280. See PC Link Help File for more information. |
Specifications
Wiring | Reference + connect to Trigger 1 (Signal) on the Link ECU. Reference - connect to Sensor Ground on the Link ECU. |
Product Dimensions | 55mm(L)x40mm(W)x45mm(H) 2.17in(L)x1.57in(W)x1.77in(H) |
Product Weight | 30 grams (1.06 ounces) |
Electrical | Operating Voltage Range: +/-60V |

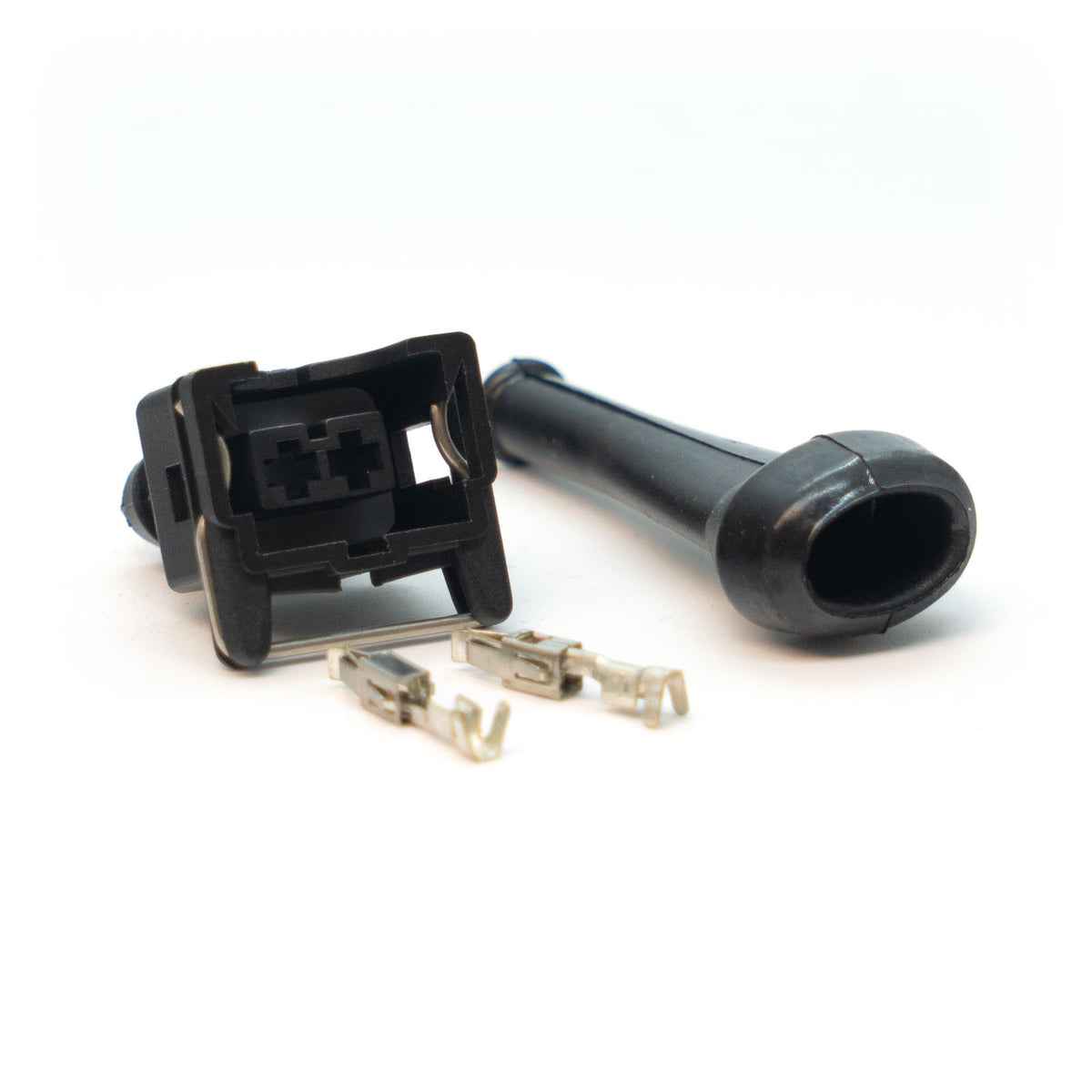

What's in the Box | Crank VR Sensor with plug/pins Bosch Style Plug, Pin and Boot (PN 101-0051) |
PCLink Calibration Name | Reluctor |
