SKU:114-2000

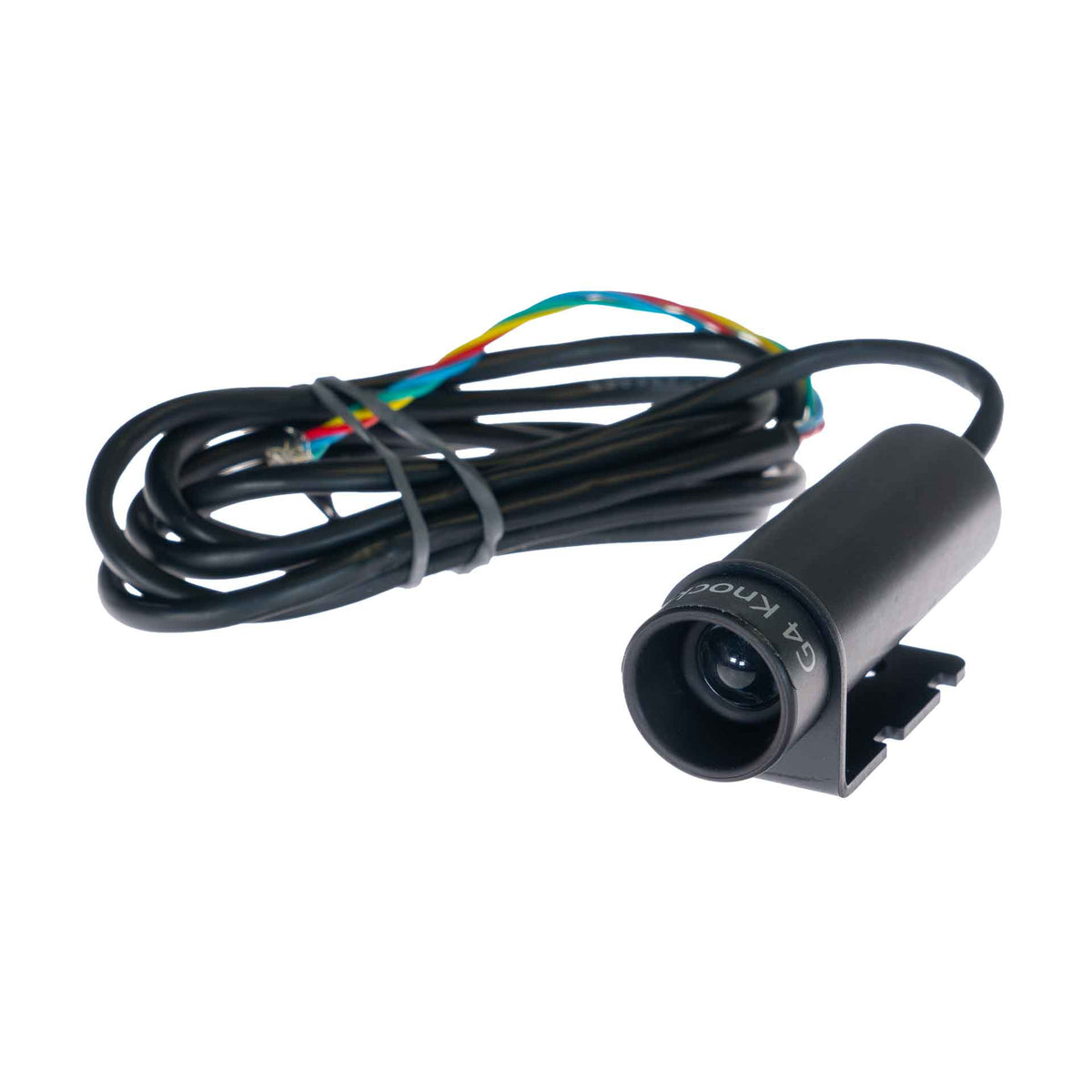

G4 KnockLink Kit - Knock Sensor Interface + Sensor + Loom (G4KNLK)

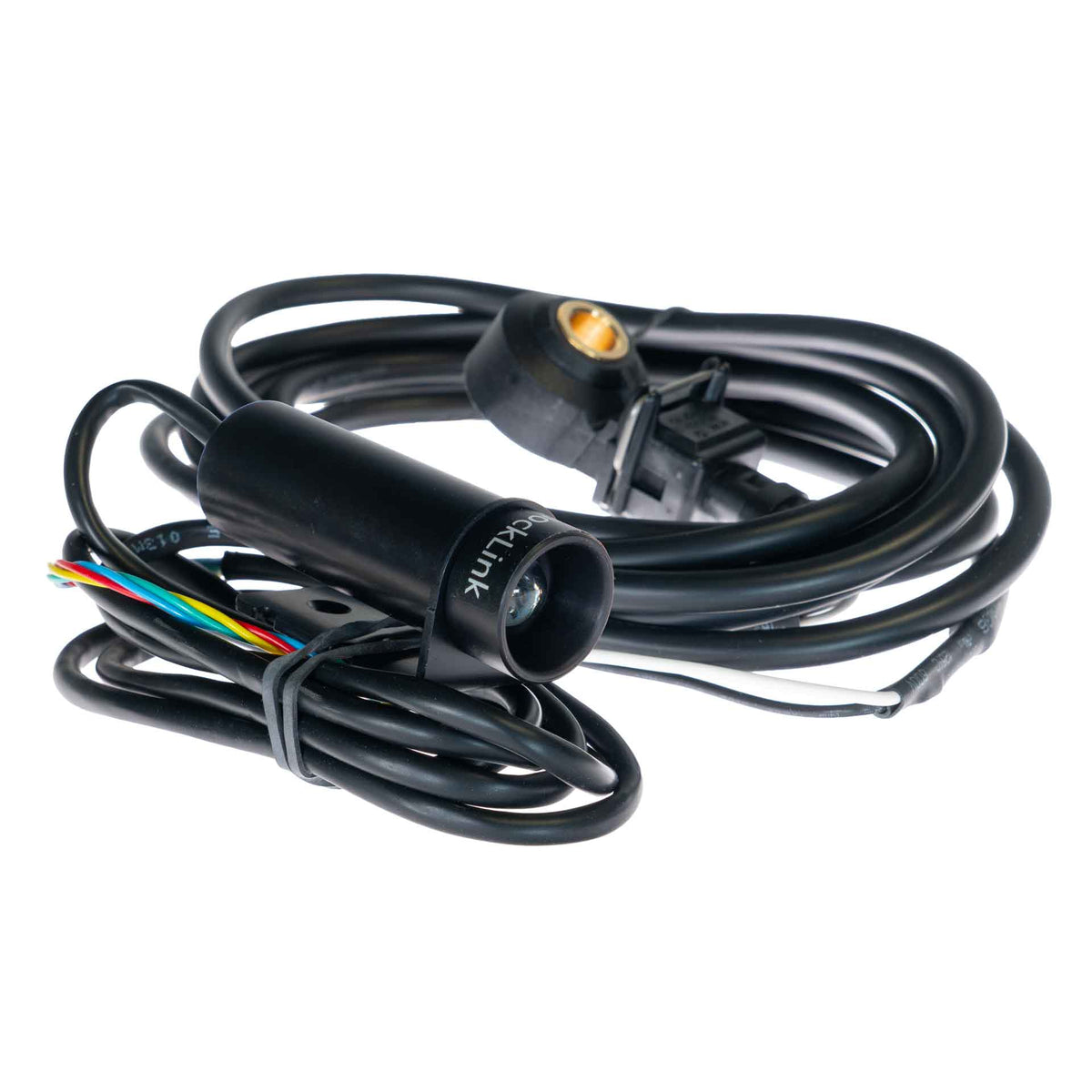

KnockLink Kit with Loom/Sensor
Find an Installer
Search near youTo ensure the best possible experience with our products, we recommend you engage one of our official Dealers for installation and set-up.
Contact a Link dealer near you to find out more
You may also need
Overview
The Link KnockLink Kit is a complete, self-calibrating visual knock warning system designed to detect engine knock (detonation) and instantly alert the driver with a high-intensity LED warning.
Using intelligent digital signal processing, the KnockLink continuously monitors the knock sensor signal, automatically learning the engine's normal noise profile to accurately identify knock without requiring complex setup or calibration.

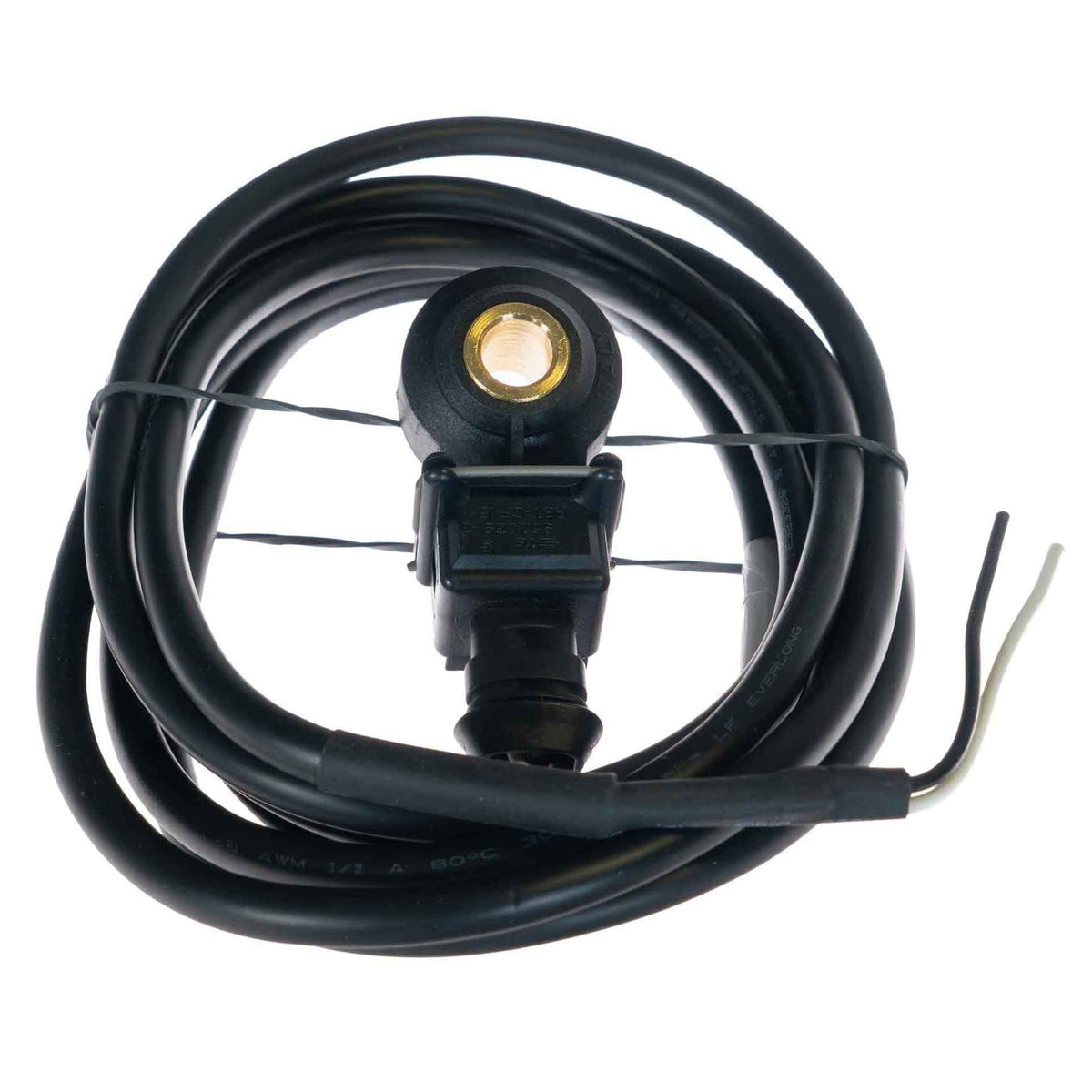

Supplied with a Knock Sensor with 2.6 m Loom, the kit provides everything required for a complete installation.
Models Supported |
Link Knock Sensors. OEM knock sensors. |
Warnings |
Requires a compatible knock sensor. Do not connect the KnockLink and ECU to the same knock sensor. Not suitable for mechanically noisy engines, including engines with high-clearance pistons and two-stroke engines. |
Specifications
The Link KnockLink Kit has the following specifications:
Highlights | Standalone knock detection device. Intelligent self-learning knock detection. Self-calibrating operation. No gain or frequency setup required. High detection accuracy. Visual LED knock warning. Monitors one knock sensor. Operates independently of the ECU. Compact CNC aluminium enclosure. Includes Knock Sensor with 2.6 m Loom. Includes wiring loom and mounting bracket. |
Electrical | Operating Voltage Range: 6-26V Maximum Input Voltage: 26V Maximum Continuous Current Draw: 100mA |
