SKU:109-9300B
G4X XtremeX ECU Wire-In Bundle
A premium G4X ECU for up to 8 cylinders, the XtremeX delivers loads of inputs and outputs, built-in E-throttle and all the motorsport features for demanding performance and race applications. This bundle pairs the XtremeX with the wiring and core sensors needed to get your install underway.
Find an Installer
Search near youTo ensure the best possible experience with our products, we recommend you engage one of our official Dealers for installation and set-up.
Contact a Link dealer near you to find out more
You may also need
Overview

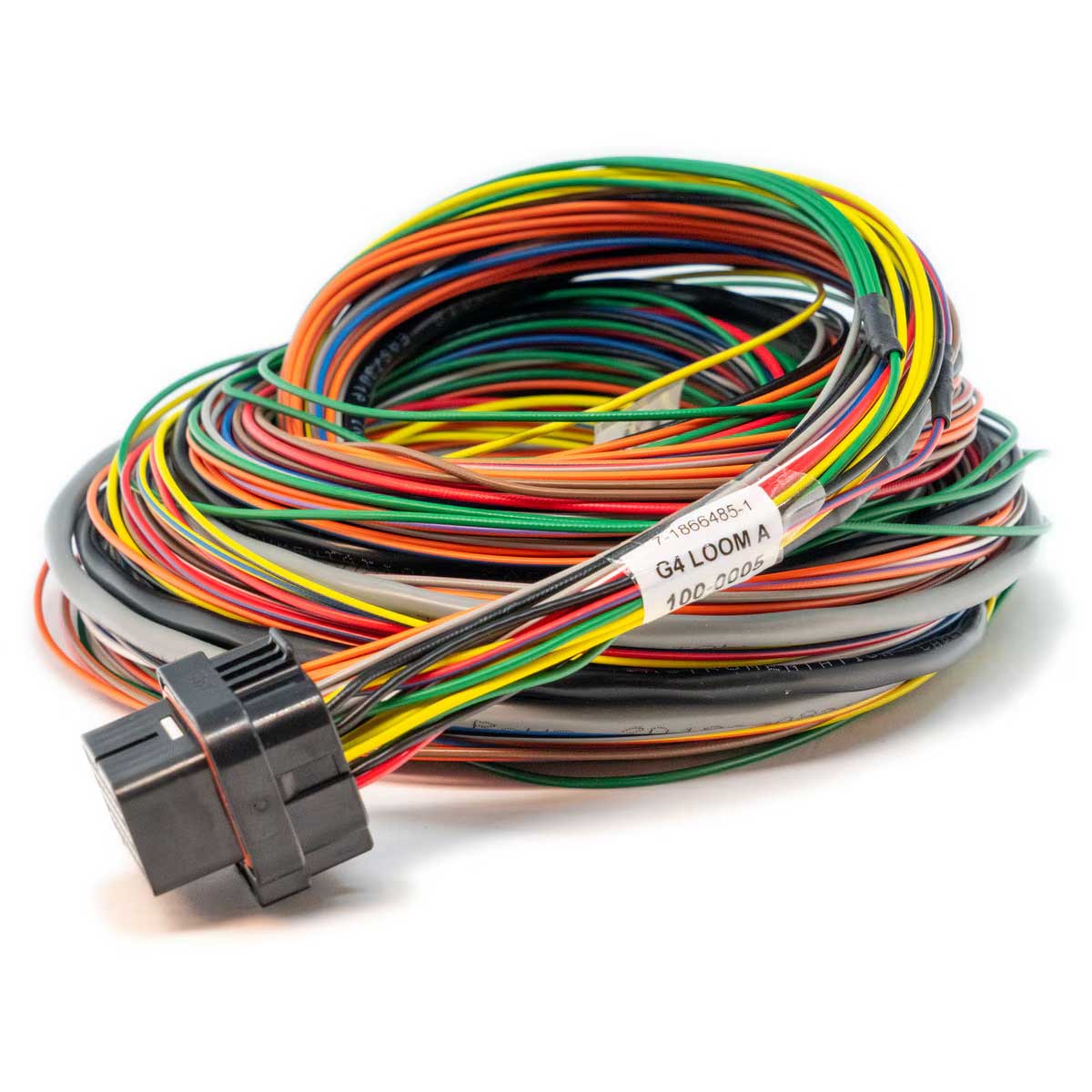

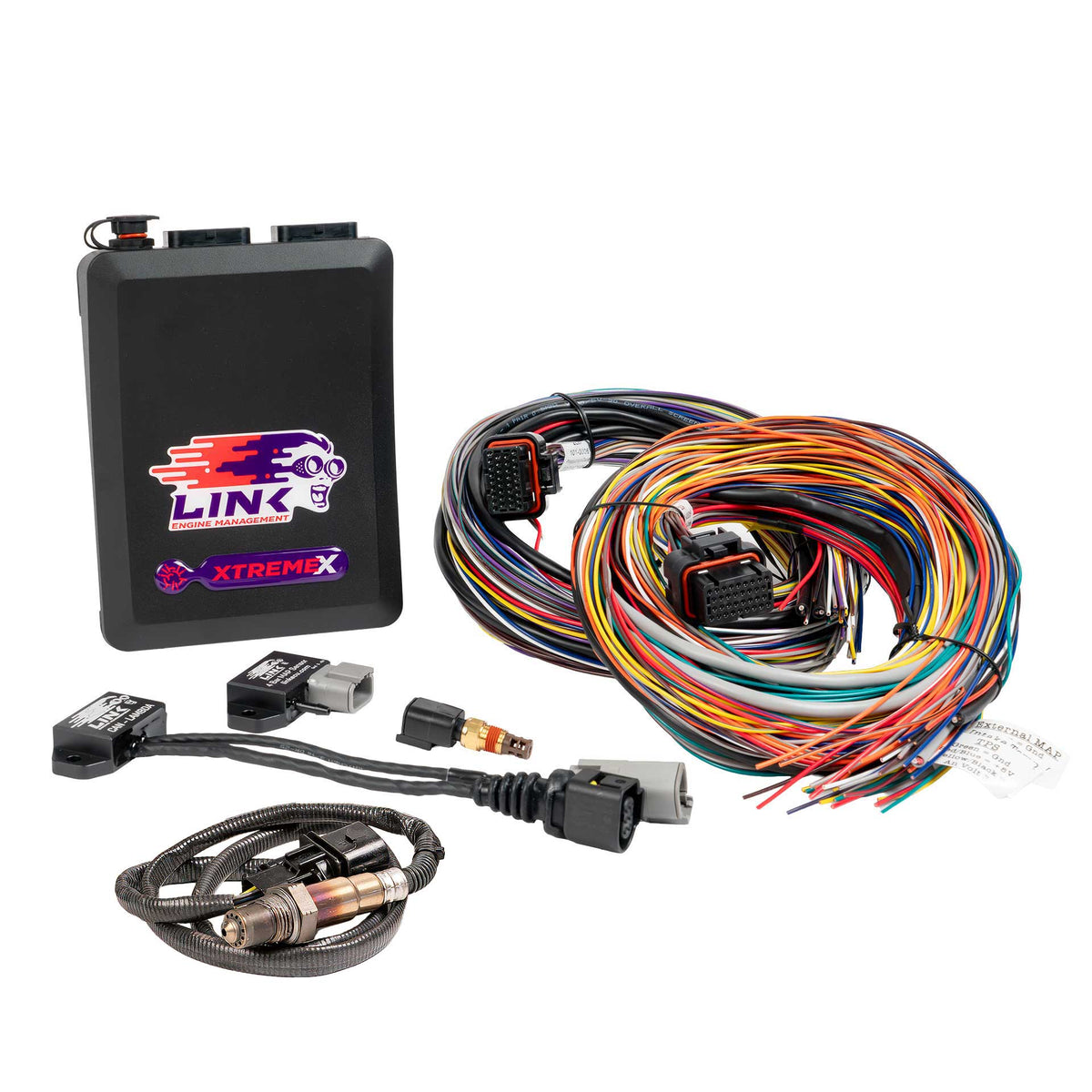

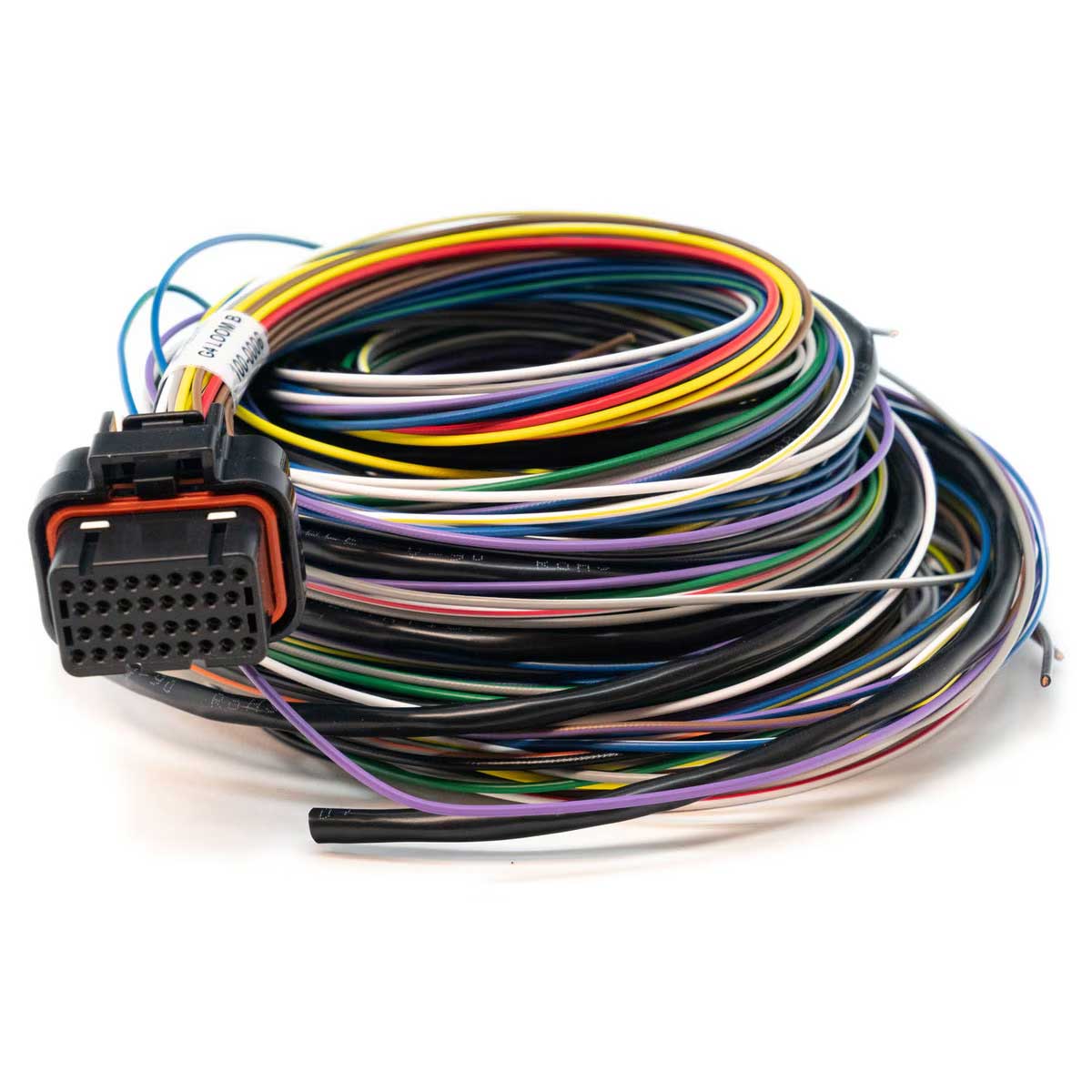

Alongside the XtremeX, the bundle includes 2.5 m A and B looms, a CAN Lambda wideband controller with a Bosch LSU 4.9 sensor, a Link 4 bar MAP sensor and an intake air temperature (IAT) sensor with a 1/8" NPT thread.

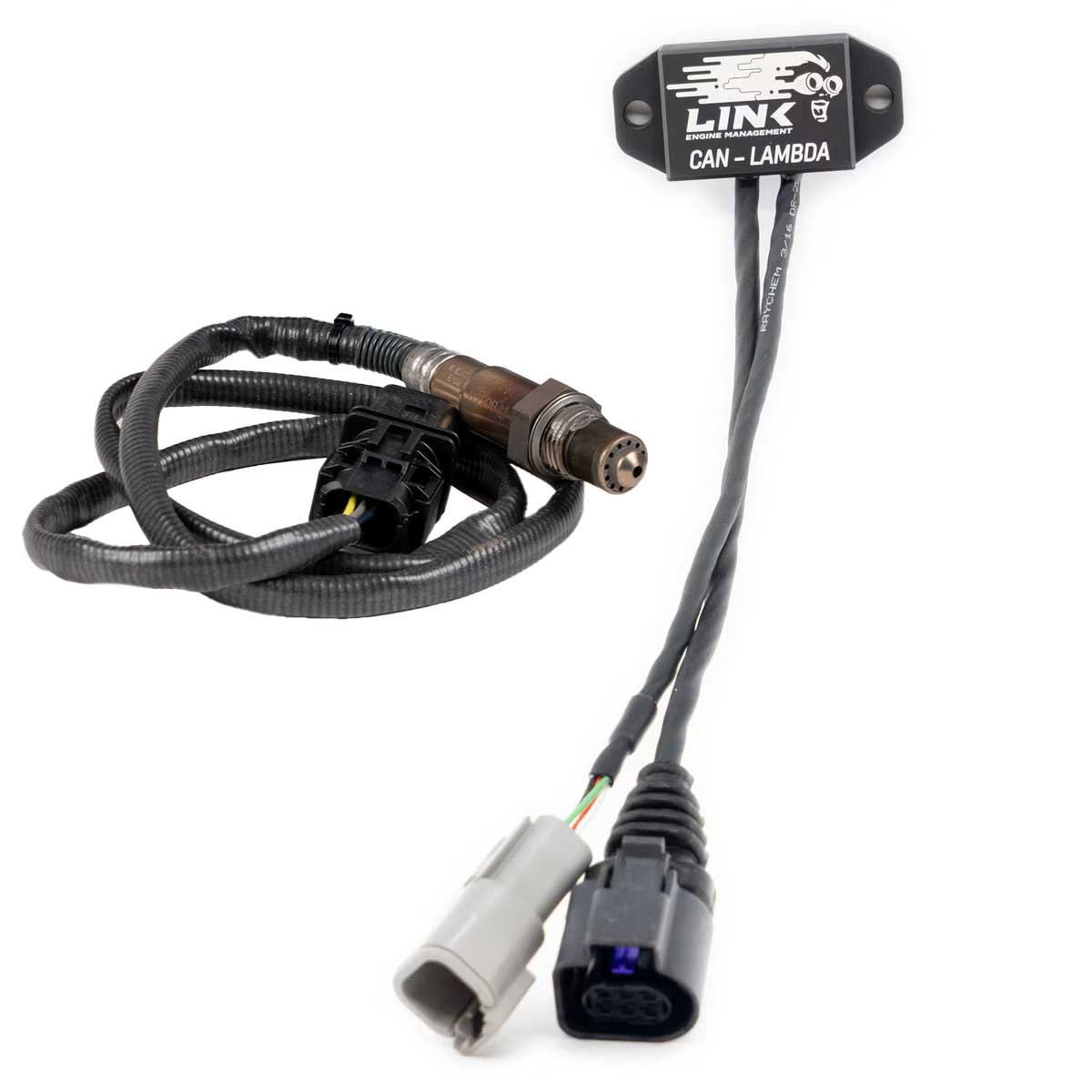

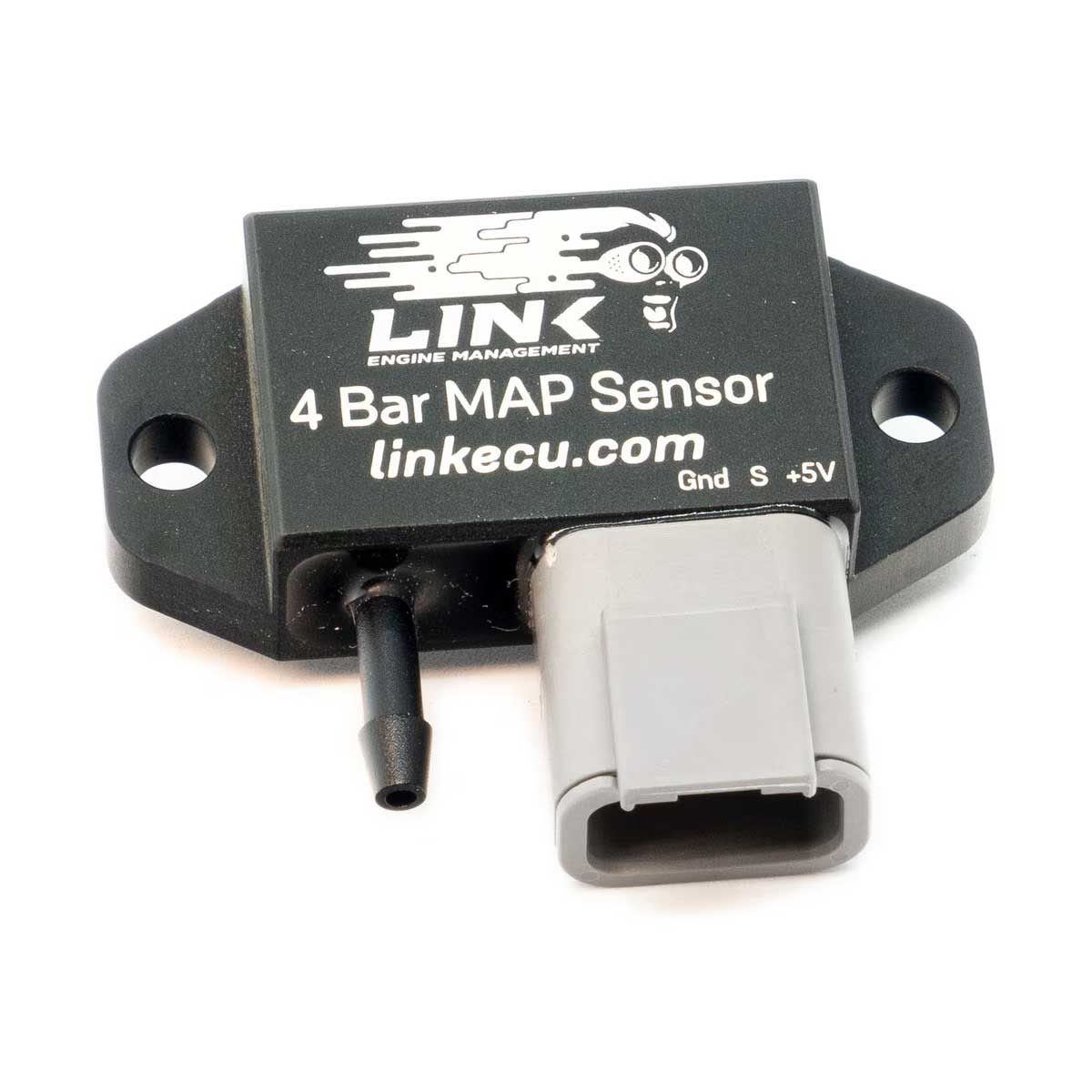

The CAN Lambda is essential for modern tuning, giving you fast and accurate live Lambda without using up any DI or An Volt inputs. Each sensor comes with its Deutsch DTM connector kit, and the 4 bar MAP sensor suits turbo or supercharged engines running up to 3.0 bar (44 psi) of boost.
A premium G4X ECU for up to 8 cylinders, the XtremeX delivers extensive I/O, E-Throttle control and the full suite of G4X motorsport features for demanding performance and race applications.
The XtremeX includes all the core G4X features expected from Link championship-winning platform including Flex Fuel, Flexible Engine Protection Limiters, CAN Keypad Control, Open and Closed Loop Boost Control, Dual Closed Loop Lambda, VVT Control, a Trigger Oscilloscope, compatibility with aftermarket displays and 512MB of onboard data logging.
Stepping up from Link entry-level and mid-range G4X ECUs unlocks premium G4X features designed for more complex street, race and motorsport applications. The XtremeX adds fully programmable E-Throttle control, Direct Automatic Transmission Control, dual CAN modules, a 3 Axis Accelerometer and expanded I/O, while also providing access to the full suite of G4X motorsport features including Launch Control, Anti-Lag, Nitrous Control, Paddle Shift Control, Gear Shift Control, Traction Control and Cruise Control.
The XtremeX is the ideal solution for high-performance street and motorsport builds that demand flexibility, E-throttle control, extensive I/O and the advanced features of a premium G4X ECU.
Models Supported |
The XtremeX can control up to 4 rotors or 8 cylinders with sequential injection and direct spark. |
Features
The XtremeX is a premium G4X ECU offering all G4X tuning and motorsport features including:
ECU Tuning Features | E-throttle Control Flex Fuel Trigger Oscilloscope 3 Axis Accelerometer Selectable Temp Input Pullups Flexible engine protection limiters CAN Keypad Control VVT Control Open Loop Boost Control Closed Loop Boost Control Dual Closed Loop Lambda Direct Automatic Transmission Control Compatible with all leading after-market dashes via CAN or serial stream 512 Megabytes of Internal Data Logging |
Motorsport Features | Nitrous Control Launch Control Anti-lag Cruise Control Traction Control Race Timer and Power Management Gear Shift Control Paddle Shift Control |
Specifications
Highlights | As a premium G4X ECU, the XtremeX is the ideal solution for builds requiring more I/O and advanced specs than Link entry and mid-range G4X ECUs, including: |
Outputs | 8 Injection Drives 8 Ignition Drives 10 Auxiliary Outputs +5V Sensor power supply +8V Sensor power supply Unused Inj/Ign can be used as Auxiliary Outputs |
Inputs | 10* Digital Inputs 4 Temperature Inputs 11 Analogue Inputs 2 Trigger Inputs 2 Knock Inputs Unused Temperature and Analogue Inputs can be used as Digital Inputs *2 Digital Inputs required when using 2nd CAN Bus |
Communications | 2 CAN Bus Channels LTW 6Pin USB Tuning Connection |
Data Logging | 512MB Onboard Logging Memory 100kHz Maximum Total Logging Rate 250 Logging Channels |
Material | Die-cast aluminium enclosure |
Electrical | Operating Voltage Range: 6.5-24V Maximum Input Voltage: 36V Maximum Continuous Current Draw: 5.5A Operating Current: 200mA |
Misc. | Manufacturing Standard ISO 13485 Environment Internal temperature range: -10 to 85°C Ambient temperature range: -30 to 90°C |
What is in the Box | XtremeX G4X ECU Quick Start Guide Mounting Bracket USB Tuning Cable LinkECU Stickers 2.5 m A Loom 2.5 m B Loom CAN Lambda (includes Bosch LSU 4.9 sensor) Link 4 bar MAP sensor IAT sensor (1/8" NPT) |
Connector | Superseal 4 Row 34 Position x2 Part number 4-1437290-0 Part number 4-1437290-1 |
