SKU:109-9000B

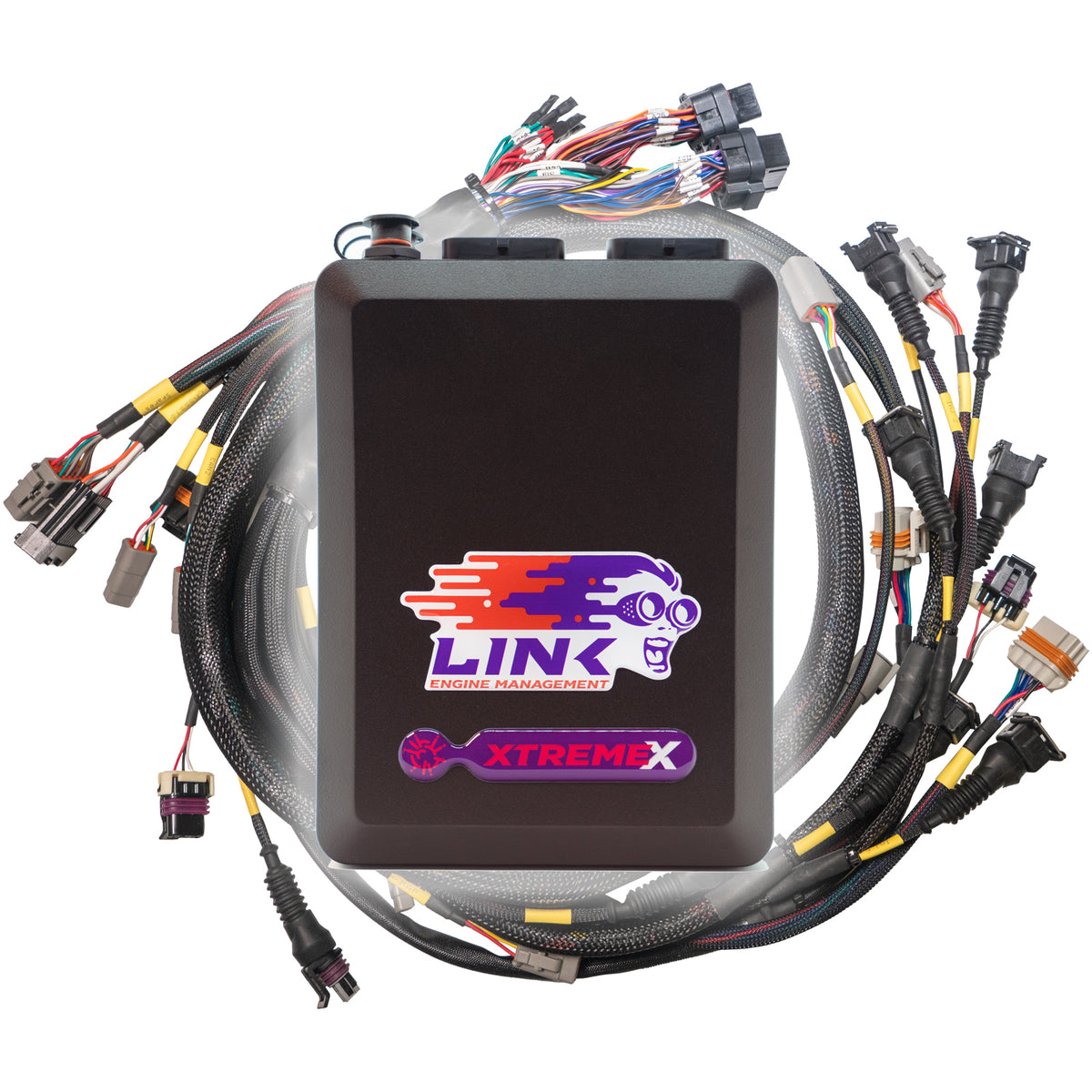

G4X XtremeX ECU + Terminated LS Engine Harness Drive-by-Wire Bundle
Excluding taxes and shipping. Contact a Reseller for pricing in your area
G4X XtremeX ECU + Terminated LS Engine Harness Drive-by-Wire Bundle
Find an Installer
Search near youTo ensure the best possible experience with our products, we recommend you engage one of our official Dealers for installation and set-up.
Contact a Link dealer near you to find out more
You may also need
Overview
The quickest, easiest, tidiest and most cost effective way to connect a Link ECU to your Drive-by-Wire/E-Throttle LS V8 engine.Â
Â
Bundle Includes:

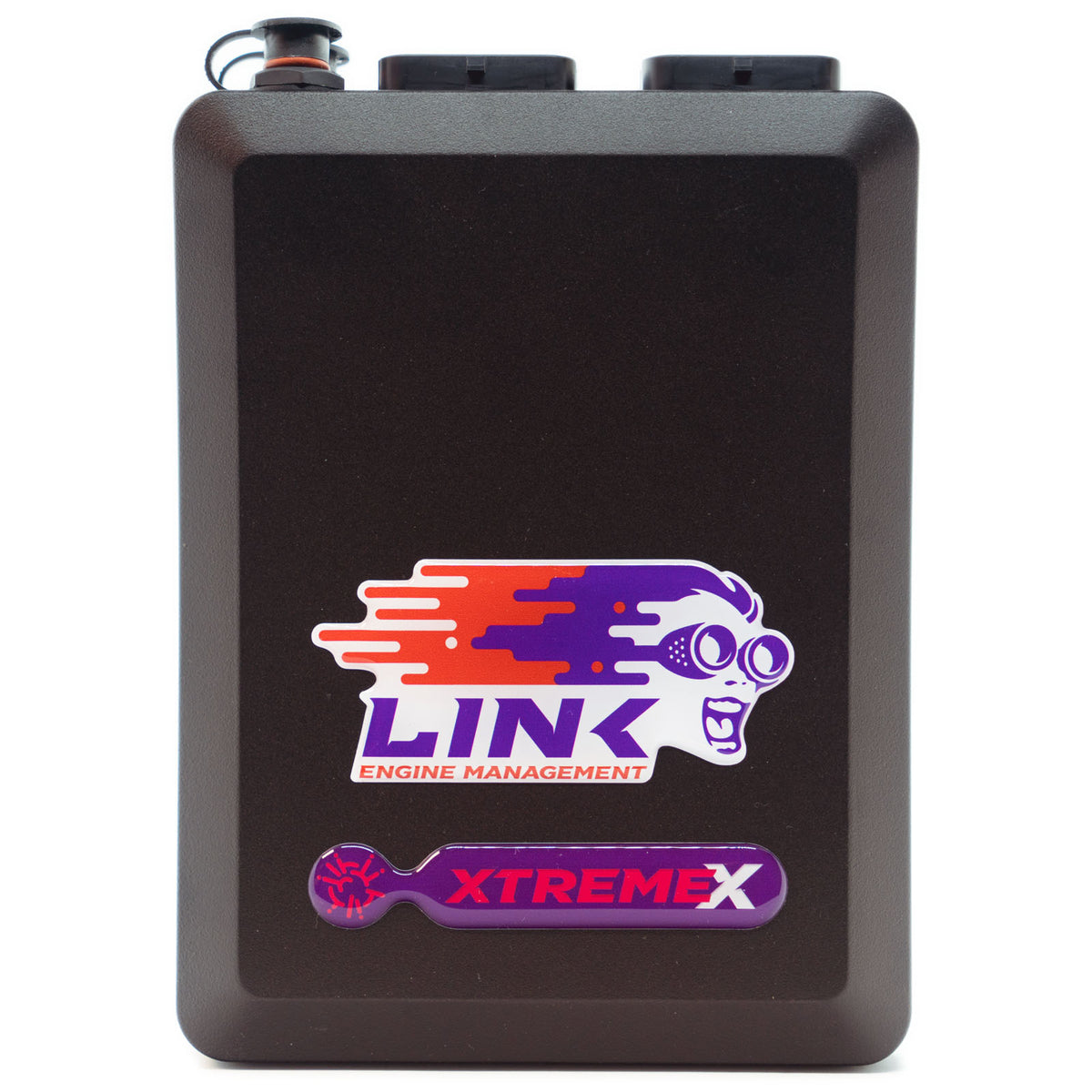

- G4X XtremeX ECU (8 x Injector and 8 x Ignition Drives)

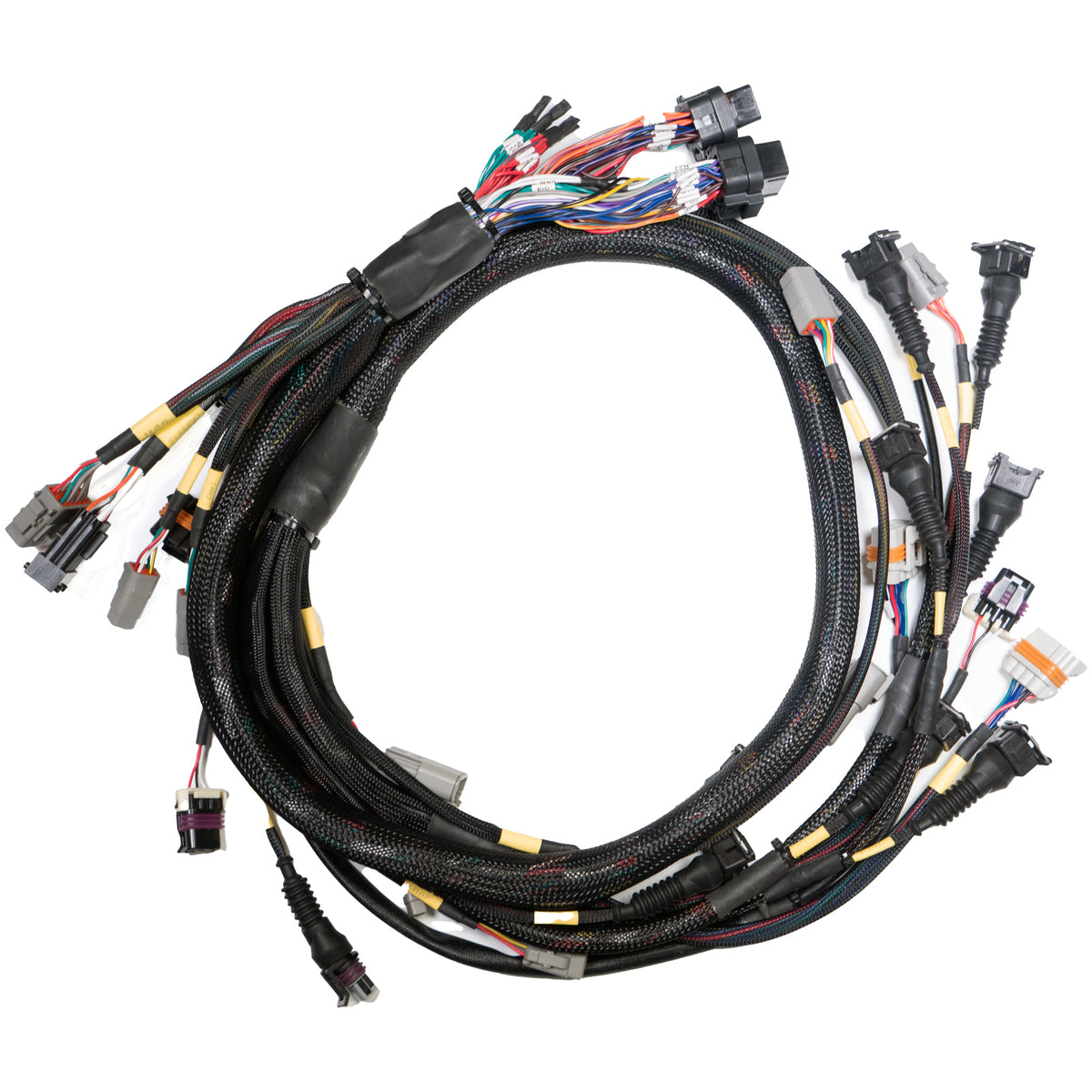

- Terminated Engine Harness GM LS GEN3/4*

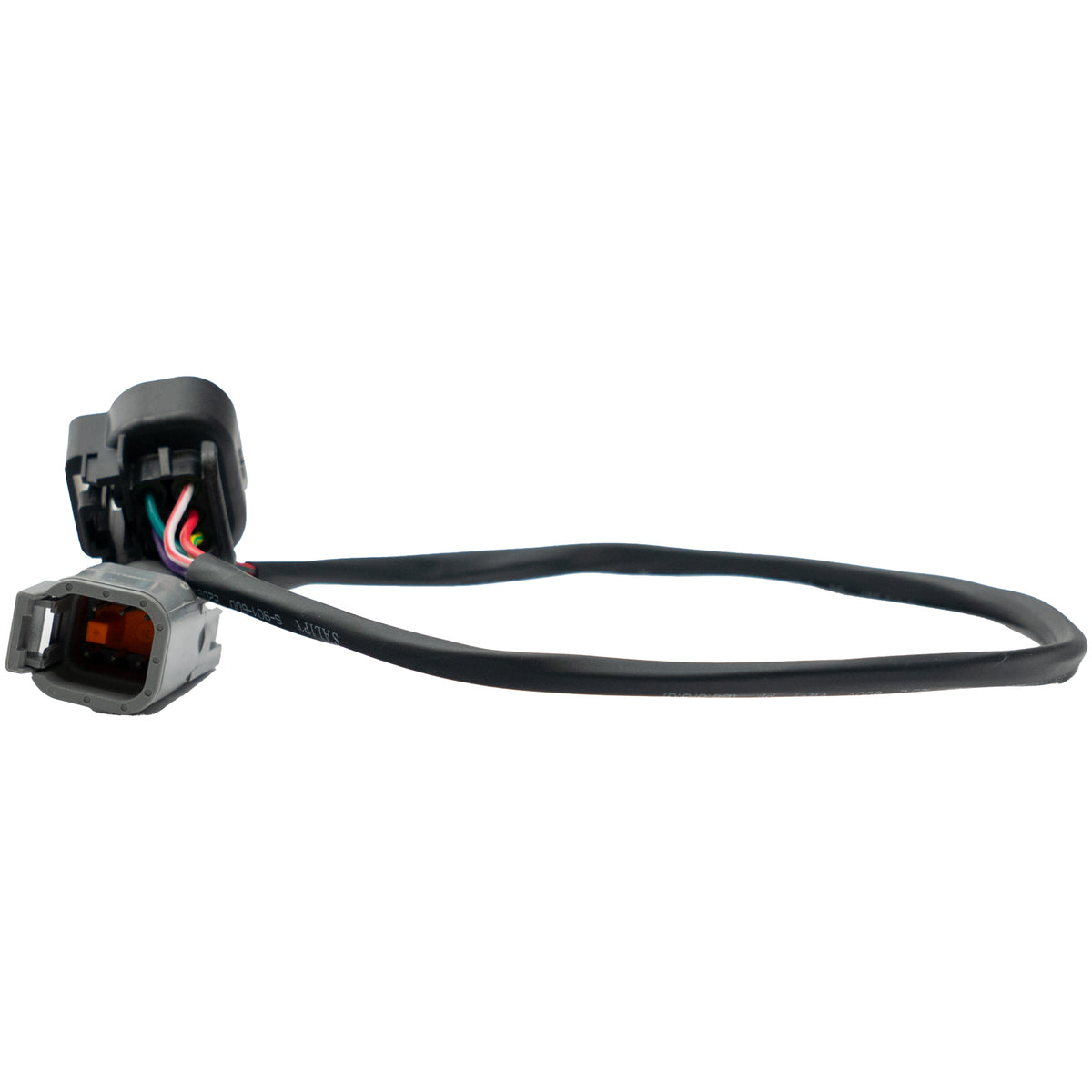

- LS DBW Adapter Loom
Â
*Notes for use with Gen 4 Engines
- A cam sensor harness extension will be needed to accommodate the Gen 4 LS front mounted cam sensor. Â Â Â
- A small modification is required to the crank sensor connector. See “crank connectorâ€? section in installation manual for details.   Â
- Injector Connector Adapters to USCar connector will be required for most Gen 4 Engines. Check your injector connector to confirm. Use Link PN 101-0287 Â Â Â
- To support Gen 4 factory knock sensors you will require the Link LS Gen 4 Knock Adapter Loom (PN 101-0306) Â Â
- To support the factory Gen 4 MAP sensor you will require a Link LS Map Adapter Loom plus a Gen 3 to Gen 4 MAP sensor extension harness (alternatively you can use a Link MAP sensor which is directly supported by the harness)
Â
If you require a fuse box and relay, please purchase 101-0310 in addition to this bundle.Â
Â
PCLink MAP FilesÂ
Gen3 DBW Base Map for G4X XtremeX/StormXÂ Â
Gen4 DBW Base Map for G4X XtremeX/StormXÂ Â Â Â
