SKU:156-9300B
G5 Voodoo Neo6 Wire-In Bundle
The Link G5 Voodoo Neo 6 is a professional standalone ECU delivering advanced engine management for high-performance 8 cylinder sequential or 6 cylinder staged sequential set-ups with direct injection control, GPS, Wi-Fi, Ethernet, and 1GB onboard data logging. This bundle pairs the G5 Voodoo Neo 6 with the wiring and core sensors needed to get your install underway.
Find an Installer
Search near youTo ensure the best possible experience with our products, we recommend you engage one of our official Dealers for installation and set-up.
Contact a Link dealer near you to find out more
You may also need
Overview

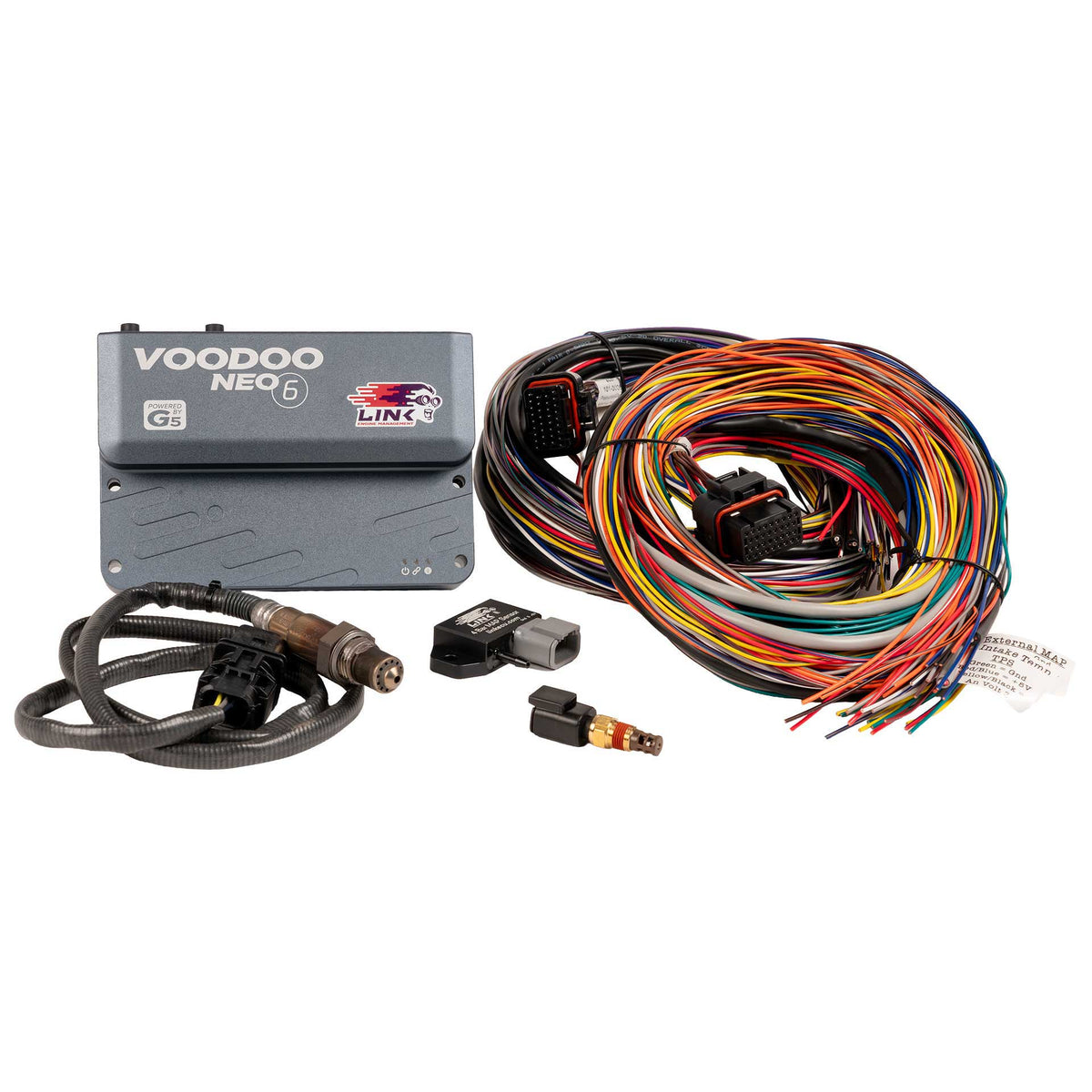

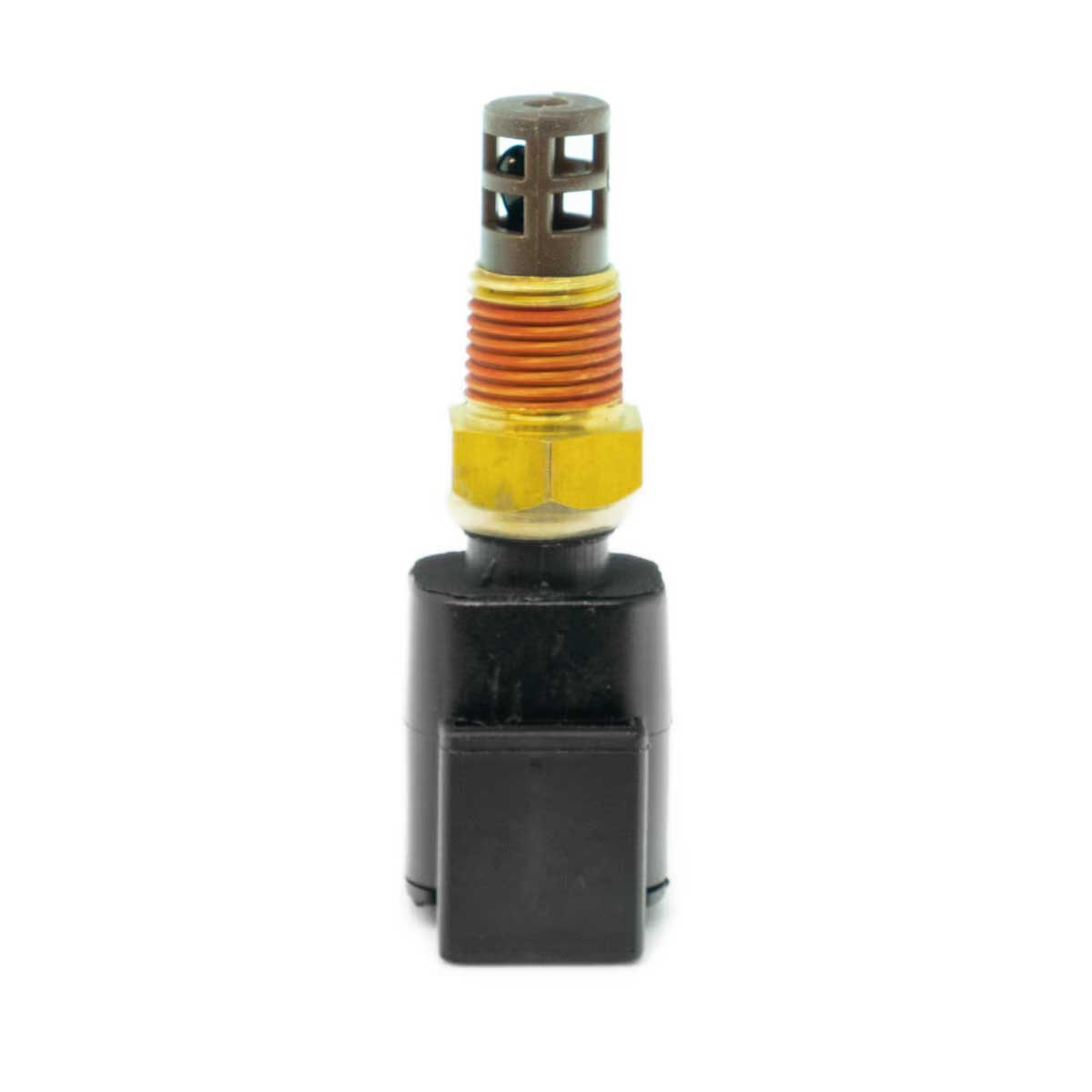

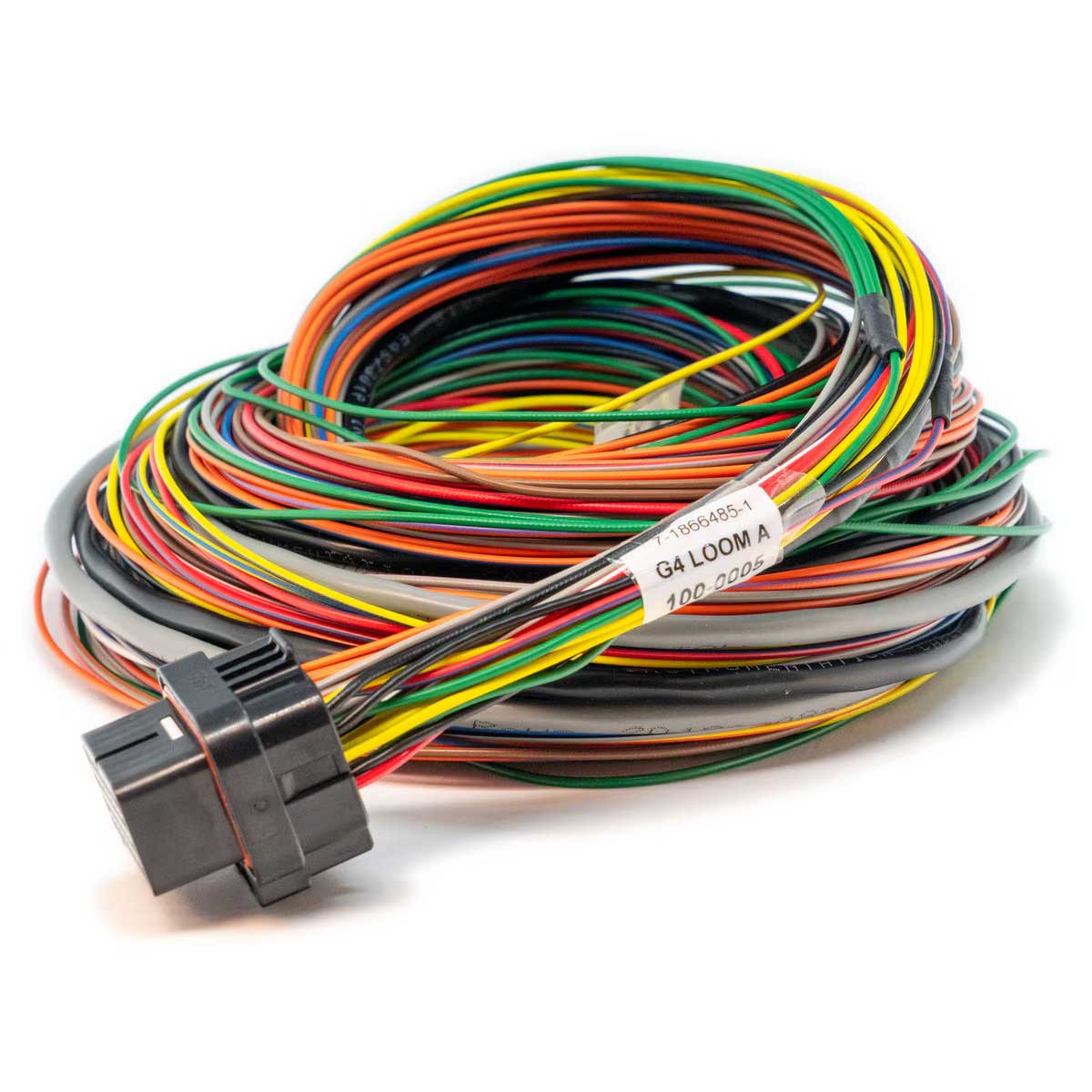

Alongside the G5 Voodoo Neo 6, the bundle includes 2.5 m A and B looms, a Bosch LSU 4.9 wideband Lambda sensor, a Link 4 bar MAP sensor and an intake air temperature (IAT) sensor with a 1/8" NPT thread.

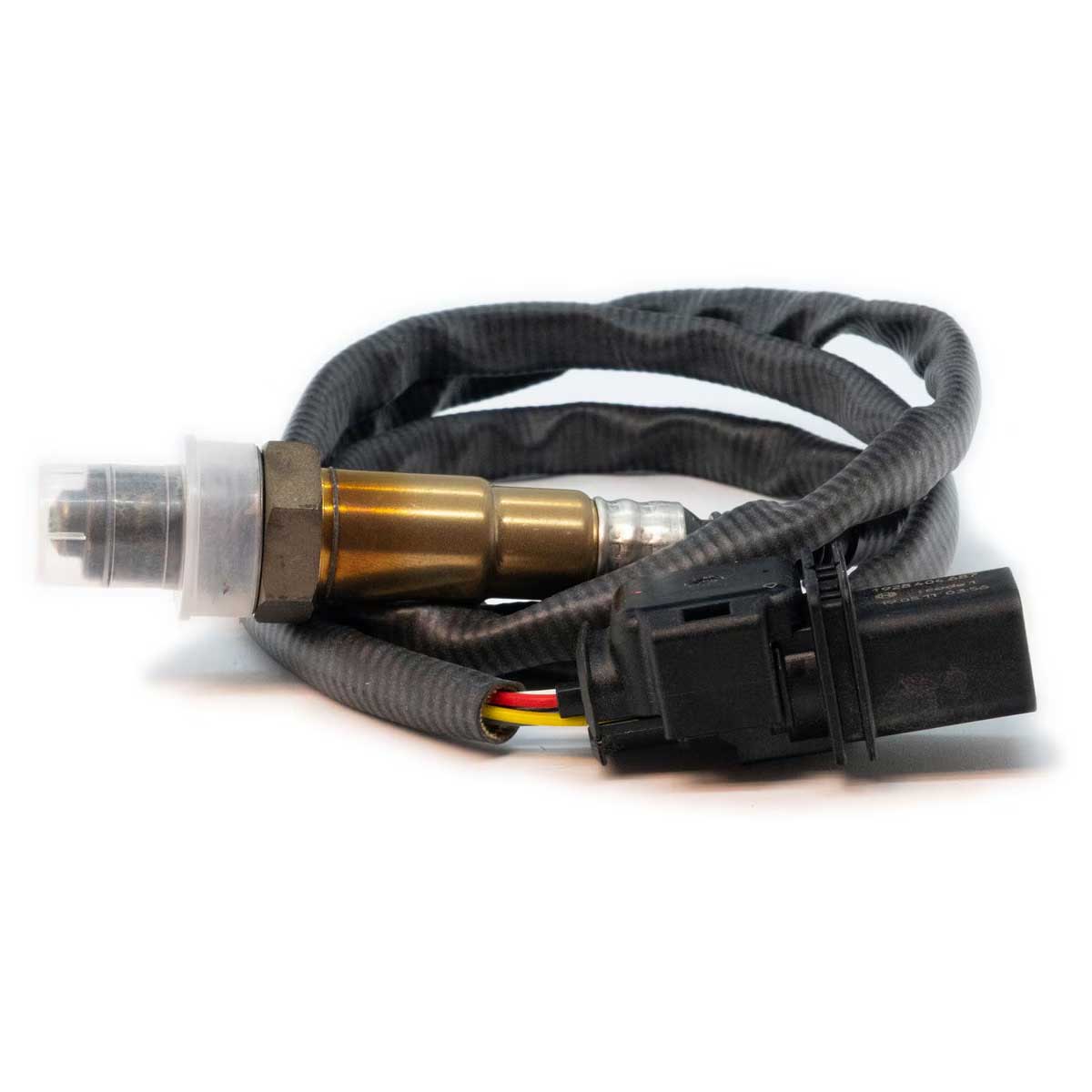

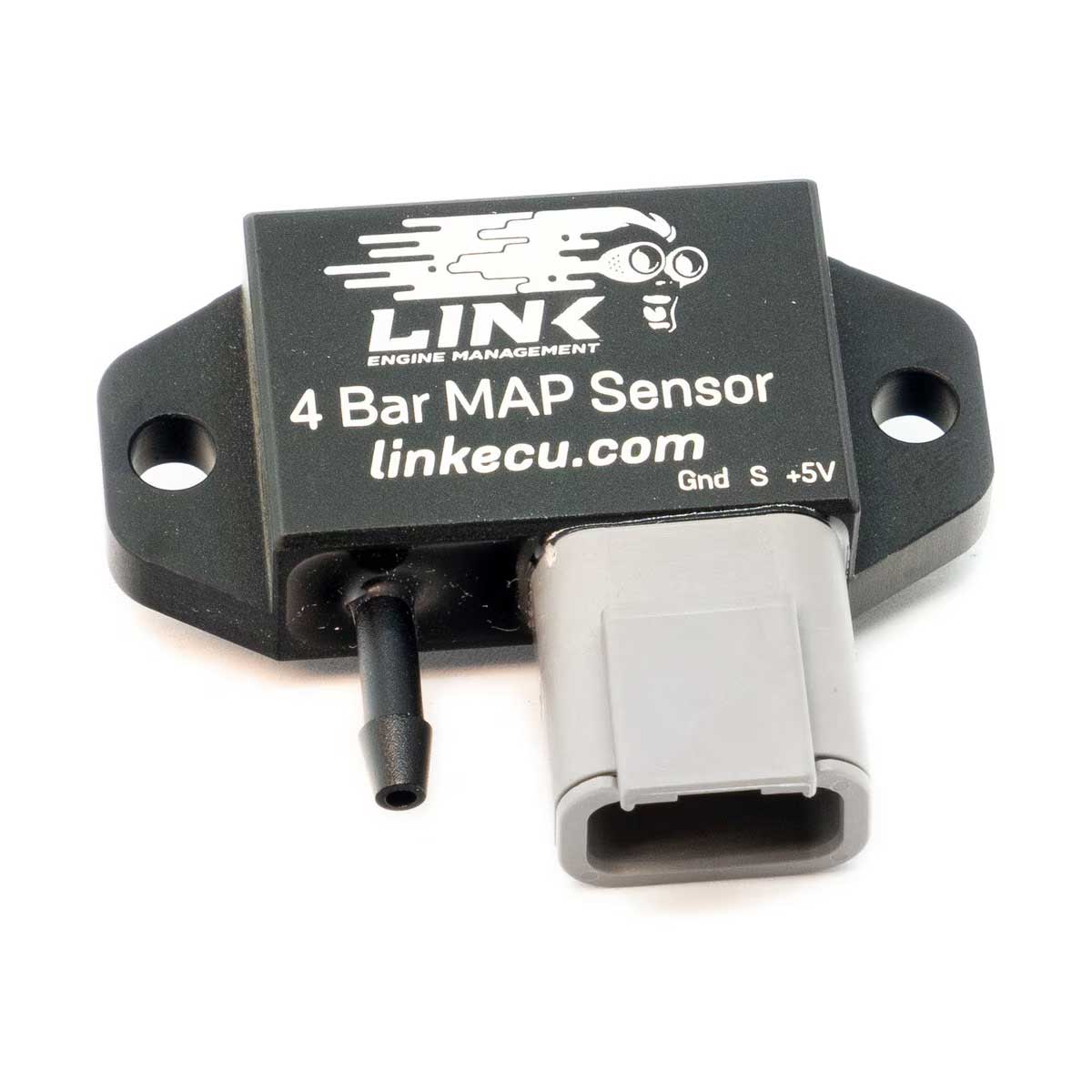

With the Neo 6 onboard Digital Wideband Lambda Control, the LSU 4.9 wires straight into the ECU, giving you fast and accurate live Lambda with no external controller needed. The MAP and IAT sensors each come with their Deutsch DTM connector kit, and the LSU 4.9 comes with its plug and pin kit. The 4 bar MAP sensor suits turbo or supercharged engines running up to 3.0 bar (44 psi) of boost.

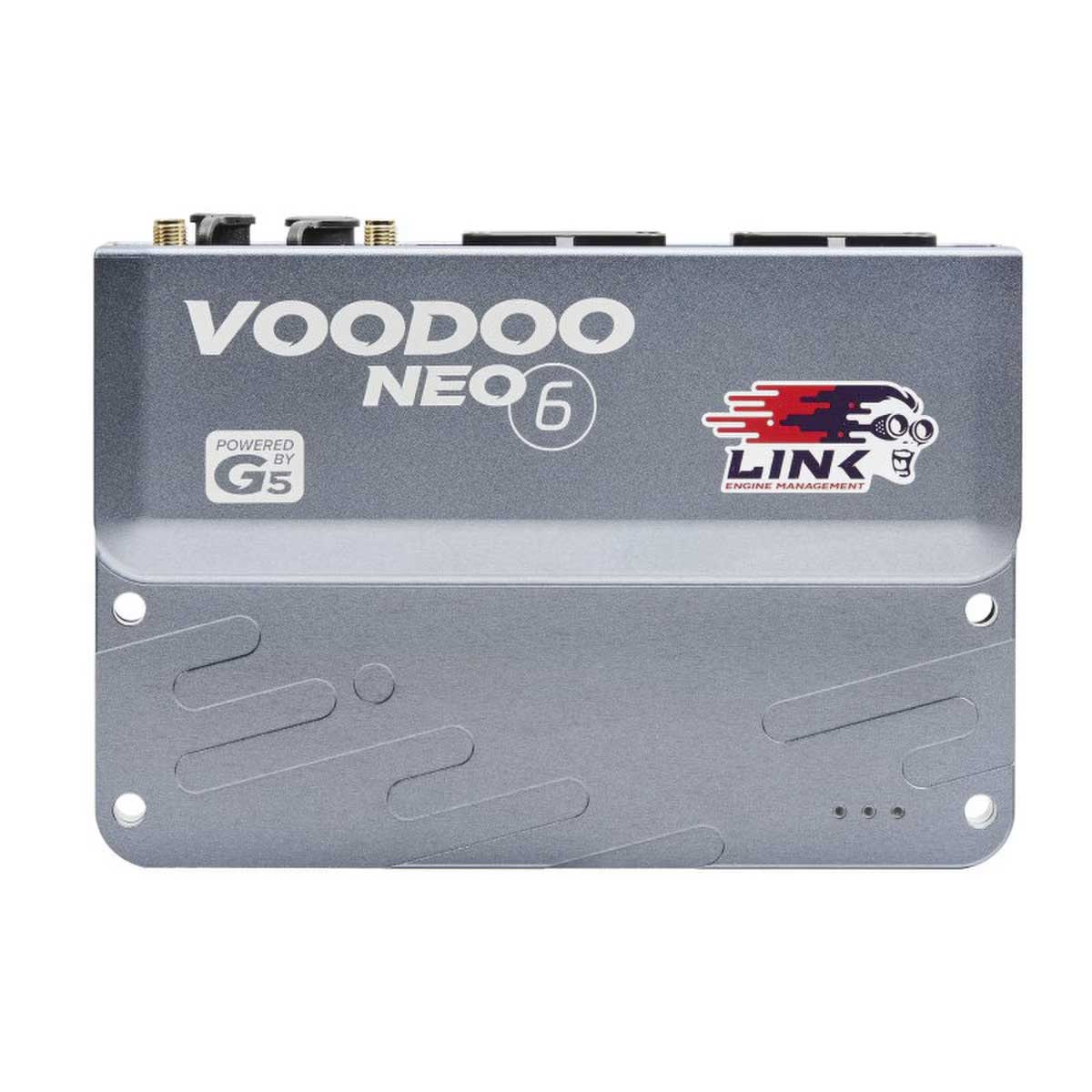

Built on Link most advanced, most powerful and most flexible ECU platform ever, the G5 Voodoo Neo 6 delivers next-generation engine management for up to 8 cylinder sequential or 6 cylinder staged sequential builds.
The G5 Voodoo range puts real magic in your hands and opens a new world of possibilities with the ability to control port and direct injection, highly customisable I/O, advanced communications and next-generation features.
G5 multi-board architecture delivers expanded I/O capability over the G4X range through highly customisable ADIO and Aux/Digital Input pins for greater flexibility across high-performance builds.
Advanced communications include GPS, Wi-Fi, Ethernet, dual CAN bus and USB-C tuning, alongside 1GB of internal data logging for high-speed data capture and analysis. The G5 Voodoo Neo 6 also features automatic transmission control, onboard Lambda control, and dual H-bridges for E-Throttle and low power E-Wastegate control.
The G5 Voodoo Neo 6 is ideal for modern high-performance 6 or 8 cylinder builds requiring the next-generation of engine management technology.
Compatibility |
The G5 Voodoo Neo 6 can run: 8 cylinders sequential port or direct injection and direct spark, or 6 cylinders with direct/port staged injection, and direct spark. |
Features
The G5 Voodoo Neo 6 multi-board architecture delivers next-generation features including:
ECU Tuning Features | Global Positioning System (GPS) Dual E-throttle Control Flex Fuel Trigger Oscilloscope 3 Axis Accelerometer 1k or 10k ΓΒ© Selectable Temp Input Pullups Flexible engine protection limiters CAN Keypad Control VVT Control Open Loop Boost Control Closed Loop Boost Control Onboard Digital Wideband Lambda Control Dual Closed Loop Lambda Direct Automatic Transmission Control 1 Gigabyte of Internal Data Logging |
Motorsport Features | Nitrous Control Launch Control Anti-lag Cruise Control Traction Control Race Timer and Power Management Gear Shift Control Paddle Shift Control |
Specifications
Highlights | The G5 Voodoo Neo 6 uses Link most advanced, most powerful and most flexible ECU platform, delivering advanced communication and specs including: |
Outputs | 12# Injection Drives Injection Drives can run Direct Injection via a driver box 8 Ignition Drives 6 Auxiliary Outputs +5V Sensor power supply Unused Injection and Ignition drives can be used as Auxiliary Outputs # 4 pins are multi-purpose Injection, Aux or Digital Input pins. Each pin can be either Injection, Aux. or Digital Input, not all at the same time. |
Inputs | 10# Digital Inputs 4 Temperature Inputs 3 Analogue Inputs 2 Trigger Inputs 2 Knock Inputs Unused Temperature and Analogue Inputs can be used as Digital Inputs # 4 pins are multi-purpose Injection, Aux or Digital Input pins. Each pin can be either Injection, Aux. or Digital Input, not all at the same time. |
Input / Outputs | 6 ADIO Dual Purpose |
Communications | 2 CAN Bus Channels 1 Wi-Fi USB-C Tuning Connection 1 Ethernet 1 Power Over USB |
Data Logging | 1GB Onboard Logging Memory 100kHz Maximum Total Logging Rate 250 Logging Channels |
Material | 6061-T6 billet CNC sealed enclosure |
Electrical | Operating Voltage Range: 6-30V Maximum Input Voltage: 30V Maximum Continuous Current Draw: 17A |
What is in the Box | G5 Voodoo Neo 6 ECU USB-C Connection Cable Wi-Fi Antenna 4m GPS Antenna (Magnetic or Adhesive Mount) USB-C and SMA Dust Covers Quick Start Guide (A5) Installer I/O table (A3) Link stickers 2.5 m A Loom 2.5 m B Loom Bosch LSU 4.9 wideband sensor (includes plug and pin kit) Link 4 bar MAP sensor IAT sensor (1/8" NPT) |
Connector | Superseal 4 Row 34 Position x2 Part number 4-1437290-0 Part number 4-1437290-1 |
