SKU:153-9300B
G5 Voodoo Pro V2 Wire-In Bundle
The Link G5 Voodoo Pro is our flagship standalone ECU, delivering professional engine management for up to 12-cylinder sequential or 8-cylinder staged sequential engines with advanced communications, data logging and direct injection capability. This bundle pairs the G5 Voodoo Pro with the wiring and core sensors needed to get your install underway.
Find an Installer
Search near youTo ensure the best possible experience with our products, we recommend you engage one of our official Dealers for installation and set-up.
Contact a Link dealer near you to find out more
You may also need
Overview

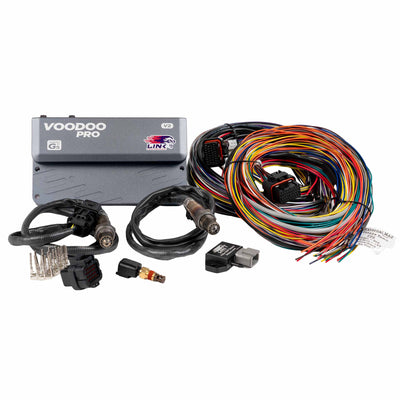

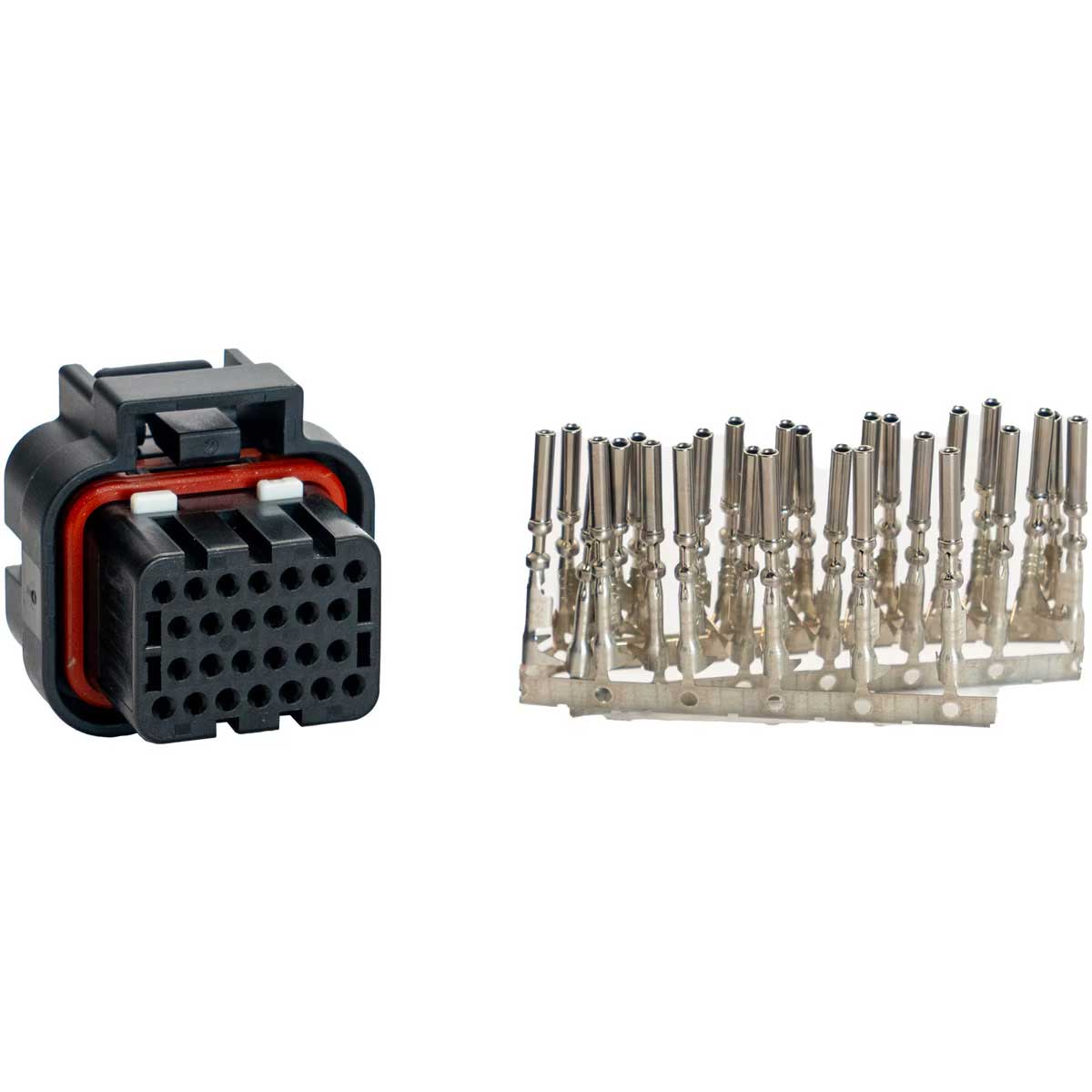

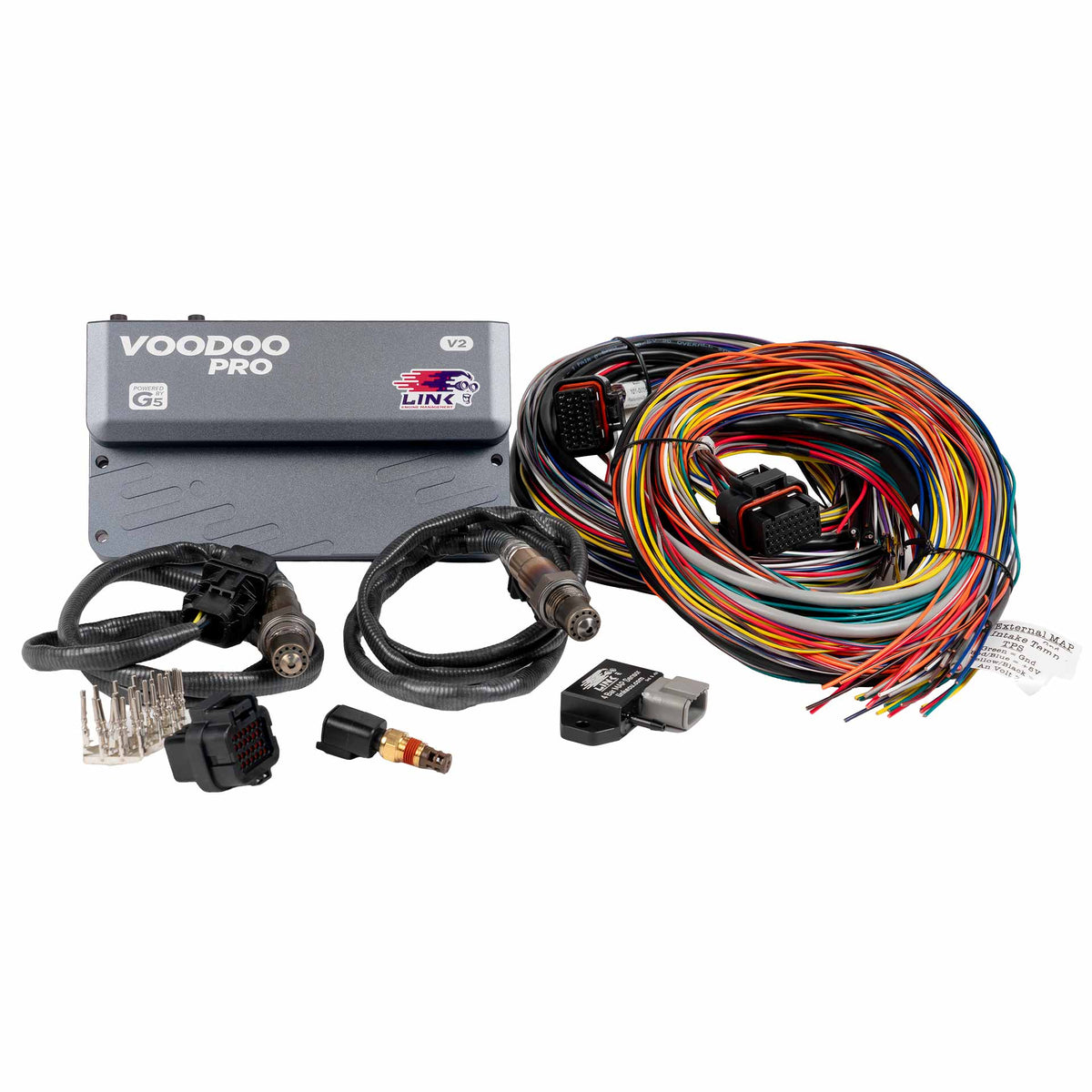

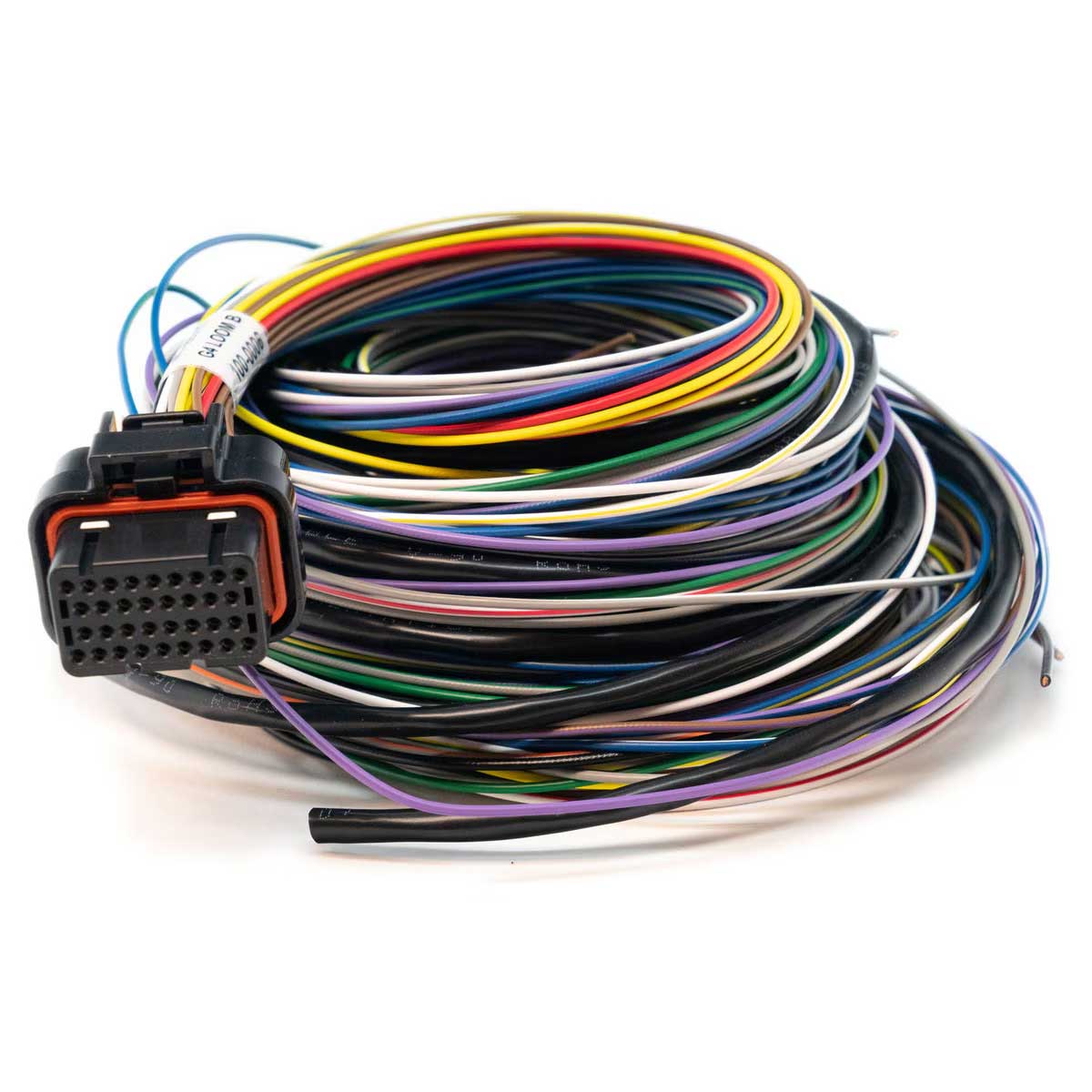

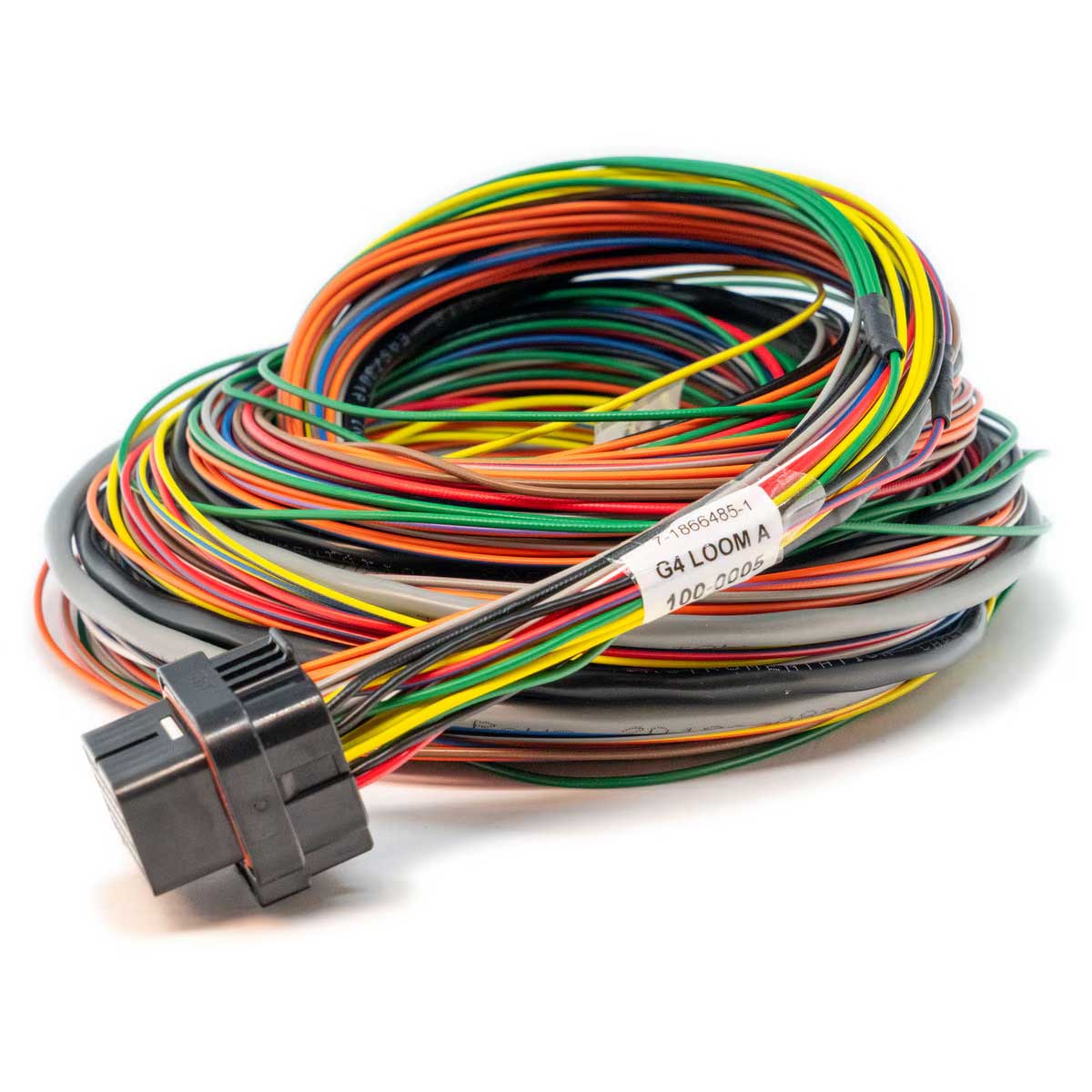

Alongside the G5 Voodoo Pro, the bundle includes 2.5 m A and B looms, an E connector plug and pin kit, two Bosch LSU 4.9 wideband Lambda sensors, a Link 4 bar MAP sensor and an intake air temperature (IAT) sensor with a 1/8" NPT thread.

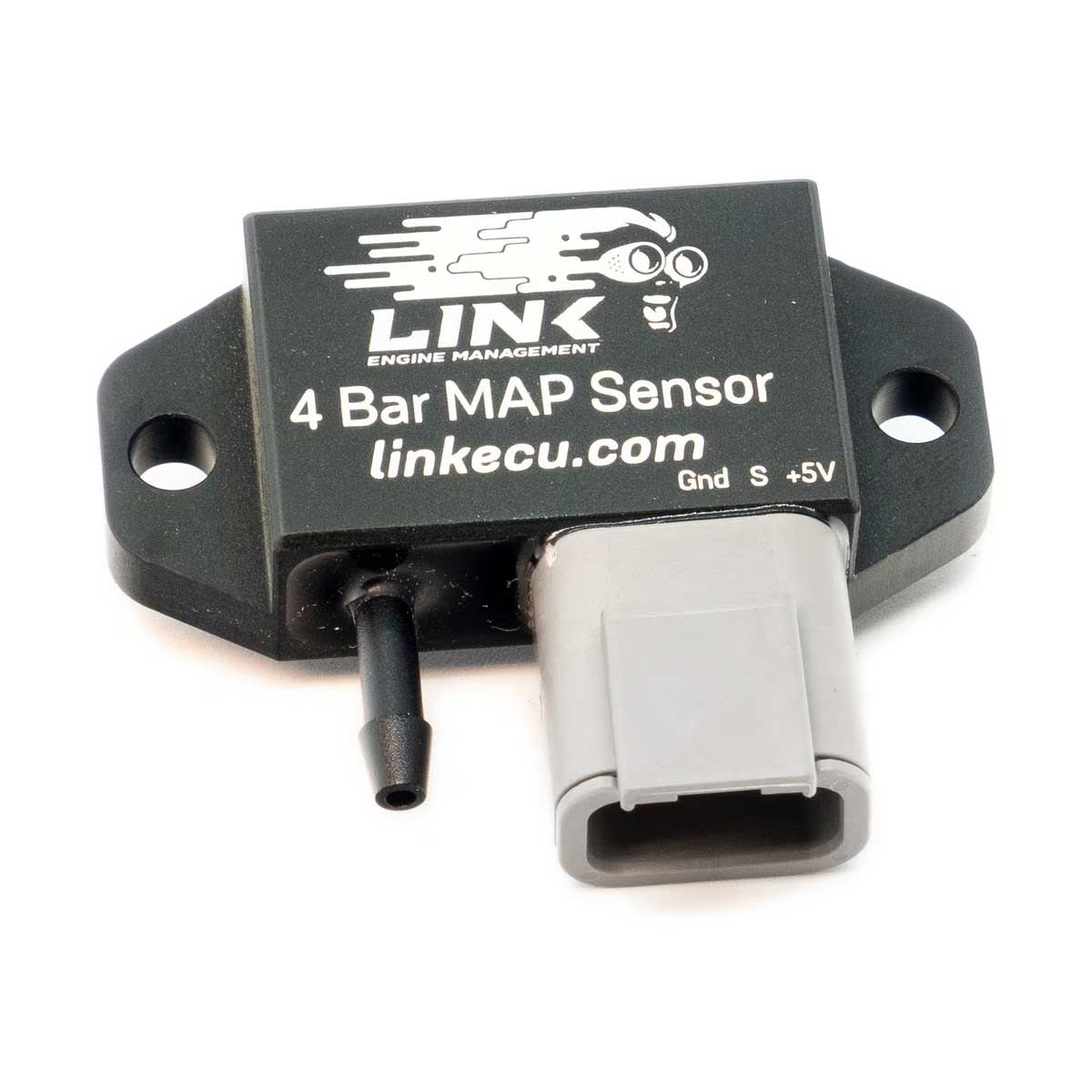

With dual onboard Digital Wideband Lambda Control, both LSU 4.9 sensors wire straight into the ECU, giving you fast and accurate live Lambda from both sensors with no external controllers needed. The MAP and IAT sensors each come with their Deutsch DTM connector kit, and the LSU 4.9 sensors come with their plug and pin kits. The 4 bar MAP sensor suits turbo or supercharged engines running up to 3.0 bar (44 psi) of boost.

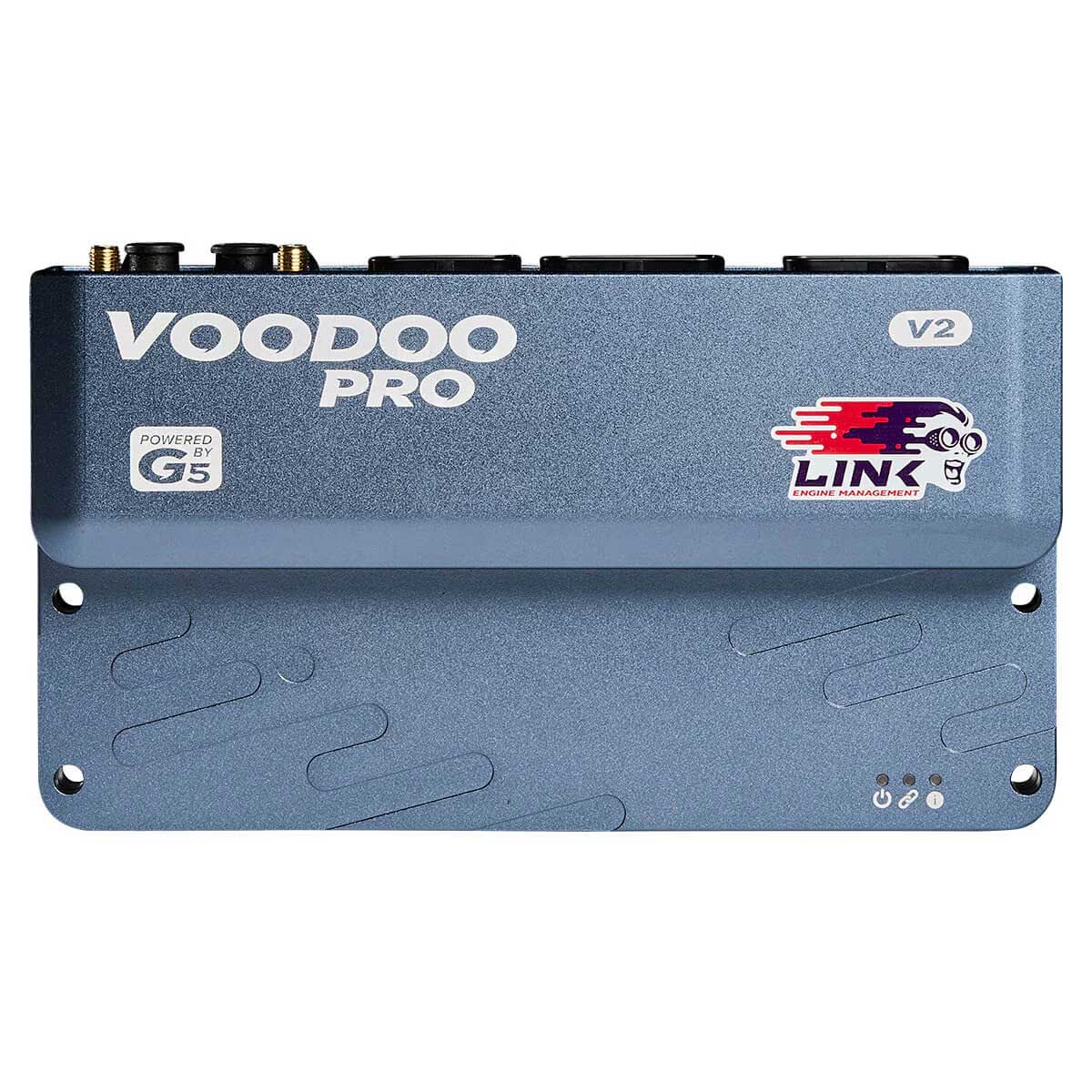

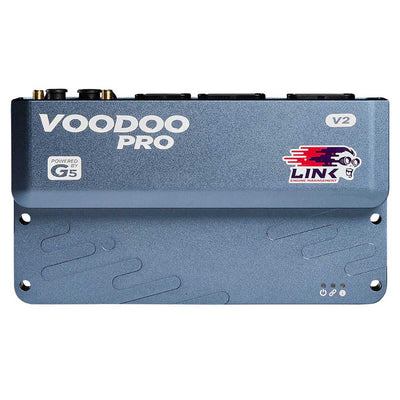

Link flagship ECU, the G5 Voodoo Pro, is built on Link most advanced, most powerful and most flexible ECU platform ever, delivering next-generation engine management for up to 12 cylinder sequential or 8 cylinder staged sequential builds.
The G5 Voodoo range puts real magic in your hands and opens a new world of possibilities with the ability to control port plus direct injection, highly customisable IO, advanced communications and next-generation features.
The G5 Voodoo Pro includes increased I/O and advanced functionality beyond the Neo range, with dual onboard Lambda control, additional injector and ignition drives, more ADIO pins and analogue inputs, supporting high cylinder counts.
Advanced communications include GPS, Wi-Fi, Ethernet, dual CAN Bus and USB-C tuning, alongside 1GB of onboard data logging for high-speed data capture and analysis. The G5 Voodoo Pro also features automatic transmission control and dual H-bridges for E-Throttle and low power E-Wastegate control.
The G5 Voodoo Pro is the ideal solution for modern high-performance street and motorsport builds requiring maximum I/O, dual Lambda control and the full capability of Link next-generation of engine management technology.
Models Supported |
The G5 Voodoo Pro can run: 12 cylinders sequential port or direct injection and direct spark, or 8 cylinders with direct/port staged injection, and direct spark |
Features
Link flagship G5 Voodoo Pro delivers next-generation features including:
ECU Tuning Features | Global Positioning System (GPS) Dual E-throttle Control Flex Fuel Trigger Oscilloscope 3 Axis Accelerometer 1k or 10k Ω Selectable Temp Input Pullups Flexible engine protection limiters CAN Keypad Control VVT Control Open Loop Boost Control Closed Loop Boost Control Dual Onboard Digital Wideband Lambda Control Dual Closed Loop Lambda Direct Automatic Transmission Control 1 Gigabyte of Internal Data Logging |
Motorsport Features | Nitrous Control Launch Control Anti-lag Cruise Control Traction Control Race Timer and Power Management Gear Shift Control Paddle Shift Control |
Specifications
Highlights | The G5 Voodoo Pro uses Link most advanced, most powerful and most flexible ECU platform, delivering advanced communication and specs including: |
Outputs | 16‡ Injection Drives Injection Drives can run Direct Injection via a driver box 12‡ Ignition Drives 6 Auxiliary Outputs +5V Sensor power supply Unused Injection and Ignition drives can be used as Auxiliary Outputs ‡ G5 Voodoo Pro has 12 injection, 8 ignition, plus 4 multipurpose (inj, ign, aux) drives (24 total) |
Inputs | 10 Digital Inputs 4 Temperature Inputs 14 Analogue Inputs 2 Trigger Inputs 2 Knock Inputs Unused Temperature and Analogue Inputs can be used as Digital Inputs |
Input / Outputs | 8 ADIO Dual Purpose |
Communications | 2 CAN Bus Channels Wi-Fi USB-C Tuning Connection Ethernet Power Over USB |
Data Logging | 1GB Onboard Logging Memory 100kHz Maximum Total Logging Rate 250 Logging Channels |
Material | 6061-T6 billet CNC sealed enclosure |
Electrical | Operating Voltage Range: 6-30V Maximum Input Voltage: 30V Maximum Continuous Current Draw: 17A |
What is in the Box | G5 Voodoo Pro ECU USB-C Connection Cable Wi-Fi Antenna 4m GPS Antenna (Magnetic or Adhesive Mount) USB-C and SMA Dust Covers Quick Start Guide (A5) Installer I/O table (A3) Mounting Screws Link stickers 2.5 m A Loom 2.5 m B Loom E connector plug and pin kit (26 position) 2 x Bosch LSU 4.9 wideband sensor (includes plug and pin kit) Link 4 bar MAP sensor IAT sensor (1/8" NPT) |
Connector | Superseal 4 Row 34 Position x2 Part number 4-1437290-0 Part number 4-1437290-1 Superseal 4 Row 26 Position Part number 1473416-1 |
