SKU:101-0053
Knock Sensor (KNS)
Knock Sensor with matching connector
Find an Installer
Search near youTo ensure the best possible experience with our products, we recommend you engage one of our official Dealers for installation and set-up.
Contact a Link dealer near you to find out more
You may also need
Overview

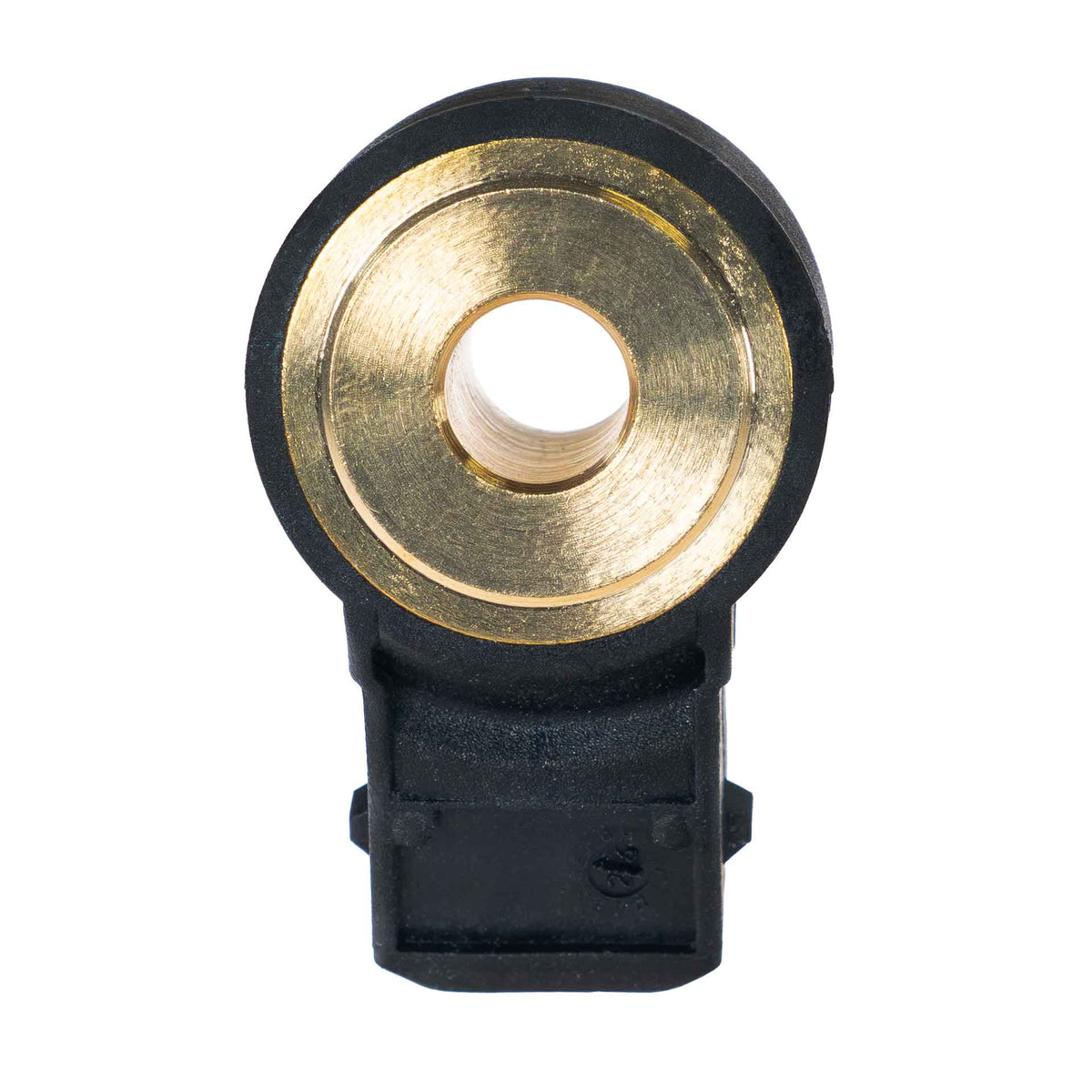

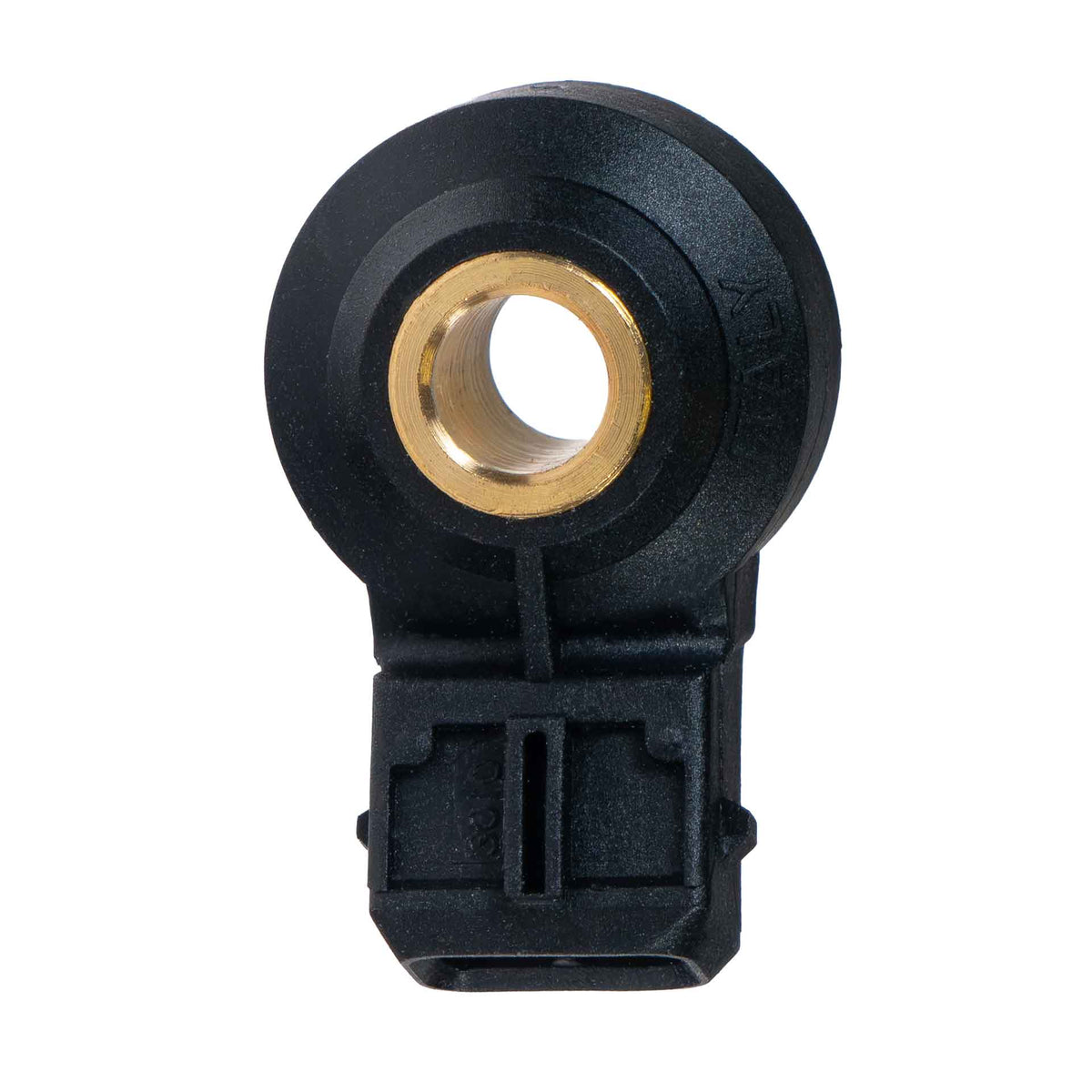

The Link Knock Sensor is a non-resonant piezoelectric knock sensor designed to detect engine knock (detonation) by monitoring engine block vibrations. When used with a compatible Link ECU, it transmits these vibrations as an electrical signal, allowing the ECU to detect knock and adjust the engine calibration to help protect the engine while optimising performance.
Models Supported |
Link ECUs with knock detection capability. Other aftermarket ECUs with compatible knock sensor inputs. |
Warnings |
Install directly onto a suitable flat surface on the engine block. Recommended tightening torque: 20 +/- 5 Nm. Correct mounting torque is critical for accurate knock detection. One or more sensors may be required depending on the engine and application. |
Specifications
Highlights | The Link Knock Sensor has the following specifications: Genuine Facet 9.3010 knock sensor. Non-resonant piezoelectric sensor. Flat frequency response. Sensitivity: 25 mV/g. Operating temperature: -40degC to +150degC. IP68 rated. 8 mm mounting hole. Includes connector housing and terminals. Knock detection provides advanced engine protection. |
Product Dimensions | 40mm(L)x20mm(W)x30mm(H) 1.57in(L)x0.79in(W)x1.18in(H) |
Product Weight | 40 grams (1.41 ounces) |

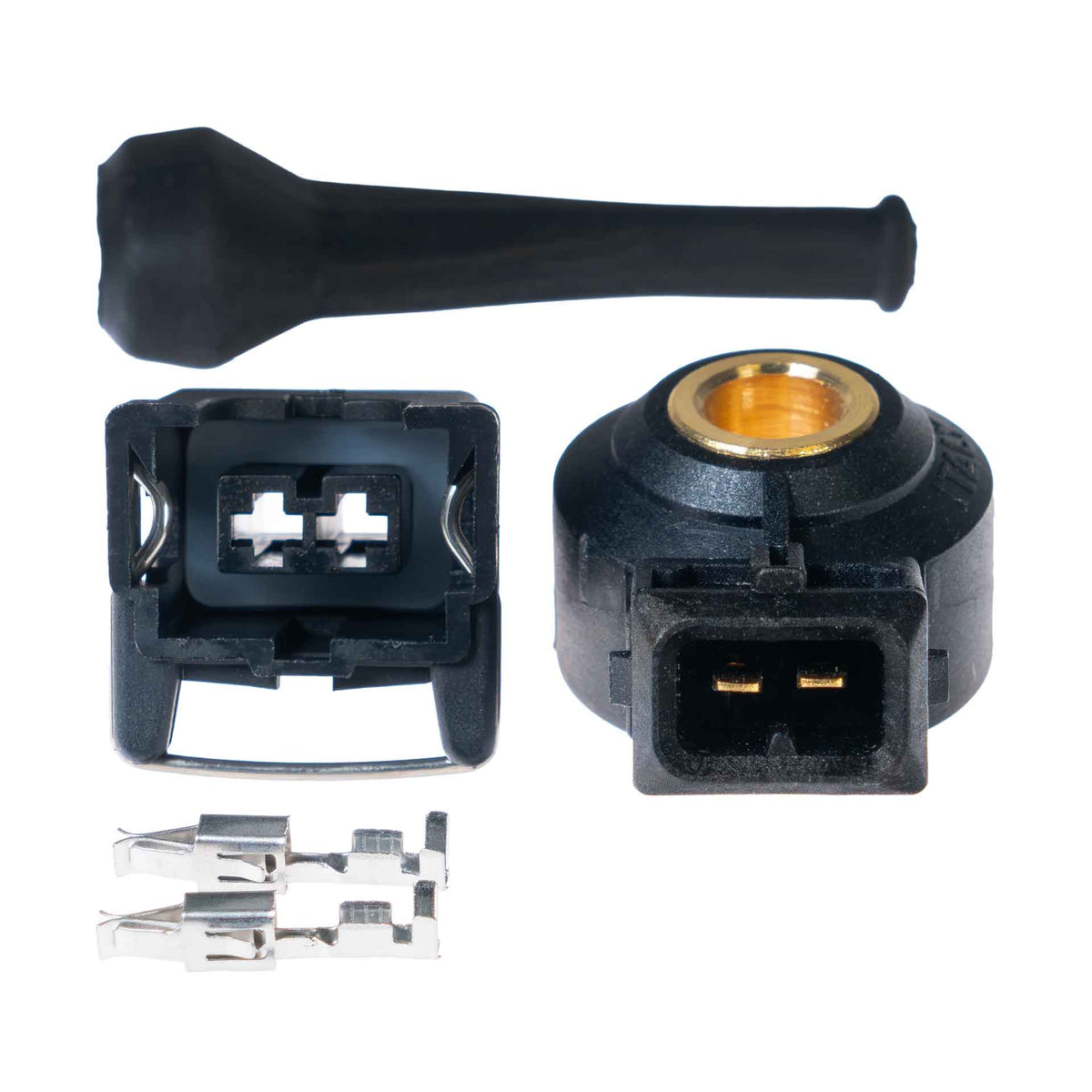

What's in the Box | Knock Sensor (Donut Type) Bosch Style Plug, Pin and Boot |

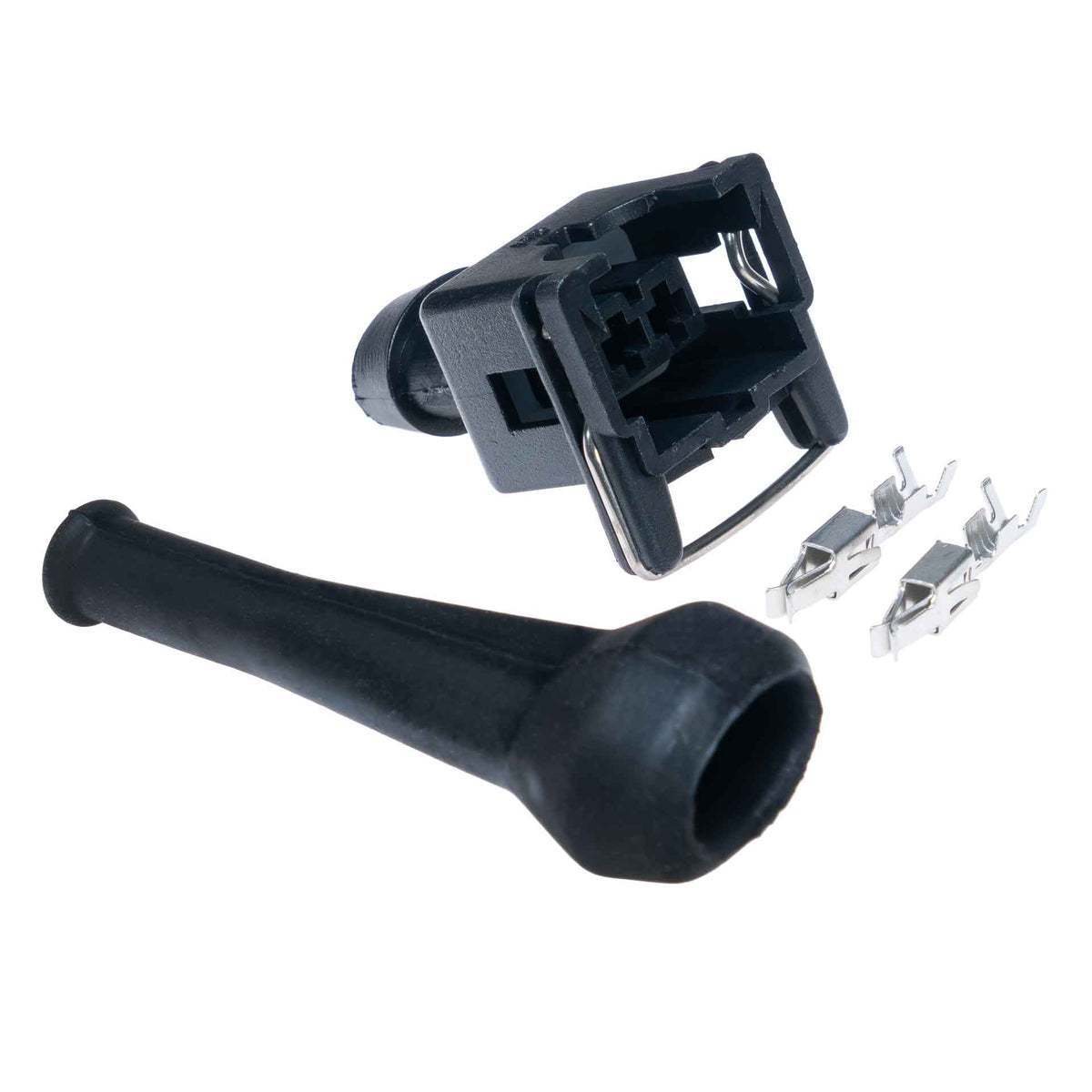

Connector | Bosch Style Plug, pin and Boot (PN 101-0051) |
