SKU:101-0239

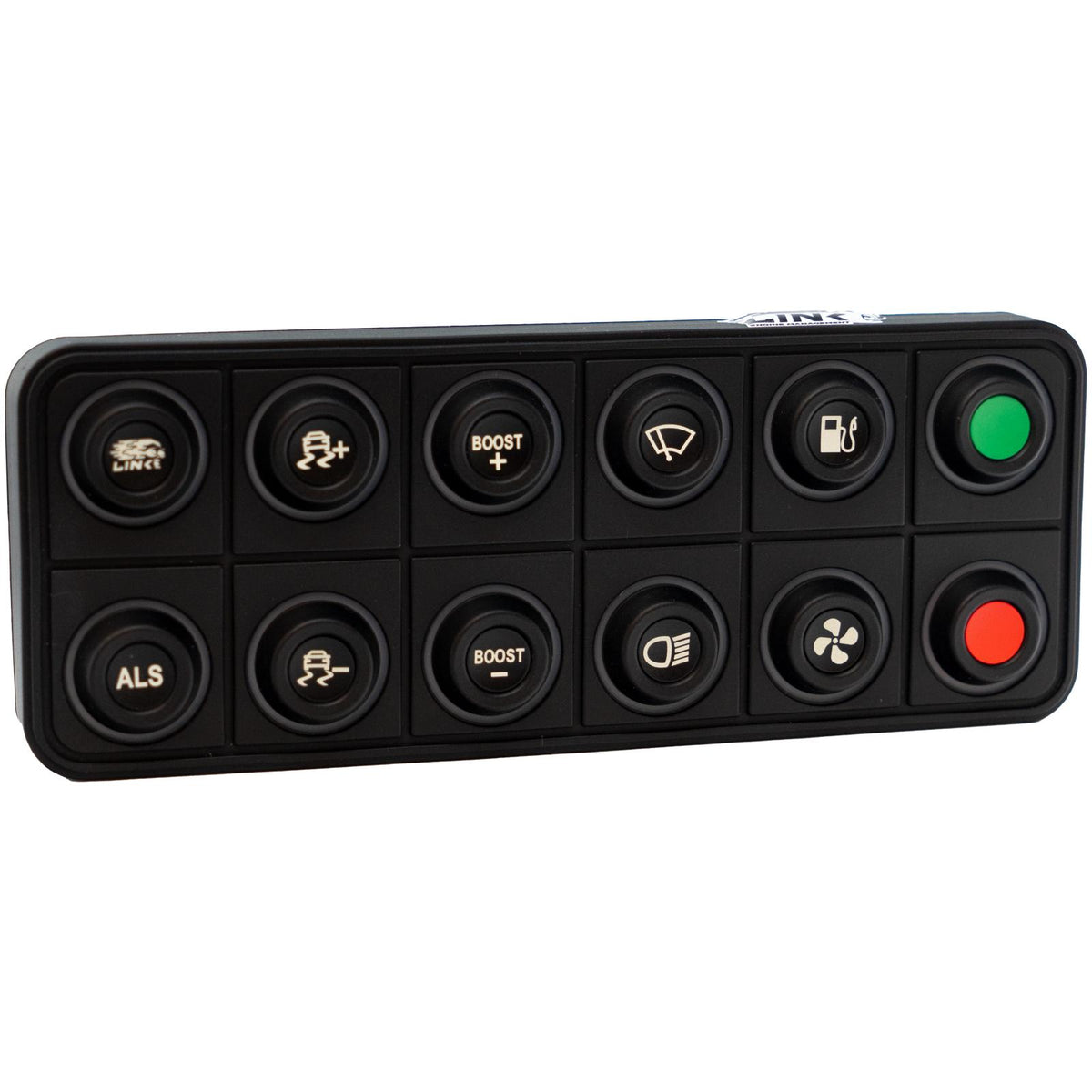

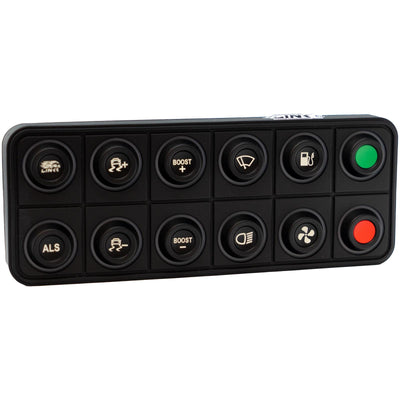

Link CAN Keypad 12 button
Link CAN Keypad 12 button (2x6)
Find an Installer
Search near youTo ensure the best possible experience with our products, we recommend you engage one of our official Dealers for installation and set-up.
Contact a Link dealer near you to find out more
You may also need
Overview
Link 12 button CAN Keypad with interchangeable 15mm inserts (sold separately).

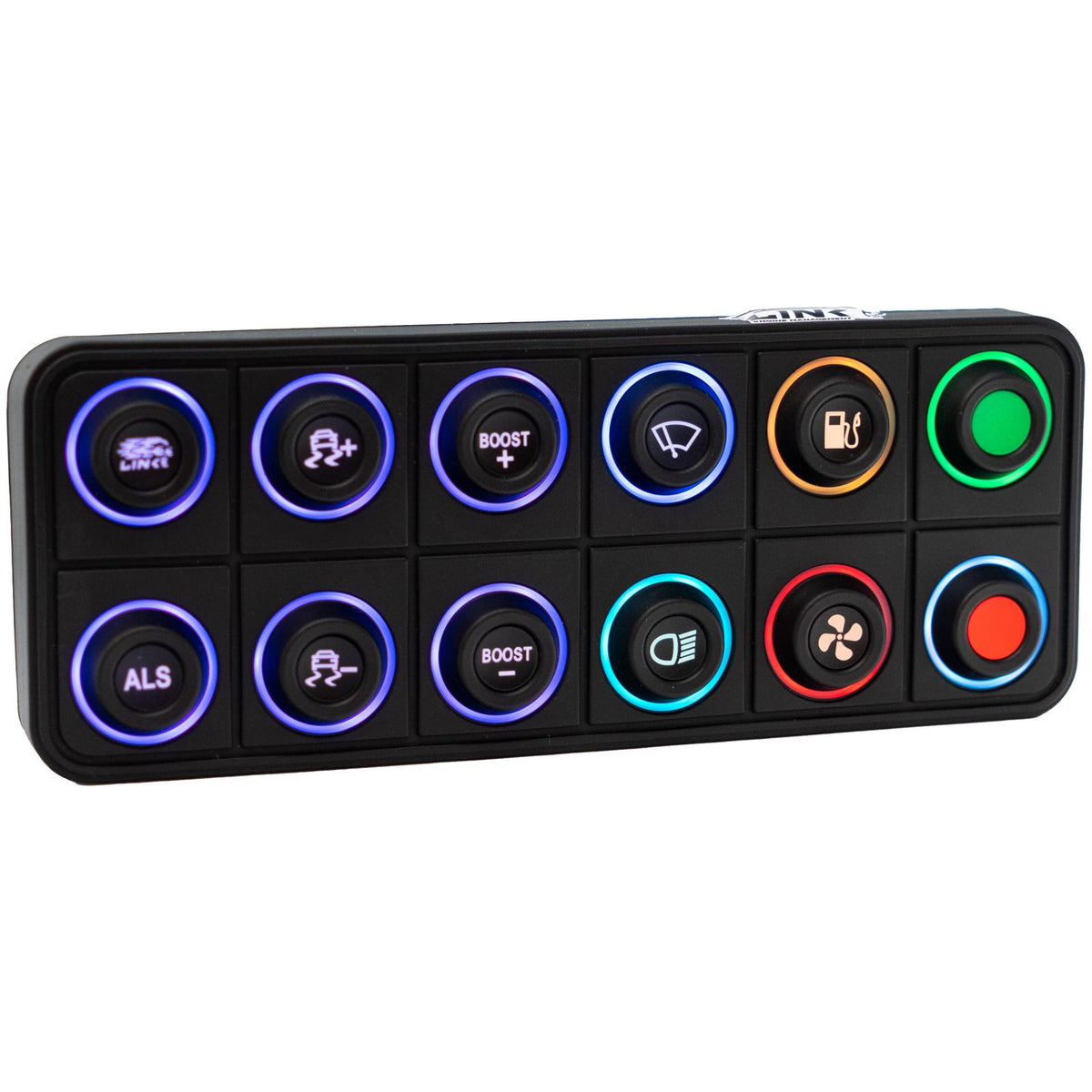

Custom button inserts and configurable RGB indicator rings per button allow for extremely flexible set-ups. The keypad is designed for ultimate reliability - IP67/IP69K water and dust resistant, -40 to +70 operating temperature range, UV 400hrs, salt spray resistant and switches rated to 3 million operations. Can be installed both inside and outside, perfect for street, track and off-road use.
Models Supported |
Compatible with all G4X and G5 ECUs. Built-in support from G4X PC Link vers 6.22 onwards |
Important |
Keypad ships with empty button inserts, inserts need to be selected and purchased individually. 1 x Link ECU Logo Button Insert included in box loose. |
Features
CAN Configurable with G4X PC Link | Change LED backlight, individual button indicator ring colour, programmable to show change in status, flashing option, multiple modes including momentary, latched and toggle. |
Customizable Button Inserts | The replacement system for individual inserts makes modifying the keypad layout simple and economical. |
IP67/IP69K Waterproof rating | Guaranteed to be dust tight and sealed against water immersion to a depth of 1 meter for up to 1 hour. The IP69K rating provides protection against high pressure water at high temperature spray downs. |
Specifications
Highlights | Switch Life: 3 million operations CANopen Node ID: 0x15 (21) Default Baud Rate: 1000kbit/s Ingress protection Rating: IP67/IP69K Chemical Resistance: Deet, Engine Cleaner, Isopropyl Alcohol, Suntan Lotion, Multi-Purpose Cleaner, Orange Citrus Cleaner, Muriatic Acid UV Protection: UVB 400 hours |

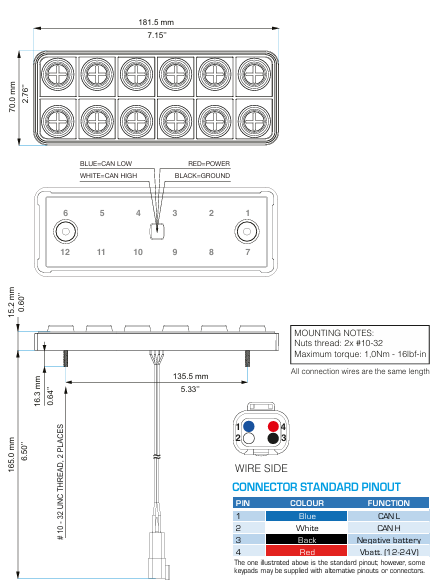

Product Dimensions | 18x7x4.5cm |
Product Weight | 210g |
Electrical | Operating Voltage Range: 8-32V Maximum Input Voltage: 32V Maximum Continuous Current Draw: <50mA |
Misc. | Mounting Stud Gap (Centre to Centre) 136.14mm Nuts thread: #10-32 Maximum torque: 0.8Nm |
What's in the Box | Keypad Help Manual Card CAN Keypad Insert - Link Blink CAN Keypad 12 position + DTM4 Link sticker - Right facing - Clear Gloss - Rectangle 150x72 Deutsch 4-way Connector Kit |
Connector | TE Connectivity Deutsch DTM 4-pin (101-0156) DTM4 Connector for CAN and Power Black = Ground Red = Power White = CAN High Blue = CAN Low |
