LS Stepper Adapter Harness

SKU:101-0301

LS Stepper Adapter Harness

Excluding taxes and shipping. Contact a Reseller for pricing in your area

LS Stepper Adapter Harness

Find a Dealer

Find an Installer

Search near you

To ensure the best possible experience with our products, we recommend you engage one of our official Dealers for installation and set-up.

Contact a Link dealer near you to find out more

You may also need
Overview

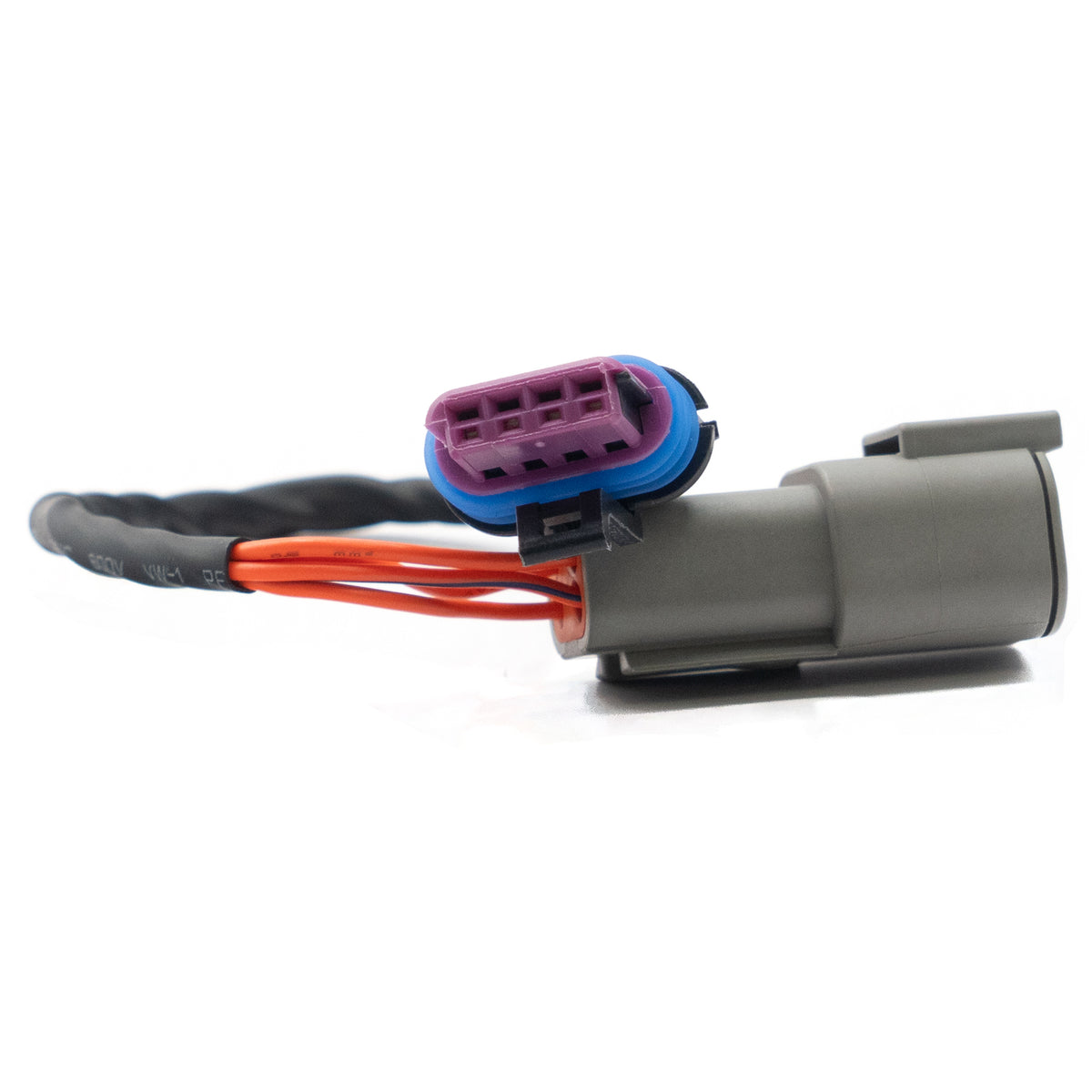

The Link LS Stepper Adapter Harness is a plug-and-play adapter designed to connect a GM LS Idle Air Control (IAC) stepper motor to the Link Terminated LS Engine Harness. Required for cable throttle (drive-by-cable) LS applications, it connects directly to the pre-wired stepper connector on the engine harness, simplifying installation and eliminating the need for additional wiring.

Models Supported

GM Gen 3 LS1 and LS6 engines.

GM Gen 4 LS2, LS3 and LS7 engines*.

Link Terminated LS Engine Harness (PN 101-0300).

Cable throttle (drive-by-cable) LS throttle bodies with a factory GM IAC stepper motor.

*Gen 4 engines may require additional harness adapters depending on engine configuration. Refer to the LS Harness Manual.

Warnings

Required when using the Link Terminated LS Engine Harness with a cable throttle LS engine.

Not required for drive-by-wire applications. Use the LS DBW Adapter Loom instead (101-0304).

Designed exclusively for use with the Link Terminated LS Engine Harness.
Specifications

Highlights

The Link LS Stepper Adapter Harness has the following specifications:

Plug-and-play installation.

Supports factory GM LS IAC stepper motors.

Connects to the pre-wired stepper adapter connector on the Link LS Engine Harness (PN 101-0300).

Interfaces with Aux 5, Aux 6, Aux 7 and Aux 8.

Designed for cable throttle (drive-by-cable) LS applications.

Manufactured in the USA.

Product Dimensions

250mm(L)x25mm(W)x20mm(H)

9.84in(L)x0.98in(W)x0.79in(H)

Product Weight

20 grams (0.71 ounces)

What's in the Box

LS Stepper Adapter Harness
