SKU:101-0191
Electronic Throttle Body Kit - 54mm (ETB54)
Electronic Throttle Body Kit - 54mm
Find an Installer
Search near youTo ensure the best possible experience with our products, we recommend you engage one of our official Dealers for installation and set-up.
Contact a Link dealer near you to find out more
You may also need
Overview

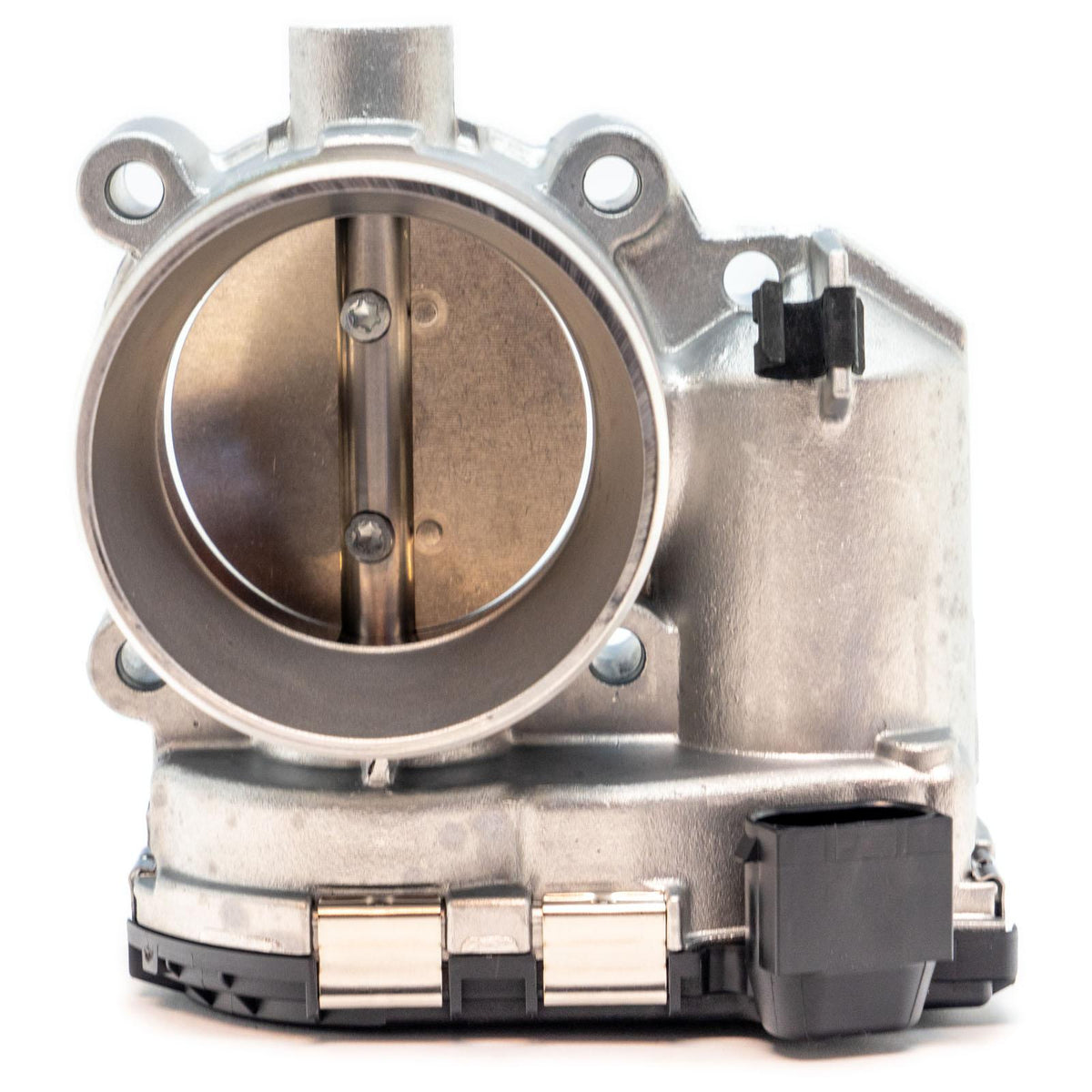

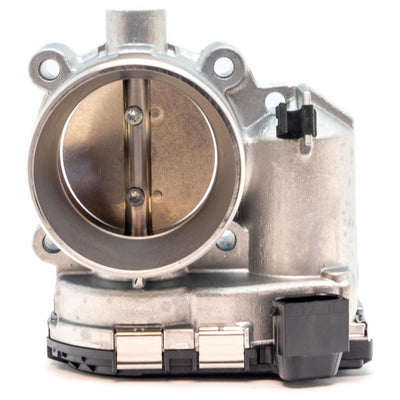

The Link 54mm Electronic Throttle Body Kit is a high-quality E-throttle solution designed for motorsport and performance applications. Featuring an 54mm bore, dual throttle position sensors for redundancy and a powerful integrated actuator, it delivers precise throttle control when paired with a compatible Link ECU.
Models Supported |
Requires a compatible Link ECU with built-in E-throttle or an external E-throttle Module (115-1000). Suitable for use with an electronic accelerator pedal such as the Link PN 101-0188 or pedal position sensors. |
Warnings |
Further details on E-Throttle setup can be found in the PC Link helpfile. |
Features

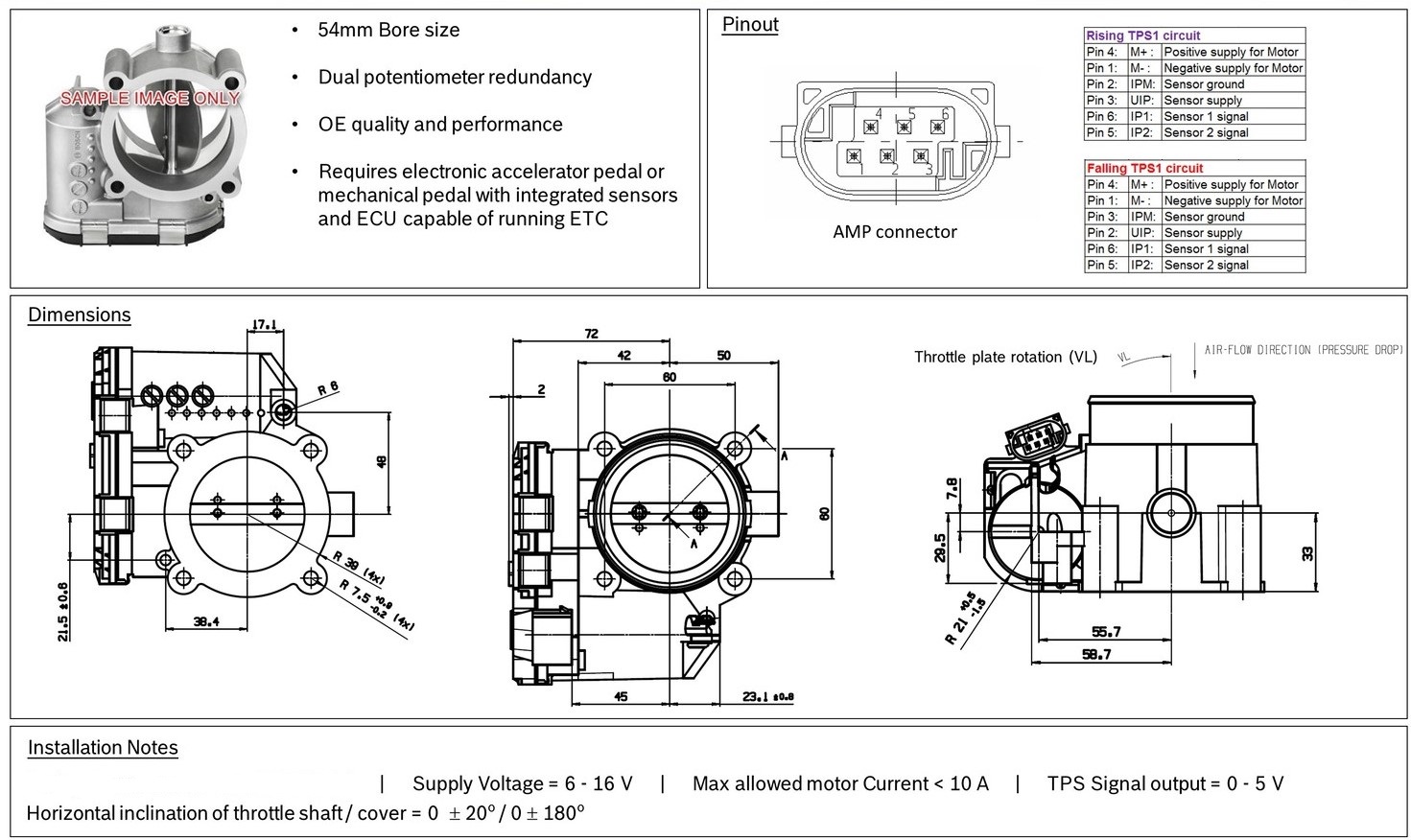

The Link 54mm Electronic Throttle Body Kit has the following specifications:
ECU Tuning Features | 54mm Bore size Dual potentiometer redundancy Bosch quality and performance Includes groove on inlet port flange |
Specifications
Electrical | Operating Voltage Range: 6-16V Maximum Input Voltage: 16V Maximum Continuous Current Draw: 10A TPS Output: 0-5V |

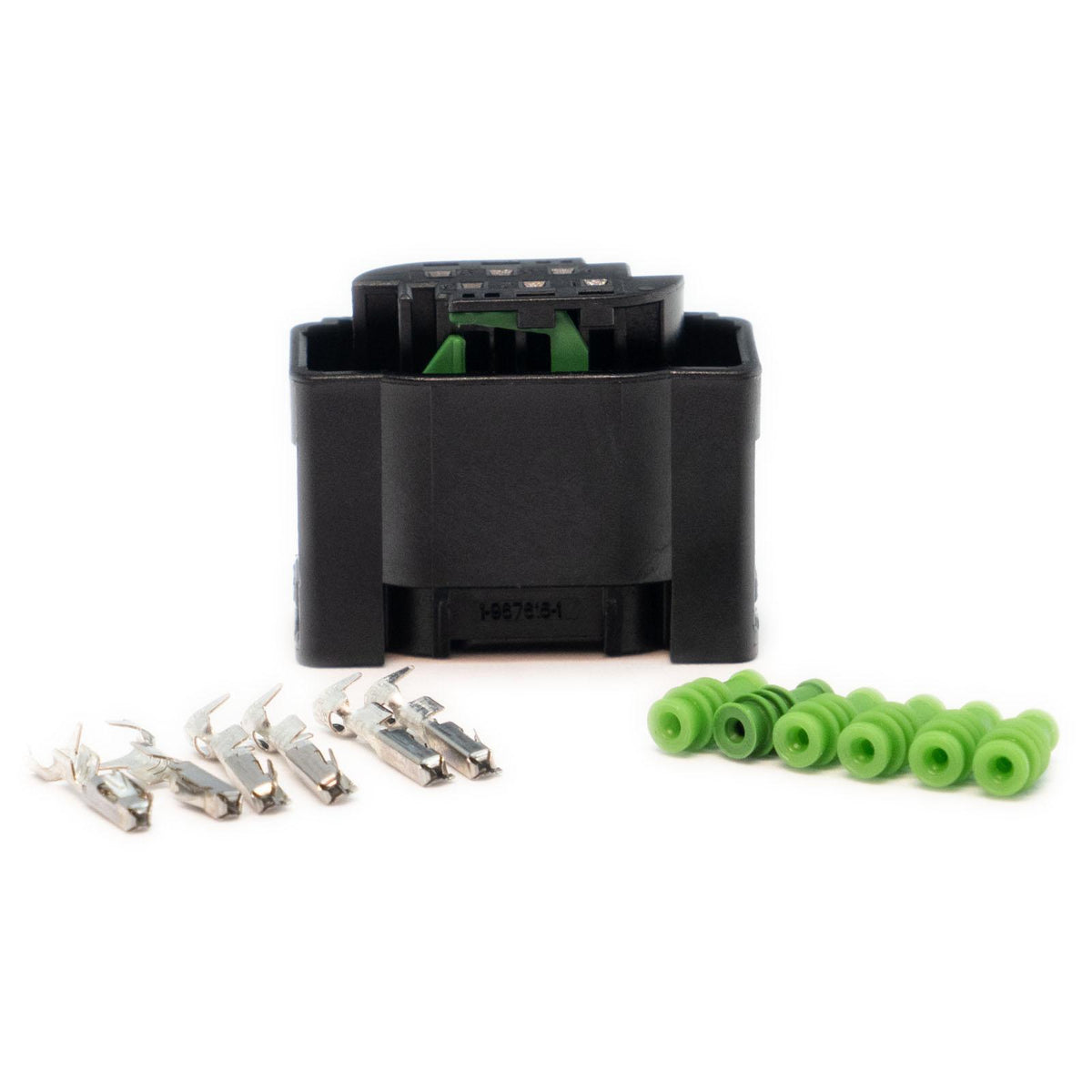

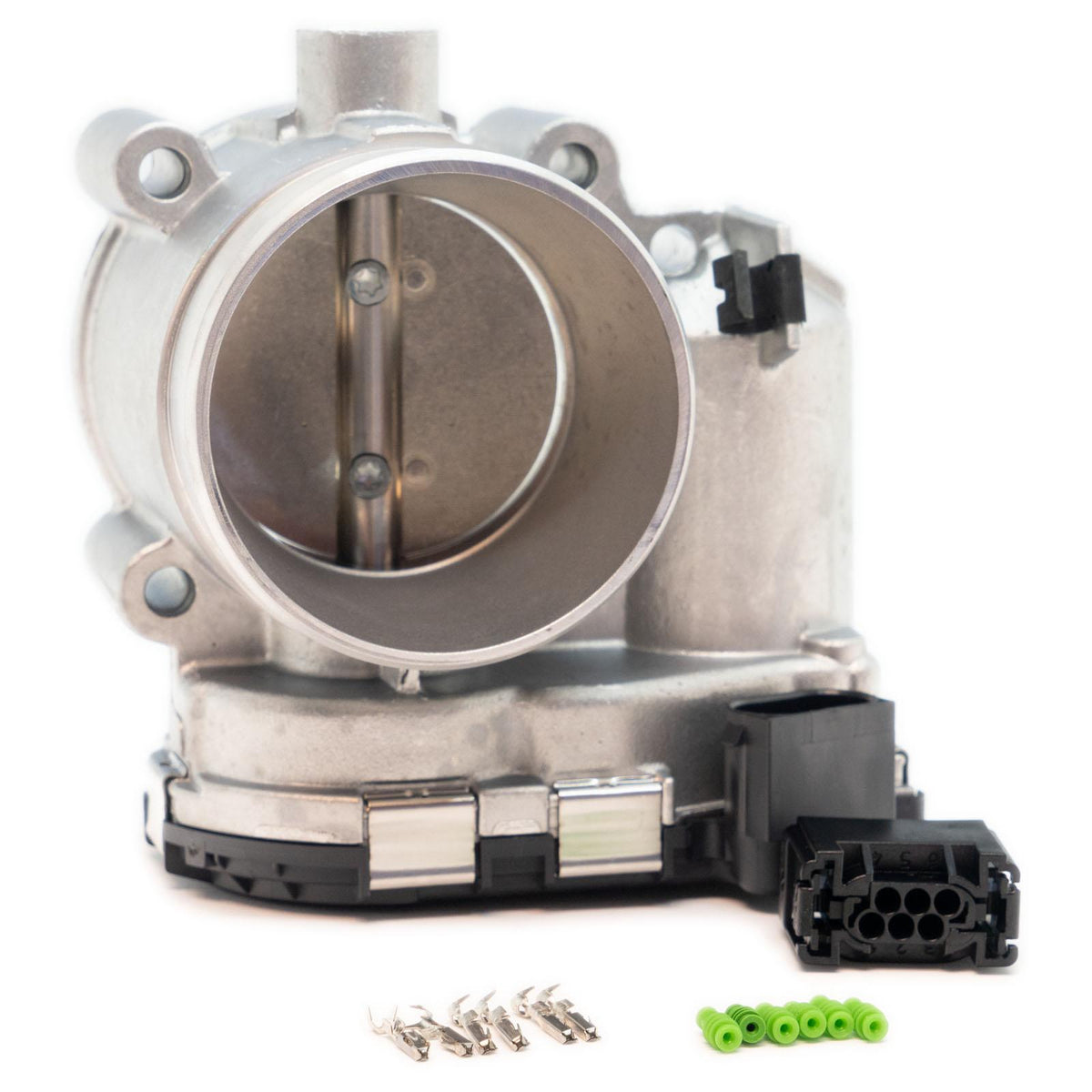

What's in the Box | Bosch Electronic Throttle Body (54mm bore) Bosch E-Throttle Mating Connector, 6-pin AMP Printed Accessory instructions |
Connector | AMP 6-pin |
