SKU:241-4000

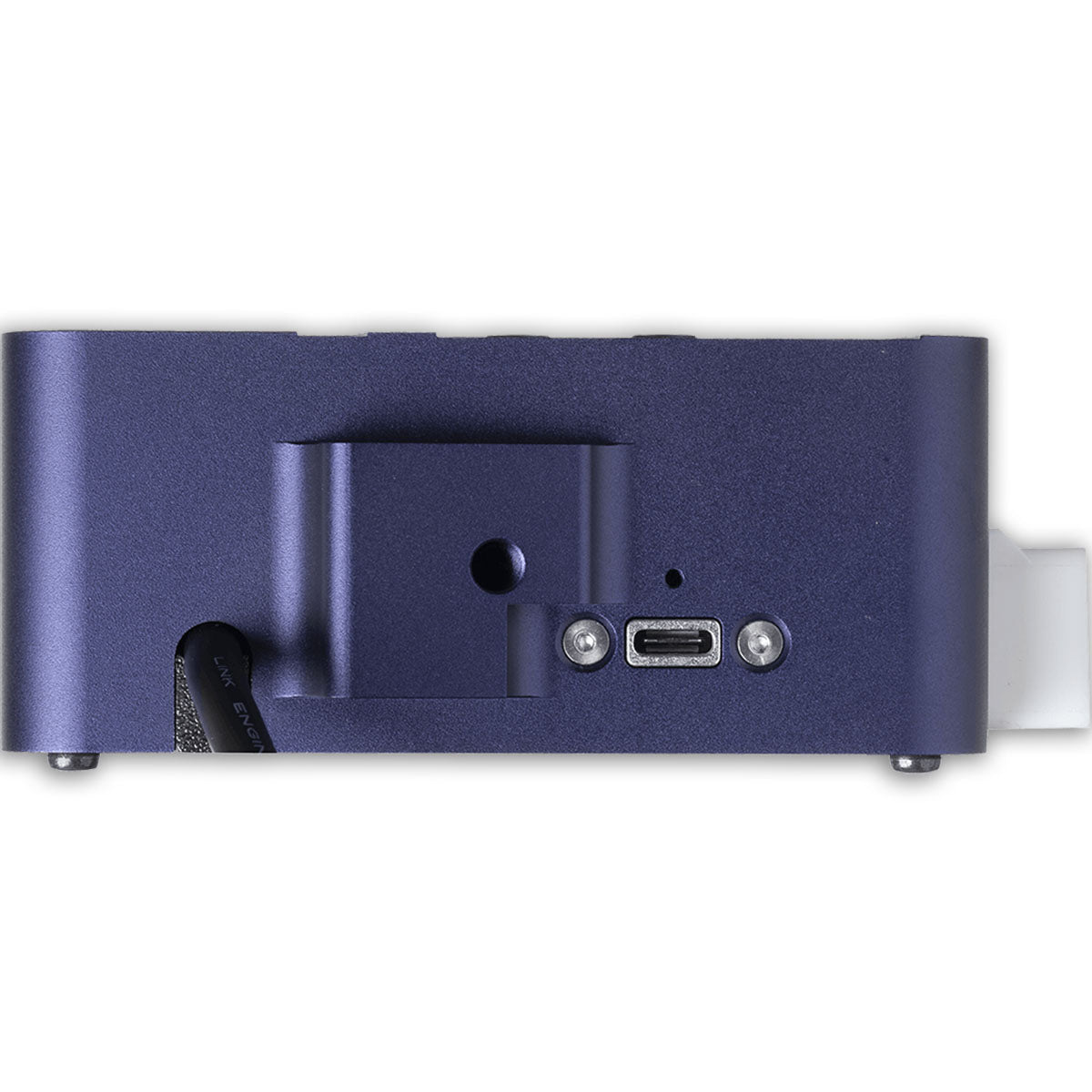

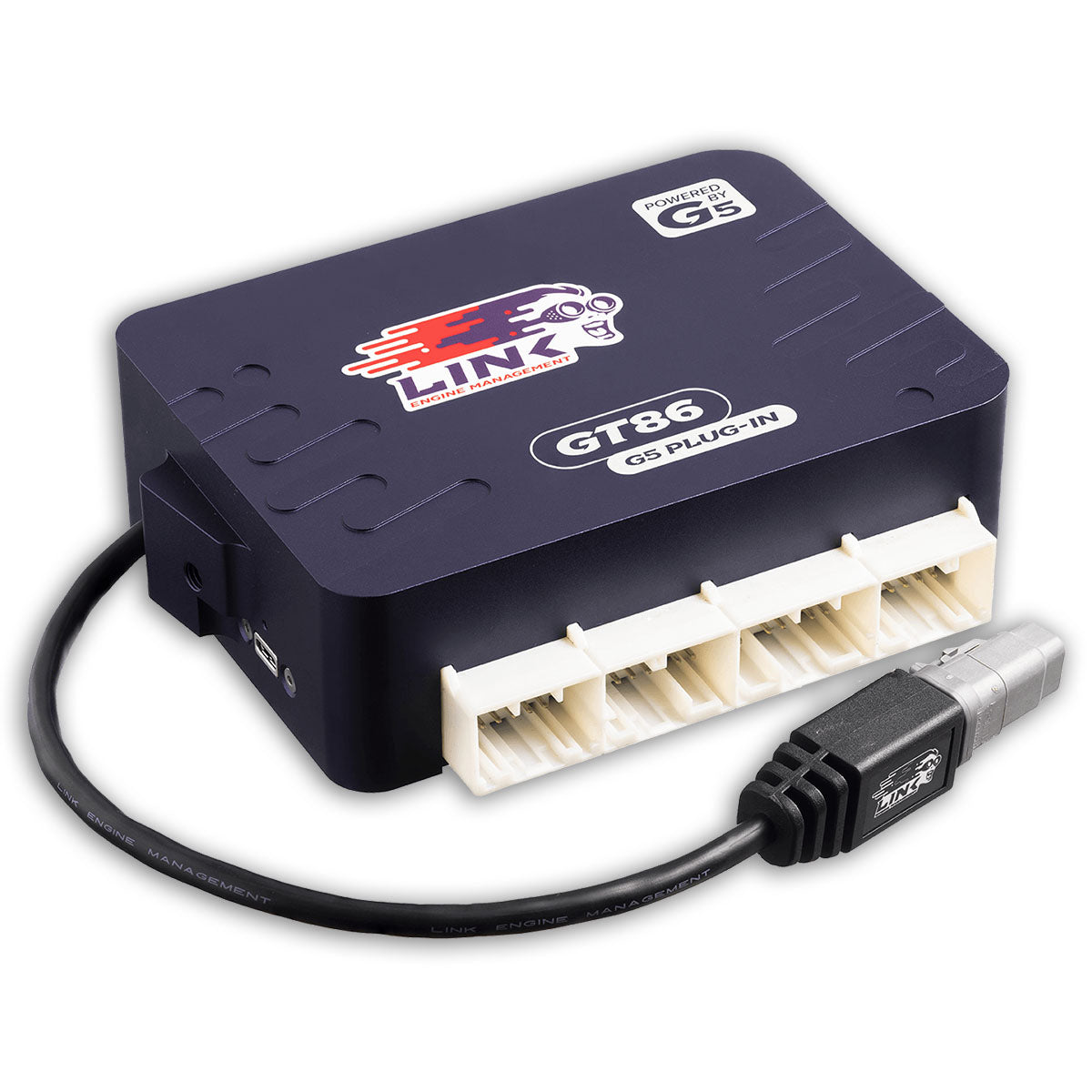

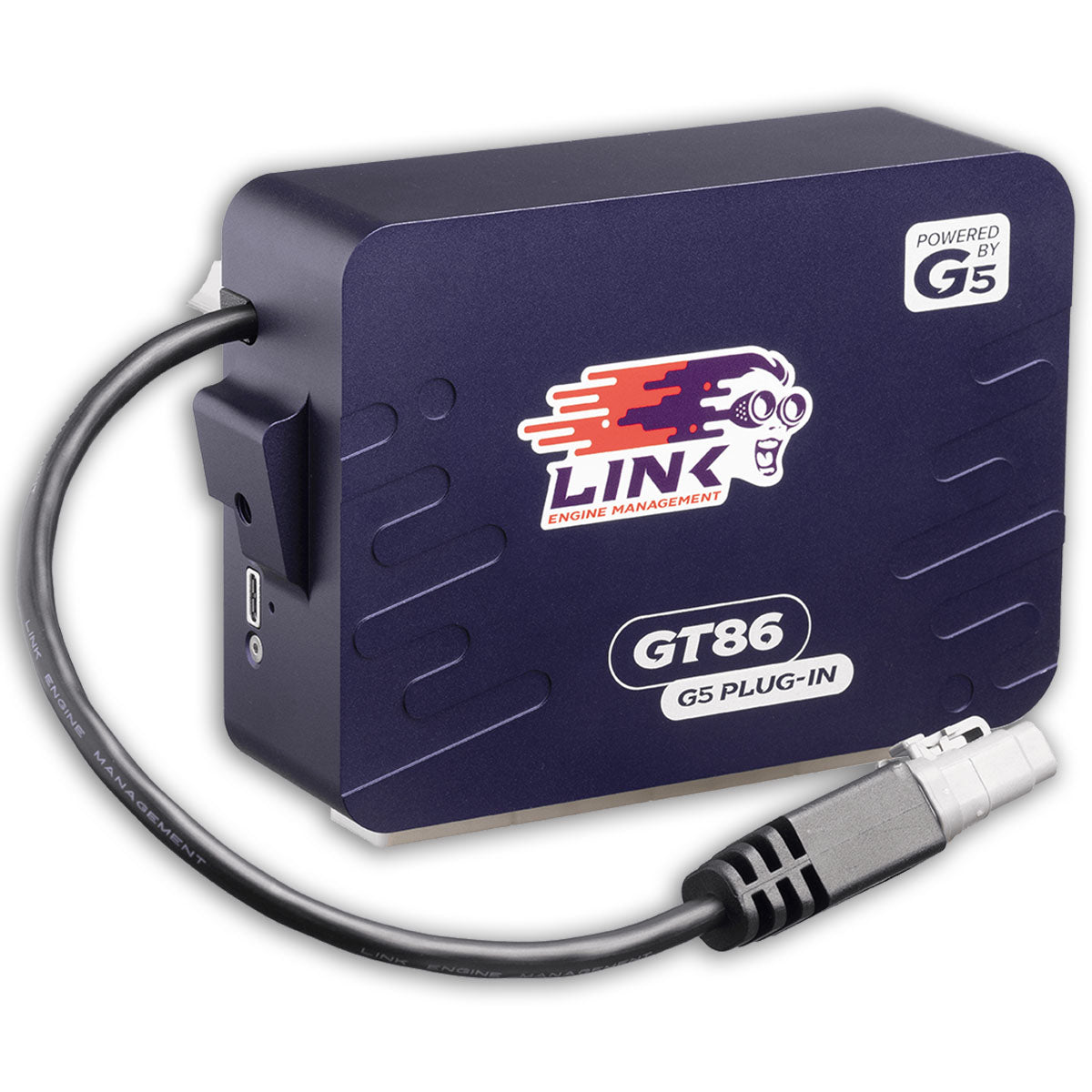

G5 GT86 Plug-In ECU (Toyota GT86 / Subaru BRZ, RHD)
The TGT86 Plug-in ECU is purpose built for the 86, BRZ and FR-S, combining genuine plug-and-play convenience through direct factory fitment, OEM compatibility with Link's championship winning G4X architecture, advanced tuning and motorsport features. No wiring, no adapters, no compromises.
Find an Installer
Search near youTo ensure the best possible experience with our products, we recommend you engage one of our official Dealers for installation and set-up.
Contact a Link dealer near you to find out more
You may also need
Overview
Genuine plug-and-play convenience with modern G4X architecture, advanced tuning and motorsport features.
Purpose-built for the R.H.D. Toyota 86, Subaru BRZ and Scion FR-S, the TGT86 is designed to fit directly into the factory ECU location using the factory mounts, original wiring loom and connectors. No rewiring, no adapter looms, no compromises. It retains all factory functionality, delivers seamless OEM integration and includes a startup map to get your vehicle running quickly. The result is a clean, simple, reliable installation that maintains a stock appearance.
Link Plug-in ECUs include all the features expected from a premium Link ECU. TGT86 features include Direct and Port Injection control, dual CAN Bus, Flex Fuel, Flexible Engine Protection Limiters, CAN Keypad Control, Open and Closed Loop Boost Control, Dual Closed Loop Lambda, VVT Control, a built-in Trigger Oscilloscope, compatibility with aftermarket displays, Direct Automatic Transmission Control and 512MB of onboard data logging.
Drawing from Link's championship-winning pedigree, the TGT86 also supports advanced tuning and motorsport features including Nitrous Control, Launch Control, Anti-lag, Cruise Control, Traction Control, Race Timer and Power Management, Gear Shift Control and Paddle Shift Control.
A Link Plug-in ECU is the ideal solution when available for your vehicle and the wiring remains in good condition, providing modern engine management without the complexity of a wire-in installation.
Models Supported |
The TGT86 is designed to suit the following Right Hand Drive applications: Toyota 86 ZN6 with 4U-GSE/FA20 engine from 2012-2021. Toyota GT86 ZN6 with 4U-GSE/FA20 engine from 2012-2021. Subaru BRZ ZC6 with 4U-GSE/FA20 engine from 2012-2020. Scion FR-S with 4U-GSE/FA20 engine from 2012-2016. |
Important |

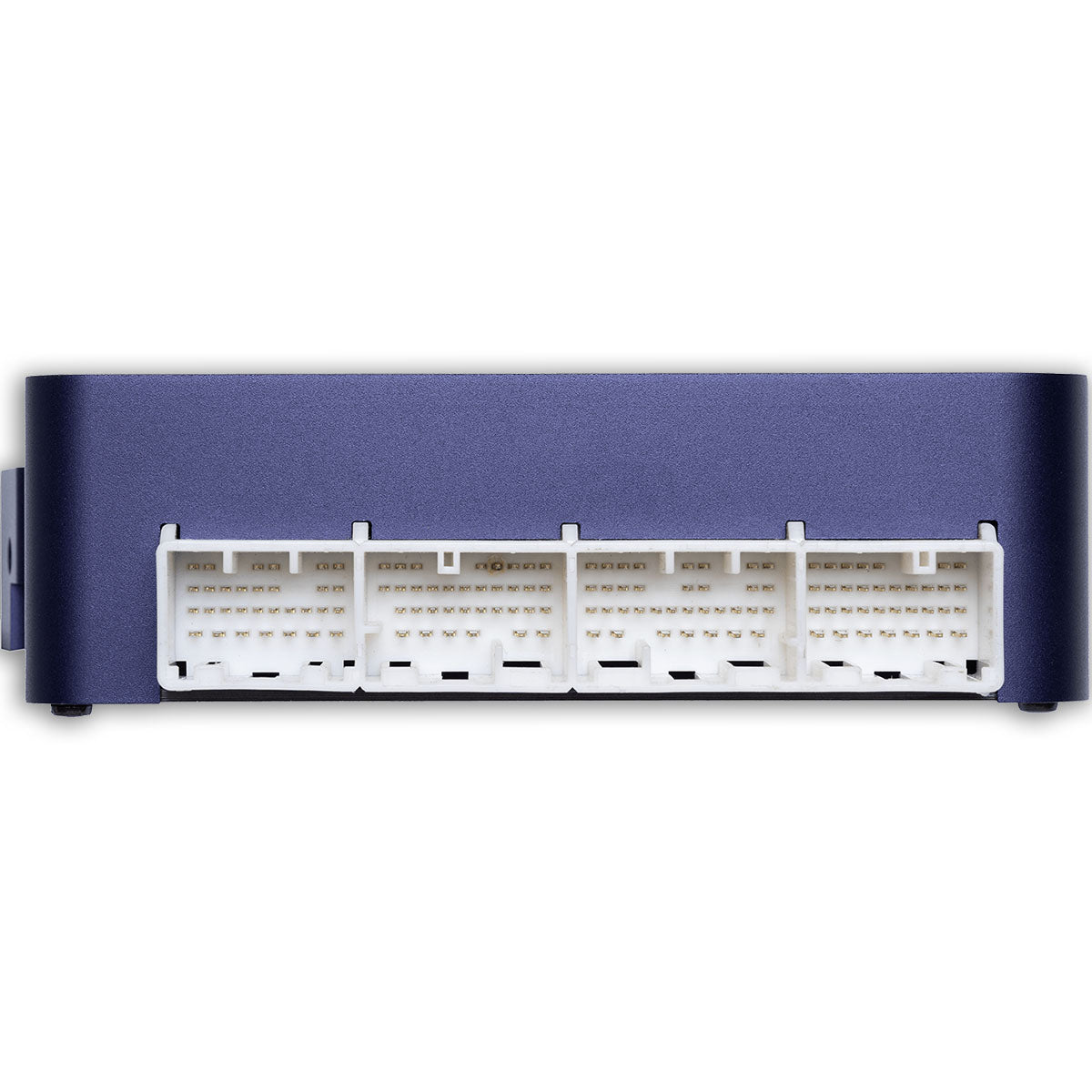

Please check your connector matches the header in the listed photo before purchasing. This ECU works for both manual and Automatic transmissions. Most factory features are supported. This ECU has built-in E-Throttle (Drive-by-Wire). Due to the very tight nature of the factory ECU location, the LHD and RHD mounting methods differ. This ECU is for right-hand drive RHD vehicles only. A LHD Version is available under part number 241-4200. 2017+ Models have some differences to earlier cars and will not run with the sample maps supplied in PCLink and the standard plug-in ecu hardware. 2017+ Engines have a Hall Effect Crank Sensor instead of Reluctor and so require the Trigger 1 Type changed from 'Reluctor' to 'Optical/Hall' and the Trigger 1 Pull-up set to ON. 2017+ Engines have a different DI Fuel Pressure sensor than earlier models, this sensor has 4 pins instead of 3 and requires an 8.2kohm pullup resistor to be wired between C7 (An Volt 4) and 5v, the DI Fuel Pressure Source changed from An Volt 3 to An Volt 4 and the pressure calibration changed to 0kPa at 4.06V and 30000kPa at 0.46V. |
Features
The TGT86 Plug-in ECU has all the standard LinkECU features along with advanced tuning and motorsport features including:
ECU Features | Direct and Port Injection control Dual CAN Bus E-throttle Control Flex Fuel Trigger Oscilloscope 3 Axis Accelerometer Selectable Temp Input Pullups Flexible engine protection limiters CAN Keypad Control VVT-i Control Open Loop Boost Control Closed Loop Boost Control Dual Closed Loop Lambda Direct Automatic Transmission Control Built-in DTM4 CAN cable Compatible with all leading aftermarket dashes via CAN or serial stream 512 Megabytes of internal data logging |
Motorsport Features | Nitrous Control Launch Control Anti-lag Cruise Control Traction Control Race Timer and Power Management Gear Shift Control Paddle Shift Control |
Specifications
Plug-in ECUs combine all the premium LinkECU specifications with genuine plug-and-play convenience, including:
Inputs and Outputs | For the full list of Inputs and Outputs, please see the TGT86 Installation Manual |
Communications | 2 CAN Bus Channels USB-C Tuning Connection |
Product Dimensions | 460mm(L)x115mm(W)x45mm(H) 18.11in(L)x4.53in(W)x1.77in(H) |
Product Weight | 1,000 grams (35.27 ounces) |
Material | Billet CNC Aluminium Enclosure |
Electrical | Operating Voltage Range: 6.5-24V Maximum Input Voltage: 36V Maximum Continuous Current Draw: 11.5A |
What's in the Box | TGT86 Plug-in ECU USB-C Connection Cable Locking USB-C extension cable 2 x M6 screws DTM4 CAN Connection Cable (Pre-Installed in Enclosure) Link stickers Plug-in Manual Card Product Registration Card |
