SKU:101-0163
2.5 Bar MAP Sensor (MAP2.5)
MAP Sensor 2.5 Bar absolute
Find an Installer
Search near youTo ensure the best possible experience with our products, we recommend you engage one of our official Dealers for installation and set-up.
Contact a Link dealer near you to find out more
You may also need
Overview

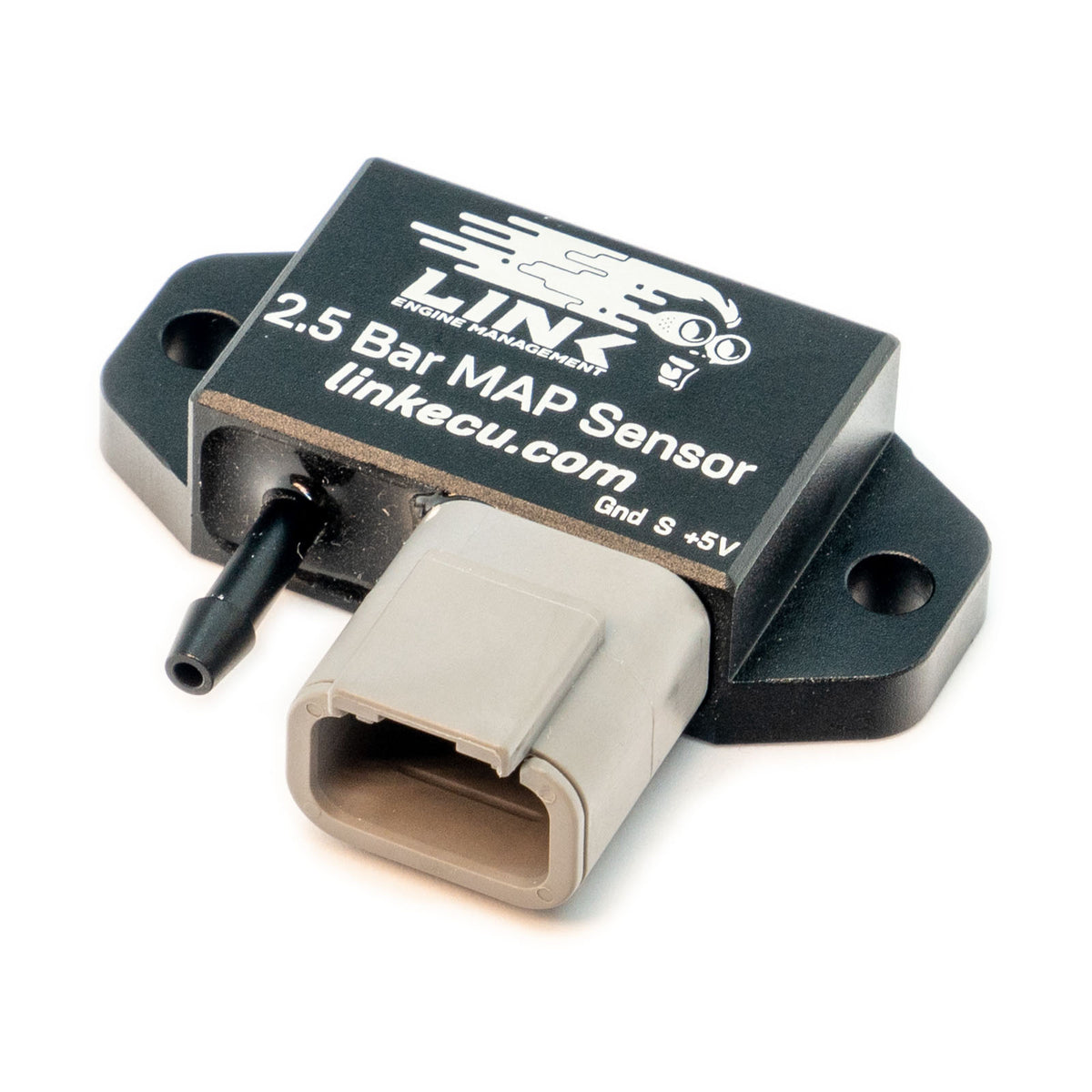

The Link 2.5 Bar MAP Sensor is a high-accuracy manifold absolute pressure (MAP) sensor designed for naturally aspirated, turbocharged and supercharged engines. It can measure manifold pressures from full vacuum to 22 psi (1.5 bar) of boost, delivering accurate and reliable pressure measurement for precise engine tuning.
Models Supported |
All Link ECUs. Other aftermarket ECUs with analogue MAP sensor inputs. Turbocharged and supercharged engines running up to 22 psi (1.5 bar) of boost. |
Important |
Mount the sensor higher than the intake manifold connection point. In PCLink, select "Link 2.5 Bar" as the MAP sensor type. Not recommended for naturally aspired (NA) engines or boost levels exceeding 1.5 bar / 22psi. |
Specifications
The Link 2.5 Bar MAP Sensor has the following specifications:
Highlights | Pressure range: 0-2.5 bar absolute. High-resolution pressure measurement. Compact aluminium enclosure. 4mm (3/16") hose barb connection. Two-bolt mounting design. Includes 3-pin Deutsch DTM connector kit. Wiring pinout marked on the sensor housing. Designed and manufactured by LinkECU. |
Product Dimensions | 60mm(L)x50mm(W)x20mm(H) 2.36in(L)x1.97in(W)x0.79in(H) |
Product Weight | 40 grams (1.41 ounces) |
Electrical | Operating Voltage Range: 4.75-5.25V Maximum Input Voltage: 5.25V Maximum Continuous Current Draw: 10mA |

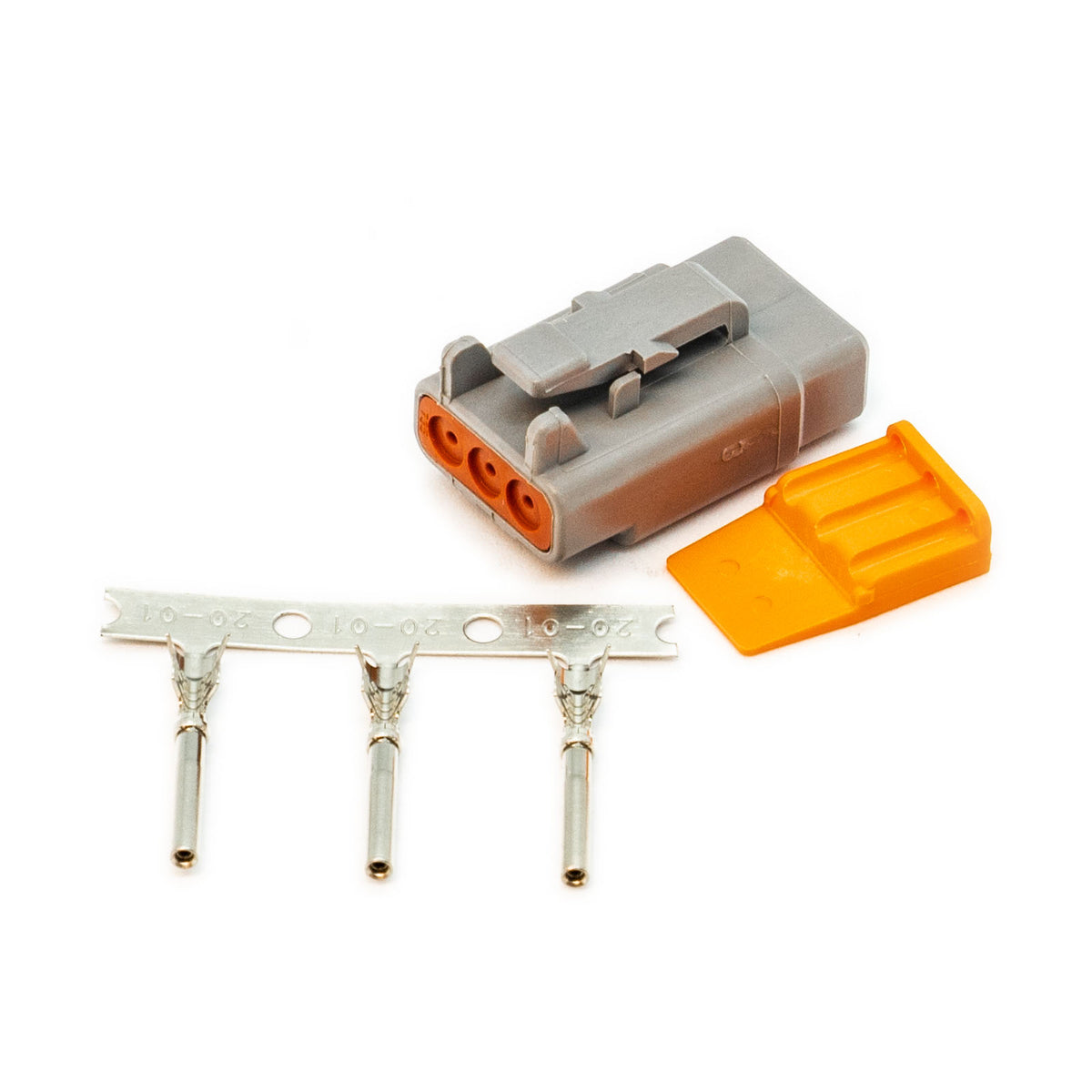

What's in the Box | 2.5 Bar MAP Sensor Deutsch 3 Way Plug Kit |
PCLink Calibration Name | "Link 2.5 Bar" |
Raw Calibration Specs | 0.5V = 35kPa, 4.5V = 235kPa |
Connector | Deutsch 3 Way Plug Kit (PN 101-0128) |
