SKU:144-5000

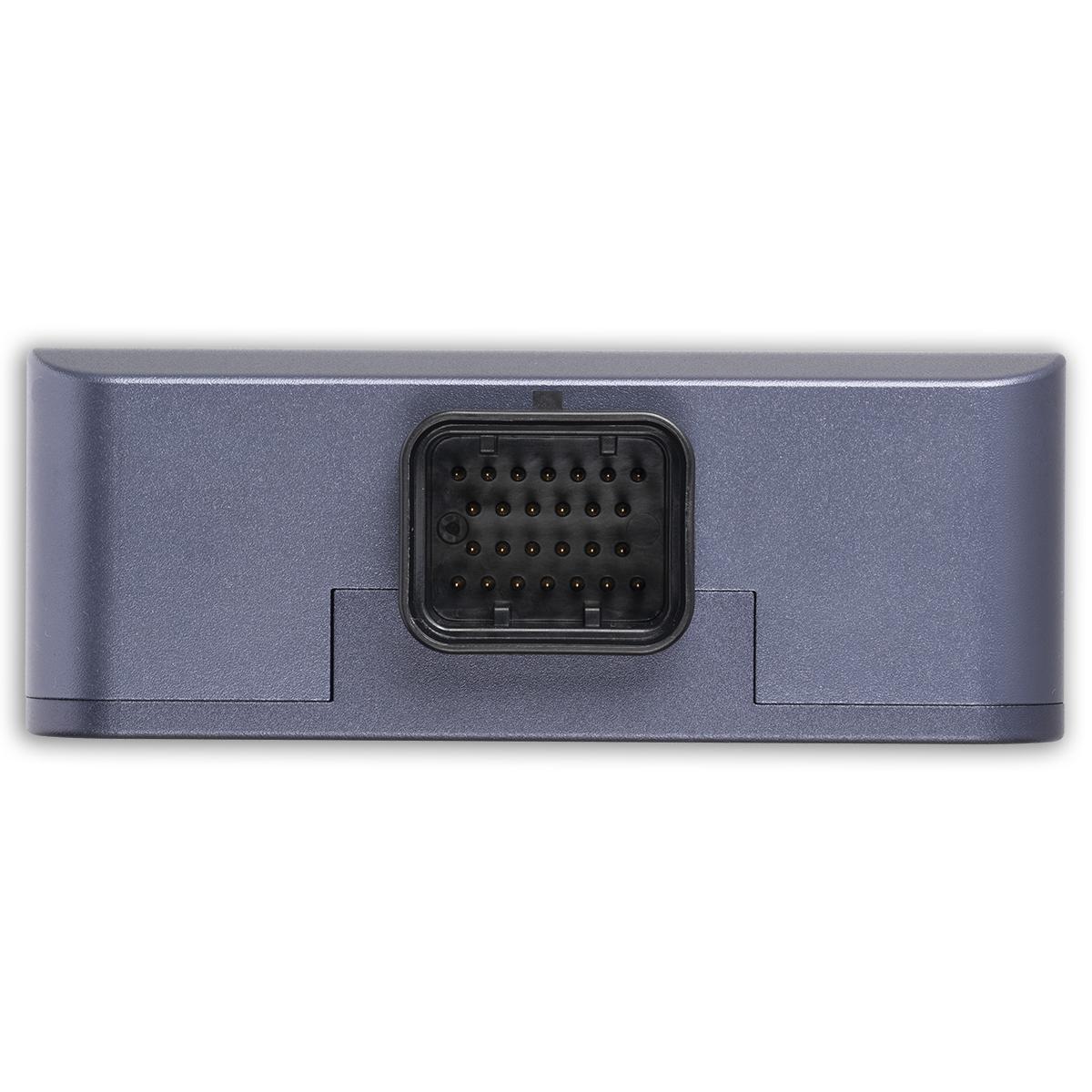

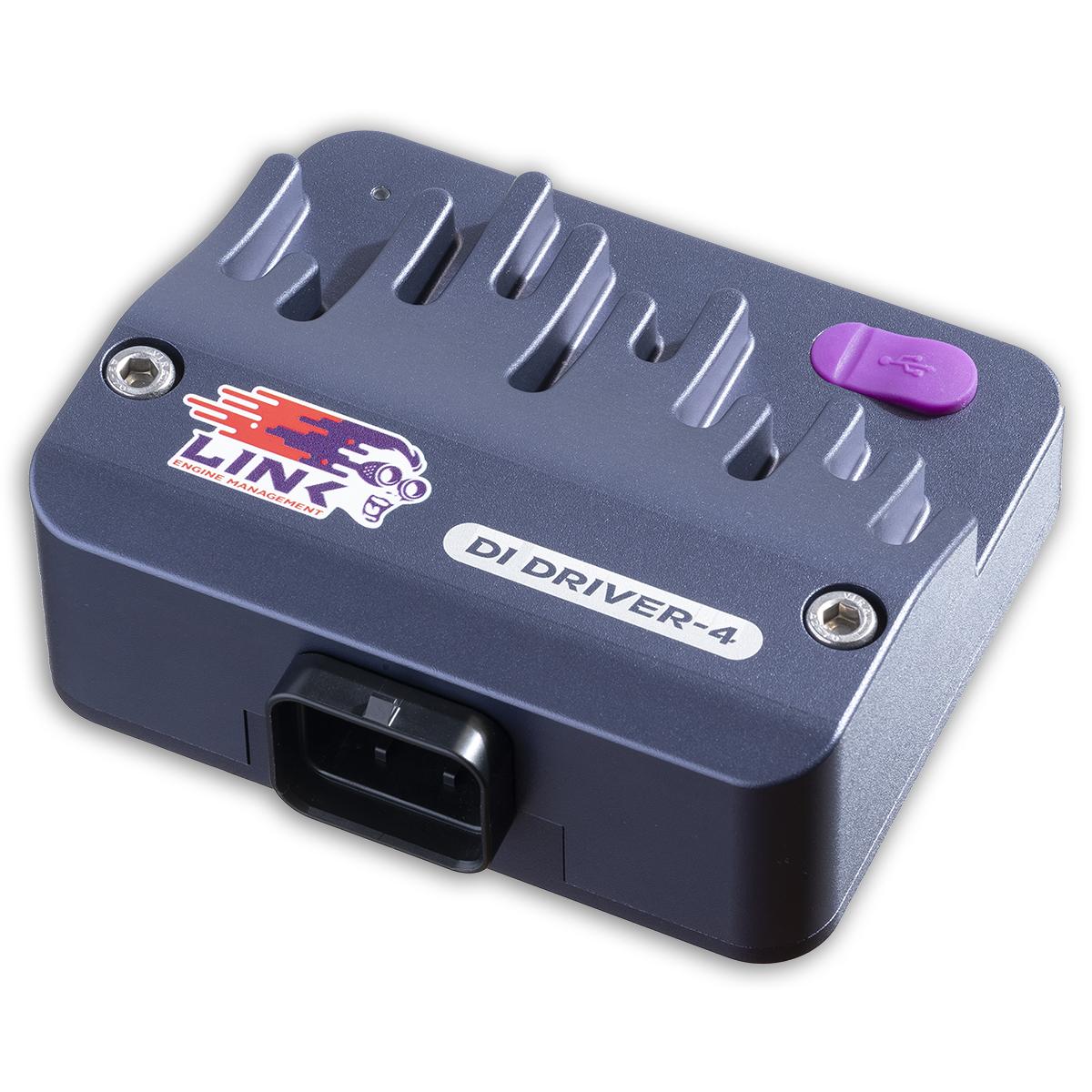

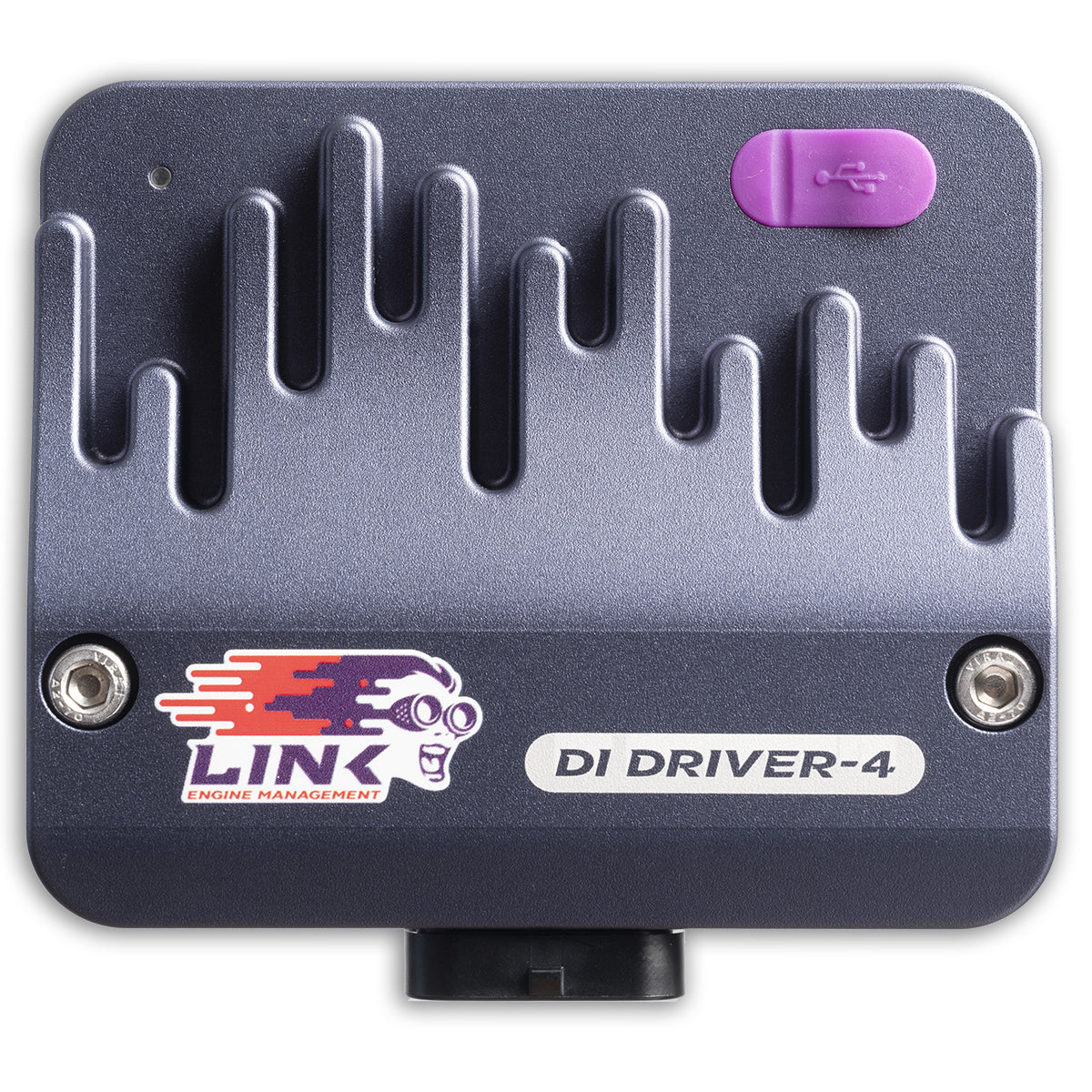

DI Driver-4 Direct Injection Controller
Unleash your Direct Injection engine with Link's DI Driver-4, the easiest, most effective and most affordable way to tune DI on the market.
Find an Installer
Search near youTo ensure the best possible experience with our products, we recommend you engage one of our official Dealers for installation and set-up.
Contact a Link dealer near you to find out more
You may also need
Overview
The DI Driver-4 is the next leap forward in engine tuning, allowing you to master the complexities of direct injection tuning.
The DI Driver-4 is a highly configurable, cost-effective and integrated solution, designed to give you full control of most modern solenoid type direct injectors and high-pressure fuel pumps.
When combined with Link's G5 Voodoo range of ECUs, multiple DI Driver-4 modules allow up to 12 Direct Injectors and two independent High Pressure Fuel Pumps to flow up to their maximum amount of fuel at a very high engine RPM.
Together, the G5 Voodoo ECUs and the DI Driver-4 can control both Direct Injection and staged Port Injection on a single tune, giving you the ultimate all-in-one solution to achieve greater power and efficiency.
Connecting your ECU and additional DI Driver-4 modules is easy with CAN Bus compatibility. Set-up has been simplified with our easy-to-use free DI Link software, which is highly configurable over USB.
The DI Driver-4 is engineered to withstand demanding conditions, and is backed by the industry-leading reliability and support you've come to expect from LinkECU.
Models Supported |
Each DI Driver-4 module can allow up to four high voltage peak and hold solenoid Direct Injectors and one high-pressure peak and hold Fuel Pump to flow up to their maximum amount of fuel at a very high engine RPM. |
Specifications
The DI Driver-4 gives you full control of most modern direct injectors and high-pressure fuel pumps and has the following specs:
Inputs and Outputs | Four Direct Injection Injector Drives One High Pressure Fuel Pump Drive |
Communications | 1 CAN bus with software configurable termination. 1 USB Type-C for configuration via DI Link software. |
Product Dimensions | 103.6mm(L) x 86.3mm(W) x 39.0mm(H) 4.08in(L) x 3.40in(W) x 1.54in(H) |
Product Weight | 438 grams (15.45 ounces) |
Material | Sealed CNC billet aluminium enclosure |
Electrical | Operating Voltage Range: 7-30V Maximum Input Voltage: 36V Maximum Continuous Current Draw: 10A Max Boost Current: 17.9A, Max Boost Voltage: 65V Max Peak Current: 17.9A, Max Peak Duration: 2ms Max Hold Current: 5.0A, Max Hold Duration: 164ms Max engine RPM running a Bosch HDEV: 14,200RPM |
Misc. | Water Resistant |
What's in the Box | Link DI-Driver 4 Quick Start guide Superseal D Plug and Pin Kit USB-C connection cable |
