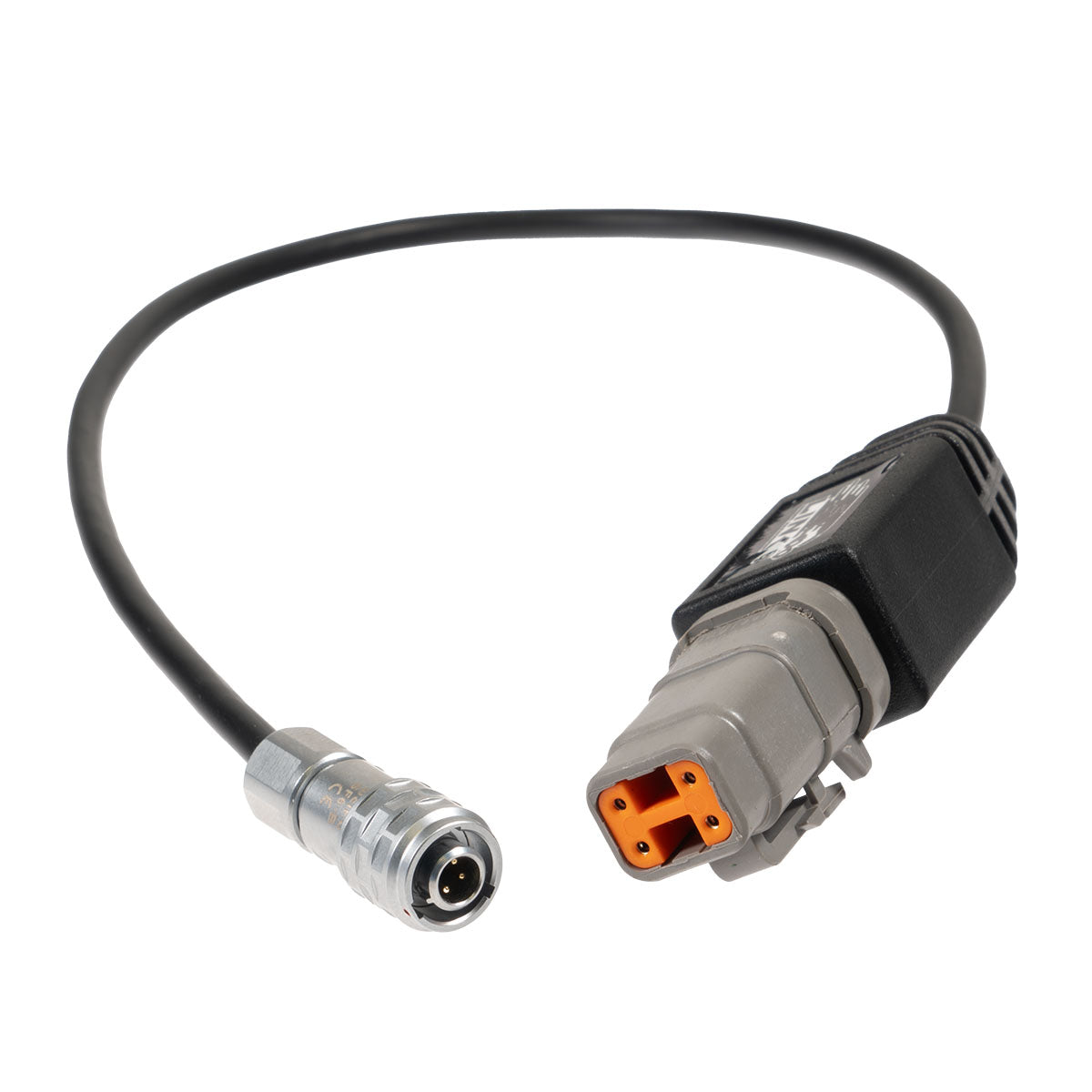

G5 CAN Connection Cable

SKU:101-5104

G5 CAN Connection Cable

Excluding taxes and shipping. Contact a Reseller for pricing in your area

CAN Connection Cable for G5 Voodoo Neo ECUs (4-Pin Weipu connector)

Find a Dealer

Find an Installer

Search near you

To ensure the best possible experience with our products, we recommend you engage one of our official Dealers for installation and set-up.

Contact a Link dealer near you to find out more

You may also need
Overview

The Link G5 CAN Connection Cable provides access to CAN 1 on G5 Voodoo ECUs, allowing CAN devices and accessories to be connected through the 4-pin WEIPU CAN connector on the ECU. The 300 mm cable terminates in a DTM4 male connector and provides CAN High, CAN Low, 12V and Ground, with power supplied directly from the ECU.

Models Supported

G5 Voodoo ECUs
Specifications

Highlights

DTM4 Pin Out

Pin 4: CAN High

Pin 3: CAN Low

Pin 2: Ground

Pin 1: 12V

Cable Length

300mm

Electrical

Maximum Continuous Current Draw: 3A

Misc.

Power for CAN is supplied via this cable from the ECU

Connector

DTM4 Male to WEiPU SF610B/P4
