SKU:101-0304
LS DBW Adapter Loom
LS DBW Adapter Loom
Find an Installer
Search near youTo ensure the best possible experience with our products, we recommend you engage one of our official Dealers for installation and set-up.
Contact a Link dealer near you to find out more
You may also need
Overview

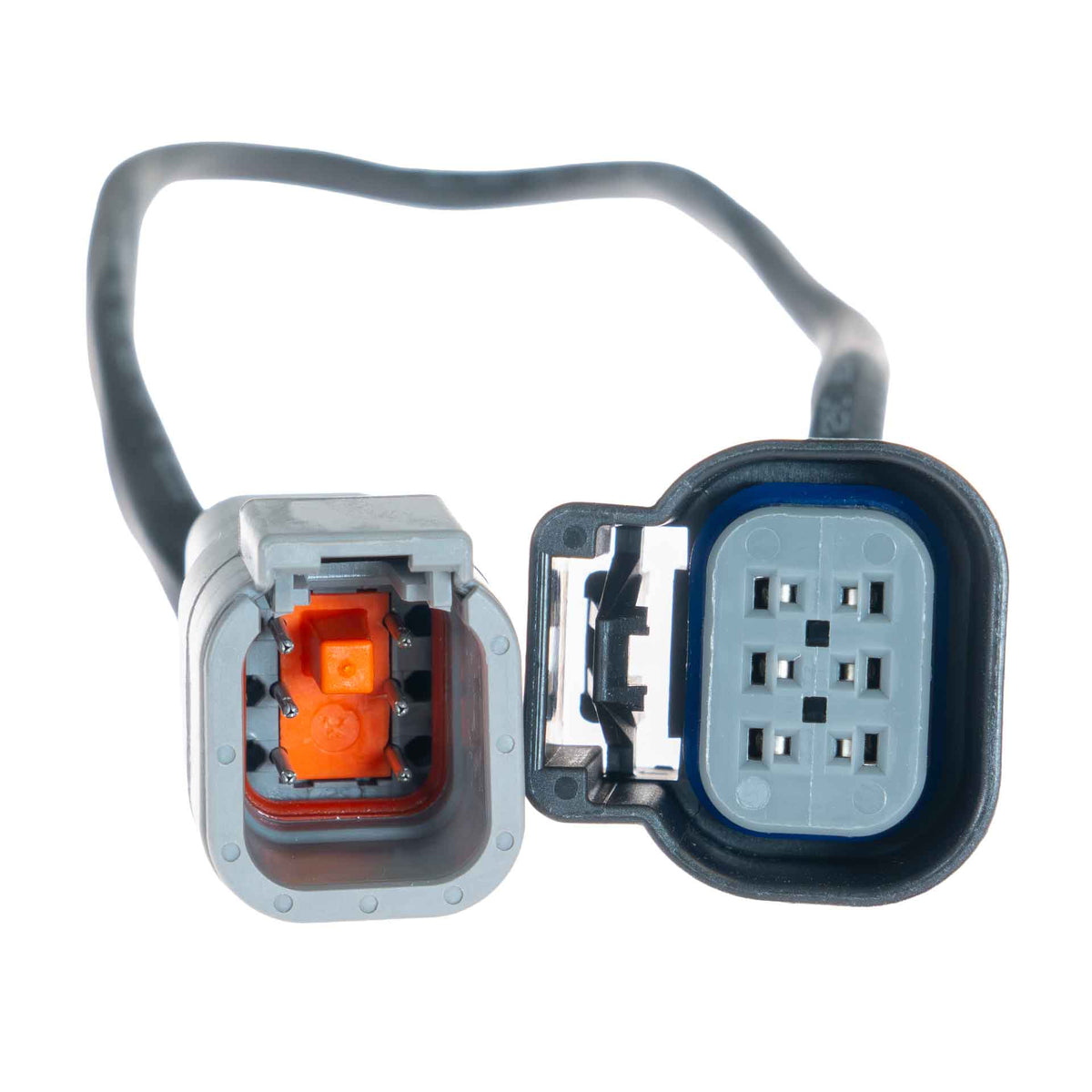

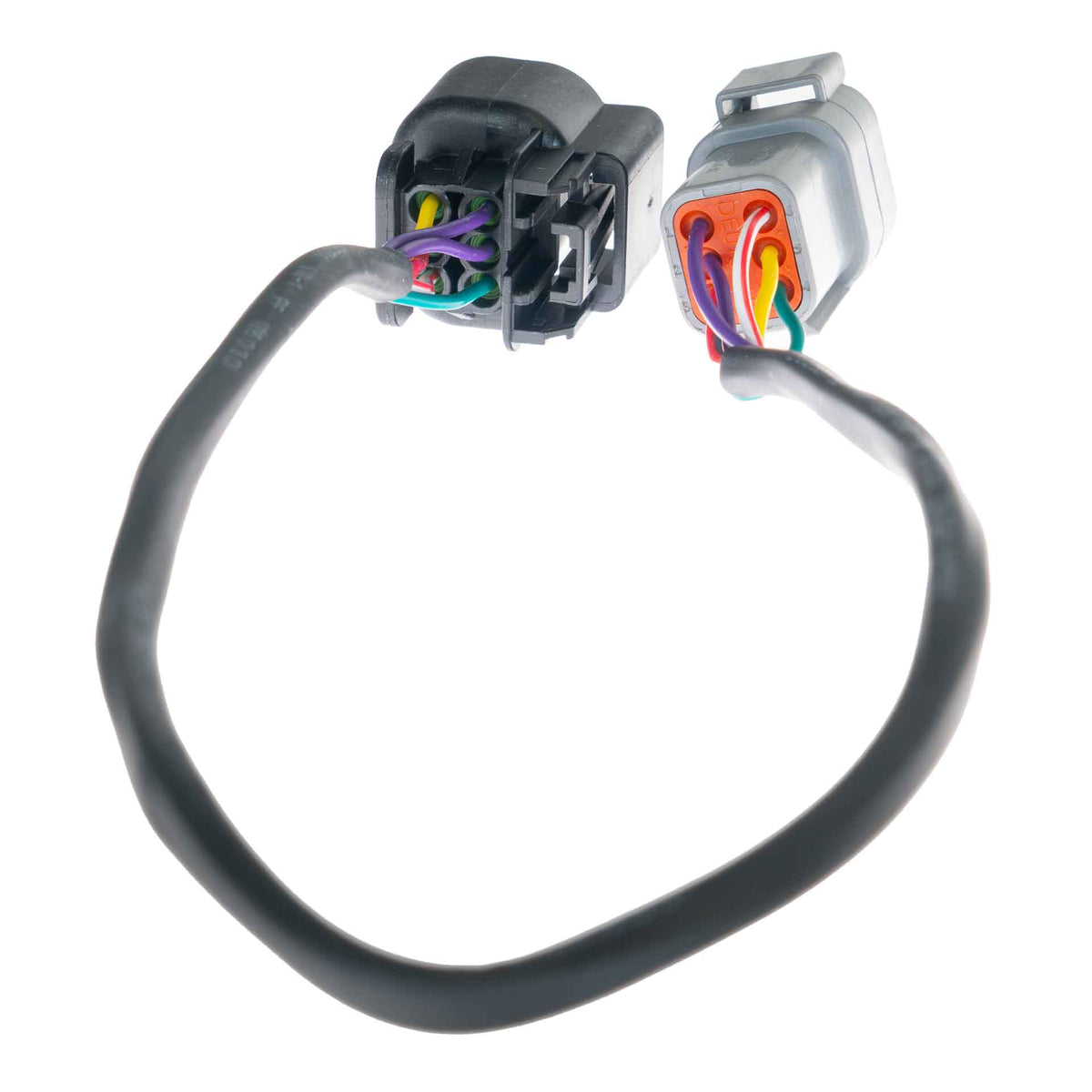

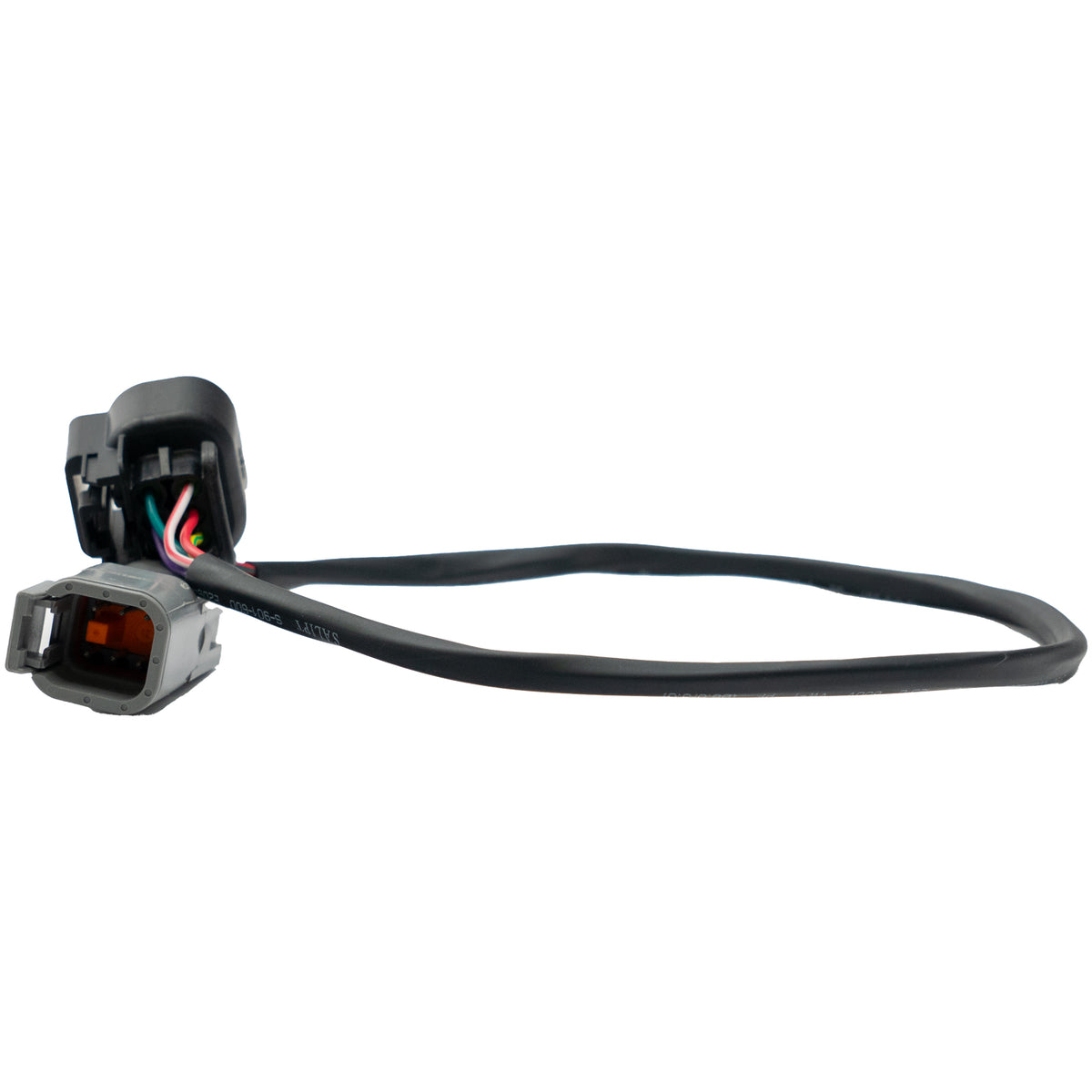

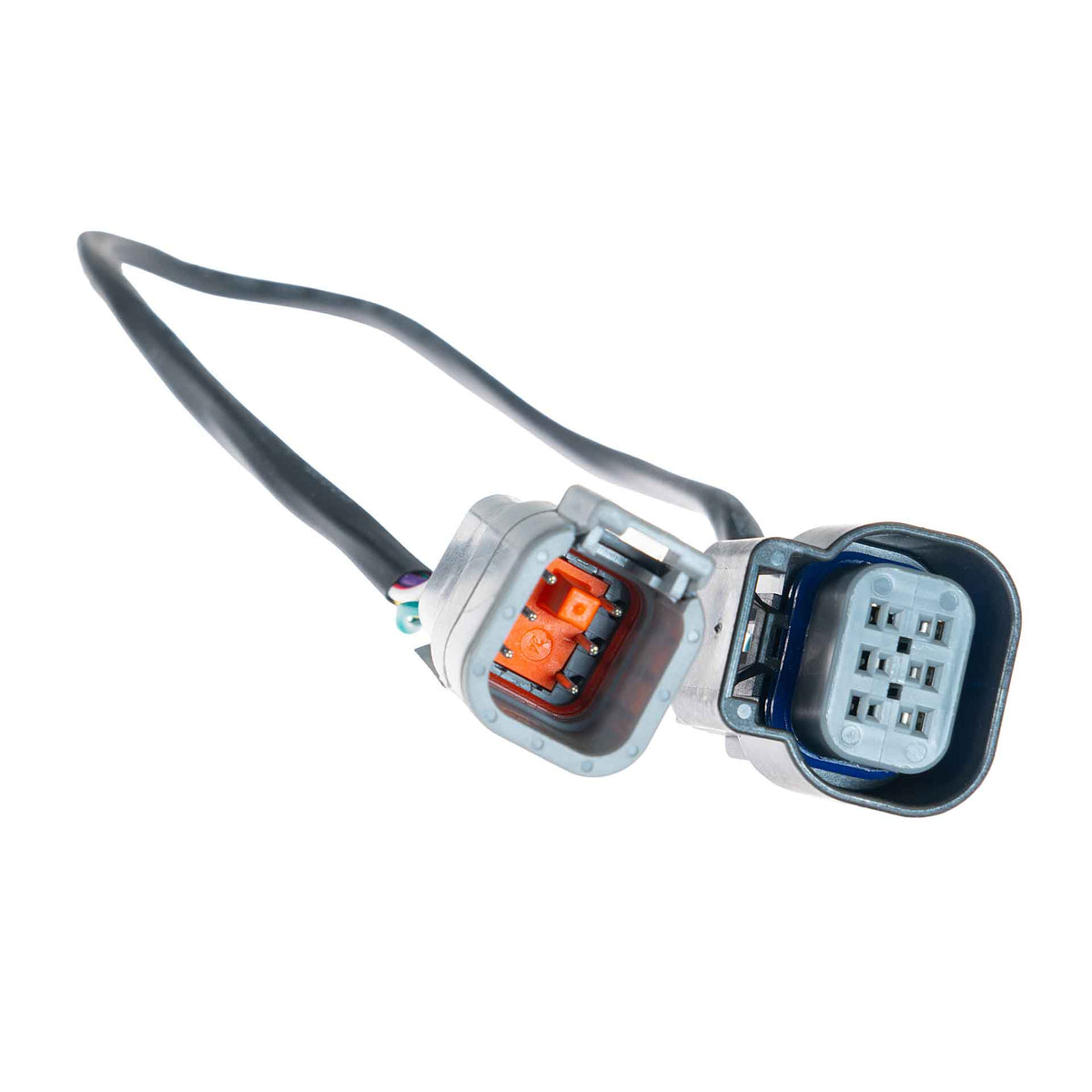

The Link LS Drive-by-Wire (DBW) Adapter Loom is a plug-and-play adapter designed to connect a factory Gen 4 GM LS Drive-by-Wire throttle body to the Link Terminated LS Engine Harness. It eliminates the need for custom wiring, providing a simple and reliable solution for Drive-by-Wire LS applications.
Models Supported |
GM Gen 4 LS2, LS3 and LS7 engines. Factory GM Gen 4 Drive-by-Wire throttle bodies. Link Terminated LS Engine Harness (PN 101-0300). Link ECUs with Drive-by-Wire support. |
Warnings |
Designed exclusively for use with the Link Terminated LS Engine Harness. Intended for Gen 4 GM Drive-by-Wire throttle bodies only. Requires a Link ECU with Drive-by-Wire control capability. Not required for cable throttle (DBC) applications. Use the Link LS Stepper Adapter Harness (PN 101-0301) when using a factory GM idle air control (IAC) stepper motor. |
Specifications
Highlights | The Link LS Drive-by-Wire Adapter has the following specifications: Plug-and-play adapter loom. Connects the Link LS Engine Harness to a factory Gen 4 GM Drive-by-Wire throttle body. No wiring modifications required. Utilises the pre-wired Drive-by-Wire connector on the Link LS Engine Harness. Interfaces with Aux 9, Aux 10, AN Volt 5, AN Volt 6, 5V reference and sensor ground. Manufactured in the USA. |
