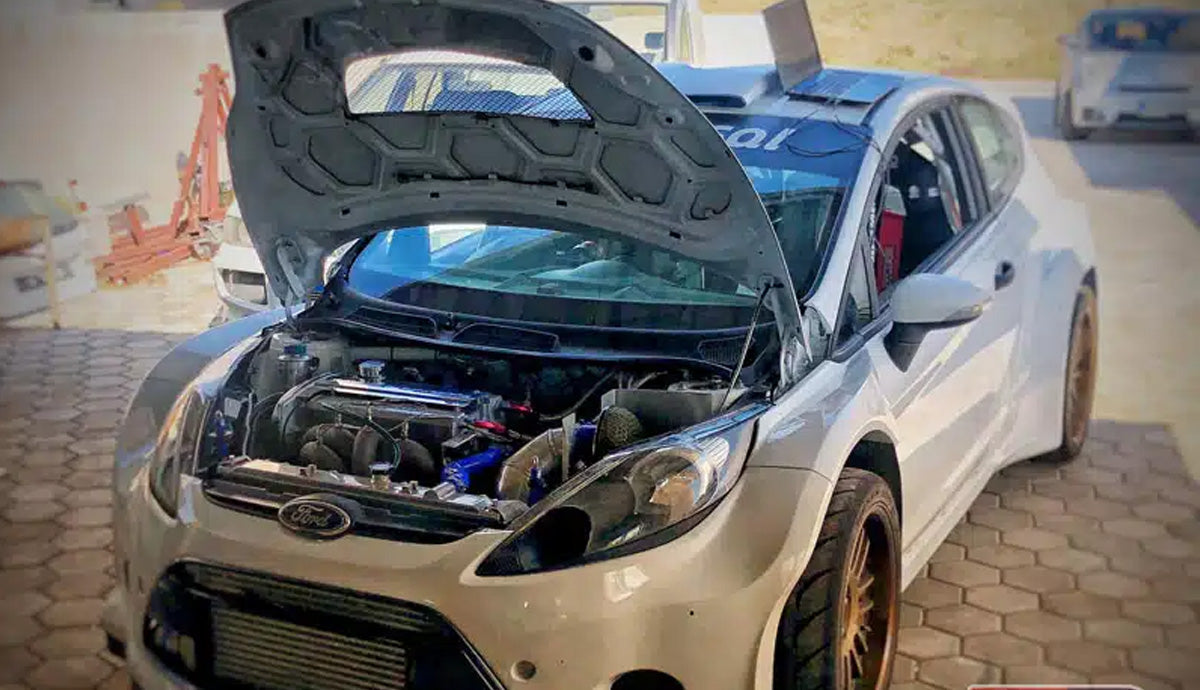

Link Builds – 4G63 Mk7 Ford Fiesta

Usually, when we hear about engine swaps, it’s nearly always something that has been done thousands of times before, like an RB in a BMW, or a 2JZ in a Nissan.

This build though, from Cypriot car enthusiast Emre Erosal, stands out from the crowd.

 He has somehow managed to install a Mitsubishi Sirius (4G63) engine into a Mk7 Ford Fiesta! It has been named the “Fiesta Proto v1”.

Originally a completely standard car, it was stripped bare and had many new components added, including the engine, exhaust system, cooling, fuelling and drivetrain.

Emre, who has a background as an IT engineer, is no stranger to electronics. His knowledge has allowed him, along with his friends, to undertake all the electrical work needed to install the engine. Every other step of the project, including the bodywork and mechanical work was completed in-house by the team.

Once everything was in ready, Emre then tuned the car himself using a one of our Evo Plugins and has now got it running at 830WHP at 1.8 bar of boost.

The car has been used across multiple motorsport disciplines, including Time Attack and Drag Racing.

Check out the impressive specification list of this car to see just how much work has been done.

Engine

• 4G63 block
• Stage 5 cylinder head
• Manley billet crank shaft
• Supertech 85mm forged pistons
• HKS H section forged connecting rod
• ACL std. main trust
• ACL std. side trust
• ARP age +625 Head and crank studs/bolts
• Modified oil pump w/o balancer
• Greedy timing belt
• O-Ringed engine block with OEM Head gasket 1.1mm
• Ferrea Competition Plus Intake Valve
• Ferrea Competition Plus Exhaust Valve
• Cosworth Inlet camshaft 280
• Cosworth Exhaust camshaft 280
• HKS adjustable cam gear
• Cosworth heavy-duty valve springs
• GSC hydroılic lifters
• Kiggly Racing HLA Pressure Regulator
• Garrett GTX3582 gen 2 turbo
• Tomei dress-up kit


Cylinder head

• Head surface correction
• Polished New valves
• GSC race valve guides
• Water jacket processing
• Enlarged ports (Inlet/exhaust)
• Head modified for larger cam lobe clearance

Exhaust Intake

• DR Exhaust manifold
• Magnus V5 Cast Aluminium Intake
• Tial External wastegate
• Custom titan 100mm front pipe
• Custom titan 100mm exhaust
• HKS air intake filter
• Davies Craig EPW 150 electronic water pump
• Custom catch tank
• Samco coolant hoses

Cooling

• Mishimoto radiator
• HKS oil cooler
• A/C removed
• Thermostat removed
• Mishimoto intercooler

Fuelling

• HKS fuel rail
• ID 2000cc fuel injectors
• AEM Fuel Pressure regulator
• Lightweight 8mm Teflon fuel lines
• AEM fuel pump in tank

CPU & Controllers

• Link Evo Plugin ECU
• AIM PDM32
• AIM Dash
• Talon touch panel
• Coil on plug conversion
• Mac 3 port boost solenoid
• AEM Lamda
• 4 EGT
• E throttle
• E pedal
• Tuned by Erosal

Drivetrain

• Samsonas sequential 5-speed gearbox with gear lever
• Magnus clutch control
• Gear shift electronic indicator
• Quarter Master 8-Leg Twin Disc Clutch Kit
• Evo 9 RS Non ACD transfer boxes
• Evo 9 RS Cusco front diff
• Evo 9 RS Cusco rear diff
• Custom driveshaft

Brakes

• Front Evo 8 RS Brembo
• Rear Evo 8 RS Brembo
• Lightweight Teflon brake lines

Suspension

• D2 front and rear coil overs kit

Interior

• Sparco Ford Racing steering wheel
• Sparco Seats
• NX Nitrous Express System
• Nardi
• OMP Sport 4.25 Litre Mechanical Fire Extinguisher System
• Wilwood pedal box

Exterior
