SKU:153-5000

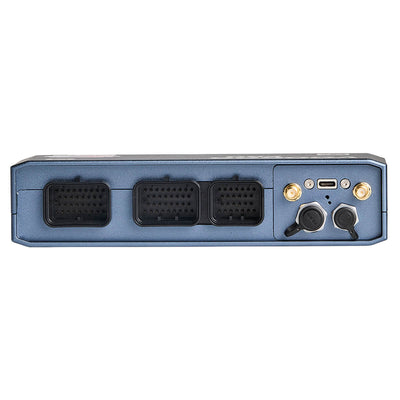

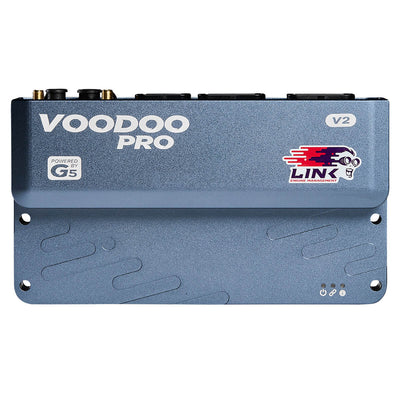

G5 Voodoo Pro
The Link G5 Voodoo Pro is our flagship standalone ECU, delivering professional engine management for up to 12-cylinder sequential or 8-cylinder staged sequential engines with advanced communications, data logging and direct injection capability.
Find an Installer
Search near youTo ensure the best possible experience with our products, we recommend you engage one of our official Dealers for installation and set-up.
Contact a Link dealer near you to find out more
You may also need
Key Features
Injection Drives
Ignition Drives
ADIO Dual Purpose
Onboard Lambda Sensor Control
Onboard Logging Memory
Wi-Fi
GPS
Ethernet
Tuning Connection
Overview
Link's flagship ECU, the G5 Voodoo Pro, is built on Link's most advanced, most powerful and most flexible ECU platform ever, delivering next-generation engine management for up to 12 cylinder sequential or 8 cylinder staged sequential builds.
The G5 Voodoo range puts real magic in your hands and opens a new world of possibilities with the ability to control port plus direct injection, highly customisable IO, advanced communications and next-generation features.
The G5 Voodoo Pro includes increased I/O and advanced functionality beyond the Neo range, with dual onboard Lambda control, additional injector and ignition drives, more ADIO pins and analogue inputs, supporting high cylinder counts.
Advanced communications include GPS, Wi-Fi, Ethernet, dual CAN Bus and USB-C tuning, alongside 1GB of onboard data logging for high-speed data capture and analysis.
The G5 Voodoo Pro also features automatic transmission control and dual H-bridges for E-Throttle and low power E-Wastegate control.
The G5 Voodoo Pro is the ideal solution for modern high-performance street and motorsport builds requiring maximum I/O, dual Lambda control and the full capability of Link's next-generation of engine management technology.
Models Supported |
The G5 Voodoo Pro can run: 12 cylinders sequential port or direct injection and direct spark, or 8 cylinders with direct/port staged injection, and direct spark |
Features
Link's flagship G5 Voodoo Pro delivers next-generation features including:
ECU Features | Global Positioning System (GPS) Dual E-throttle Control 8 Custom Math Blocks with 30 characters Flex Fuel Trigger Oscilloscope 3 Axis Accelerometer 1k or 10k Selectable Temp Input Pullups Flexible engine protection limiters CAN Keypad Control VVT Control Open Loop Boost Control Closed Loop Boost Control Dual Onboard Digital Wideband Lambda Control Dual Closed Loop Lambda Direct Automatic Transmission Control 1 Gigabyte of Internal Data Logging |
Motorsport Features | Nitrous Control Launch Control Anti-lag Cruise Control Traction Control Race Timer and Power Management Gear Shift Control Paddle Shift Control |
Specifications
The G5 Voodoo Pro uses Link's most advanced, most powerful and most flexible ECU platform, delivering advanced communication and specs including:
Outputs | 16β‘ Injection Drives Injection Drives can run Direct Injection via a driver box 12β‘ Ignition Drives 6 Auxiliary Outputs +5V Sensor power supply Unused Injection and Ignition drives can be used as an Auxiliary Outputs β‘ G5 Voodoo Pro has 12 injection, 8 ignition, plus 4 multipurpose (inj, ign, aux) drives (24 total) |
Inputs | 10 Digital Inputs 4 Temperature Inputs 14 Analogue Inputs 2 Trigger Inputs 2 Knock Inputs Unused Temperature and Analogue Inputs can be used as Digital Inputs |
Inputs / Outputs | 8 ADIO Dual Purpose |
Communications | 2 CAN Bus Channels Wi-Fi USB-C Tuning Connection Ethernet Power Over USB |
Data Logging | 1GB Onboard Logging Memory 100kHz Maximum Total Logging Rate 250 Logging Channels |

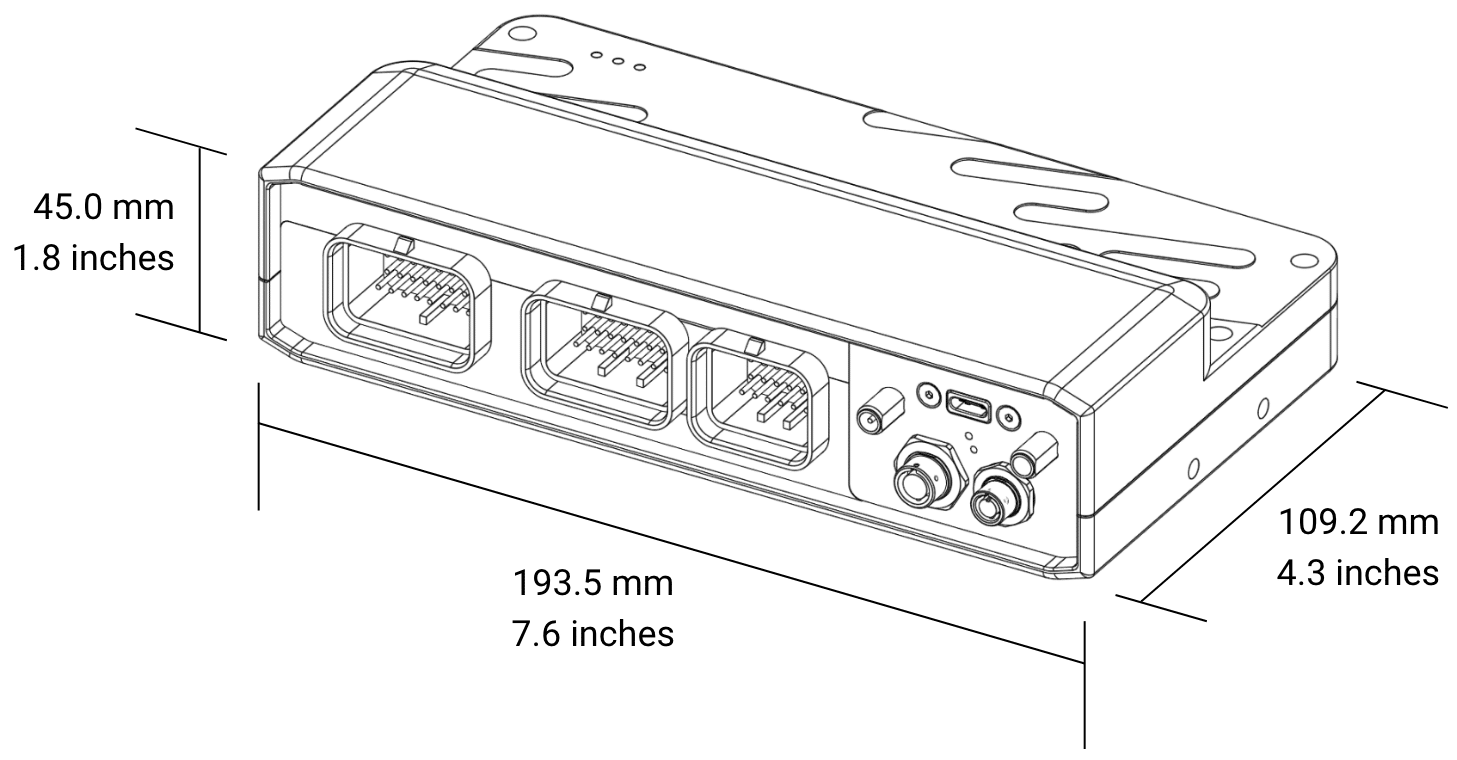

Product Dimensions | 109mm(L) x 193.5mm(W) x 45mm(H) 4.29in(L) x 7.62in(W) x 1.77in(H) |
Product Weight | 768 grams (27.09 ounces) |
Material | 6061-T6 billet CNC sealed enclosure |
Electrical | Operating Voltage Range: 6-30V Maximum Input Voltage: 30V Maximum Continuous Current Draw: 17A |

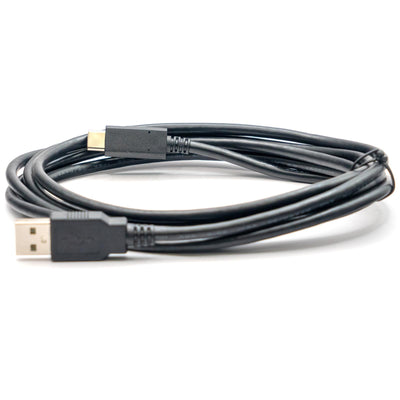

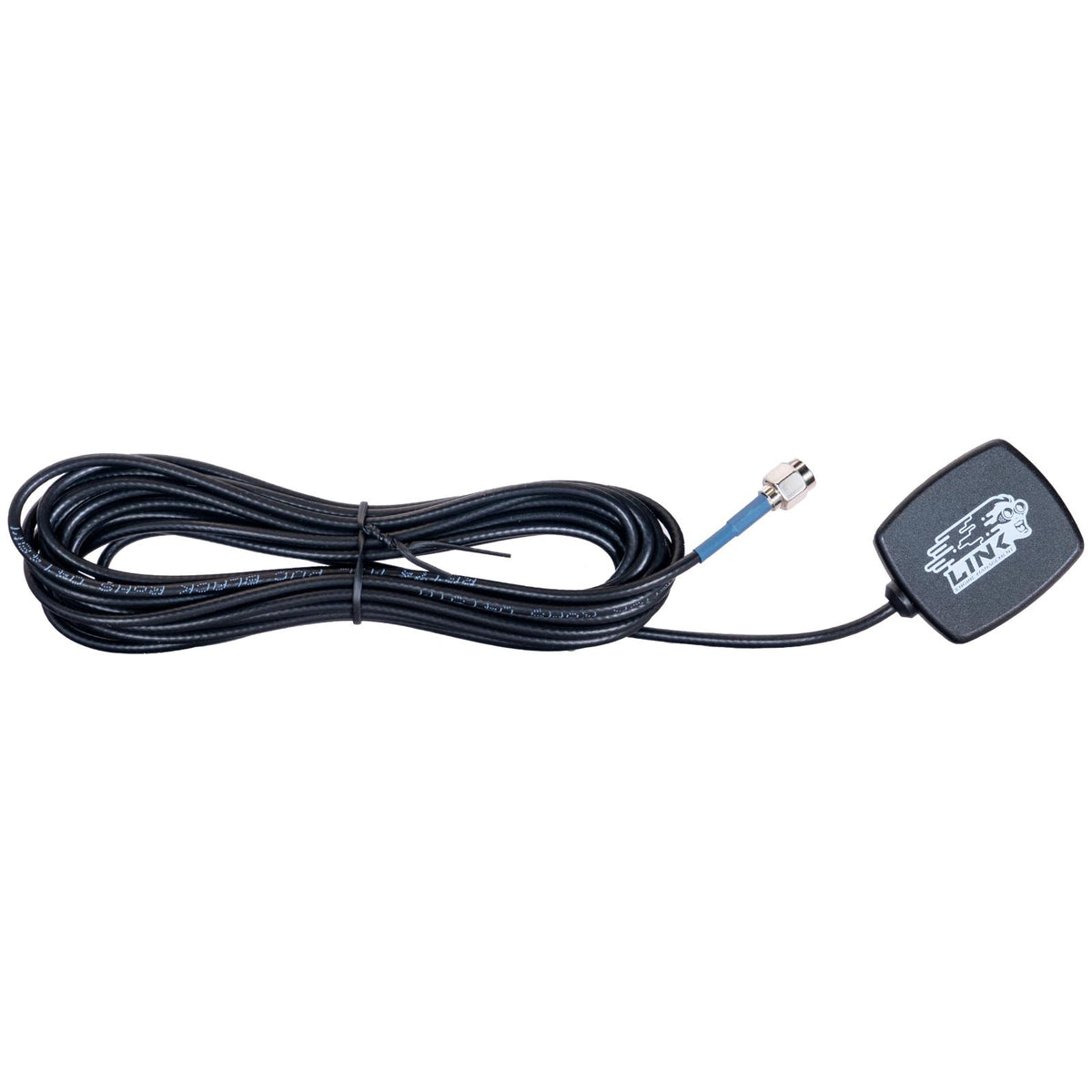

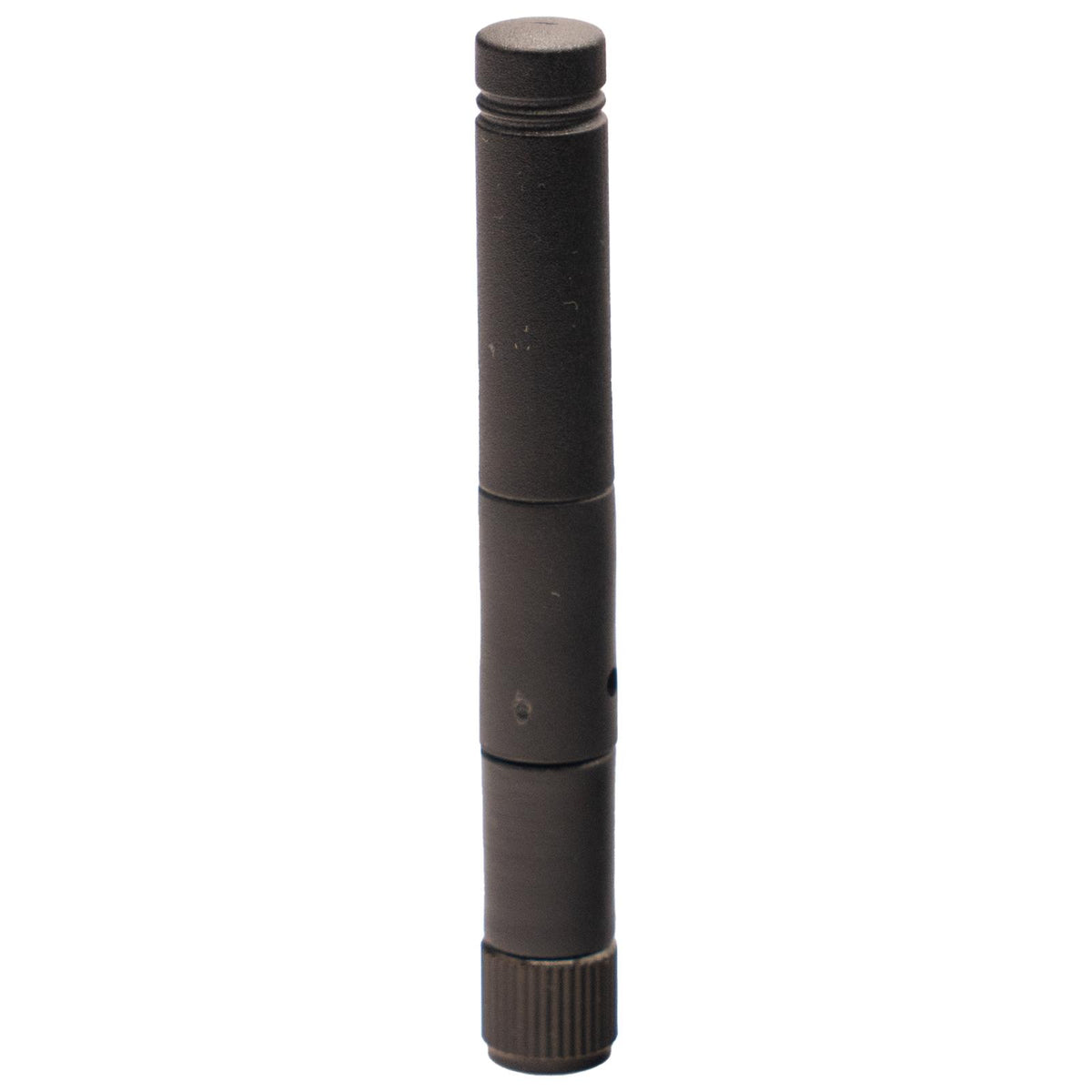

What's in the Box | G5 Voodoo Pro ECU USB-C Connection Cable Wi-Fi Antenna 4m GPS Antenna (Magnetic or Adhesive Mount) USB-C and SMA Dust Covers Quick Start Guide (A5) Installer I/O table (A3) Mounting Screws Link stickers |
Connector | Superseal 4 Row 34 Position x2 Part number 4-1437290-0 Part number 4-1437290-1 Superseal 4 Row 26 Position Part number 1473416-1 |
What is G5 Voodoo?
Compare ECUs
Link ECU
G5 Voodoo Neo 6
Link ECU
G5 Voodoo ProClick to Compare ECUs
Link ECU
G5 Voodoo Neo 6
Link ECU
G5 Voodoo ProInjection Drives
8
Injection Drives
12Β§
Injection Drives
16β‘
Injection Drives can run DI via driver box
Injection Drives can run DI via driver box
Injection Drives can run DI via driver box
Ignition Drives
6
Ignition Drives
8
Ignition Drives
12β‘
Auxiliary Outputs
12**
Auxiliary Outputs
6
Auxiliary Outputs
6
+5V Sensor Power supply
+5V Sensor Power supply
+5V Sensor Power supply
+8V Sensor Power Supply
+8V Sensor Power Supply
+8V Sensor Power Supply
Unused Inj/Ign used as an Auxiliary Outputs
Unused Inj/Ign used as an Auxiliary Outputs
Unused Inj/Ign used as an Auxiliary Outputs
Digital Inputs
10**
Digital Inputs
10Β§
Digital Inputs
10
Temperature Inputs
4
Temperature Inputs
4
Temperature Inputs
4
Analogue Inputs
3
Analogue Inputs
3
Analogue Inputs
14
Trigger Inputs
2
Trigger Inputs
2
Trigger Inputs
2
Knock Inputs
2
Knock Inputs
2
Knock Inputs
2
Unused Temperature and Analogue Inputs can be used as Digital Inputs
Unused Temperature and Analogue Inputs can be used as Digital Inputs
Unused Temperature and Analogue Inputs can be used as Digital Inputs
ADIO Dual Purpose
6
ADIO Dual Purpose
6
ADIO Dual Purpose
8
CAN Bus Channels
2*
CAN Bus Channels
2
CAN Bus Channels
2
Wi-Fi
Wi-Fi
Wi-Fi
USB Tuning Connection
USB-C
USB Tuning Connection
USB-C
USB Tuning Connection
USB-C
Ethernet/Power over USB
Ethernet/Power over USB
Ethernet/Power over USB
Onboard Logging Memory
1024MB
Onboard Logging Memory
1024MB
Onboard Logging Memory
1024MB
Maximum Total Logging Rate
100kHz
Maximum Total Logging Rate
100kHz
Maximum Total Logging Rate
100kHz
Logging Channels
250
Logging Channels
250
Logging Channels
250
Global Positioning System (GPS)
Global Positioning System (GPS)
Global Positioning System (GPS)
E-Throttle control
Dual
E-Throttle control
Dual
E-Throttle control
Dual
Flex Fuel
Flex Fuel
Flex Fuel
Trigger Oscilloscope
Trigger Oscilloscope
Trigger Oscilloscope
3 Axis Accelerometer
3 Axis Accelerometer
3 Axis Accelerometer
Selectable Temp Input Pullups
1k or 10k Ξ©
Selectable Temp Input Pullups
1k or 10k Ξ©
Selectable Temp Input Pullups
1k or 10k Ξ©
Flexible engine protection limiters
Flexible engine protection limiters
Flexible engine protection limiters
CAN Keypad Control
CAN Keypad Control
CAN Keypad Control
VVT Control
VVT Control
VVT Control
Open or Closed Loop Boost Control
Both
Open or Closed Loop Boost Control
Both
Open or Closed Loop Boost Control
Both
Onboard Lambda Sensor Control
Single
Onboard Lambda Sensor Control
Single
Onboard Lambda Sensor Control
Dual
Dual Closed Loop Lambda
Dual Closed Loop Lambda
Dual Closed Loop Lambda
Direct Automatic Transmission Control
Direct Automatic Transmission Control
Direct Automatic Transmission Control
Nitrous Control
Nitrous Control
Nitrous Control
Launch Control
Launch Control
Launch Control
Anti-Lag
Anti-Lag
Anti-Lag
Cruise Control
Cruise Control
Cruise Control
Traction Control
Traction Control
Traction Control
Race Timer and Power Management
Race Timer and Power Management
Race Timer and Power Management
Gear Shift Control
Gear Shift Control
Gear Shift Control
Paddle Shift Control
Paddle Shift Control
Paddle Shift Control
**4 pins are multi-purpose Aux or Digital Input pins. Each pin can be either Aux or Digital Input, not both at the same time.
βΒ§ 4 pins are multi-purpose Injection, Aux or Digital Input pins. Each pin can be either Injection, Aux. or Digital Input, not all at the same time.
ββ‘ G5 Voodoo Pro has 12 inj, 8 ign, plus 4 multipurpose (inj, ing, aux) drives (24 total).
βThe table is going to need the following footnotes somewhere, preferably at the bottom:
β‘ G5 Voodoo Pro has 12 inj, 8 ign, plus 4 multipurpose (inj, ing, aux) drives (24 total). β Check Specific pinout for number of I/Os exposed.
β Check Specific pinout for number of I/Os exposed.
# 4 pins are multi-purpose Aux or Digital Input pins. Each pin can be either Aux or Digital Input, not both at the same time.
* 2 Digital Inputs required when using 2nd CAN Bus.
Β§ 4 pins are multi-purpose Injection, Aux or Digital Input pins. Each pin can be either Injection, Aux. or Digital Input, not all at the same time.
Link ECU products should not be used where they interfere with a vehicleβs safety or emission control features. (no footnote symbol on this one).
