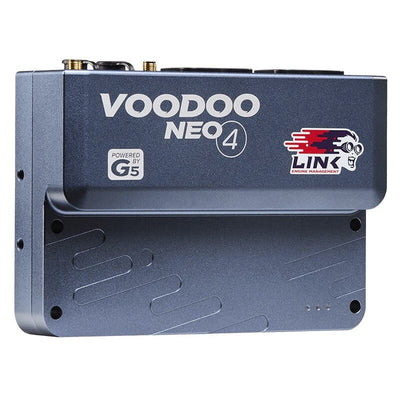

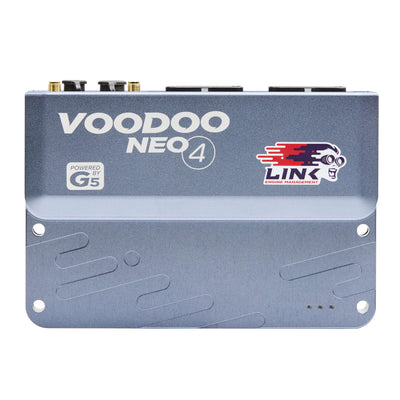

G5 Voodoo Neo 4 Wire-In ECU (up to 6 Cylinders)
The Link G5 Voodoo Neo 4 is a professional standalone ECU delivering advanced engine management for high-performance 6 cylinder sequential or 4 cylinder staged sequential set-ups. Featuring onboard GPS, Wi-Fi, Ethernet, dual CAN Bus and 1GB of data logging for race and street applications.
Find an Installer
Search near youTo ensure the best possible experience with our products, we recommend you engage one of our official Dealers for installation and set-up.
Contact a Link dealer near you to find out more
You may also need
Key Features
Injection Drives
Ignition Drives
Auxiliary Outputs
Digital Inputs
ADIO Dual Purpose
Onboard Logging Memory
Ethernet
Tuning Connection
GPS
Wi-Fi
Onboard Lambda
Overview
Built on Link's most advanced, most powerful and most flexible ECU platform ever, the G5 Voodoo Neo 4 delivers next-generation engine management for up to 6 cylinder sequential or 4 cylinder staged sequential builds.
The G5 Voodoo range puts real magic in your hands and opens a new world of possibilities with the ability to control port plus direct injection, highly customisable I/O, advanced communications and next-generation features.
G5's multi-board architecture delivers expanded I/O capability over the G4X range through highly customisable ADIO and Aux/Digital Input pins for greater flexibility across high-performance builds.
Advanced communications include GPS, Wi-Fi, Ethernet, dual CAN Bus and USB-C tuning, alongside 1GB of internal data logging for high-speed data capture and analysis. The G5 Voodoo Neo 4 also features automatic transmission control, onboard Lambda control, and dual H-bridges for E-Throttle and low power E-Wastegate control.
The G5 Voodoo Neo 4 is ideal for modern high-performance 4 or 6 cylinder builds requiring the next-generation of engine management technology.
Models Supported |
The G5 Voodoo Neo 4 can run: 6 cylinders sequential port or direct injection and direct spark, or, 4 cylinders with direct/port staged injection, and direct spark. |
Features
The G5 Voodoo Neo 4's multi-board architecture delivers next-generation features including:
ECU Features | Global Positioning System (GPS) Dual E-throttle Control 8 Custom Math Blocks with 30 characters Flex Fuel Trigger Oscilloscope 3 Axis Accelerometer 1k or 10k ohm Selectable Temp Input Pullups Flexible engine protection limiters CAN Keypad Control VVT Control Open Loop Boost Control Closed Loop Boost Control Onboard Digital Wideband Lambda Control Dual Closed Loop Lambda Direct Automatic Transmission Control 1 Gigabyte of Internal Data Logging |
Motorsport Features | Nitrous Control Launch Control Anti-lag Cruise Control Traction Control Race Timer and Power Management Gear Shift Control Paddle Shift Control |
Specifications
The G5 Voodoo Neo 4 uses Link's most advanced, most powerful and most flexible ECU platform, delivering advanced communication and specs including:
Outputs | 8 Injection Drives Injection Drives can run Direct Injection via a driver box 6 Ignition Drives 12# Auxiliary Outputs +5V Sensor power supply Unused Injection and Ignition drives can be used as an Auxiliary Outputs # 4 pins are multi-purpose Aux or Digital Input pins. Each pin can be either Aux or Digital Input, not both at the same time. |
Inputs | 10+ Digital Inputs 4 Temperature Inputs 3 Analogue Inputs 2 Trigger Inputs 2 Knock Inputs Unused Temperature and Analogue Inputs can be used as Digital Inputs + 4 pins are multi-purpose Injection, Aux or Digital Input pins. Each pin can be either Injection, Aux. or Digital Input, not all at the same time. |
Inputs / Outputs | 6 ADIO Dual Purpose |
Communications | 2 CAN Bus Channels 1 Wi-Fi USB-C Tuning Connection 1 Ethernet 1 Power Over USB |
Data Logging | 1GB Onboard Logging Memory 100kHz Maximum Total Logging Rate 250 Logging Channels |
Product Dimensions | 107mm(L) x 158mm(W) x 45mm(H) 4.21in(L) x 6.22in(W) x 1.77in(H) |
Product Weight | 730 grams (25.75 ounces) |
Material | 6061-T6 billet CNC sealed enclosure |
Electrical | Operating Voltage Range: 6-30V Maximum Input Voltage: 30V Maximum Continuous Current Draw: 17A |
What's in the Box | G5 Voodoo Neo 4 ECU USB-C Connection Cable Wi-Fi Antenna 4m GPS Antenna (Magnetic or Adhesive Mount) USB-C and SMA Dust Covers Quick Start Guide (A5) Installer I/O table (A3) Link stickers |

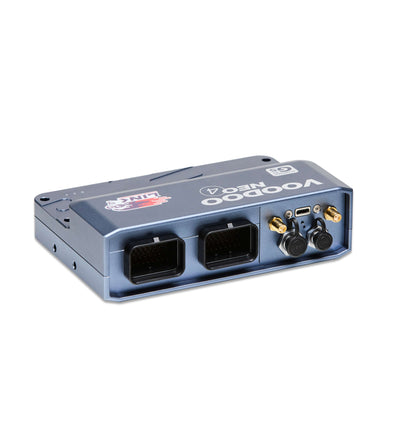

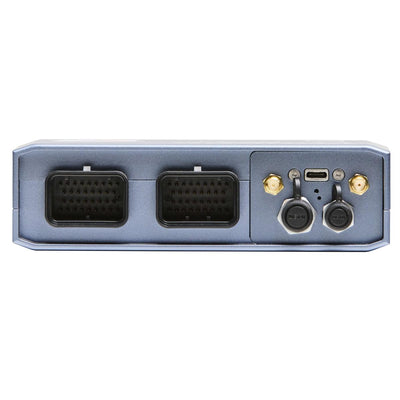

Connector | Superseal 4 Row 34 Position x2 Part number 4-1437290-0 Part number 4-1437290-1 |
What is G5 Voodoo Neo?
Compare ECUs
Link ECU
G5 Voodoo Neo 6
Link ECU
G5 Voodoo ProClick to Compare ECUs
Link ECU
G5 Voodoo Neo 6
Link ECU
G5 Voodoo ProInjection Drives
8
Injection Drives
12§
Injection Drives
16‡
Injection Drives can run DI via driver box
Injection Drives can run DI via driver box
Injection Drives can run DI via driver box
Ignition Drives
6
Ignition Drives
8
Ignition Drives
12‡
Auxiliary Outputs
12**
Auxiliary Outputs
6
Auxiliary Outputs
6
+5V Sensor Power supply
+5V Sensor Power supply
+5V Sensor Power supply
+8V Sensor Power Supply
+8V Sensor Power Supply
+8V Sensor Power Supply
Unused Inj/Ign used as an Auxiliary Outputs
Unused Inj/Ign used as an Auxiliary Outputs
Unused Inj/Ign used as an Auxiliary Outputs
Digital Inputs
10**
Digital Inputs
10§
Digital Inputs
10
Temperature Inputs
4
Temperature Inputs
4
Temperature Inputs
4
Analogue Inputs
3
Analogue Inputs
3
Analogue Inputs
14
Trigger Inputs
2
Trigger Inputs
2
Trigger Inputs
2
Knock Inputs
2
Knock Inputs
2
Knock Inputs
2
Unused Temperature and Analogue Inputs can be used as Digital Inputs
Unused Temperature and Analogue Inputs can be used as Digital Inputs
Unused Temperature and Analogue Inputs can be used as Digital Inputs
ADIO Dual Purpose
6
ADIO Dual Purpose
6
ADIO Dual Purpose
8
CAN Bus Channels
2*
CAN Bus Channels
2
CAN Bus Channels
2
Wi-Fi
Wi-Fi
Wi-Fi
USB Tuning Connection
USB-C
USB Tuning Connection
USB-C
USB Tuning Connection
USB-C
Ethernet/Power over USB
Ethernet/Power over USB
Ethernet/Power over USB
Onboard Logging Memory
1024MB
Onboard Logging Memory
1024MB
Onboard Logging Memory
1024MB
Maximum Total Logging Rate
100kHz
Maximum Total Logging Rate
100kHz
Maximum Total Logging Rate
100kHz
Logging Channels
250
Logging Channels
250
Logging Channels
250
Global Positioning System (GPS)
Global Positioning System (GPS)
Global Positioning System (GPS)
E-Throttle control
Dual
E-Throttle control
Dual
E-Throttle control
Dual
Flex Fuel
Flex Fuel
Flex Fuel
Trigger Oscilloscope
Trigger Oscilloscope
Trigger Oscilloscope
3 Axis Accelerometer
3 Axis Accelerometer
3 Axis Accelerometer
Selectable Temp Input Pullups
1k or 10k Ω
Selectable Temp Input Pullups
1k or 10k Ω
Selectable Temp Input Pullups
1k or 10k Ω
Flexible engine protection limiters
Flexible engine protection limiters
Flexible engine protection limiters
CAN Keypad Control
CAN Keypad Control
CAN Keypad Control
VVT Control
VVT Control
VVT Control
Open or Closed Loop Boost Control
Both
Open or Closed Loop Boost Control
Both
Open or Closed Loop Boost Control
Both
Onboard Lambda Sensor Control
Single
Onboard Lambda Sensor Control
Single
Onboard Lambda Sensor Control
Dual
Dual Closed Loop Lambda
Dual Closed Loop Lambda
Dual Closed Loop Lambda
Direct Automatic Transmission Control
Direct Automatic Transmission Control
Direct Automatic Transmission Control
Nitrous Control
Nitrous Control
Nitrous Control
Launch Control
Launch Control
Launch Control
Anti-Lag
Anti-Lag
Anti-Lag
Cruise Control
Cruise Control
Cruise Control
Traction Control
Traction Control
Traction Control
Race Timer and Power Management
Race Timer and Power Management
Race Timer and Power Management
Gear Shift Control
Gear Shift Control
Gear Shift Control
Paddle Shift Control
Paddle Shift Control
Paddle Shift Control
**4 pins are multi-purpose Aux or Digital Input pins. Each pin can be either Aux or Digital Input, not both at the same time.
—§ 4 pins are multi-purpose Injection, Aux or Digital Input pins. Each pin can be either Injection, Aux. or Digital Input, not all at the same time.
—‡ G5 Voodoo Pro has 12 inj, 8 ign, plus 4 multipurpose (inj, ing, aux) drives (24 total).
—The table is going to need the following footnotes somewhere, preferably at the bottom:
‡ G5 Voodoo Pro has 12 inj, 8 ign, plus 4 multipurpose (inj, ing, aux) drives (24 total). † Check Specific pinout for number of I/Os exposed.
† Check Specific pinout for number of I/Os exposed.
# 4 pins are multi-purpose Aux or Digital Input pins. Each pin can be either Aux or Digital Input, not both at the same time.
* 2 Digital Inputs required when using 2nd CAN Bus.
§ 4 pins are multi-purpose Injection, Aux or Digital Input pins. Each pin can be either Injection, Aux. or Digital Input, not all at the same time.
Link ECU products should not be used where they interfere with a vehicle’s safety or emission control features. (no footnote symbol on this one).
