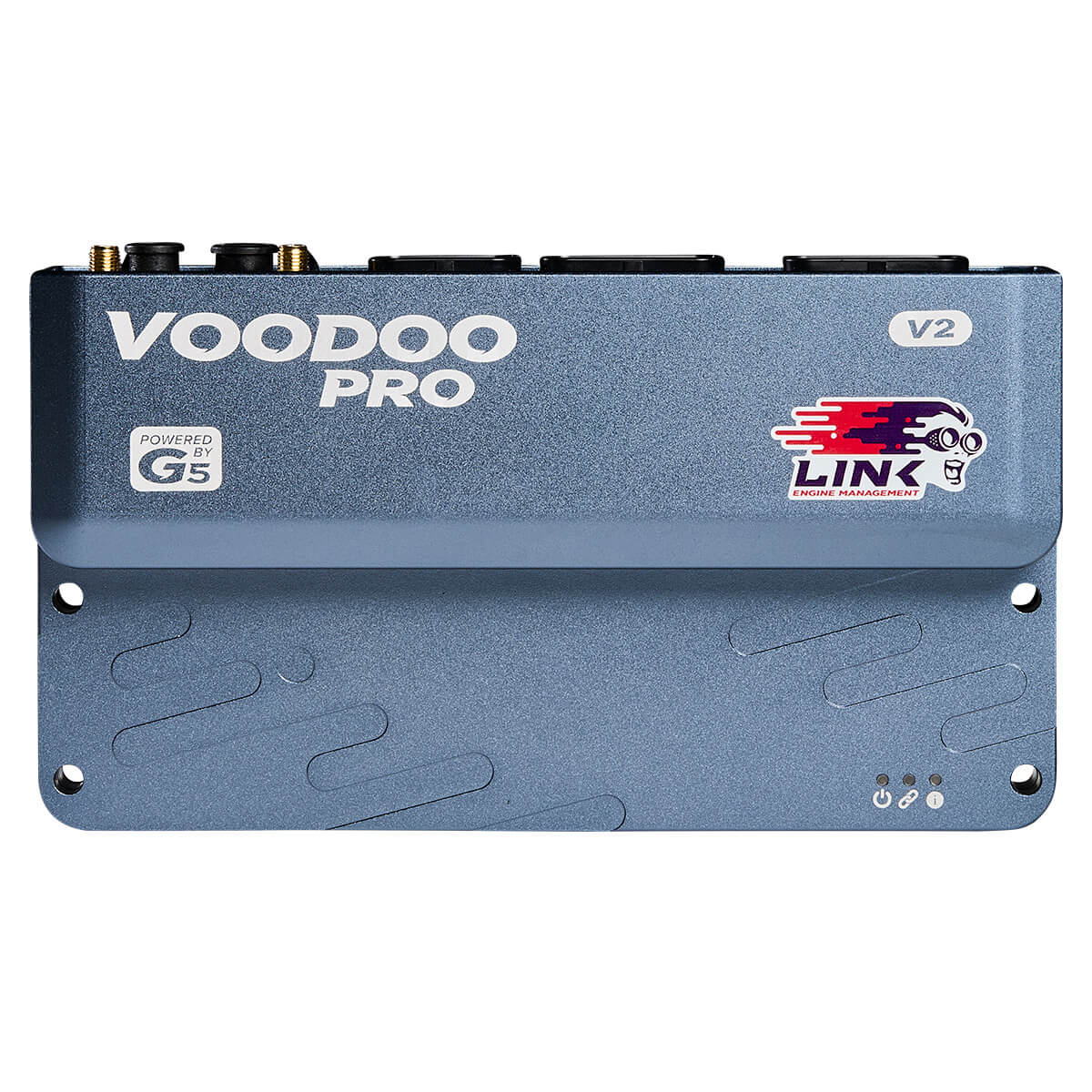

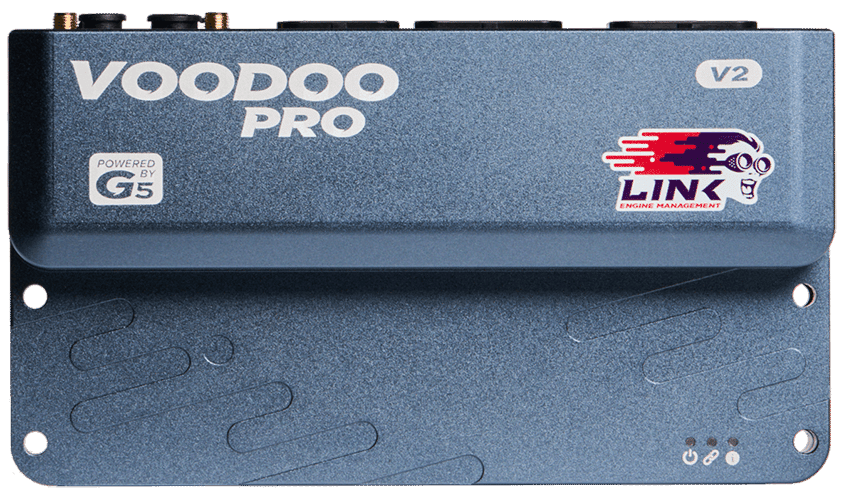

G5 Voodoo Pro
G5 Voodoo Pro
The G5 Voodoo Pro puts real magic in your hands and opens up a new world of possibilities with advanced communications, the ability to control port plus direct injection, custom configure multi-use pins, and many more features.
The G5 Voodoo Pro can run:
- 12 cylinders port injection and direct spark
- 12 cylinders direct injection and wasted spark
- 8 cylinders with direct/port staged injection, and wasted spark
G5 Voodoo Pro Key Features
-
Control up to 12 cylinders sequentially with 12 Injection, 8 Ignition and 4 multi-purpose (inj, ign, aux) drives (24 total)
-
DI Features, including DI Pump Control (using an external OEM or aftermarket driver box - more info on working with DI here)
-
Make use of unused Injector/Ignition pins to give access to up to 30 auxiliary pins
-
14 analogue / 10 digital inputs
-
Dual microcontrollers: one controlling the ECU, one controlling comms
-
Built-in Global Positioning System (GPS) up to 50Hz, with logging
-
Built-in WiFi, with real-time PC Link connection
-
Dual lambda sensor control (on-board wideband)
-
Dual E-throttle, with custom H-bridge control (Drive by Wire)
-
Dual Knock Control
The G5 Voodoo Pro headers with:

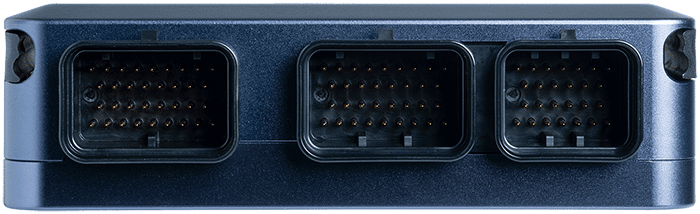

- Superseal A, B & E plugs,

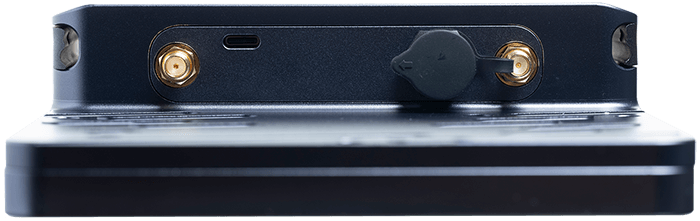

- GPS Antenna, USB-C, CAN 1 / K-Line and Wi-Fi Antenna.
G5 Voodoo ECU Specifications
| OUTPUTS | G5 Voodoo Pro | G5 Voodoo Neo 4 | G5 Voodoo Neo 6 |
|---|---|---|---|
| Injection Drives | 16‡ | 8 | 12* |
| Ignition Drives | 12‡ | 6 | 8 |
| Auxiliary Outputs | 14 | 12† | 6 |
| ADIO (Aux/An Volt) pins | – | 6 | 6 |
| +5V Sensor Power Supply |
| INPUT/OUTPUT PINS | G5 Voodoo Pro | G5 Voodoo Neo 4 | G5 Voodoo Neo 6 |
|---|---|---|---|
| ADIO dual-purpose | – | 6 | 6 |
| INPUTS | |||
|---|---|---|---|
| Digital Inputs | 10 | 10† | 10* |
| Analogue Volt | 14 | 3 | 3 |
| Analogue Temp | 4 | 4 | 4 |
| Knock | 2 | 2 | 2 |
| Trigger | 2 | 2 | 2 |
* 4 pins are multi-purpose Injection or Digital Input pins. You can only use each pin for either Injection or Digital Input, not both at the same time.
† 4 pins are multi-purpose Auxiliary or Digital Input pins. You can only use each pin for either Aux. or Digital Input, not both at the same time.
‡ 4 pins are multi-purpose Ignition or Injection pins. You can only use each pin for Injection or Ignition, not both at the same time.
| OTHER FEATURES | G5 Voodoo Pro | G5 Voodoo Neo 4 | G5 Voodoo Neo 6 |
|---|---|---|---|
| Onboard Wideband | 2 | 1 | 1 |
| H-Bridge (E-throttle) | 2 | 2 | 2 |
| GPS |
| COMMUNICATIONS | |||
|---|---|---|---|
| USB Tuning Connection | USB-C | USB-C | USB-C |
| Power over USB | – | ||
| Wi-Fi | |||
| Ethernet | – | ||
| CAN Bus | 2 Channel | 2 Channel | 2 Channel |
| DATA LOGGING | G5 Voodoo Pro | G5 Voodoo Neo 4 | G5 Voodoo Neo 6 |
|---|---|---|---|
| Onboard Logging Memory | 512 MB | 1 GB | 1 GB |
| Maximum Total Logging Rate | 100 khz | 100 khz | 100 khz |
| Logging Channels | 250 | 250 | 250 |

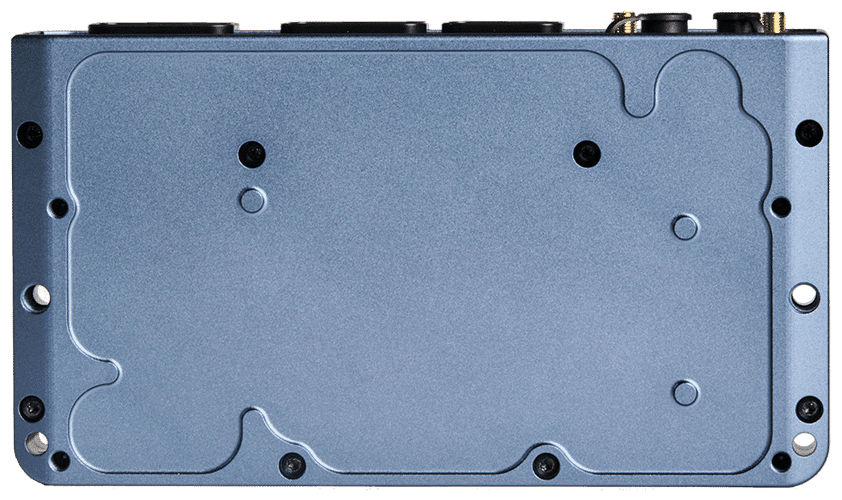

Dimensions
Length: 177.1mm (6.97 inches)
Width: 137.3mm (5.40 inches)
Min side height: 15.5mm (0.61 inches)
Max side height: 40.2mm (1.58 inches)
Weight: 795g (28 ounces)
Resources & Downloads
Find out all the amazing features of the G5 Voodoo platform
Our ECUs are highly configurable using our free PC Link software
View the G5 Voodoo Pro in our official Reseller webstore
Software
PC Link is our tried and tested FREE software package that is used to connect to, program, and view log files.
Renowned in the tuning community for it's easy-of-use, the G5 Voodoo platform will continue to use PC Link, albeit with new and improved functions to accommodate our new range of ECU's.
Given that the G5 Voodoo range will offer new features and accessibility to additional pins, you will need to ensure that you are running the latest version of the software.
