Voodoo Pro Product Specifications

G5 Voodoo Pro Specifications

Want to know more about the G5 Voodoo Pro? Here, you can see all of the product specifications, including the ECU's key features, types of connectivity, and what comes in the box...

Key Features

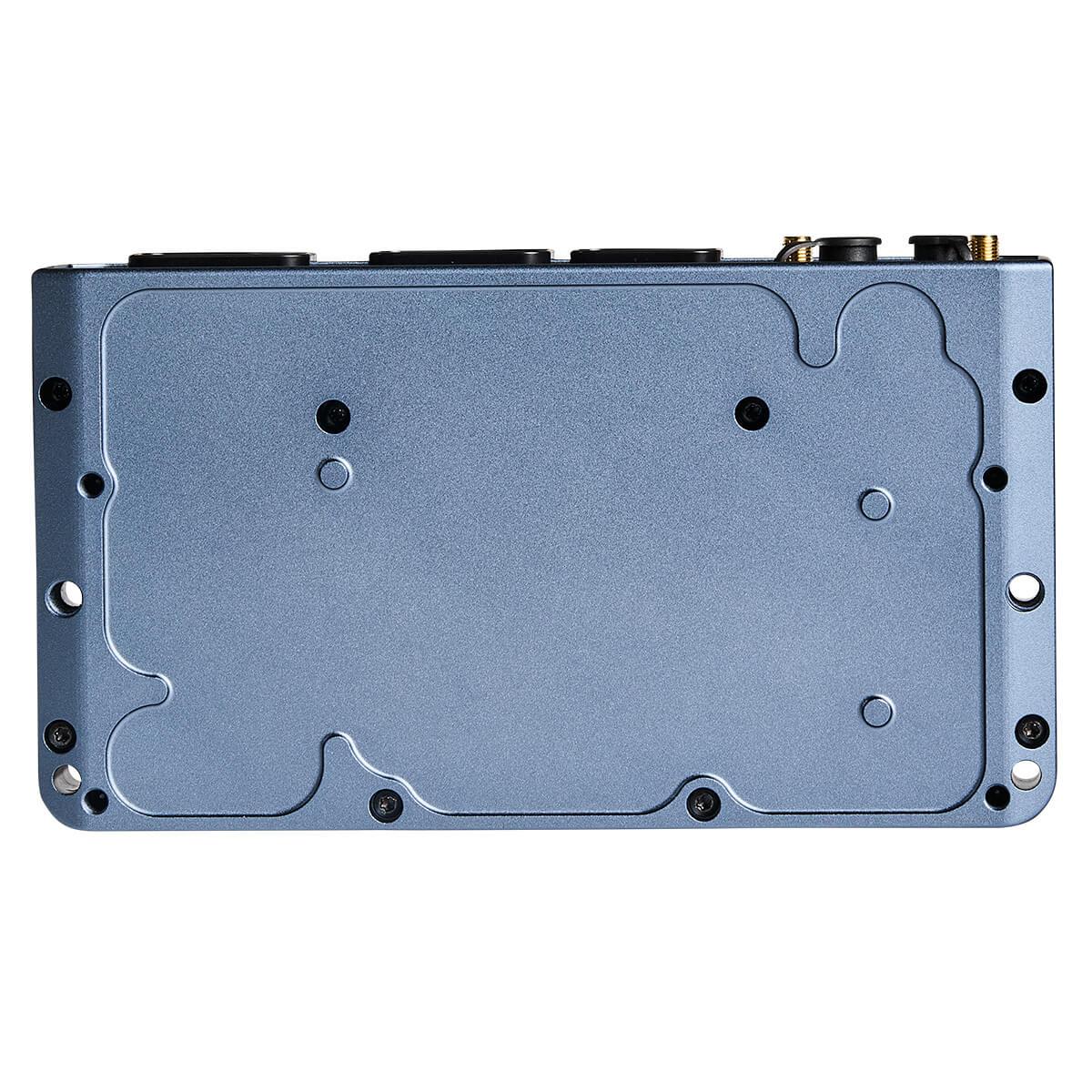

G5 Voodoo Pro Clear SML
  • Control up to 12 cylinders sequentially
  • Access up to 30 auxiliary pins
  • 14 analogue / 10 digital inputs
  • DI Features, including DI Pump Control
  • 2 on-board wideband controllers
  • Dual Knock Control
  • Wi-Fi Connectivity
  • GPS Logging

Technical Specs

Inputs/Outputs

  • Control any engine with 2 cylinders, all the way up to 12 cylinders, thanks to:
    • 12 injector pins
    • 8 ignition pins
    • 4 injector/ignition dual role pins
  • Access up to 30 auxilary pins (when setup for a 4-cylinder sequential engine):
    • 8 dedicated auxiliary pins
    • 4 shared e-throttle/H-Bridge pins
    • 2 shared wideband heater pins
    • Up to 16 from spare injector and ignition drives
  • Any unused injector/ignition pins can be used as an auxiliary pin
  • All ignition and auxiliary pins are back feed protected.
  • 14 analog inputs
  • 10 digital inputs
  • 4 temperature inputs
  • Dual knock inputs
  • 2 trigger inputs
  • Dedicated ignition switch pin
  • 2 x internal wideband lambda controllers
  • Dual e-throttle, with internal solid state throttle disconnect relays
  • 5v sensor supply
  • CAN 1 input now supported via CAN connector

Communications

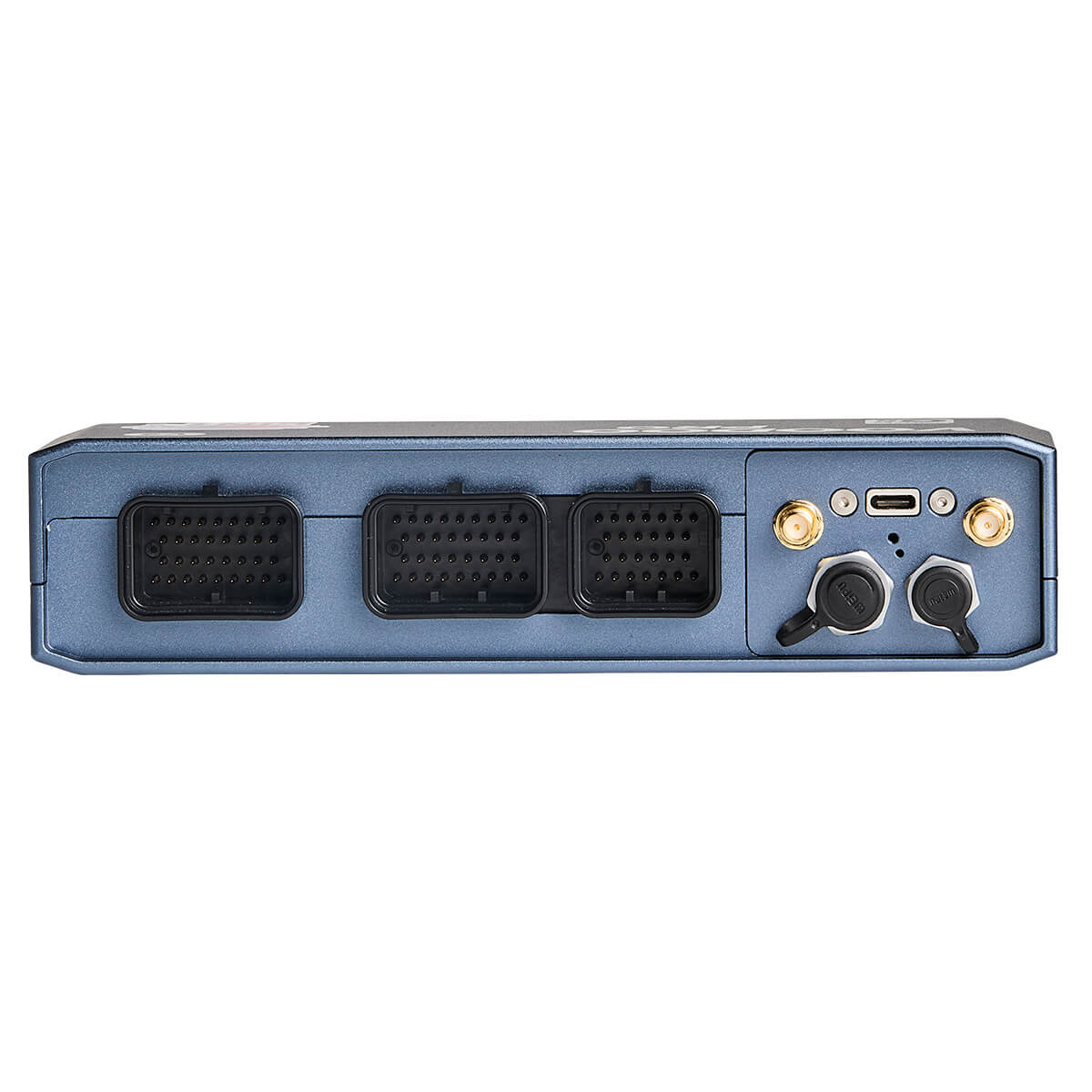

  • USB-C (cable included)
  • Connect directly to the ECU via built-in Wifi Access Point, or add it to an existing network (Antenna Included)
  • Dual CAN (CAN 1 on CAN connector, CAN 2 on header E)
  • GPS (antenna included)

Logging

  • 512MB logging capacity
  • Ultra High Speed (250 Channels of Logging, up to 1kHz per channel, up to 100kSamples/s in total)
  • GPS Logging - up to 50Hz

Size & Weight

G5 Specs Image

Connectivity

G5 Comms SML
G5 Angle SML

The G5 Voodoo Pro supports the following comms standards:

  • USB-C
  • Wi-Fi
  • CAN
  • GPS

It is now possible to connect to your ECU using a standard USB-C cable, or alternatively by using WiFi.

You can now access CANBUS 2 via its own dedicated pins in Header E freeing up two Digital Inputs.

GPS connectivity can be initialised by simply adding a GPS antenna.

In The Box

Here's everything that will come in the box with the G5 Voodoo Pro

Box contents

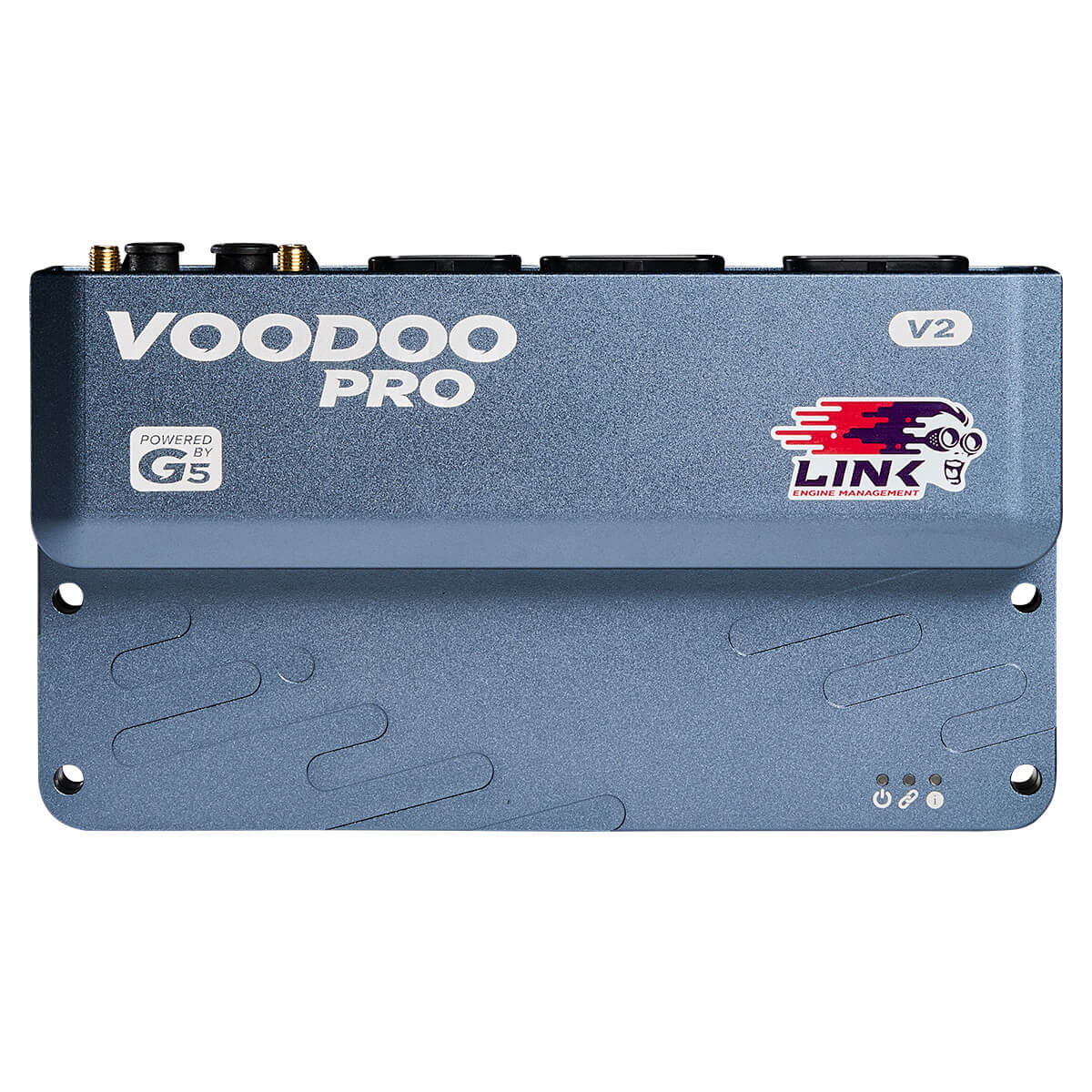

 G5 Voodoo Pro ECU

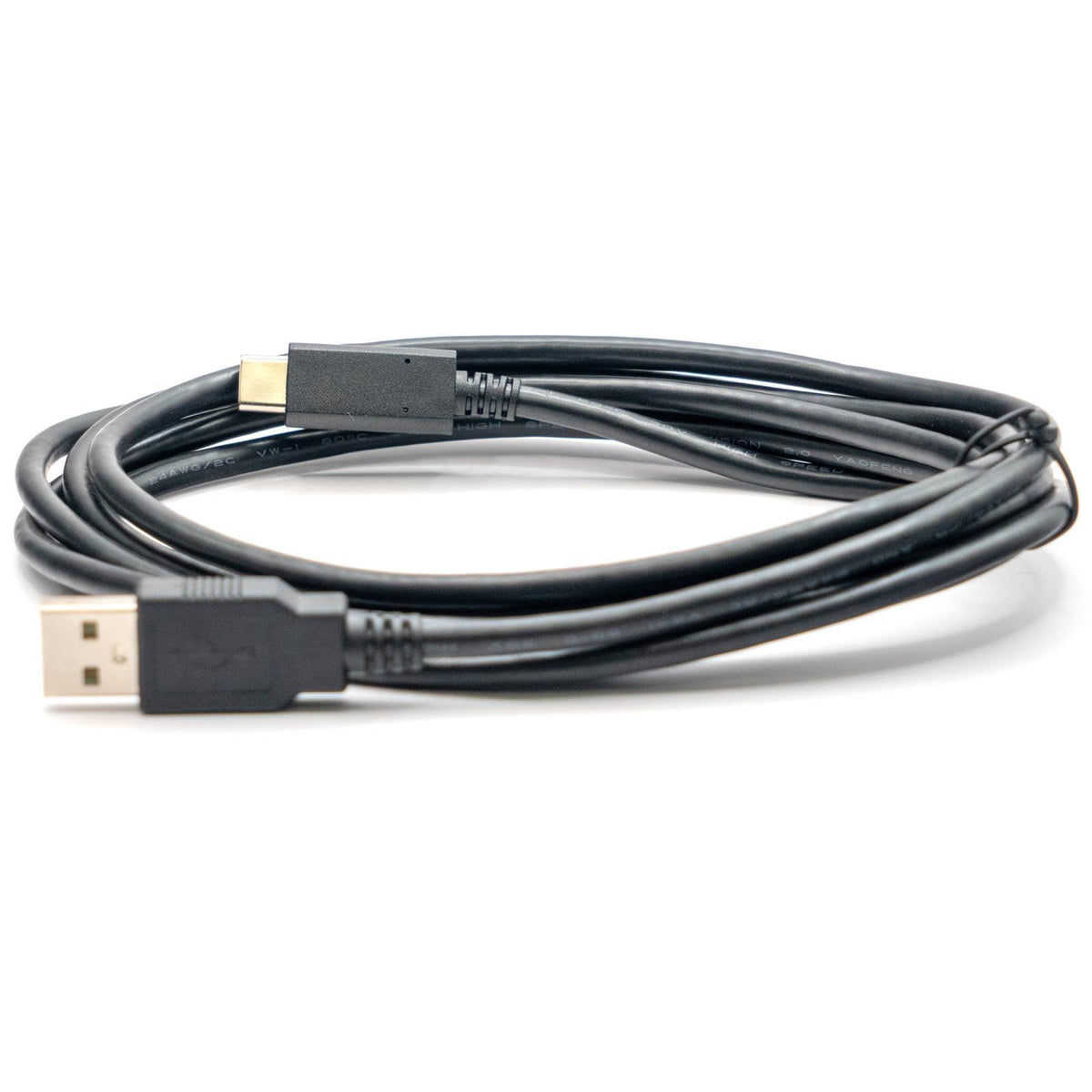

 USB-C Connection Cable

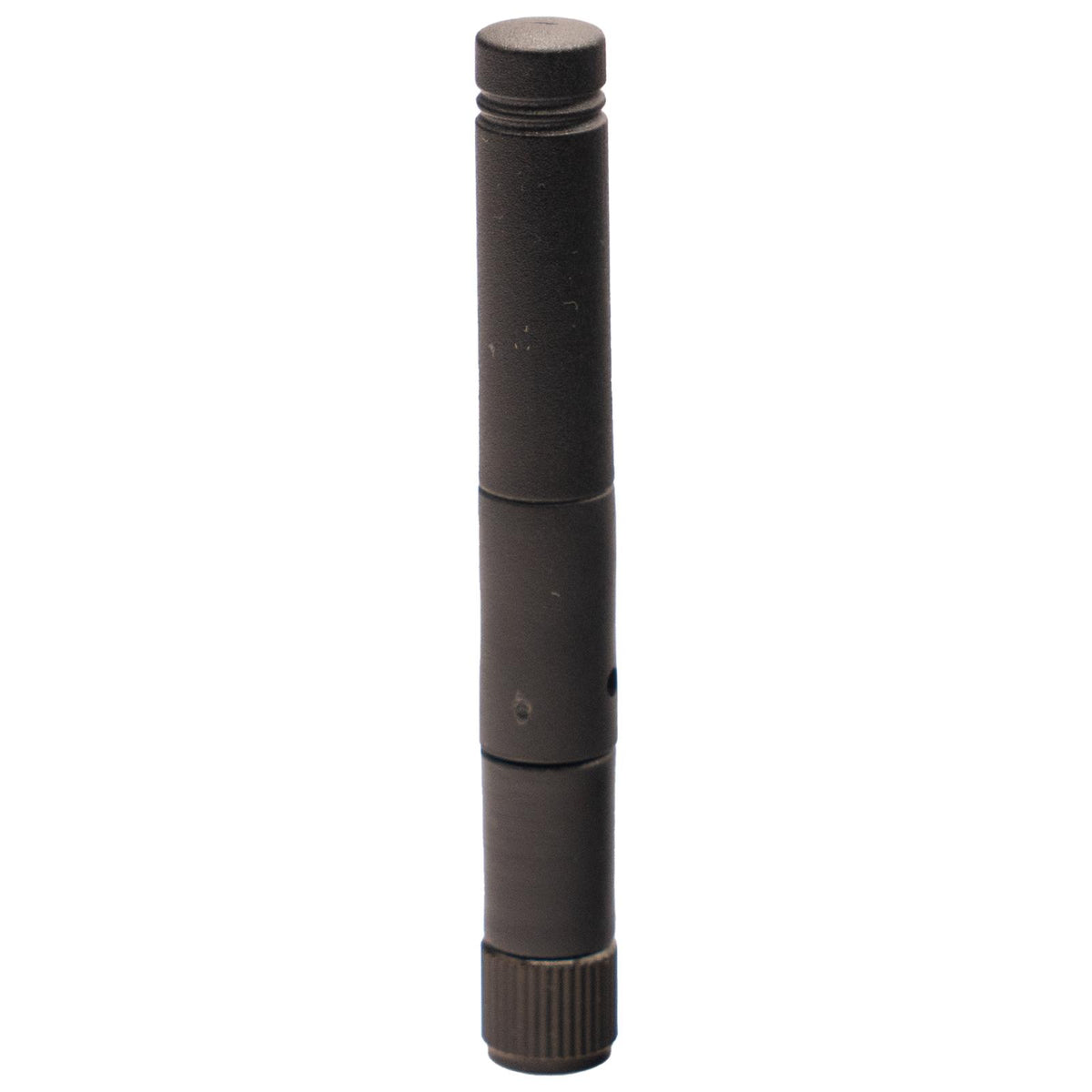

 Wi-Fi Antenna

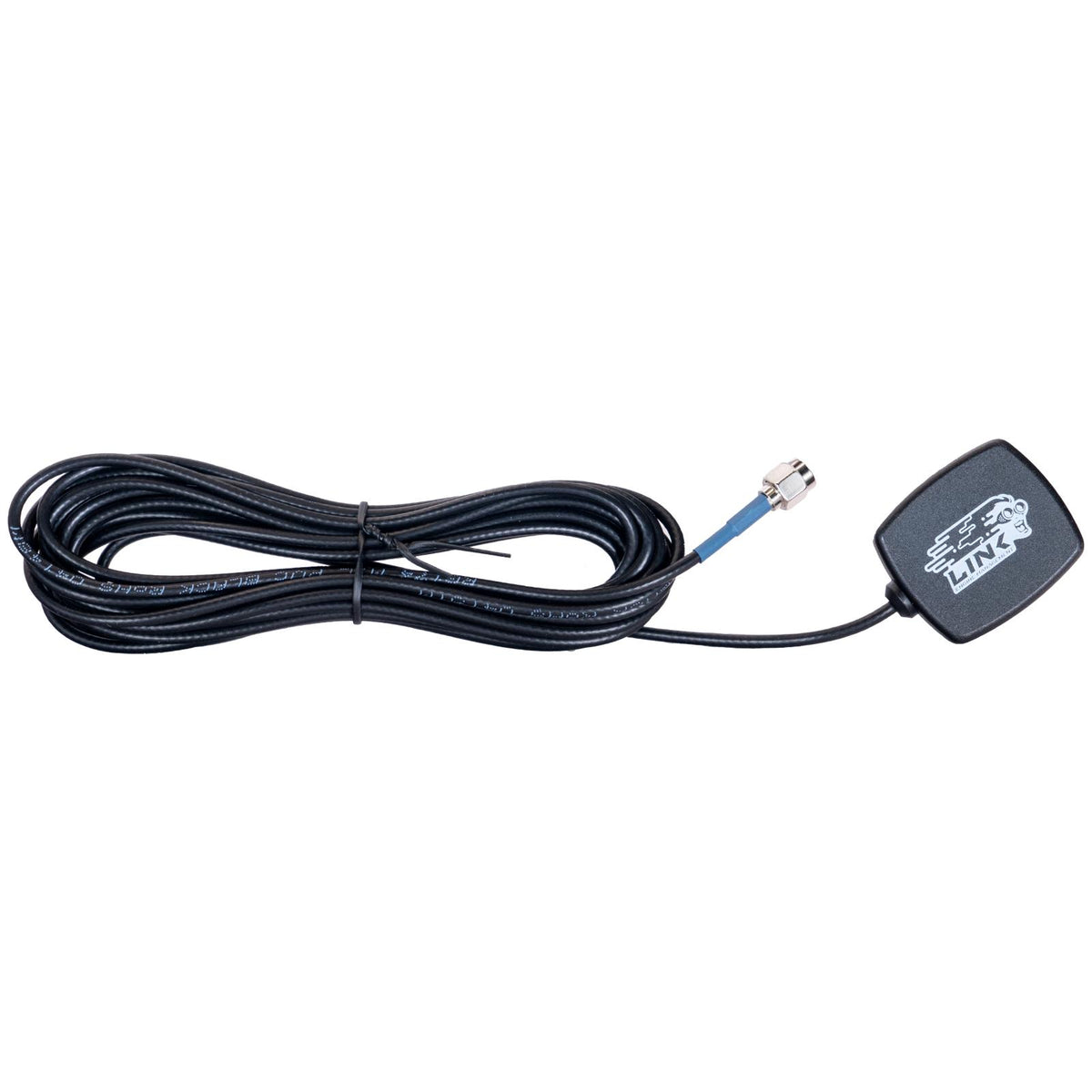

 GPS Antenna

 USB-C and SMA Dust Covers

 QuickStart Guide (A5)

 Installer I/0 Table (A3)

Link Stickers

Software

G5 PCLink 1024

PC Link is our tried and tested FREE software package that is used to connect to, program, and view log files.

Renowned in the tuning community for it's easy-of-use, the G5 Voodoo platform will continue to use PC Link, albeit with new and improved functions to accommodate our new range of ECU's.

Given that the G5 Voodoo range will offer new features and accessibility to additional pins, you will need to ensure that you are running the latest version of the software.
