“The Most Advanced Lexus Drift Machine On The Planet”

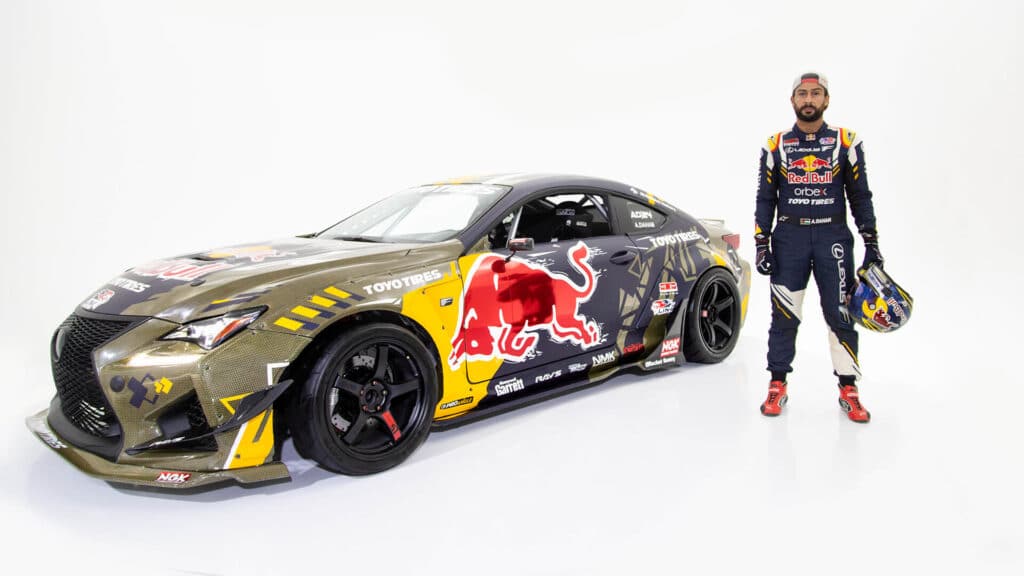

UAE Drift Legend Ahmad Daham & his partners have just revealed this incredible 1200 horsepower RC-F based Drift Machine to compete around the world.

The purpose behind this build went beyond just raw power and speed. Daham’s RC F Carbon Kevlar, which he hopes to be campaigning in drift championships around the world, involves an obsessive attention to detail in the chassis, powertrain, and presentation that elevates the craft of its execution to mirror Lexus levels of takumi car-building.

The RC F-based weapon weighs just 1250kg/2755lb – covered in a bespoke featherweight Carbon Kevlar body shell.

“Building a car like this took so much effort not only from me, but from the team and partners to help me achieve my goals with this machine. I would like to thank every single partner for their continuous support and labor done to complete this project” says Ahmad.

This second car has many refinements over Ahmad’s first RC F drift car, although both cars make great use of the Link Thunder ECU. The first car was conceived and built in a record 70 days and stands as testament to the builder’s capability and resourcefulness. This one has a few more detailed specifications.

Two themes are central to the latest RC F Carbon Kevlar drift car – more power and less weight.

The weight loss over the standard RCF was achieved by thoroughly rethinking the stripped platform and then fabricating this race vehicle using materials focused on weight reduction. In addition, mass was also more optimally positioned in the chassis to support car’s drift mission. The locally fabricated “Python Garage” fabricated a super-light Carbon-Kevlar body panels helping the whole car shave more than 500kg. of the showroom RC F as part of the mission to achieve a weight that is competitive amongst other drifters

The power part of the equation has been provided by inserting a heavily tuned – 1,200hp is four times the standard output – version of the tuner-favorite 2JZ straight-six single turbo motor in place of the standard car’s naturally aspirated V8.

The iron-blocked 2JZ motor, which drives through a four-speed Samsonas sequential gearbox and twin-plate Competition Clutch, was chosen due to the wide variety of readily available tuning parts.

The 2JZ’s legendary robustness, compact size and familiar architecture have made it a proven source of motivation for high output drift efforts around the globe. Ahmad’s years of familiarity with this engine also helps make it easier to tune, modify and adjust quickly at drift events.

Key tuning components include a Garrett GTX3584 turbocharger, GSC Power Division valve train and a triple-pump fuel system from Radium Engineering.

A Titan Motorsport dry sump has been added to improve reliability and a Nitrous Express 200hp kit bolted on to help spool up the turbo and cool the intake charge.

Since keeping a close eye on all these systems is critical to drift success, Daham has included his preferred equipment from New Zealand’s Link company – a Thunder ECU and MXS Strada dash.

With the power and the weight where Daham wanted them, he turned his attention to the chassis tuning to make the most of the changes.

The most significant alterations include swapping the rear differential for a Winters unit – purely to enable swift trackside ratio changes. And the replacement of the brakes with Wilwood racing calipers, to reduce unsprung mass – which enables faster changes of direction.

FIGs Engineering was tapped to make the angle kit, a drift car essential. Three-way BC racing coilovers are used to allow adjustments to both rebound and compression damping to allow Daham to perfect his set up.

Lexus RC F Carbon Kevlar Specs

Numbers:
Max Power: 1200hp, Rev Limit: 9,000rpm, Weight: 1250kg/2755lb, Distribution: 47/53%

Chassis:
Lexus RCF ,Formula Drift-spec cage, fully stitch-welded chassis, custom front/rear crash bars

Engine:
NMK performance 3.0 2JZ vvti engine, 10:1 compression, CP pistons, BC rods, BC lightweight Crankshaft, BC 272 Race spec camshafts, BC springs, retainers and valves, stage 4 CNC head, Titan 5 stage dry sump kit, Hypertune Big port Intake manifold, Hypertune custom anodized cam covers, HGK engine mount, Nitrous Express 200hp Kit, custom 3.5” oval exhaust system

Wheels/Tyres:
Rays 57CR 18×9.5inch (front) 19×10.5inch (rear), 255/35R18 (front) 285/35R19 (rear) Toyo R888RD

Exterior:
Complete carbon-Kevlar Rocket Bunny aero body kit, carbon Kevlar roof, carbon-Kevlar doors,

Interior:
Carbon Kevlar Sparco seats, Schroth 6-point seat belts, Sparco steering wheel, part-flocked carbon fibre dash,Tilton adjustable pedal assembly

Fuel system:
Radium engineering Fuel cell surge tank, Radium engineering 40L fuel cell, Radium engineering fuel pressure regulator, Radium engineering fuel filter, 1700cc Injector Dynamics

Forced Induction:
Garrett GTX3584RS, Tial 60mm wastegate

Drivetrain:
Samsonas 4-speed sequential transmission, Competiton Clutch 215 victory series clutch, Winters Performance quick-change differential, carbon fiber driveshaft & stage 5 axles

Electronics:
Link Thunder ecu, Link AIM dash, Link fuel pressure and temperature sensor, Link oil pressure and temp sensor, Link EGT, Link wideband sensor, Link 4 bar map sensor, Link 4 port boost solenoid

Cooling:
HGK custom radiator with Carbon Fiber shroud, Spal dual Fans, Dual Mocal 25 row oil coolers, Garrett 3.5” intercooler

Steering/Suspension/Brakes:
BC racing 2 way custom coilovers, figs engineering front and rear knuckles and arms,Nitron 3-way adjustable front & rear coilovers,Wilwood 6-piston calipers & Wilwood drilled rotors (front), Wilwood 4-piston calipers & Wilwood drilled rotors (rear), ASD hydraulic handbrake
