Which ECU for me?
Which ECU for me?
Link has two complementary engine management platforms to give you the ultimate flexibility to suit your performance goals and budget.

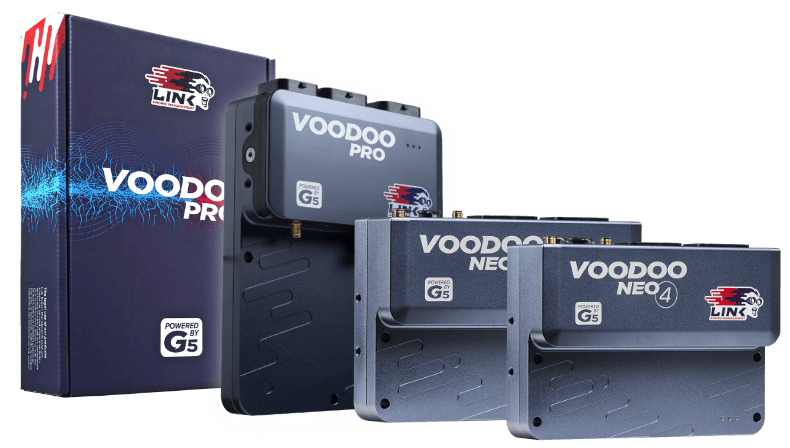

G5 Voodoo
G5 Voodoo is Link's premium platform for advanced engines that require direct injection, high injector, input or output counts, or advanced processing and communication.
We recommend G5 if you need direct injection*, have over 8 injectors, are after extra inputs and outputs, or for new features like GPS and Wi-Fi.
*Direct injection requires an external OEM or aftermarket driver box, such as Link's DI Driver-4
G4X
Link's race-proven power house, G4X has a very modern architecture that is great value, easy to install and highly reliable.
G4X is still the platform we recommend for a wide range of applications. It is the go-to solution for all the engines and builds it currently supports, and will be manufactured and fully backed for years to come.
| G5 Voodoo | G4X ECU Range | ||||||
|---|---|---|---|---|---|---|---|

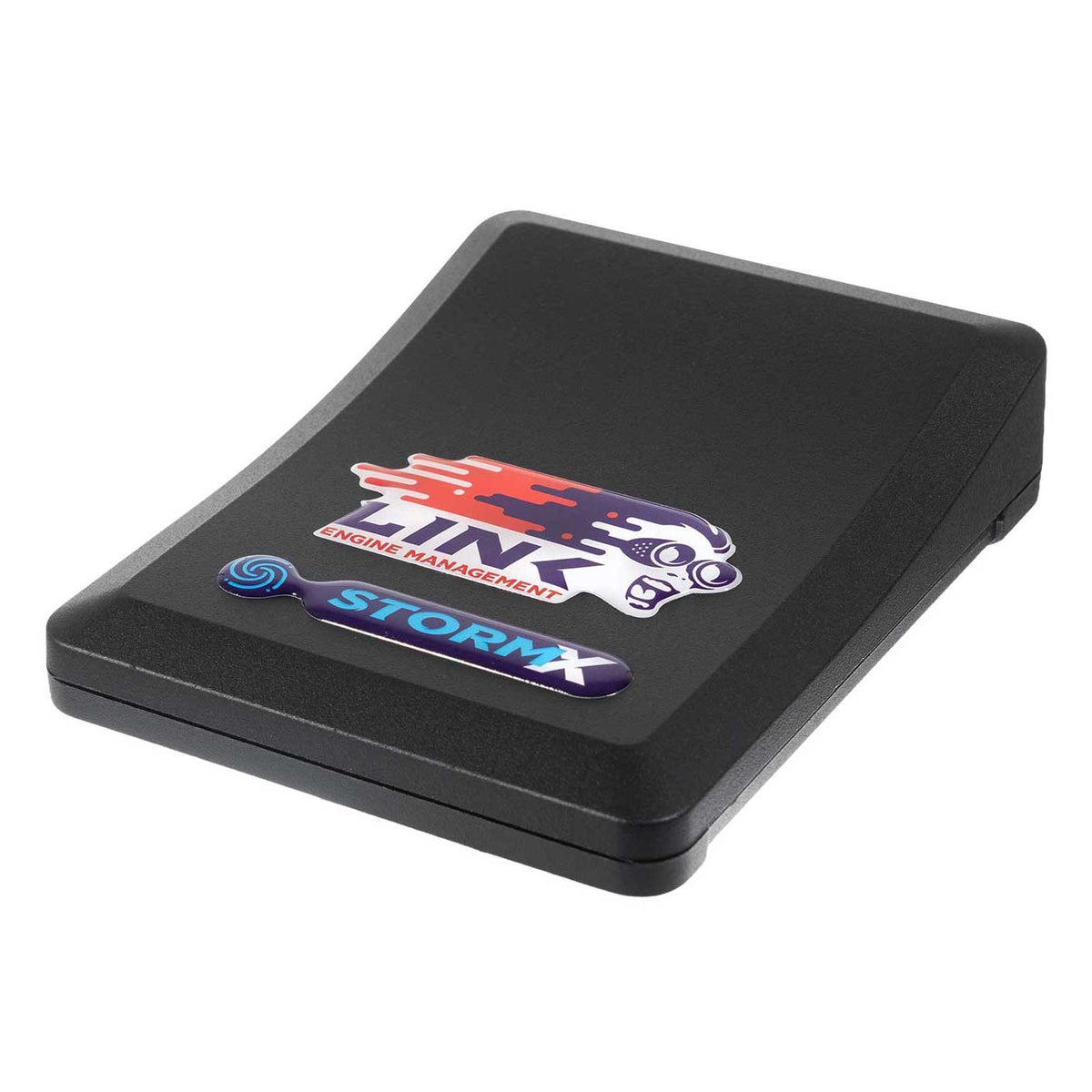

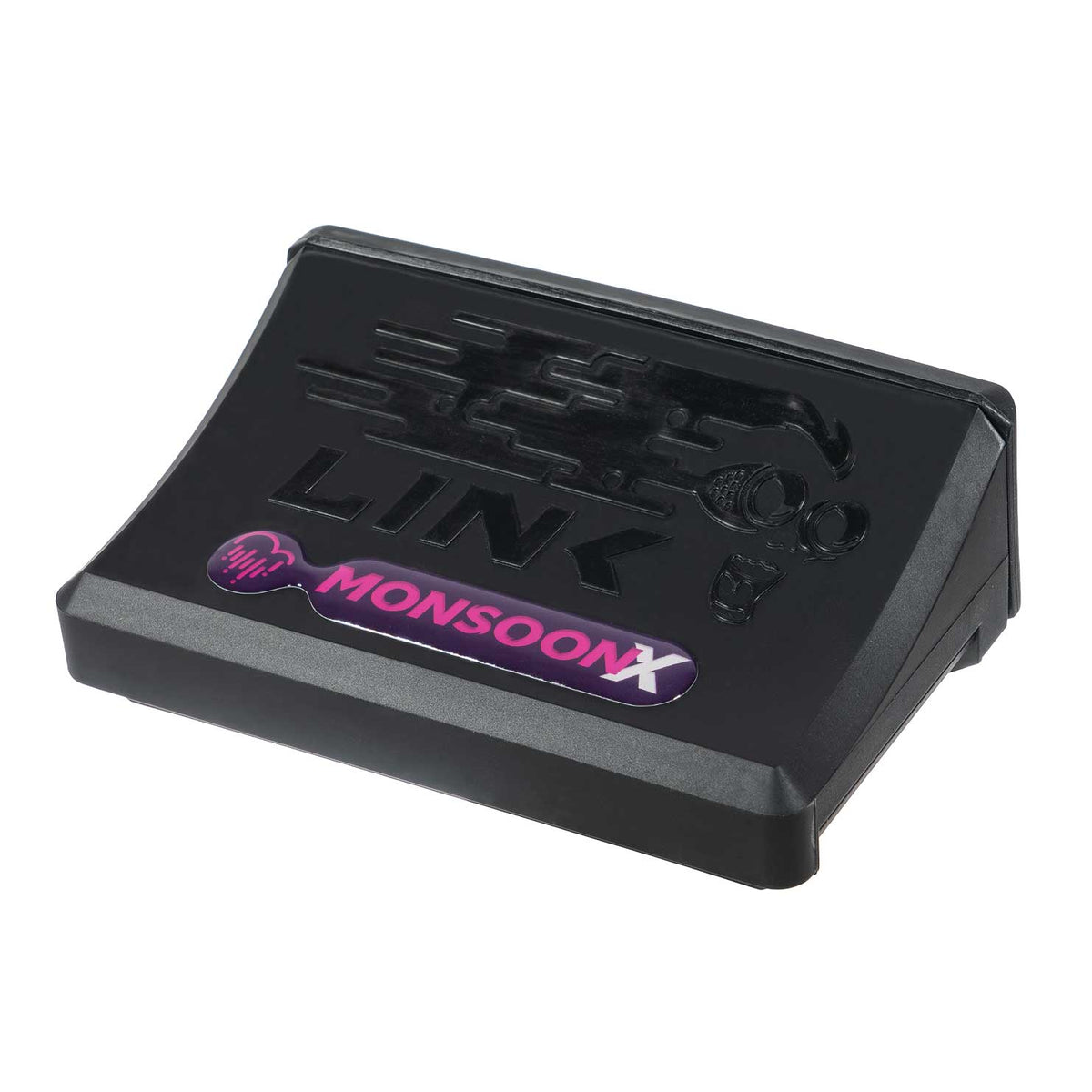

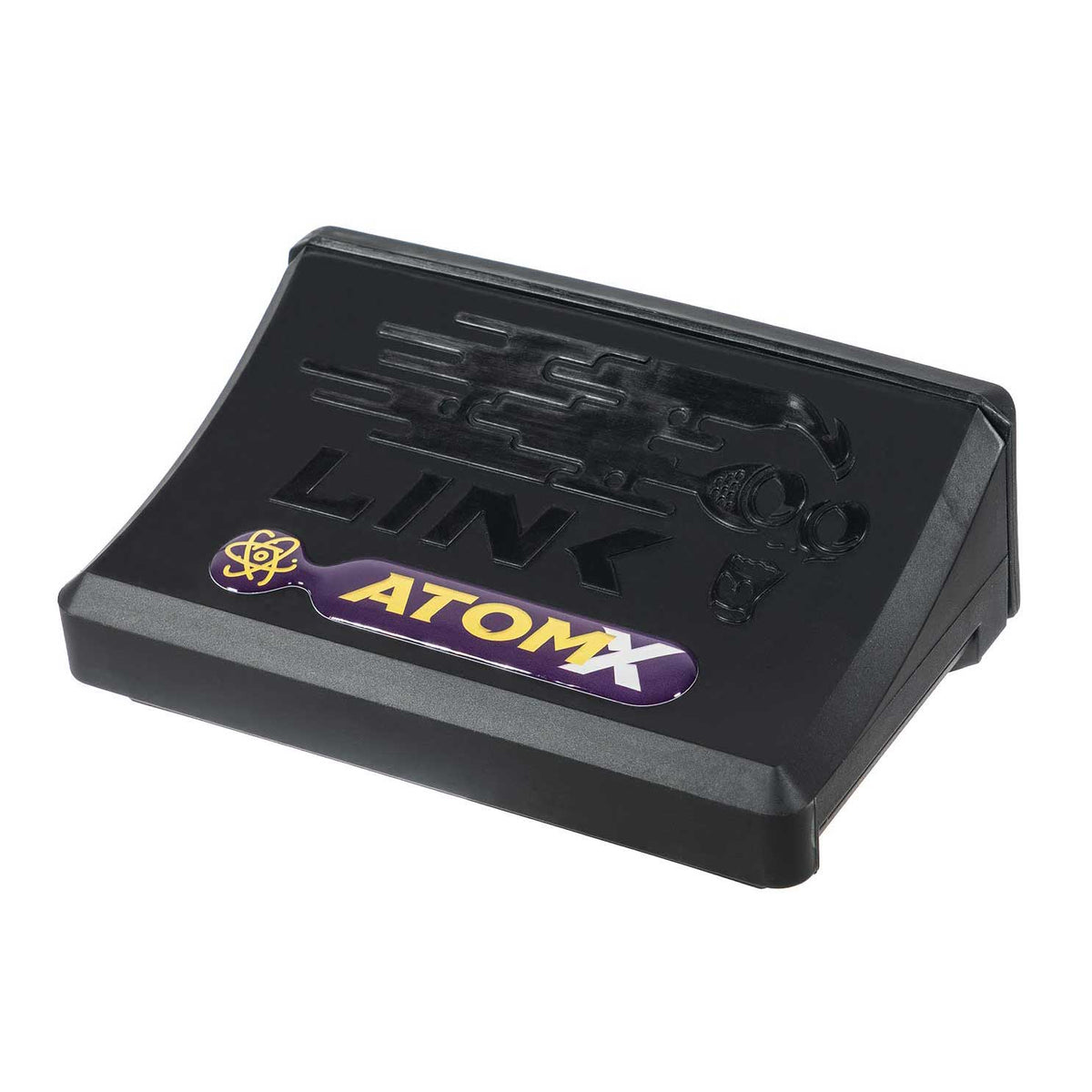

| OUTPUTS | G5 Voodoo Pro | AtomX | MonsoonX | StormX | XtremeX | FuryX | Plug-inX |
| Injection Drives | 16‡ | 4 | 4 | 8 | 8 | 8 | 8† |
| Run DI via a Driver Box | |||||||
| Ignition Drives | 12‡ | 4 | 4 | 8 | 8 | 6 | 8† |
| Auxiliary Outputs | 14-30# | 4 | 6 | 8-16# | 10-18# | 10-16# | 16† |
| +5V Sensor Power Supply | |||||||
| INPUTS | G5 Voodoo Pro | AtomX | MonsoonX | StormX | XtremeX | FuryX | Plug-inX |
|---|---|---|---|---|---|---|---|
| Digital Inputs | 10 | 2 | 4 | 8 | 8/10* | 8/10* | 11† |
| Temperature Inputs | 4 | 2 | 2 | 3 | 4 | 4 | 4† |
| Analogue Inputs | 14 | 3 | 4 | 8 | 11 | 9 | 12† |
| Trigger Inputs | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Knock Inputs | 2 Channel | 1 Channel | 1 Channel | 2 Channel | 2 Channel | 2 Channel | 2 Channel† |
† Check specific pinout for number of I/Os exposed
* 2 inputs required when using 2nd CAN Bus
‡ G5 Voodoo Pro has 12 inj, 8 ign, plus 4 multipurpose (inj, ing, aux) drives (24 total)
# Number of Auxiliaries depends on number of unused Inj/Ign drives available
| COMMUNICATIONS | G5 Voodoo Pro | AtomX | MonsoonX | StormX | XtremeX | FuryX | Plug-inX |
|---|---|---|---|---|---|---|---|
| CAN Bus | 2 Channel | 1 Channel | 1 Channel | 1 Channel | 1/2 Channel* | 1/2 Channel* | 2 Channel |
| Wi-Fi | |||||||
| USB Tuning Connection | USB-C | USB-MiniB | USB-MiniB | USB-AMP6 | USB-AMP6 | USB-AMP6 | USB-AMP6 |
| DATA LOGGING | G5 Voodoo Pro | AtomX | MonsoonX | StormX | XtremeX | FuryX | Plug-inX |
|---|---|---|---|---|---|---|---|
| Onboard Logging Memory | 512MB | 512MB | 512MB | 512MB | 512MB | 512MB | 512MB |
| Maximum Total Logging Rate | 100kHz | 100kHz | 100kHz | 100kHz | 100kHz | 100kHz | 100kHz |
| Logging Channels | 250 | 250 | 250 | 250 | 250 | 250 | 250 |
| FEATURES | G5 Voodoo Pro | AtomX | MonsoonX | StormX | XtremeX | FuryX | Plug-inX |
|---|---|---|---|---|---|---|---|
| Global Positioning System (GPS) | |||||||
| E-throttle Control | Dual | Single | Single | Single | |||
| 3 Axis Accelerometer | |||||||
| CAN Keypad Control | |||||||
| VVT Control | |||||||
| Open or Closed Loop Boost Control | Both | Open | Both | Both | Both | Both | Both |
| Lambda Sensor Control | Dual | Single | |||||
| Flex Fuel | |||||||
| Trigger Oscilloscope | |||||||
| Closed Loop Lambda Auto Mode | |||||||
| Dual Closed Loop Lambda | |||||||
| CAN Lock |
| MOTORSPORT | G5 Voodoo Pro | AtomX | MonsoonX | StormX | XtremeX | FuryX | Plug-inX |
|---|---|---|---|---|---|---|---|
| Nitrous Control | |||||||
| Launch Control | |||||||
| Anti-lag | |||||||
| Cruise Control | |||||||
| Traction Control | |||||||
| Race Timer and Power Management | |||||||
| Gear Shift Control | Limited | ||||||
| Paddle Shift Control |
